CNC Horizontal Surface Grinding Machine With Rotary Round Table HDMK380 CNC Grinding Machine
Product Details
| Brand Name: | HD | Model Number: | HDMK380 |
|---|---|---|---|
| Key Word: | Horizonta Grinding Machine | ||
| Highlight |
CNC Horizontal Surface Grinding Machine,HDMK380 CNC Horizontal Surface Grinding Machine,CNC Grinding Machine |
||
Product Description
Product Description:

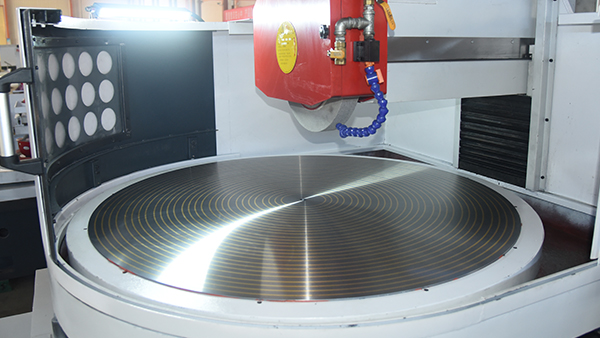

HDMK380 Horizontal rotary round table surface grinding machine
CNC horizontal grinding machine is a kind of high precision metal processing equipment, the spindle is placed horizontally suitable for processing large workpieces. Using digital control system, programmable automatic operation. With the characteristics of high rigidity and high precision, it can complete the micron grinding of complex shapes such as plane and cylindrical surface. Widely used in automotive, aerospace and other fields, is an indispensable important equipment for modern manufacturing industry.
Product Features:
Application: This series of products are suitable for circular saw blades, auto parts, measuring tools, bearings, mold frames, magnetic materials, hydraulic parts, special ceramics, refractory materials, pump valves and other industries need to be grinding processes.
|
Parameter
|
Unit
|
HDMK340
|
HDMK350
|
HDMK380
|
HDMK3100
|
HDMK3125
|
|
Worktable diameter
|
mm
|
400
|
500
|
800
|
1000
|
1250
|
|
Maximum size of grinding workpiece
(diameter × height)
|
mm
|
400×120
|
500×200
|
800×320
|
1000×320
|
1250×320
|
|
Workbench maximum tilt angle
|
|
±3
|
±3
|
±3
|
±1.5
|
±1.5
|
|
Workbench rotation speed
|
r/min
|
60－120
|
60－120
|
12-70
|
25－45
|
25－45
|
|
Table extension units verticalreciprocating speed
|
m/min
|
1.5-3
|
1.5-3
|
1.5-3
|
0.5-1.1
|
0.5-1.1
|
|
Vertical reciprocating strokeextension travel
|
mm
|
340
|
340
|
470
|
570
|
695
|
|

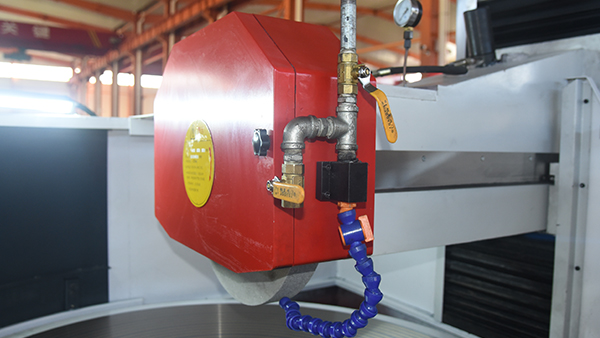

Grinding head spindle speed
|
r/min
|
1450
|
1450
|
1450
|
1450
|
1450
|
|
Maximum vertical movement of grinding head
|
mm
|
150
|
250
|
350
|
400
|
400
|
|
Grinding head vertical speed up and down
|
mm/min
|
300
|
300
|
300
|
300
|
300
|
|
Vertical automatic feed grindinghead
|
mm
|
0.001-0.02
|
0.001-0.02
|
0.001-3
|
0.001-0.02
|
0.001-0.02
|
|
Electronic hand wheel feed rate
|
|
×1×10×100
|
||||
|
Sand tile size
(outer dia. × wideth× inner dia. )
|
mm
|
300×40×127
|
400×40×127
|
450×50×203
|
450×50×203
|
450×50×203
|
|
Total motor power
|
kw
|
11
|
12
|
22
|
26
|
26
|
|
Machine tool dimensions
|
mm
|
1965×1000×1950
|
2350×1250×1950
|
2900×2000×2450
|
3090×2000×2420
|
3090×2000×2420
|
|
Machine weight
|
T
|
3000
|
3900
|
7500
|
11000
|
11500
|
|
This form is for reference only. Consult the online sales manager for details
|
||||||
Industry application:
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
