Heavy Grinding Machine With Vertical Spindle HDM4125 Rotary Round Table Vertical Grinding Machine

Product Description:

Heavy Grinding Machine With Vertical Spindle HDM4125 Rotary Round Table Vertical Grinding Machine

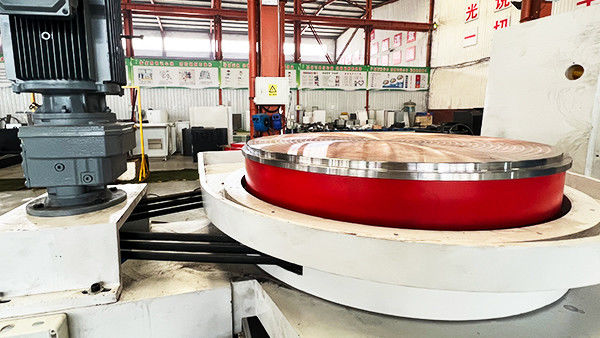

The layout of the machine tool is as follows: the worktable adopts a circular electromagnetic worktable to carry the workpiece for rotation. The electromagnetic worktable is installed on the saddle. The inverter controls the reduction motor to drive the worktable to rotate. The saddle moves back and forth along the bed rails to facilitate loading and unloading of workpieces. The column and the bed are connected by a three-point adjustment mechanism to adjust the grinding head angle. The overall disc-type workpiece surface can be ground into a concave or convex shape. The grinding head moves up and down along the column guide rail, and the AC servo motor is connected to the reduction mechanism to drive the ball screw to rotate for vertical feeding. The grinding head spindle is driven by a waterproof built-in special high-power motor with strong cutting ability. The grinding wheel adopts a combination of multiple sand tiles evenly distributed around the circumference or a cylindrical grinding wheel to grind the workpiece. The dresser on the grinding head can dress the grinding wheel/sand tile. The grinding head spindle bearing adopts a high-precision angular contact bearing with high precision, high performance and stability. The machine tool castings are made of HT300 high-quality cast iron, resin sand casting, annealing and stress relief treatment, stable structure and good processability.

Product Features:

This machine has the characteristics of strong rigidity and high stability. It can grind large and discontinuous surfaces on the end faces of round or rectangular workpieces, and has the obvious characteristics of high efficiency. The grinding materials can include various carbon steels, alloy steels, refractory bricks, ceramics, crystals, stones and glass. The grinding range is a plane within φ1000×400mm.
This machine is widely used in various industrial fields such as refractory materials, air conditioner cylinders, magnetic materials, automobiles, tractors, bearings, valves, saw blades and glass.

Product Details:

Control system: The automatic PLC+HMI control mode can be automatic or manual Realize automatic rough grinding, fine grinding, light grinding, no programming, one person can operate multiple sets

Electrical components: Dust-proof independent back-mounted electric control box has good heat dissipation performance and easy maintenance Using Chint, Siemens, Delixi, Schneider and other famous brand components, quality, reliable performance

Grinding head spindle: The main shaft of the grinding head is directly driven by a waterproof built-in special high-power motor, and the cutting ability is strong. The grinding wheel is made of multiple pieces of sand tile circumference uniform cloth or cylindrical sand wheel

Machine tool guide rail: The guide rail of the machine tool adopts manual scraping technology, which has high precision and good wear resistance

Table move left and right:

Bed guide rail adopts double flat rail structure and increased guide rail. Manual scraping technology
has high precision, stable operation and maximum avoiding water on guide rail

Integrated casting bed: Meehanna casting process, special double wall belt reinforcement, HT250 solid casting, bed casting, simple and reliable structure, long life

Electromagnetic workbench: The electromagnetic chuck is more than 50 years of production experience made by the company. It has reasonable structure, uniform magnetic force, adjustable magnetic force and automatic demagnetization

Guide lubrication system: The machine tool is equipped with two electronic oil pumps, which fill oil to each guide rail of the machine tool at regular points for lubrication, instead of manual hand pulling oil pump, to ensure that each guide rail of the machine tool is always lubricated to avoid rail wear and scratches

Product Paramenters:

Parameter	Unit	HDM4125	HDM4160	HDM4180	HDM4200	HDM4250
Maximum size of grinding workpiece (diameter × height)	mm	1250×400	1600×400	1800×400	2000×400	2500×400
Electromagnetic worktable suction range		80-120N/ cm2
Sand tile size (Thickness × width × length)	mm	80×25×150	90×35×150	90×35×150	90×35×150	90×35×150
Worktable speed	r/min	10-20	5-16	5-16	15	10
Worktable rotating motor power	kw	3.7	5.5	5.5	7.5	7.5
Grinding head spindle speed	r/min	740	585	585	585	585
Grinding head motor power	kw	45	75	75	90	110
Grinding head lift AC servo		11Nm	15Nm	15Nm	16Nm	16Nm
vertical feed of grinding head	mm	0.001-0.03	0.001-0.03	0.001-0.03	0.001-0.03	0.001-0.03
Grinding head vertical feed rate		×1×10×100	×1×10×100	×1×10×100	×1×10×100	×1×10×100
Total machine power	kw	50	84	118	100	127
Machine weight	T	9	25	29.5	28	36
Machine tool dimensions	mm	3010×1500×2230	4510×2400×3271	4760×2126×3688	4965×2212×3130	6500×3200×3600

Industry application:

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
