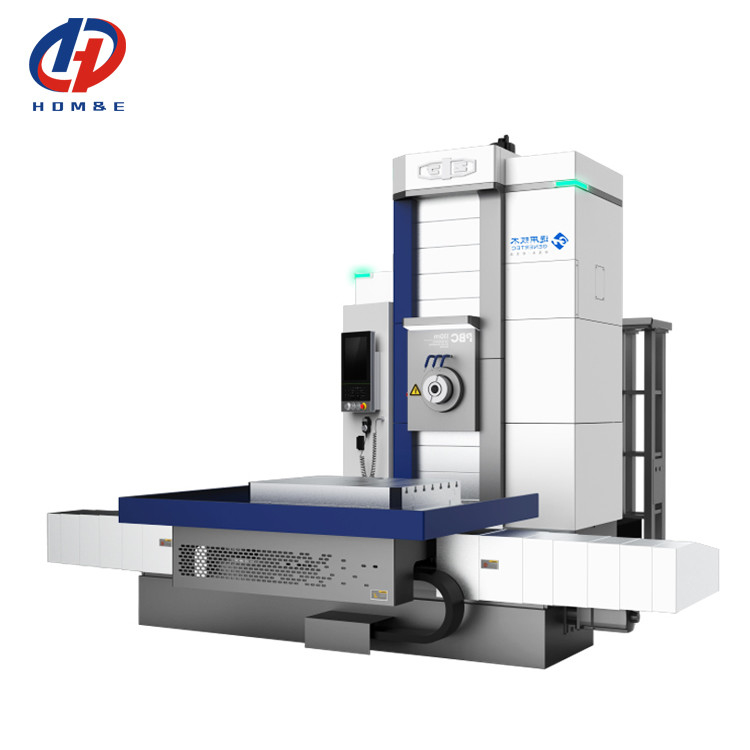

SMTCL PBC130RA Heavy Duty Milling Boring Drilling Machine 5 Axis Horizontal CNC Boring Milling Machines
Product Details
| Brand Name: | SMTCL | Model Number: | PBC130RA |
|---|---|---|---|
| CNC Or Not: | CNC | Key Word: | Horizontal CNC Milling Boring Machine |
| Spindle Speed: | 10-1500 R/min | Workbench Dimension: | 2000×2000 Mm |
| Maximum Load Of Workbench: | 10/15/20/25/30 T | Transverse Travel X Of Workbench: | 2000/3000/4000 Mm |
| Vertical Travel Y Of Headstock: | 2500/3000 Mm | Longitudinal TravelZ Of Column: | 2000/2500 Mm |
| Ram Travel V: | 1000 Mm | Spindle Travel W: | 900 Mm |
| Highlight |
SMTCL Horizontal Boring Milling Machine,Heavy Duty Horizontal Boring Milling Machine,5 Axis Horizontal Boring Milling Machine |
||
Product Description
Product Description:
Product Features:
1,CNC horizontal milling and boring machine series is in the introduction of German advanced technology, according to market demand, combined with the mature structure of our company's similar machine tools and the development of machine tools.
2,The use of modular design, that is, through the standard interface, modules can be freely combined in a variety of ways to form product variants to meet the different needs of the market. The machine is mainly milling and boring, and can also carry out drilling, reaming, counterfacing, turning end face and turning round and other processes.
3,Especially suitable for processing porous system, hole distance requirements more accurate box parts, the machine can realize the automatic positioning of coordinates, but also can realize X, Y, Z, W, B any four coordinate axis linkage, can be used for arc interpolation contour and three-dimensional surface processing.
4,According to user requirements, can be equipped with vertical CNC turntable, right Angle milling accessories to expand the range of machine processing technology.
Product Details:
|
ltems
|
Unit
|
PBC 130RA
|
PBC 160RA
|
|
|
Workbench dimension
|
mm
|
10T:2000×2000；15T:2000×2000；20T:2000×2500；25T:2000×2000；30T:2500×2000；
|
||
|
Maximum load of workbench
|
T
|
10/15/20/25/30
|
||
|
Spindle diameter
|
mm
|
φ130
|
φ160
|
|
|
Section area of ram
|
mm
|
450×450
|
||
|
Spindle taper hole
|
|
IS0 7:24 N0.50
|
IS0 7:24 N0.50
|
|
|
Tool shank specification
|
|
JT50/BT50
|
JT50/BT50
|
|
|
Spindle speed
|
r/min
|
10-1500
|
10-1000
|
|
|
Power of main motor
|
kW
|
41/49
|
41/49
|
|
|
Maximum torque of spindle
|
Nm
|
1700/2100
|
2900/3500
|
|
|
Transverse travel X of workbench
|
mm
|
10T:2000/3000/3500/4000；15T:2000/3000/4000
20T/25T/30T:3500/4000
|
||
|
Vertical travel Y of headstock
|
mm
|
2500/3000
|
||
|
Longitudinal travelZ of column
|
mm
|
2000/2500
|
||
|
Ram travel V
|
mm
|
1000
|
||
|
Spindle travel W
|
mm
|
900
|
||
|
Workbench rotation B
|
°
|
0.001×360
|
||
|
Feeding speed
|
X,Y,Z
|
mm/min
|
1-6000
|
|
|
V,W
|
mm/min
|
1-3000
|
||
|
B
|
r/min
|
0-1
|
||
|
Rapid speed
|
X,Y,Z
|
m/min
|
6
|
|
|
V,W
|
m/min
|
3
|
||
|
B
|
r/min
|
1
|
||
|
positioning accuracy
|
X,Y,Z
|
mm
|
0.02/1000,
0.012/1000(grating scale)
|
|
|
V
|
mm
|
0.025/0.015(grating scale)
|
||
|
W
|
mm
|
0.025/0.012 (magnetic scale)
|
||
|
B
|
''
|
10/4X90°；6
|
||
|
repositioning accuracy
|
X,Y,Z
|
mm
|
0.012
|
|
|
V
|
mm
|
0.012
|
||
|
W
|
mm
|
0.012
|
||
|
B
|
''
|
6
|
||
|
CNC system
|
|
|
SIEMENS 828D
|
SIEMENS 828D
|
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
