Product Description:
Product Features:
1,CNC horizontal milling and boring machine series is in the introduction of German advanced technology, according to market demand, combined with the mature structure of our company's similar machine tools and the development of machine tools.
2,The use of modular design, that is, through the standard interface, modules can be freely combined in a variety of ways to form product variants to meet the different needs of the market. The machine is mainly milling and boring, and can also carry out drilling, reaming, counterfacing, turning end face and turning round and other processes.
3,Especially suitable for processing porous system, hole distance requirements more accurate box parts, the machine can realize the automatic positioning of coordinates, but also can realize X, Y, Z, W, B any four coordinate axis linkage, can be used for arc interpolation contour and three-dimensional surface processing.
4,According to user requirements, can be equipped with vertical CNC turntable, right Angle milling accessories to expand the range of machine processing technology.
Product Details:
|
ltems
|
Unit
|
TK(H) 6516
|
TK(H)P 6516
|
|
|
Workbench dimension
|
mm
|

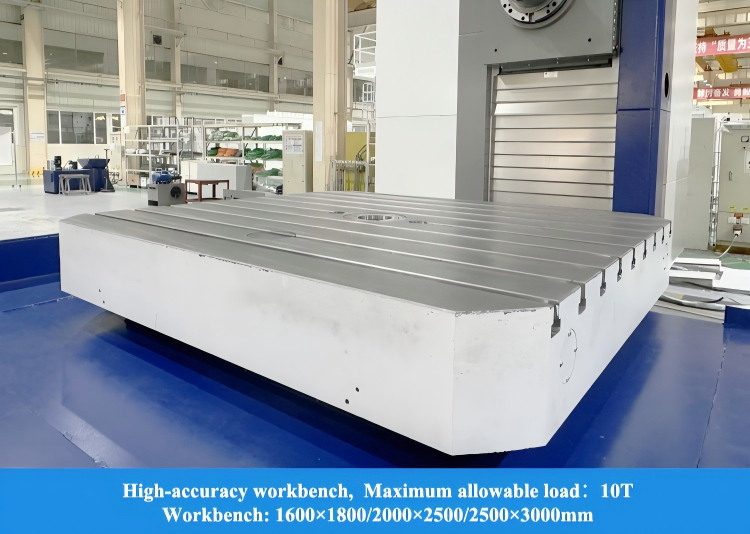

1600×1800/ A:2000×2500/B:2500×3000
|
||
|
Maximum load of workbench
|
T
|
10/A:20/B:30
|
||
|
Spindle diameter
|
mm
|

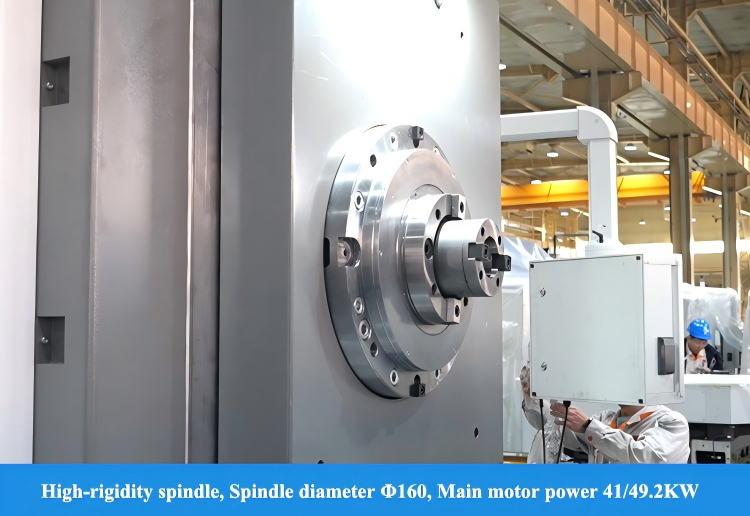

φ160
|
||
|
Facing head diameter
|
mm
|
-
|
φ900
|
|
|
Spindle taper hole
|
|
IS0 7:24 N0.50
|
||
|
Tool shank specification
|
|
JT50/BT50
|
||
|
Spindle speed
|
r/min
|
10-1500
|
||
|
Facing head speed
|
r/min
|
-
|
10-100
|
|
|
Power of main motor
|
kW
|
41/49.2
|
||
|
Maximum torque of spindle
|
Nm
|
3300/4000
|
||
|
Transverse travel X of workbench
|
mm
|
3000/3500/4000
|
||
|
Vertical travel Y of headstock
|
mm
|
2000/2500/3000
|
||
|
Longitudinal travelZ of column
|
mm
|
2000
|
||
|
Travel W of spindle
|
mm
|
1000
|
||
|
Travel U of facing head slide block
|
mm
|
-
|
330
|
|
|
Workbench rotation B
|
°
|
0.001×360
|
||
|
Distance from spindle center to workbench
|
mm
|
100-2100
|
||
|
Disancefomsindenge towobenchente
|
mm
|
800/ A:1100/B:1350
|
||
|
Feeding speed
|
X,Y,Z
|
mm/min
|
1-6000
|
|
|
W
|
mm/min
|
1-3000
|
||
|
U
|
mm/min
|
-
|
1-3000
|
|
|
B
|
r/min
|
0-1
|
||
|
Rapid speed
|
X,Y,Z
|
m/min
|
9
|
|
|
W
|
m/min
|
3
|
||
|
U
|
m/min
|
-
|
3
|
|
|
B
|
r/min
|
1
|
||
|
positioning accuracy
|
X,Y,Z
|
mm
|
X:0.03/0.022(grating scale)
YZ:0.022/0.018(grating scale)
|
|
|
W
|
mm
|
0.02
|
||
|
U
|
mm
|
-
|
0.032
|
|
|
B
|
''
|
10, 4X90°；6
|
||
|
repositioning accuracy
|
X,Y,Z
|
mm
|
0.013
|
|
|
W
|
mm
|
0.018
|
||
|
U
|
mm
|
-
|
0.018
|
|
|
B
|
''
|
6
|
||
|
CNC system
|
|
|
SIEMENS 828D
|
|
