SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine

SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine

Vertical CNC Lathe Machine

Heavy Duty Vertical CNC Lathe Machine

V6H

Place of Origin:

China

Brand Name:

SMTCL/SYMG

Certification:

ISO certification

Model Number:

V 6H

Contact Us
Request A Quote
SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine
SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine
Product Details
Brand Name:
SMTCL
Model Number:
V 6H
Name:
Vertical Cnc Lathe Machine
Control System:
SIEMENS GSK FANUC (optional)
Max.cutting Diameter:
Φ600
Max.swing Diameter:
Φ700
Max.cutting Height:
650
X Axis Travel:
330
Z Axis Travel:
653
Turret:
Horizontal 8 Positions Servo Turret
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
L/C,T/T,Western Union
Supply Ability
50 sets per month
RELATED PRODUCTS
Good price SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine online Video

SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine

Get Best Price
Good price High Cost Performance T6 CNC Machining Lathe Metal Turning Center SMTCL Vertical CNC Lathe online Video

High Cost Performance T6 CNC Machining Lathe Metal Turning Center SMTCL Vertical CNC Lathe

Get Best Price
Good price T6 Vertical CNC Lathes High Precision CNC Machining Metal Turning Center online Video

T6 Vertical CNC Lathes High Precision CNC Machining Metal Turning Center

Get Best Price
Good price SMTCL Vertical CNC Lathe V4H CNC Vertical Milling Machine Lathe Milling Machine Combo Vertical CNC Lathe online Video

SMTCL Vertical CNC Lathe V4H CNC Vertical Milling Machine Lathe Milling Machine Combo Vertical CNC Lathe

Get Best Price
Contact Us
+8613916455787
sales@huidijd.com
86-021-61195255
Contact Now
Product Description

SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine 0

Product Description

SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine Lathe Machine Vertical
V6H CNC vertical lathe, is tailored for high - efficiency and precision. Its rigid bed, with optimized design, is stable and resistant to vibration, guaranteeing steadfast processing throughout. Equipped with an advanced CNC system, it's easy to operate and highly accurate in positioning, achieving an accuracy of ±0.001mm. The high - speed spindle, paired with a high - torque motor, enables powerful cutting. It's suitable for industries like automotive and bearing manufacturing, meeting the high - efficiency processing needs of rotary parts.
FEATURES AT A GLANCE
1,High rigidity
♦ High rigid bed structure
♦ High rigidity and long span column
♦ High rigid guide rail structure
2,High stability
♦ Symmetrical layout
♦ Large chip discharge Angle bed
3,High precision and high efficiency
♦ High efficiency tool holder
♦ High performance spindle and feed system
4,High cost performance
♦ Various configuration options are available
♦ Efficient and intelligent function
♦ Reasonable configuration of functional components
5,Easy to operate
♦ Optimize feeding height and feeding distance
♦ Moderate height control panel
Product Details
SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine 1

High rigidity body structure

Whole body casting made by resin
sand to reach low gravity,anti-
vibration. Main contact surfaces
all solved by scretch way, can keep
the precision and stability during
heavy duty cutting

SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine 2


Big gap column with high rigidity
Solid, anti-vibration, anti-
transshape, more suitable to
vertical turret and integrated
turret.
SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine 3


High rigidity guideway structure
Two-axis configuration linear roller guide, strong rigidity, with excellent cutting ability, more suitable for configuration of vertical tool holder heavy duty cutting.
SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine 4


Body with large angle chip flush
The base adopts a large chip discharge Angle to eliminate the area prone to chip accumulation, effectively prevent the accumulation of iron chips, smooth chip discharge, and improve the processing stability.
SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine 5


Performanced spindle and feeding system
The spindle adopts high-precision imported bearings, high radial runout accuracy of the cone end axis, especially suitable for processing high hardness, large cutting parts, greatly reducing the vibration and thermal error generated during processing, low failure rate, high efficiency.
SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine 6


High efficiency tool holder
Simple structure, strong rigidity, fast transposition, adjacent tool transposition time 0.25s, farthest end transposition time 0.79s, repeated tool change accuracy ±1.6", to achieve high precision, high efficiency, high reliability processing.
SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine 7


ATC Knife library
In the machining process, the ATC tool library has the tool selection function, which can provide 10/12 tool positions, solve the problem of tool shortage and tool interference, and shorten the tool change time.
SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine 8


Double speed servo motor
Use M code can get low speed&high torque output
or high speed&low torque, satisfy customer’s high
speed and big torque request.

SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine 9

PRODUCT SPECIFICATIONS

Item
Unit
V 6H
Accuracy grade

IT6
Technical parameters
Max.cutting diameter
mm
Φ600
Max.swing diameter
mm
Φ700
Max.cutting height
mm
650
Spindle
Spindle nose and taper

A2-11
Standard chuck size
Inch
15(☆ 18,☆ 21)
Max.spindle speed
r/min
2500
Rated spindle torque
N.m
850
Main motor output power continous/30min
KW
22/30
X/Z axis
X axis rapid traverse
m/min
20
Z axis rapid traverse
m/min
20
X axis travel
mm
330
Z axis travel
mm
653
Turret
Type

Horizontal 8 positions servo turret
Center height
mm
125
Turret rotary repeat positioning
 ''
±1.6
Positioning
X axis
mm
0.008
Z axis
mm
0.008
Repeat positioning
X axis
mm
0.005
Z axis
mm
0.005
Machine weight
kg
7500
Machine dimensions(Without conveyor)
mm
2235×1570×3030

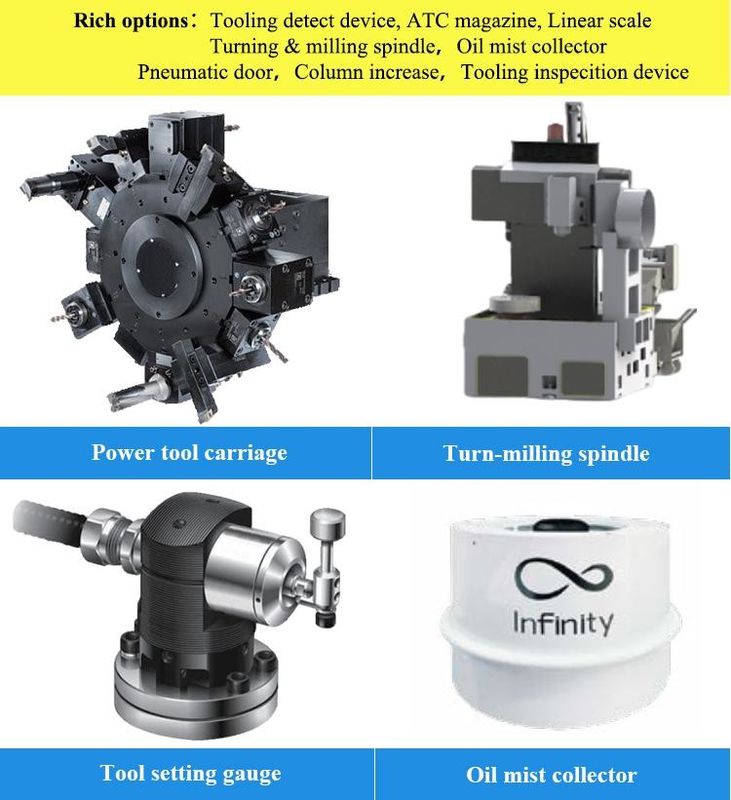

Standard configuration
Selective configuration
10.4" Fanuc System
Power tool rest
Lubrication equipment
Raised column
Hydraulic chuck (with soft claw)& rotary cylinder
Vertical tool rest
Hydraulic equipment
Tool detection
Roller guide
Turning and milling spindle
Safety plate
Test cylinder
Chain chip extractor
Oil mist collector
Tricolour light
Pneumatic door
Side flushing chip
Grating scale
floodlight
Oil-water separation
Foot switch
High pressure water tank
Door lock
ATC Knife library
Water gun
Magnetic scraper chip remover

Tailstage
OUR Service
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us

◆ Top quality sense, customers' requests come first

◆ 30 years + R & D history, the company was founded in 1993

◆ High-tech manufacturer with research anddesign capacity

◆ Stable and mature supplying system

◆ Young active sales and engineers for instant services(24 hours online)

◆ Upgrading on mechanism according to ergonomics and easy maintenance

◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect productio

About Us
SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine 10
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory
SMTCL High-efficiency Vertical CNC Lathe V6H Heavy Duty Vertical Lathe Machine 11
FAQ
Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
