SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis

SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis

Fanuc Controller CNC Turning Machine

HTC40Sm/1500 CNC Turning Machine

C Axis CNC Turning Machine

Place of Origin:

CHINA

Brand Name:

SMTCL

Certification:

CE ISO certification

Model Number:

HTC40Sm/1500

Contact Us
Request A Quote
SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis
SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis
Product Details
Brand Name:
SMTCL
Model Number:
HTC40Sm/1500
CNC Or Not:
CNC
Key Word:
Horizontal Turning Center
Max. Cutting Dia.:
400mm
Max.cutting Length:
1450mm
Max. Swiming Dia.over Bed:
600mm
X Axis Travel:
220mm
Z Axis Travel:
1578mm
Spindle Speed:
3500 R/min
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T, L/C,, Western Union
Supply Ability
50 sets per month
RELATED PRODUCTS
Good price SMTCL CNC Turning Center HTC40Hm Max.Cutting Length 450mm Driven Tool CNC Turning Lathe Machine online Video

SMTCL CNC Turning Center HTC40Hm Max.Cutting Length 450mm Driven Tool CNC Turning Lathe Machine

Get Best Price
Good price SMTCL CNC Lathe Mill Combo Machine HTC40Hm BMT55 Driven Turret Horizontal CNC Turning Center online Video

SMTCL CNC Lathe Mill Combo Machine HTC40Hm BMT55 Driven Turret Horizontal CNC Turning Center

Get Best Price
Good price SMTCL Universality CNC Turning Lathe Machine HTC63Qm Max. Turning Diameter 600mm CNC Turning Center online

SMTCL Universality CNC Turning Lathe Machine HTC63Qm Max. Turning Diameter 600mm CNC Turning Center

Get Best Price
Good price SMTCL Heavy Cutting CNC Turning Center HTC40Sm High Torque High Rigidity CNC Turning Lathe Machine online Video

SMTCL Heavy Cutting CNC Turning Center HTC40Sm High Torque High Rigidity CNC Turning Lathe Machine

Get Best Price
Contact Us
+8613916455787
sales@huidijd.com
86-021-61195255
Contact Now
Product Description

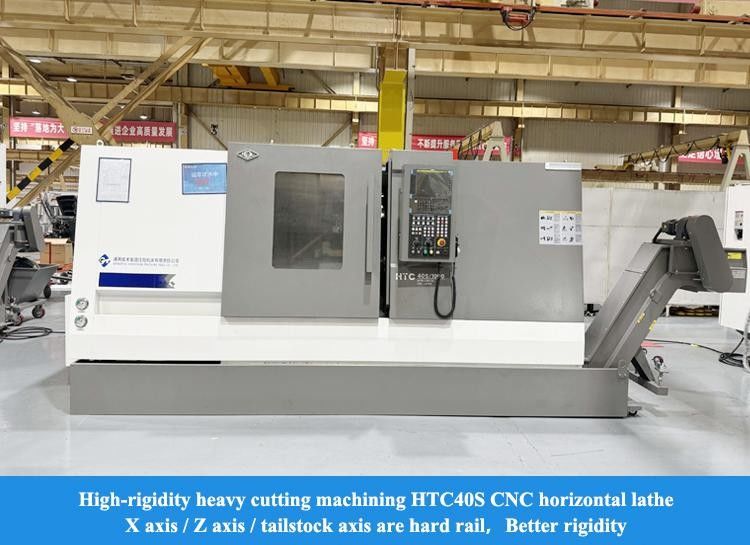

SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis 0

Product Description:

HTC40Sm/1500 Horizontal 12-station Power Turret CNC Turning Lathe Machine
HTC-m series of horizontalturning centers are assembled, verified and improved with advancedmanufacturing technology.They have good cutting performance and can meet the processing needs ofvarious rotaryparts. The machine tool is equipped with a C-axis,powered tool holder,etc.,which canrealize various processing methods suchas turning, milling and drilling.
Sm series are heavy-cut products that have large torque and needs of automobiles, water pump motors and etc. strong rigidity, meeting the needs of the automotive,

Product Features:

1,High Efficiency

◆ High-efficiency servo power tool holder
◆ Split servo tailstock
◆ High rapid movement speed of two axes
◆ Optional Y-axis configuration to achieve multi
sequence integrated processing

2,High Precision
◆ High-precision pre-stretched screw
◆ Error compensation technology
◆ Quantification of process standards
◆ Strict inspection standards
3,High Rigidity
◆ Machine bed and other key castings made of high -quality cast iron
◆ Large span spindle unit
◆ Arc-shaped anti-bending saddle
◆ Small spindle structure tailstock

Product Details:

SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis 1
Rapid moving speed: 30m/min
The servo motor is directly connected to the ball screw through a coupling, reducing intermediate links and achieving gapless transmission. The X and Z-axis guide rails adopt imported linear rollingguide rails to ensure high rigidity, good dynamic performance and accuracy, increase operating speed and improve production efficiency.



SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis 2

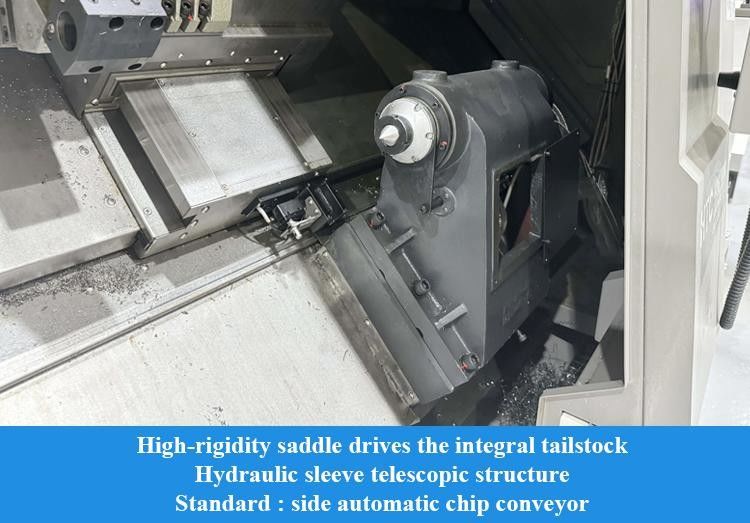

Split Servo Tailstock
The tailstock can be moved in an optional servodriven manner, which can precisely control and flexibly adjust the tailstock moving speed and working clamping force according to processing requirements, allowing the tailstock to quickly approach the workpiece and tighten without impact , and can provide real-time feedback on the tightening position.improve production
replacement efficiency. It adopts an upper and lower split tailstock ,easy to adjustment accuracy and improve maintenance efficiency.
SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis 3
Double fixed pre-tensioned structure
X axis develops a double fixed support structure and uses a pre-stretched screw to effectively offset pre-stretch deformation and temperature risedeformation. It cooperates with a special sealing structure to reduce the temperature rise of the screw, thereby achieving high precision and high precision of machine tool feed stability
SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis 4
Y axis configuration
Optional Y-axis configuration, combinedwith BMT powered turret, high-precision C -axis structure and a variety of poweredtool holders, can realize complex surface processing with once installation.
SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis 5

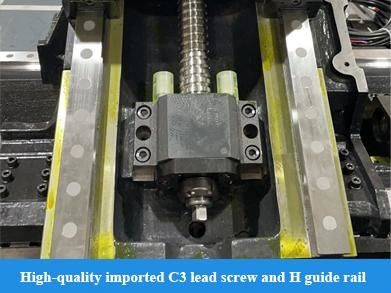

High precision ball screw
It uses high-quality imported C3-grade screw and H-grade guide rail, and is directly driven by servo motor to achieve excellent operating accuracy.
SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis 6
Anti-bending saddle
The guide rail span is reasonably enlarged,the motion system structure is optimized,and the main body of the bed saddle isdesigned in an arc shape to ensure theoverall rigidity of important components.
SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis 7

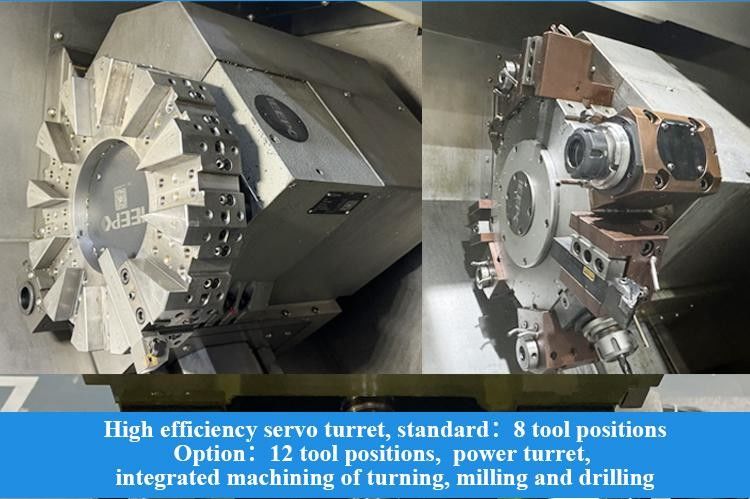

Efficient servo powered turret
Standard BMT interface, high rigidityconnection; the tool is driven by DIN1809 interface, which has reliable transmission and low failure rate;the drive motor is side-mounted and compact in structure; it is equipped with high-precision C axis and brake device to achieve high-efficiency integrated processing of turning, milling anddrilling.
SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis 8
Internal cooling tool holder
Optional internal cooling tool holder and water outlet from the tool center realize efficient chip removal during inner hole machining and ensure processing quality
SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis 9
Driven tool milling capability
Workpiece material: HT200
Tool model: Ф20 square shoulder
milling cutter
Cooling status: water cooling
Driven tool drilling capacity
Workpiece material: HT200
Tool model: Ф16 twist drill
Cooling status: water cooling

Product Paramenters:
Project
Unit
HTC 40Sm/1500
Max. cutting dia.
mm
Φ400
Max.cutting length
mm
1450
Max. swiming dia.over bed
mm
Φ600
Max. swiming dia.on slide
mm
Φ400
Spindle


Spindle nose model

A2-8
Front bearing inner dia.
mm
120
Spindle taper and hole size

1:20;Φ70
Dia. of spindle hole

Φ80
Max.bar dia.
mm
Φ65
Standard chuck dia.
inch
10
Spindle speed range
r/min
3500
Rated spindle torque
N·m
229(592r/min)
Spindle Max. torque
N·m
377(443r/min)
Main motor output power continuous/15 min.
kW
15/18.5
X/Z axis


X/Z axis rapid movement
m/min
20
X axis travel
mm
220
Z axis travel
mm
 1578
Tailstock


Tailstock travel
mm
 1618
Tailstock drive method

Saddle drag
Tailstock sleeve travel mm 100
Tailstock sleeve dia. mm Φ100
Tailstock taper hole taper Morse MT-4
Turret


Turret typle

Horizontal 12-station power turret
Center height
mm
100
Turret indexing repeat positioning accuracy
Sec.
±1.6
Tool size
mm
25
If could choose tool nearby

yes
Power tool holder interface

BMT55
Max. drilling capacity
mm
16×0.2
Max. milling capacity
mm
14×10×40
Max. tapping capacity
mm
M12×1.5
Others


Distance between spindle center and floor
mm
1022
Machine tool net weight
kg65
00
Overall dimensions(LxWxH)
mm
4600×2050×2000
Note: The parameters provided in the table are for reference only. If there is any change, please refer to the actual product.

OUR Service:

1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis 10
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis 11
Exhibition:

SMTCL Heavy CNC Turning Machine Fanuc Controller HTC40Sm/1500 Turning Center With Y Axis And C Axis 12

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
