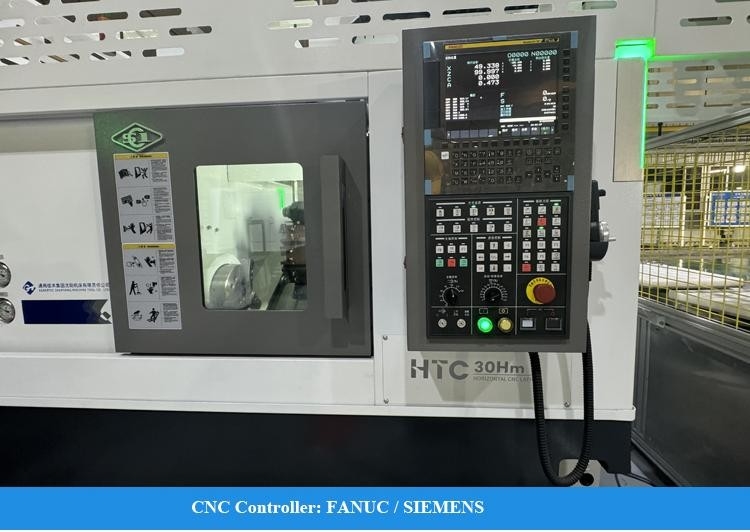

SMTCL CNC Lathe With Automatic Loading Unloading HTC30Hm 12-station Power Turret Horizontal Turning Center
Product Details
| Brand Name: | SMTCL | Model Number: | HTC 30Hm |
|---|---|---|---|
| CNC Or Not: | CNC | Key Word: | Horizontal Turning Center |
| Max.cutting Length: | 450mm | Max. Cutting Dia.: | 250mm |
| Max. Swiming Dia.over Bed: | 420mm | X Axis Travel: | 140mm |
| Z Axis Travel: | 500mm | Spindle Speed: | 4500 R/min |
| Highlight |
HTC30Hm Horizontal Turning Center,12 station Horizontal Turning Center,SMTCL Horizontal Turning Center |
||
Product Description
HTC30Hm turning center of Shenyang Machine Tool adopts an integral inclined bed structure and is equipped with a spindle with a large span and high rigidity, showing excellent cutting performance. Its lead screw pre-tensioning structure is scientific,ensuring high machining accuracy and good stability. It can carry out various turning and integrated processing on shaft and disc parts. It is applicable to industries such as automobiles and bearings. Moreover, its automatic single-machine processing unit can improve production efficiency and save labor costs.
- High-efficiency servo power tool holder
- Split servo tailstock
- High rapid movement speed of two axes
- Optional Y-axis configuration to achieve multi sequence integrated processing
- High-precision pre-stretched screw
- Error compensation technology
- Quantification of process standards
- Strict inspection standards
- Machine bed and other key castings made of high -quality cast iron

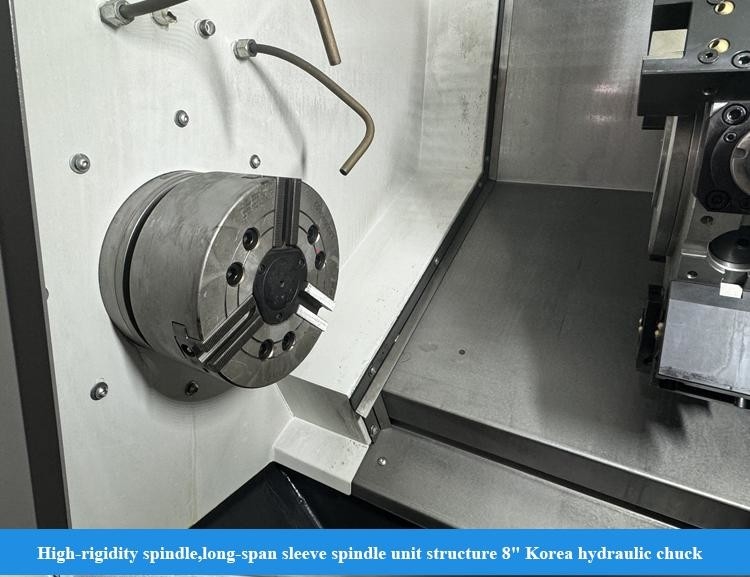

- Large span spindle unit
- Arc-shaped anti-bending saddle
- Small spindle structure tailstock
The servo motor is directly connected to the ball screw through a coupling, reducing intermediate links and achieving gapless transmission. The X and Z-axis guide rails adopt imported linear rollingguide rails to ensure high rigidity, good dynamic performance and accuracy, increase operating speed and improve production efficiency.

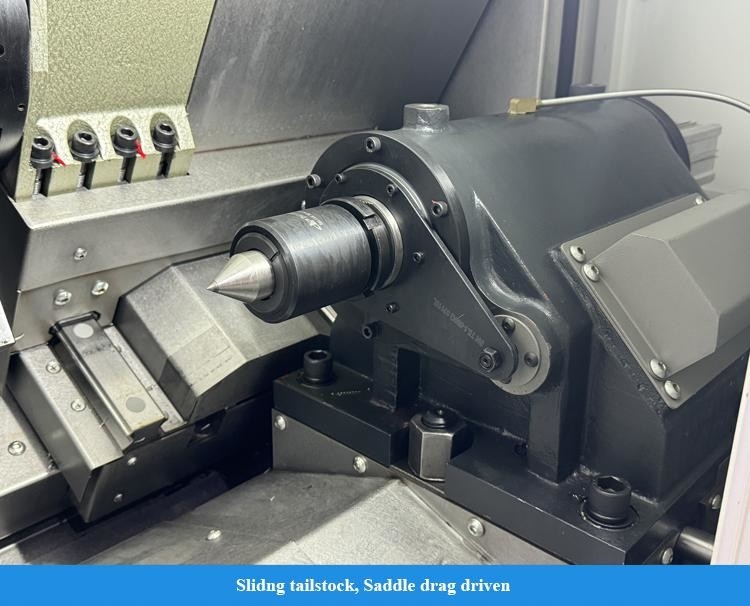

The tailstock can be moved in an optional servodriven manner, which can precisely control and flexibly adjust the tailstock moving speed and working clamping force according to processing requirements, allowing the tailstock to quickly approach the workpiece and tighten without impact , and can provide real-time feedback on the tightening position.improve production replacement efficiency. It adopts an upper and lower split tailstock ,easy to adjustment accuracy and improve maintenance efficiency.
X axis develops a double fixed support structure and uses a pre-stretched screw to effectively offset pre-stretch deformation and temperature risedeformation. It cooperates with a special sealing structure to reduce the temperature rise of the screw, thereby achieving high precision and high precision of machine tool feed stability
Optional Y-axis configuration, combinedwith BMT powered turret, high-precision C -axis structure and a variety of poweredtool holders, can realize complex surface processing with once installation.

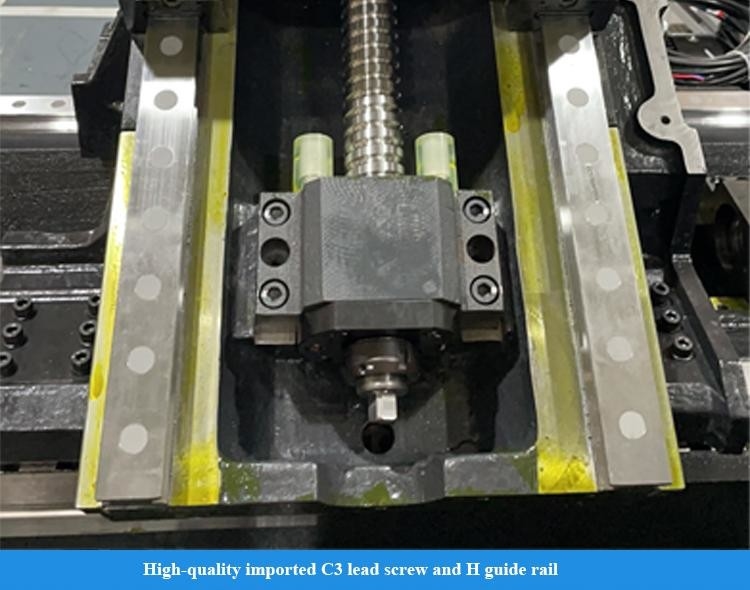

It uses high-quality imported C3-grade screw and H-grade guide rail, and is directly driven by servo motor to achieve excellent operating accuracy.
The guide rail span is reasonably enlarged,the motion system structure is optimized,and the main body of the bed saddle isdesigned in an arc shape to ensure theoverall rigidity of important components.

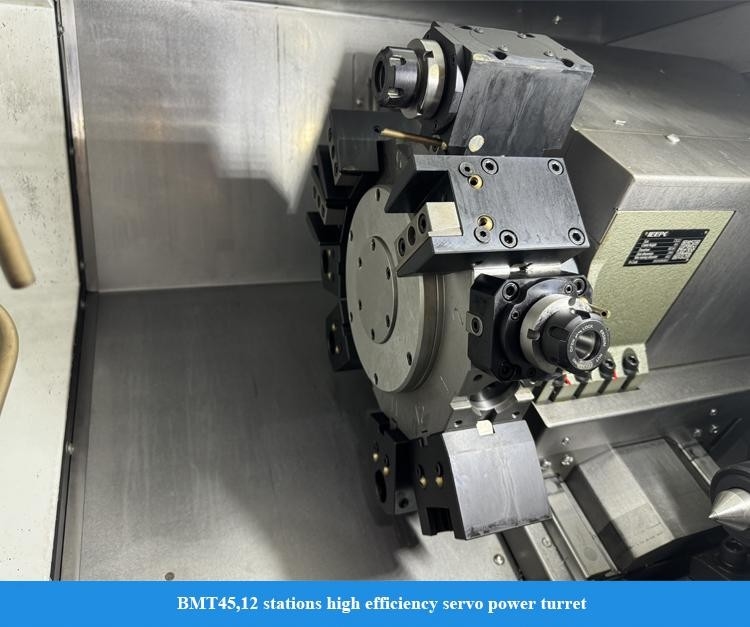

Standard BMT interface, high rigidityconnection; the tool is driven by DIN1809 interface, which has reliable transmission and low failure rate;the drive motor is side-mounted and compact in structure; it is equipped with high-precision C axis and brake device to achieve high-efficiency integrated processing of turning, milling anddrilling.
Optional internal cooling tool holder and water outlet from the tool center realize efficient chip removal during inner hole machining and ensure processing quality
Workpiece material: HT200
Tool model: Ф20 square shoulder milling cutter
Cooling status: water cooling
Driven tool drilling capacity
Workpiece material: HT200
Tool model: Ф16 twist drill
Cooling status: water cooling
| Project | Unit | HTC 30Hm |
|---|---|---|
| Max. cutting dia. | mm | Φ250 |
| Max.cutting length | mm | 450 |
| Max. swiming dia.over bed | mm | Φ420 |
| Max. swiming dia.on slide | mm | Φ280 |
| Spindle | ||
| Spindle nose model | A2-6 | |
| Front bearing inner dia. | mm | 100 |
| Spindle taper and hole size | 1:20;Φ70 | |
| Dia. of spindle hole | Φ65 | |
| Max.bar dia. | mm | Φ50 |
| Standard chuck dia. | inch | 8 |
| Spindle speed range | r/min | 4500 |
| Rated spindle torque | N·m | 110(769r/min) |
| Spindle Max. torque | N·m | 180(576r/min) |
| Main motor output power continuous/15 min. | kW | 9/11 |
| X/Z axis | ||
| X/Z axis rapid movement | m/min | 30 |
| X axis travel | mm | 140 |
| Z axis travel | mm | 500 |
| Tailstock | ||
| Tailstock travel | mm | 500 |
| Tailstock drive method | Saddle drag | |
| Tailstock sleeve travel | mm | 100 |
| Tailstock sleeve dia. | mm | Φ100 |
| Tailstock taper hole taper | Morse | MT-5 |
| Turret | ||
| Turret typle | Horizontal 12-station power turret | |
| Center height | mm | 100 |
| Turret indexing repeat positioning accuracy | Sec. | ±1.6 |
| Tool size | mm | 25 |
| If could choose tool nearby | yes | |
| Power tool holder interface | BMT45 | |
| Max. drilling capacity | mm | 14×0.15 |
| Max. milling capacity | mm | 12×8×45 |
| Max. tapping capacity | mm | M10×1.5 |
| Others | ||
| Distance between spindle center and floor | mm | 926 |
| Machine tool net weight | kg | 3500 |
| Overall dimensions(LxWxH) | mm | 2295×1680×1650 |
| Note: The parameters provided in the table are for reference only. If there is any change, please refer to the actual product. | ||
