VMC 850 1000 1100Q 3 Axis CNC Milling Machine FANUC System CNC Vertical Machining Center
Product Details
| Brand Name: | SMTCL | Model Number: | VMC850Q/VMC1000Q/VMC1100Q |
|---|---|---|---|
| CNC Or Not: | CNC | Key Word: | Vertical Machining Center |
| Table Size (L×W): | 1000×500mm | Spindle Speed: | 10000 R/min |
| X Axis Travel: | 850mm | Y Axis Travel: | 500mm |
| Z Axis Travel: | 540mm | Spindle Nose To Table Surface: | 120-660mm |
| Highlight |
BT40 Vertical Machining Center,Automatic Drilling And Tapping Machine,VMC850Q Automatic Vertical Machining Center |
||
Product Description

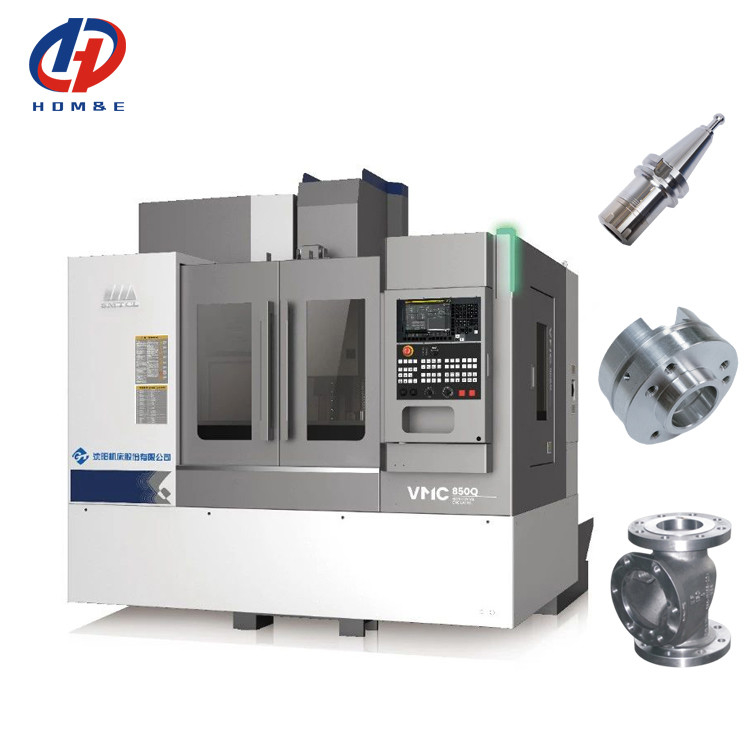

VMC 850 1000 1100Q 3 Axis CNC Milling Machine FANUC System CNC Vertical Machining Center
This new generation VMC850Q vertical machining center adopts vertical frame layout, cross slide structure, high rigid herring column, inverted trapezoidal spindle box, low center of gravity, high rigid bed, three axis roller guide rail, to ensure the machine good running accuracy, high strength and excellent precision stability; The machine structure is simple and compact, the floor area is small, is conducive to the assembly of automatic line; Can be milling surface, drilling, boring, reaming, 2D and 3D surface processing, tapping and other processes of the integration of high-precision machining. Simple operation, high speed and high efficiency, intelligent and stable.
- High rigidity and high stability design
- High strength integral casting bed

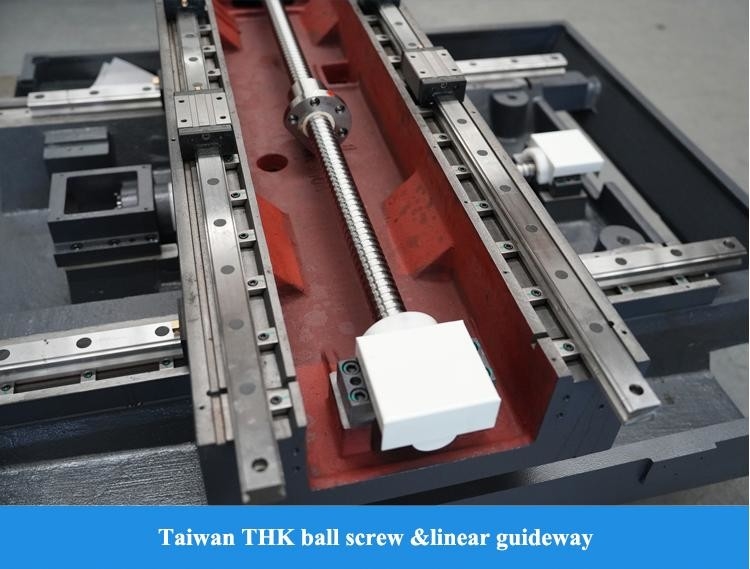

- Three-axis P-class roller guide
- Long span herringbone column
- Good accuracy and accuracy retention
- C3 pre-drawn lead screw
- Thermal symmetry technology
- Error compensation technology
- Safety, environmental protection, efficient productivity
- Three-axis fast shift 48m/min

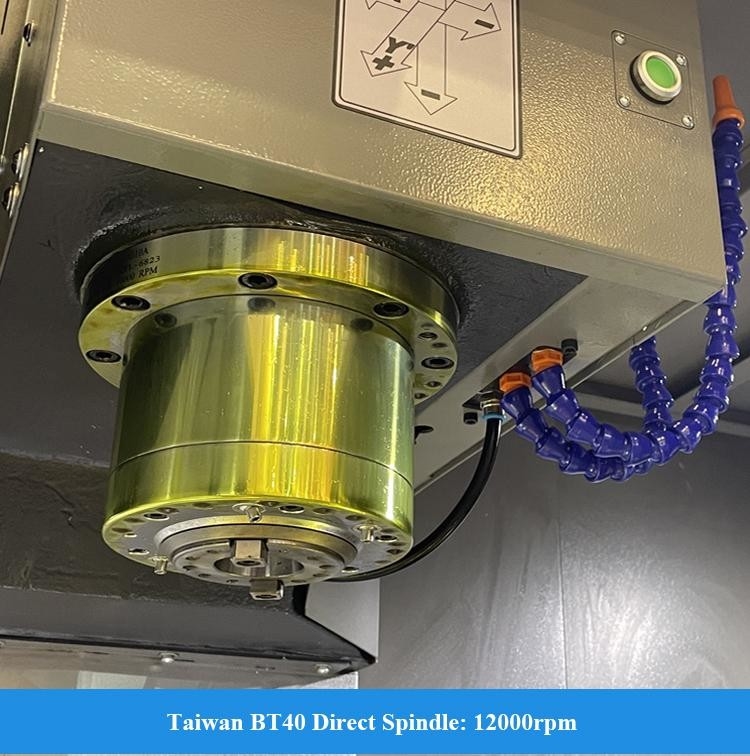

- Direct spindle 12000 RPM
- Bed double spiral chip extractor
Feature 1: Stable & reliable - Comprehensive testing, consistent performance through comparative testing
- 7 sets of batch performance testing equipment, 7 sets of cutting testing equipment
- 22 performance test items and 25 cutting test items per equipment
Third-party evaluation: Leading performance level
Feature 2:High-quality machining capability - High precision, tool joint mark control technology; high surface finish, roughness Ra 0.8 μm
- Part name: Tool joint mark test piece
- Industry: New energy vehicles, robotics; material (AL6061)
- Part dimensions: 200×150×20mm
Process difficulties:
- Tool joint marks on part surface
- Tests machine spindle and machining stability
- Surface quality requirements
Feature 3:Ultra-micro precision machining capability - High stability, φ0.08mm fine needle machining
- Part name: D0.2mm engraving machining
- Industry: Semiconductor, medical, etc.; material: AL7075
- Part dimensions: φ40×30mm
Process difficulties:
- Weak rigidity of machining position, prone to deformation
- Tests machine tool feed control and stability
- Precise control of tool runout and tool setting
- Surface burr removal technology
|
Item
|
Unit
|
VMC850Q
|
VMC1000Q
|
VMC1100Q
|
|
|
Capacity
|
X axis travel
|
mm
|
850
|
1000
|
1100
|
|
Y axis travel
|
mm
|
500
|
500
|
620
|
|
|
Z axis travel
|
mm
|
540
|
540
|
600
|
|
|
Spindle nose to table surface
|
mm
|
120-660
|
120-660
|
120-720
|
|
|
Spindle nose to column surface
|
mm
|
640
|
640
|
743
|
|
|
Worktable
|
Table size (L×W)
|
mm
|
1000×500
|
1200×500
|
1300×610
|
|
Max load on the table
|
kg
|
600
|
600
|
1000
|
|
|
T-slot size
|
mm
|
18×5
|
18×5
|
18×5
|
|
|
Spindle
|
Spindle speed
|
rpm
|
10000
|
10000
|
10000
|
|
Spindle taper/spindle shank
|
mm
|
7/24 taper
|
7/24 taper
|
7/24 taper
|
|
|
BT40
|
BT40
|
BT40
|
|||
|
Spindle motor
|
kw
|
7.5/11
|
7.5/11
|
11/15
|
|
|
Maximum output torque
|
N.m
|
35.8/70
|
35.8/70
|
52.5/95.5
|
|
|
Spindle drive type
|
|
Synchronous tooth belt
|
|||
|
Tools
|
Tool holder model
|
|
MAS 403 BT40
|
||
|
Pull stud model
|
|
MAS 403 P40T-I
|
|||
|
Feed rate
|
X,Y,Z rapid traverse
|
m/min
|
48/48/48
|
||
|
3 axes moter power(X/Y/Z)
|
kW
|
1.8/1.8/3
|
1.8/1.8/3
|
3/3/3
|
|
|
3 axes moter torque(X/Y/Z)
|
N·m
|
11/11/20
|
11/11/20
|
20/20/20
|
|
|
Max cutting feed rate
|
mm/min
|
1-20000
|
|||
|

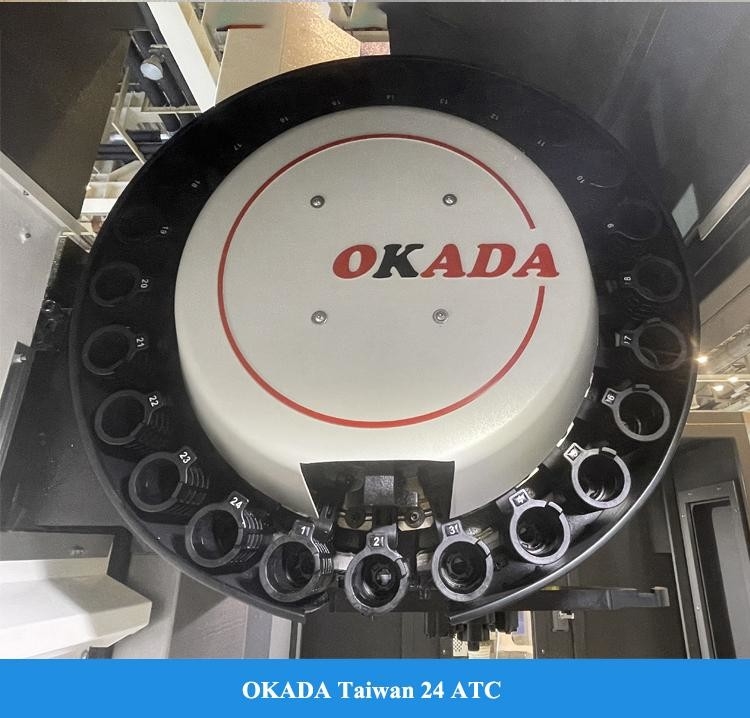

A.T.C
|
Type
|
pc
|
ATC with robot arm
|
||
|
Mode
|
|
Nearest tool selection in bi-direction
|
|||
|
Capacity
|
Pcs
|
24
|
|||
|
Max tool length
|
mm
|
300
|
|||
|
Max tool weight
|
kg
|
7
|
|||
|
Max too disk dia.-Full
|
mm
|
80
|
|||
|
Max too disk dia.-Adjacent
|
mm
|
150
|
|||
|
Tool change time(T-T)
|
sec
|
2.5
|
|||
|
The height between table to ground
|
mm
|
900
|
900
|
950
|
|
|
Others
|
Overall dimensions
(L×WxH)
|
mm
|
2400×2975×2840
(Exclude chip conveyor)
|
2700×2975×2840
(Exclude chip conveyor)
|
2940×3450×3050
(Exclude chip conveyor)
|
|
Net machine weight
|
kg
|
5100
|
5400
|
6200
|
|
|
Total power requirment
|
KVA
|
18
|
18
|
25
|
|
|

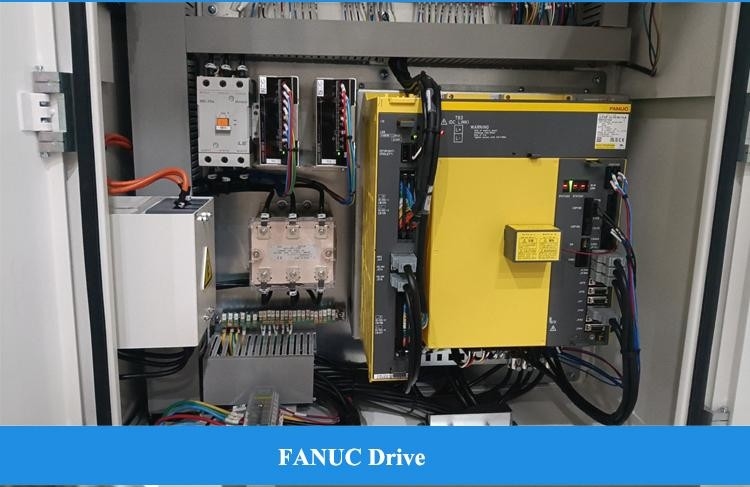

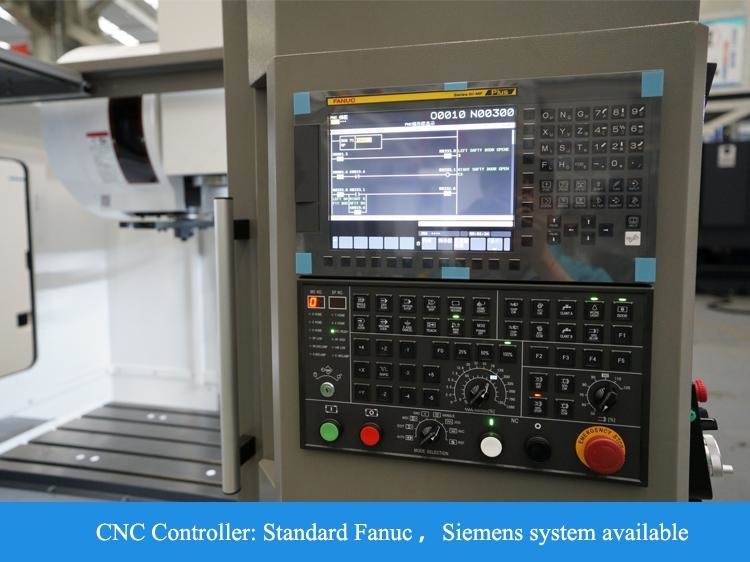

Standard configuration:
|

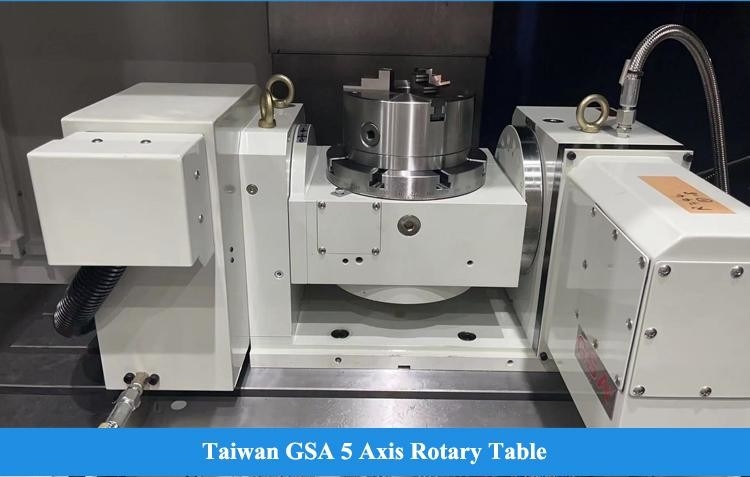

Selective configuration:
|
||||
Ensure you receive a high quality machine
- Every parts need be inspected
- Over 100 production process control
- Over 200 inspection items
- Sample processing of each machine
- 72 hours trial run before delivery
- Top quality sense, customers' requests come first
- 30 years + R & D history, the company was founded in 1993
- High-tech manufacturer with research anddesign capacity
- Stable and mature supplying system
- Young active sales and engineers for instant services(24 hours online)
- Upgrading on mechanism according to ergonomics and easy maintenance
- Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
Product Highlights
VMC 850 1000 1100Q 3 Axis CNC Milling Machine FANUC System CNC Vertical Machining Center
