Place of Origin:
CHINA
Brand Name:
HD
Certification:
CE ISO certification
Model Number:
X8132
Product Description:

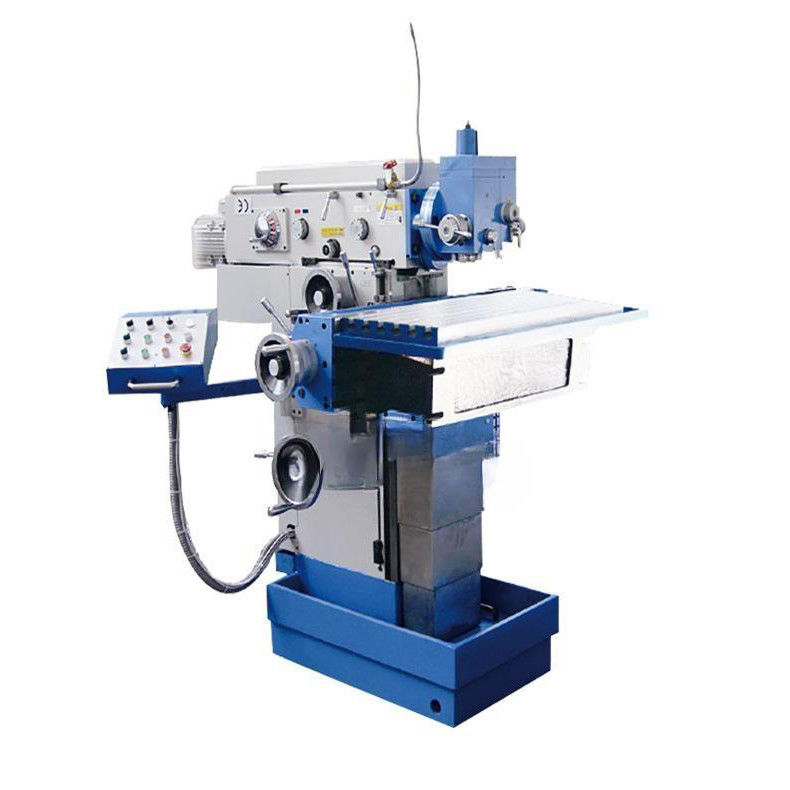

The X8132 universal milling machine is suitable for mass production of parts in instrument manufacturing plants, as well as for milling small parts of various tools, jigs, dies and shapes in tool and manufacturing workshops, repair workshops and scientific research units. The spindle of the machine adopts double row radial short cylindrical roller bearing, which has high precision and convenient adjustment. The machine adopts a two-speed motor with a wide range of speed changes and high speed, so it has a high productivity when used.
Machine tool accessories are: vertical milling head, dividing head, disk table, Angle table and vice, so strong function, wide use.
Product Features:
1,Novel structure, wide, high precision, easy to operate.
2,The use of a variety of accessories, can expand the scope of use, improve the utilization rate.
3,X8132: equipped with programmable digital display system, wide grid ruler resolution is 0.01mm
|
Maitonsn specifications
|
X8132
|
|
Working table
|
|
|
Horizontal working table(Lx W)
|
750×320mm
|
|
Vertical working table (Lx W)
|
850×250mm
|
|
Longitudinal /Transverse / vertical Travel
|
400/300/400
|
|
Horizontal and vertical spindle speed: steps/range
|
18 steps/40~2000 rpm
|
|
Longitudinal, transverse and veraical feeds:steps/range
|
18 steps/10~500 min
|
|
Axial feed of quill of vertical spindle:steps / range
|
3 steps/0.03~0.12 mm/rev
|
|
Vertical spindle head
|
|
|
Vertical spindle of quill
|
60 mm
|
|
Axia inclination on left and right
|
±90°
|
|
Horizontal spindle
|
|
|
Taper hole
|
ISO40
|
|
The height from axis to ground
|
1300 mm
|
|
Min, distance between axis and surface of horizontal table
|
40 mm
|
|
Vertical spindle
|
|
|
Taper hole
|
ISO40
|
|
Min, distance between nose and surface of horizontal table
|
10 mm
|
|
Universaltable
|
|
|
Horizontal swivel
|
±360°
|
|
Inclination to front and rear
|
±30°
|
|
lnclination on left and right
|
±30°
|
|
Power of main motor / Feed motor
|
3 kw/1.5 kw
|
|
Max. table load /Max. load of cutter
|
300kg
|
|
Overall dimensions (LxWxH)/ Net weight
|
181×122×171 cm/2200kg
|
|
Packing dimensions (L×Wx H )/ Gross weight
|
200×164×210 cm/3000kg
|
