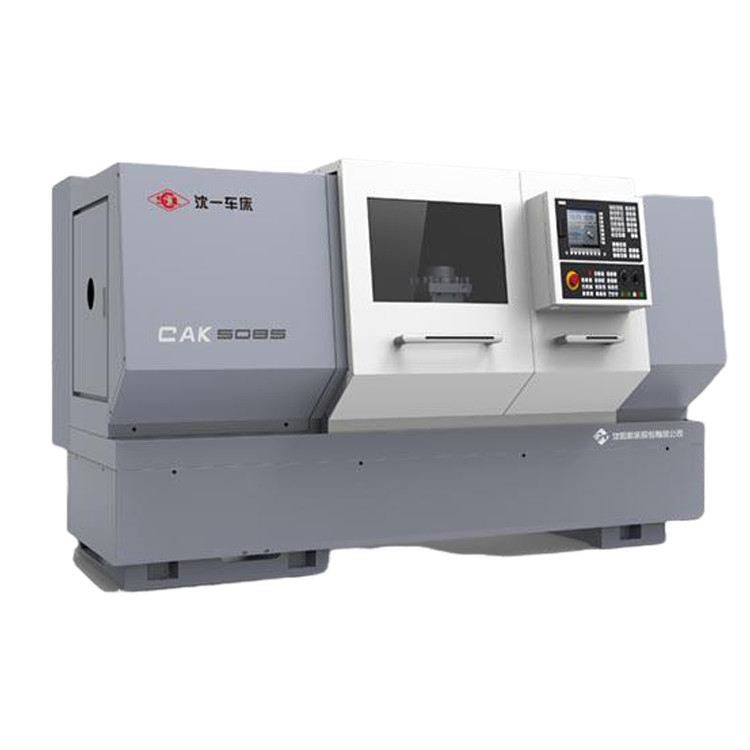

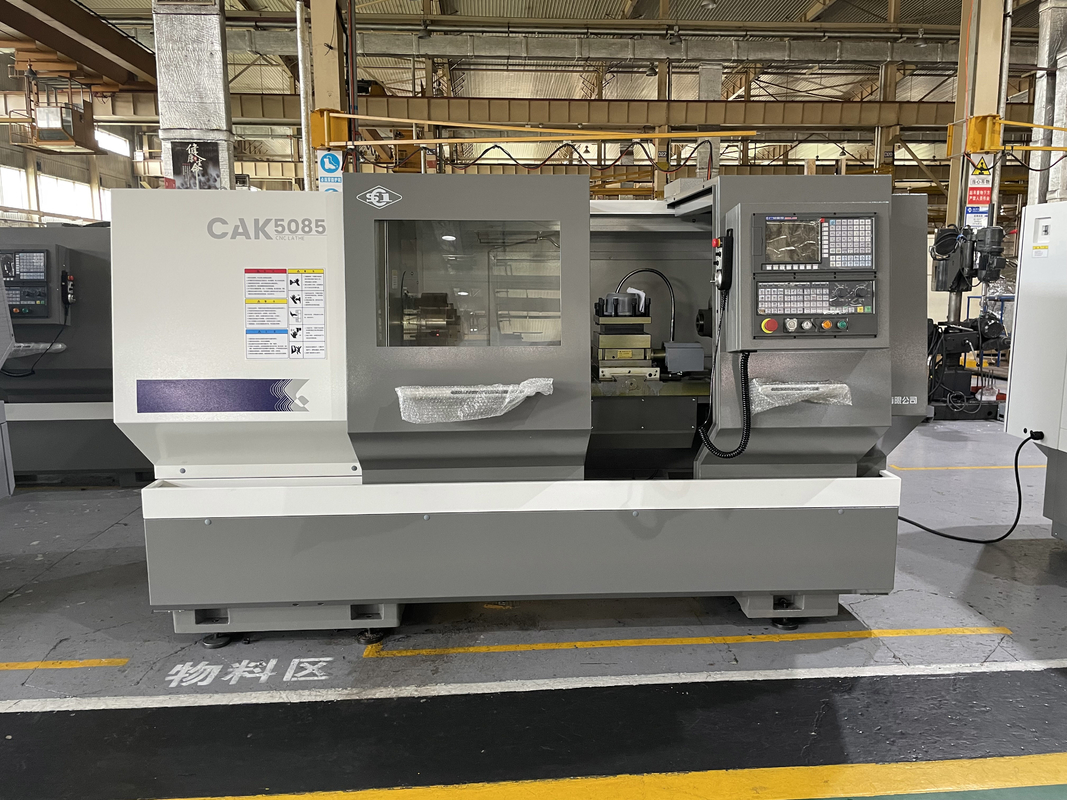

SMTCL Flat Bed CNC Lathe CAK5085 Torno CNC Turning Machine Metal CNC Lathe
Product Details
| Brand Name: | SMTCL | Model Number: | CAK5085 |
|---|---|---|---|
| CNC Or Not: | CNC | Name: | Flat Bed CNC Lathe |
| Max.swing Over Bed: | 500mm | Spindle Nose: | A2-8 |
| Control System: | SIEMENS GSK FANUC (optional) | Max.parts Length: | 890mm |
| Max Cutting Length: | 850mm | Max Swing Diameter Over Bed: | φ500 |
| Max.swing Diameter Over Slide: | φ300 | Max Cutting Diameter: | φ500 |
| Highlight |
CNC Turning Metal Lathe,Flat Bed CNC Metal Lathe,Horizontal Metal Cutting Lathe |
||
Product Description
The new CAK series CNC lathe inherits the performance and structural advantages of the traditional CAK products, and has significantly improved the processing accuracy, vibration resistance, function and reliability, and the new appearance design makes the waterproof performance of the machine tool have a qualitative leap. CAK series CNC lathe is the symbol of Chinese famous brand! General Technology Group Shenyang Machine Tool Co., Ltd. will always accompany you!
| Item | Unit | CAK5085 |
| Max.parts length | mm | 890 |
| Max cutting length | mm | 850 |
| Max swing diameter over bed | mm | φ500 |
| Max.swing diameter over slide | mm | φ300 |
| Max cutting diameter | mm | φ500 |
| Spindle nose type | mm | A2-8 |

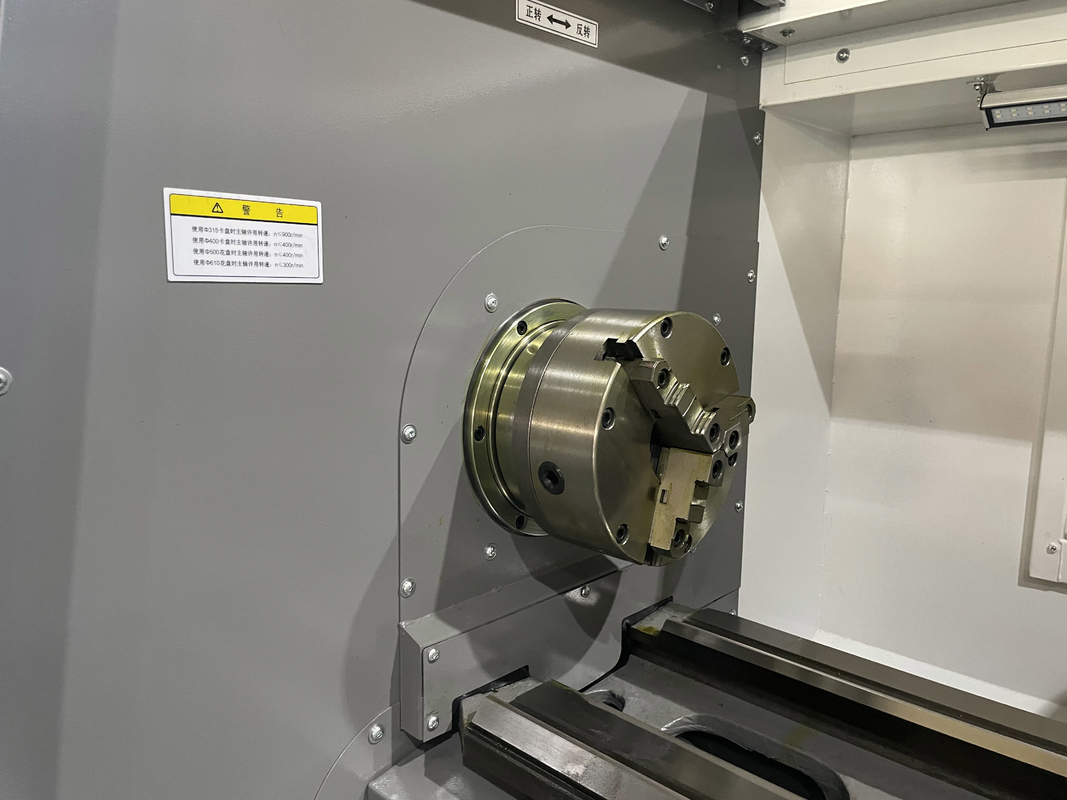

| Chuck diameter | mm | φ250 |
| Spindle bore | mm | φ78 |
| Spindle speed range(Auto 3 step) | r/min | 15-2200 |
| Spindle speed range (manual stepless) | r/min | 22-1800 |
| Spindle speed range(Auto 3 step,12 grades) | r/min | 40-1800 |
| Rated power of main motor | kw | 7.5 (Main servo motor) |

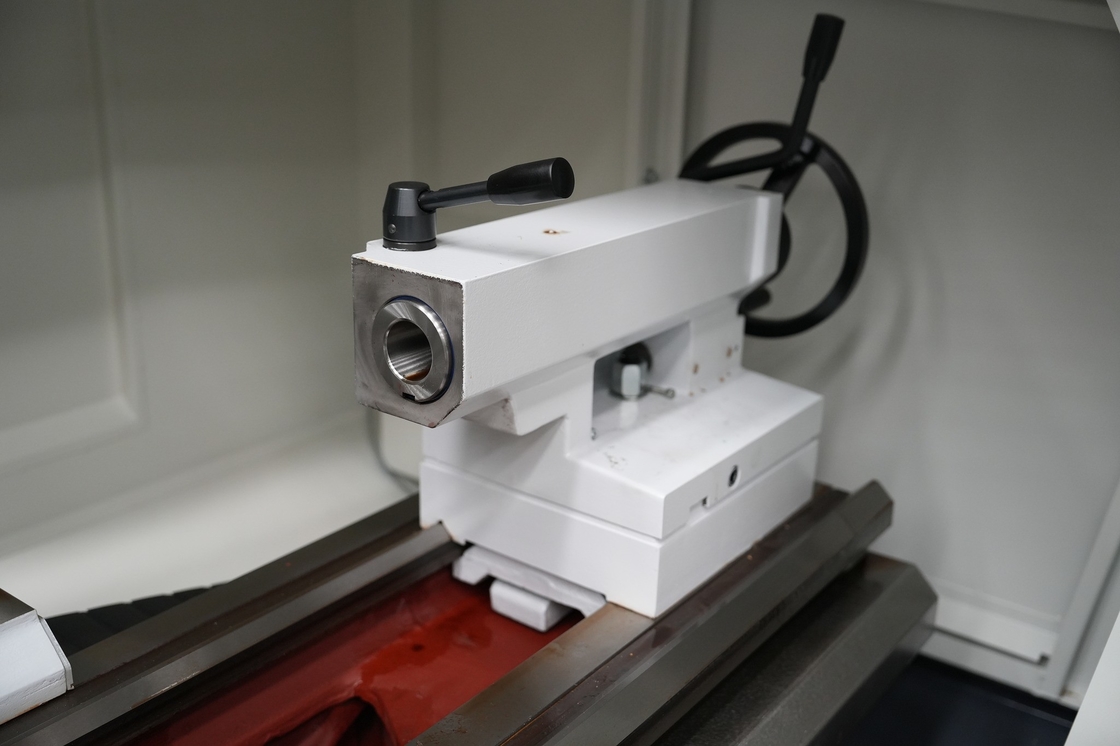

| Tailstock quill diameter | mm | φ75 |
| Tailstock quill travel | mm | 150 |

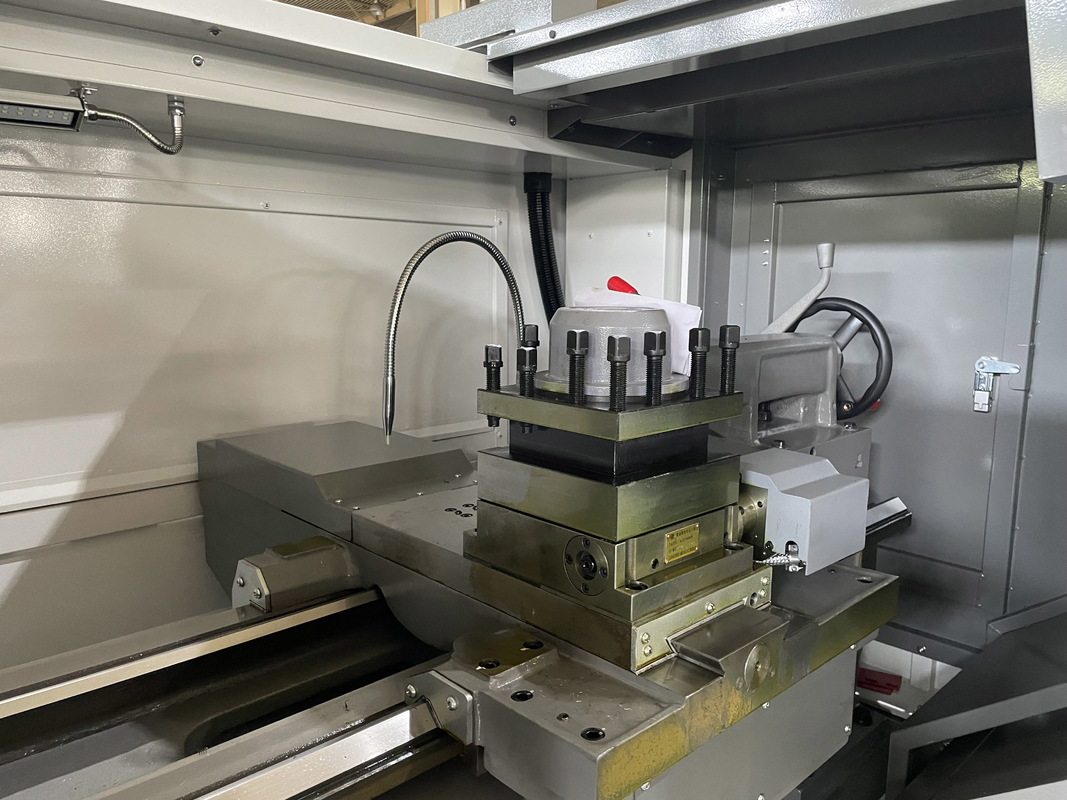

| Turret type | Vertical4 positions | |
| Tool shank size | mm | 25*25 |
| X/Z axis rapid traverse | m/min | 6/12 |
| Machining accuracy | IT6~IT7 | |
| Machine net weight | kg | 2800 |
| Overall dimension (LxWxH) | mm | 2770*1700*1735 |
- Every parts need be inspected
- Over 100 production process control
- Over 200 inspection items
- Sample processing of each machine
- 72 hours trial run before delivery
- Top quality sense, customers' requests come first
- 30 years + R & D history, the company was founded in 1993
- High-tech manufacturer with research anddesign capacity
- Stable and mature supplying system
- Young active sales and engineers for instant services(24 hours online)
- Upgrading on mechanism according to ergonomics and easy maintenance
- Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
