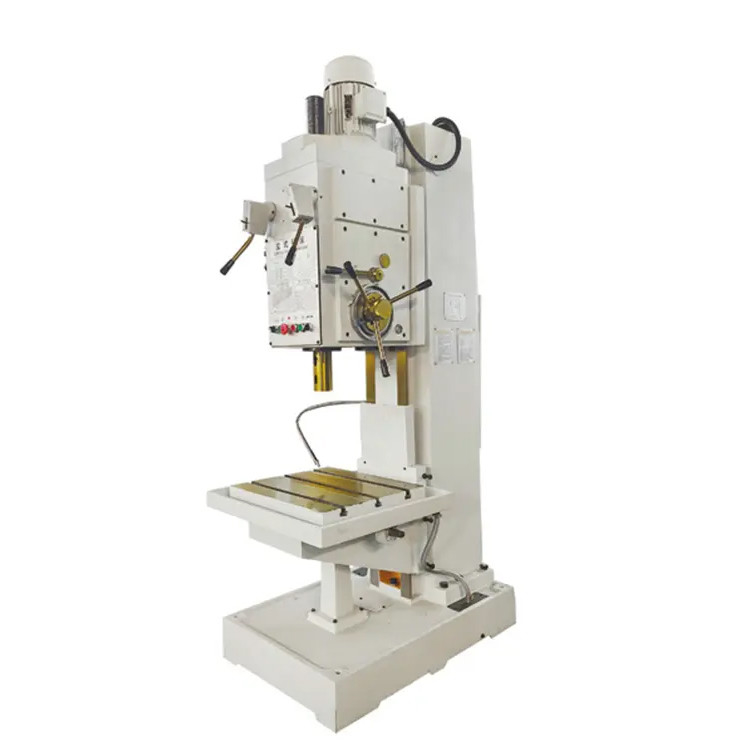

Large Deep Hole Vertical Drilling Machines Z5132B Vertical Metal Drill Machine
Product Details
| Brand Name: | HD | Model Number: | Z5132B |
|---|---|---|---|
| CNC Or Not: | Manual | Key Word: | Vertical Drilling Machine |
| Max. Spindle Speed (r.p.m): | 50-2000r.p.m | Maximum Hole Diameter: | 32mm |
| Maximum Feed Resistance Of Spindle: | 9000N | Spindle Maximum Torque: | 200N.m |
| Highlight |
Countersunk Head Holes Vertical Drilling Machine,Vertical Metal Drill Machine 32mm,Metal Vertical Drilling Machines |
||
Product Description
Product Description:
Large Deep Hole Vertical Drilling Machines Z5132B Vertical Metal Drill Machine
Product Features:
1,The appearance is beautiful and generous, the overall layout is symmetrical and coordinated.
2,Mihanna high strength castings, high rigidity, high precision, long life
3,Guide rail, table by quenching, tempering and hardening treatment, precision grinding.
4,The guide rail with Turcite-B high wear-resistant plate, smooth and smooth.
5,The guide rail is quenched by UHF.
|
SPECIFICATIONS
|
Unit
|
Z5132B
|
|
Maximum hole diameter
|
mm
|
32
|
|
Maximum feed resistance of spindle
|
N
|
9000
|
|
Spindle maximum torque
|
N.m
|
200
|
|
Main motor power
|
Kw
|
2.2
|
|
Taper of main taper hole
|
NO
|
4
|
|
Spindle speed
|
r.p.m
|
50~2000
|
|
Feed per revolution of spindle
|
mm/rev
|
0.056~1.80
|
|
Main shaft trip
|
mm
|
200
|
|
Headstock stroke
|
mm
|
200
|
|
Distance from center line of spindle to column
|
mm
|
280
|
|
The spindle span
|
mm
|
no
|
|
Lifting stroke of table (manual)
|
mm
|
310
|
|
Distance from spindle end face to table
|
mm
|
710
|
|
Table size
|
mm
|
400*550
|
|
Machine weight
|
Kg
|
950
|
|
Overall dimensions
|
mm
|
1050*680*2010
|
Industry application:
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
