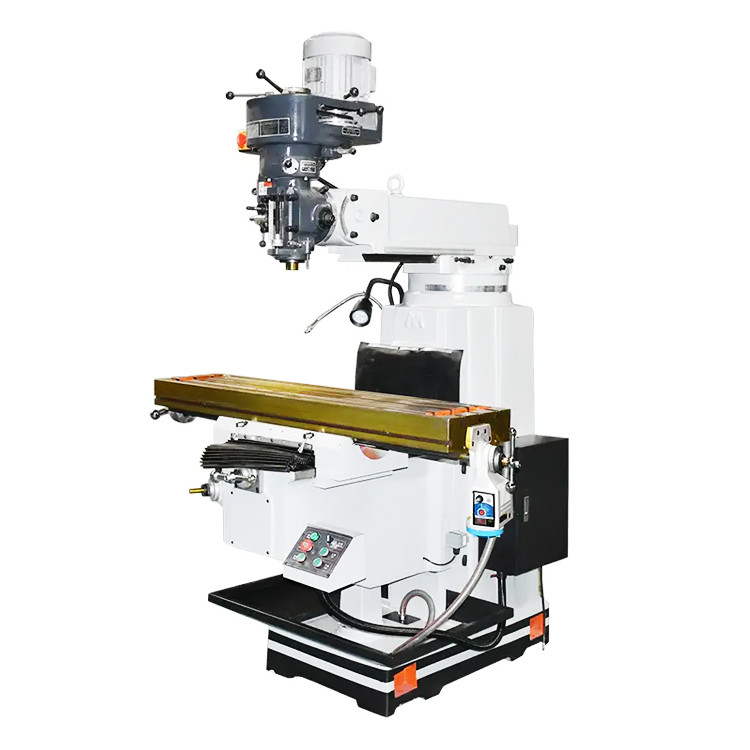

Turret Vertical Milling Machine 5H Milling Head Table Size 1370x305 Turret Milling Machine
Product Details
| Brand Name: | HD | Model Number: | 5H |
|---|---|---|---|
| CNC Or Not: | Manual | Key Word: | Turret Milling Machine |
| Max. Spindle Speed (r.p.m): | 80-5440r.p.m | Travel (X Axis)(mm): | 800 |
| Travel (Z Axis)(mm): | 400 | Travel (Y Axis)(mm): | 400 |
| Highlight |
5H Milling Head Turret Mill,Small Turret Vertical Milling Machine,Vertical Turret Milling Machine |
||
Product Description
Product Description:
Product Features:

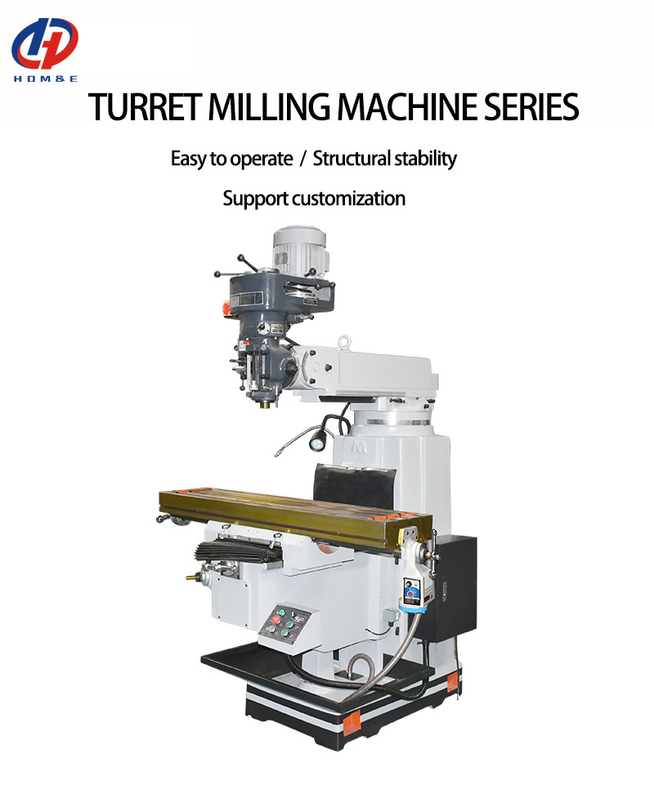

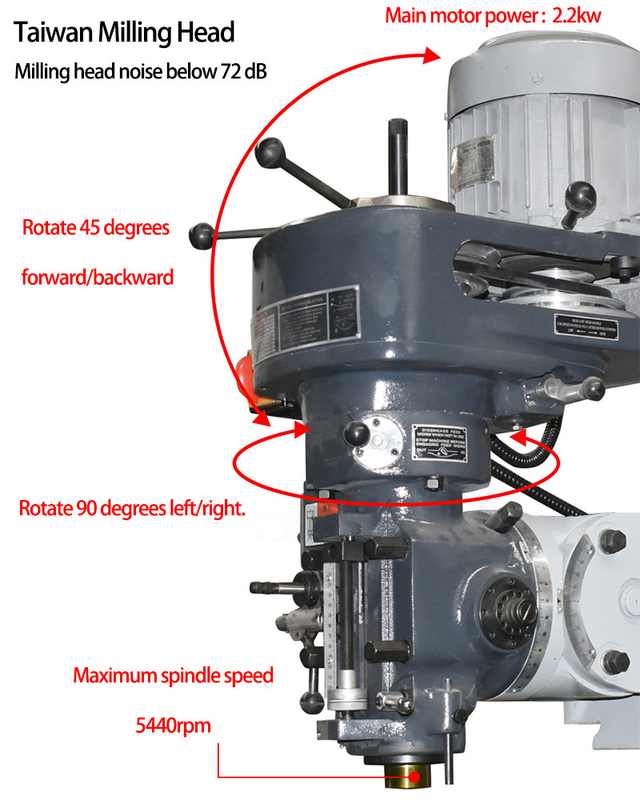

1. The machine is compact in structure, small in size and high in flexibility. The milling head can rotate 90° around and 45° before and after, and the ram can not only expand back and forth, but also rotate 360o in the horizontal plane, thus greatly expanding the effective working range of the machine tool.
2. The machine adopts advanced Meehanna casting, with strong structure, no deformation and good stability. The main shaft is made of chrome-molybdenum alloy, and after precision grinding by tempering heat treatment, it is equipped with precision angular ball bearing combination, which has strong cutting force and excellent precision.
3. The three-axis corner seat nut is made of advanced phosphor bronze (PBC-2), with good wear resistance and long service life.

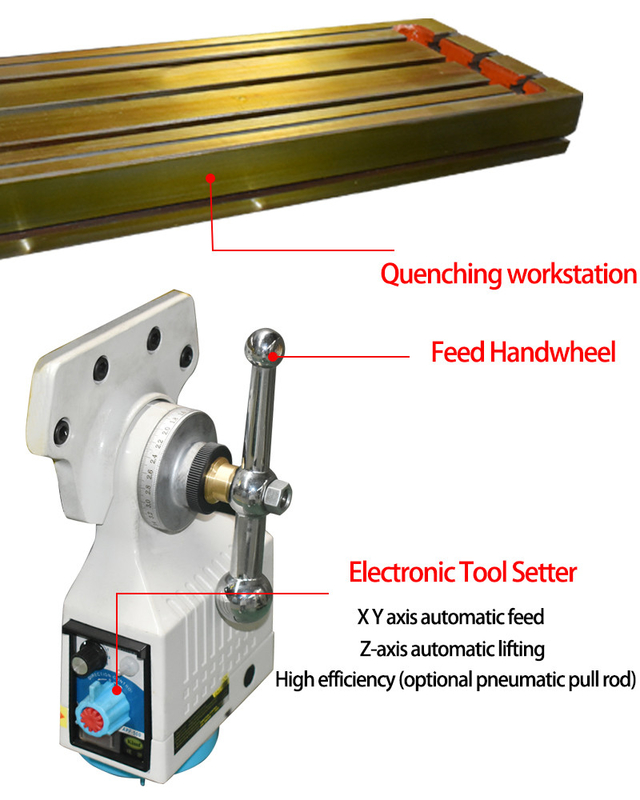

4. The X and Y guide rails are attached with TURCITE-B wear-resistant pieces, which are light in operation, low in wear rate and durable.
5. The work table is finely ground after hardening, which is not easy to wear.
6. Equipped with manual oil pump, centralized lubrication of workbench and lifting platform.
7. Equipped with improved electrical box and controller, with 24V, 110V, 220V output socket.
|
SPECIFICATIONS
|
Unit
|
5H
|
|
Table area
|
mm
|
1370×305
|
|
Table longitudinal stroke (X)
|
mm
|
800
|
|
Table transverse stroke (Y)
|
mm
|
400
|
|
Vertical stroke(z)
|
mm
|
400
|
|
Taper of main shaft hole
|
|
R8
|
|
Distance from the end face of the spindle to the working table
|
mm
|
150~480
|
|
Distance between spindle center and pillar guide rail
|
mm
|
100~650
|
|
Spindle speed range
|
r/min
|
80~5440
|
|
Table "T" number of slots
|
|
3
|
|
Width of "T" groove
|
mm
|
16
|
|
T slot spacing
|
mm
|
80
|
|
Main motor power
|
Kw
|
2.2
|
|

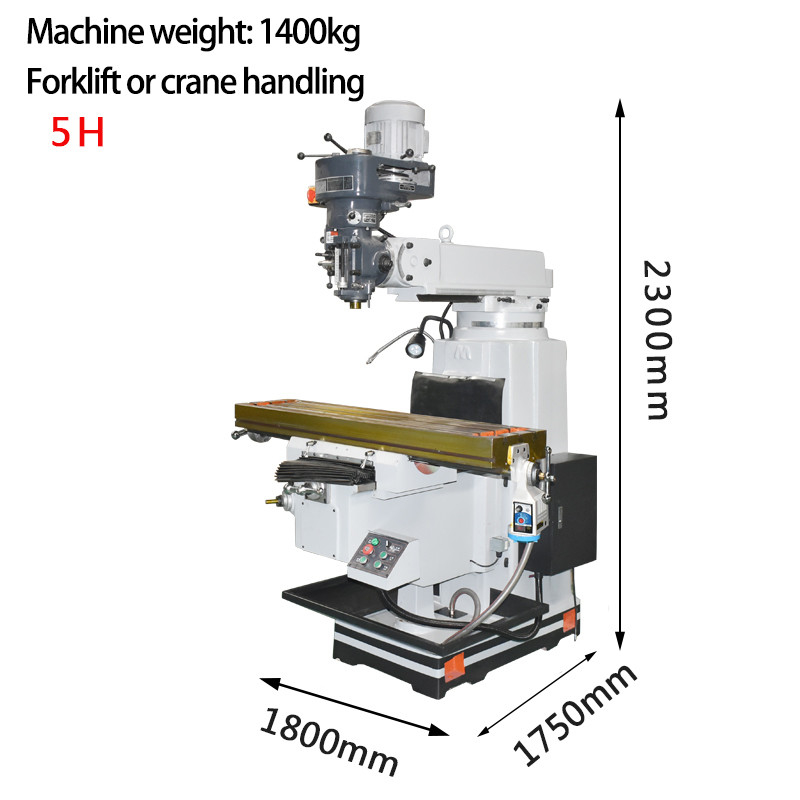

Installation dimensions
|
mm
|
1800×1750×2300
|
|
Gross weight
|
Kg
|
1400
|
Industry application:
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
Product Highlights
Product Description: Turret Vertical Milling Machine 5H Milling Head Table Size 1370x305 Turret Milling Machine Precision turret milling machine, also known as rocker arm milling machine, rocker arm milling, universal milling. Turret milling machine compact structure, small size, high flexibility, ...
