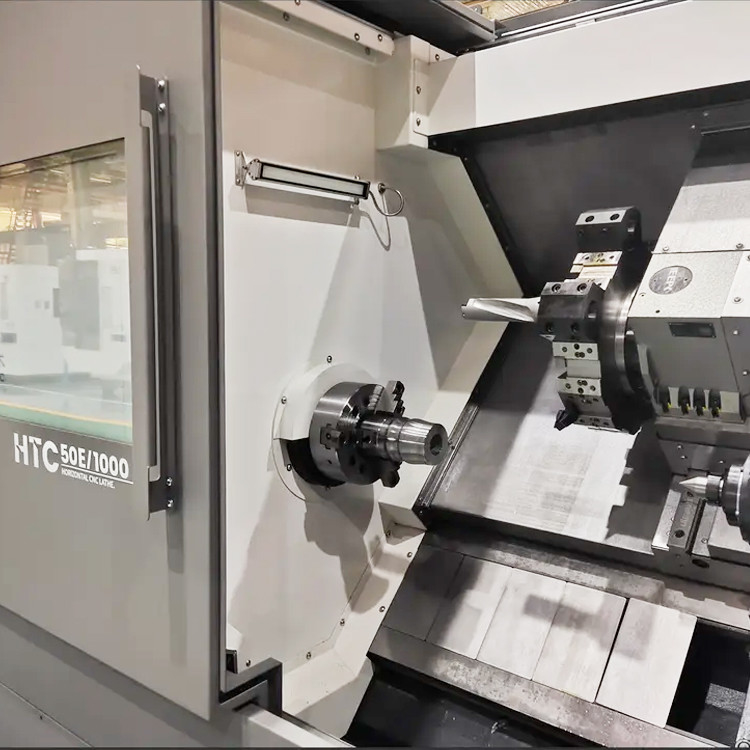

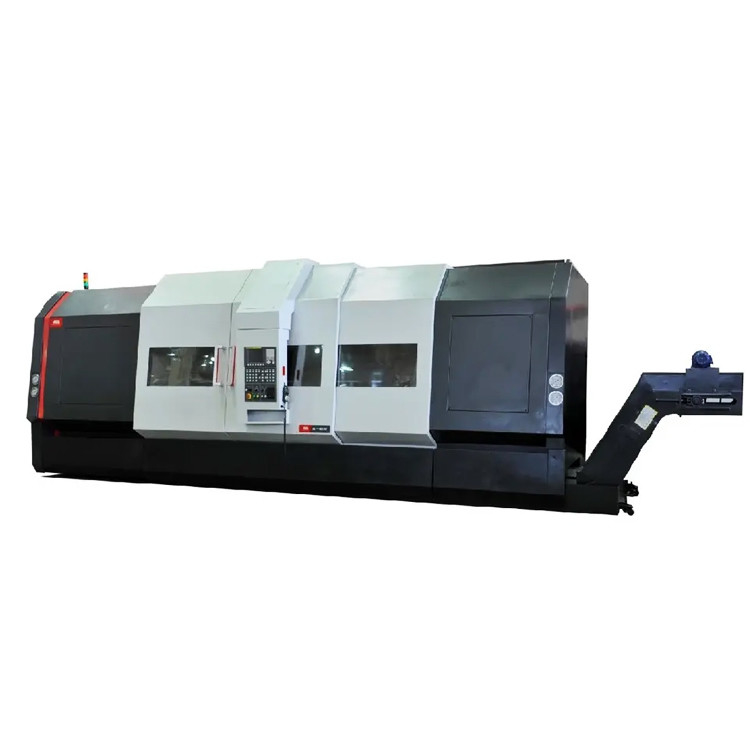

Slant Bed CNC Metal Turning Center HTC63n Fanuc Heavy Duty Horizontal CNC Lathe Machine
Product Details
| Brand Name: | SMTCL | Model Number: | HTC 63n |
|---|---|---|---|
| CNC Control System: | GSK/FANUC/SIEMENS | CNC Or Not: | CNC |
| Key Word: | Turning Center，slant Bed Cnc Lathe | Application: | Multi Purpose Metal Working |
| Max. Swing Over Bed: | Φ820 | Max. Cutting Diameter: | Φ3000 |
| Max. Cutting Length: | 1000/1500/2000/3000 | Spindle Bore Diameter: | Φ100 |
| Highlight |
HTC63n Horizontal Slant Bed Lathe,Slant Bed CNC Metal Turning Center,Heavy Duty Horizontal CNC Lathe Machine |
||
Product Description
Product Description:
Product Features:

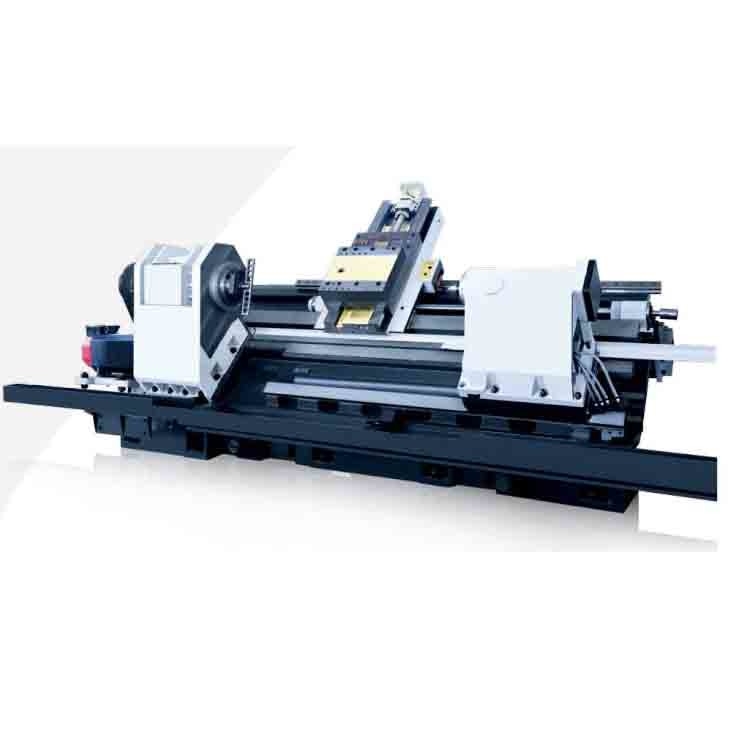

method, which effectively eliminates vibration during machine operation and cutting, enhances reliability, and is easy to
maintain, enabling customers to obtain durable and stable processing quality.
|
Item
|
UNIT
|
HTC63n Series
|
|
Max. swing over bed
|
mm
|
Φ850/Φ850/Φ850/Φ820
|
|
Max. swing over carriage
|
mm
|
Φ630
|
|
Max. cutting diameter (disc/shaft)
|
mm
|
Φ750/Φ630
|
|
Max. cutting length
|
mm
|
1000/1500/2000/3000
|
|
Spindle bore diameter
|
mm
|
Φ130
|
|
Form of spindle nose
|
|
A2-11
|
|
Max. diameter through bar
|
mm
|
Φ85 (with hydraulic hollow chuck)
|
|
Main motor power (continuous / 30min)
|
kw
|
22/30
|
|
Range of spindle speed / Max. output torque
|
r/min
|
(Mechanical 2 steps) 20~2000 / 950
|
|
Chuck diameter
|
inch
|
15”
|
|
Max. travel of X-axis
|
mm
|
410
|
|
Max. travel of Z-axis
|
mm
|
1050/1550/2050/3050
|
|
Rapid speed (X axis)
|
m/min
|
12/12/12/12
|
|
Rapid speed (Z-axis)
|
m/min
|
15/15/12/12
|
|

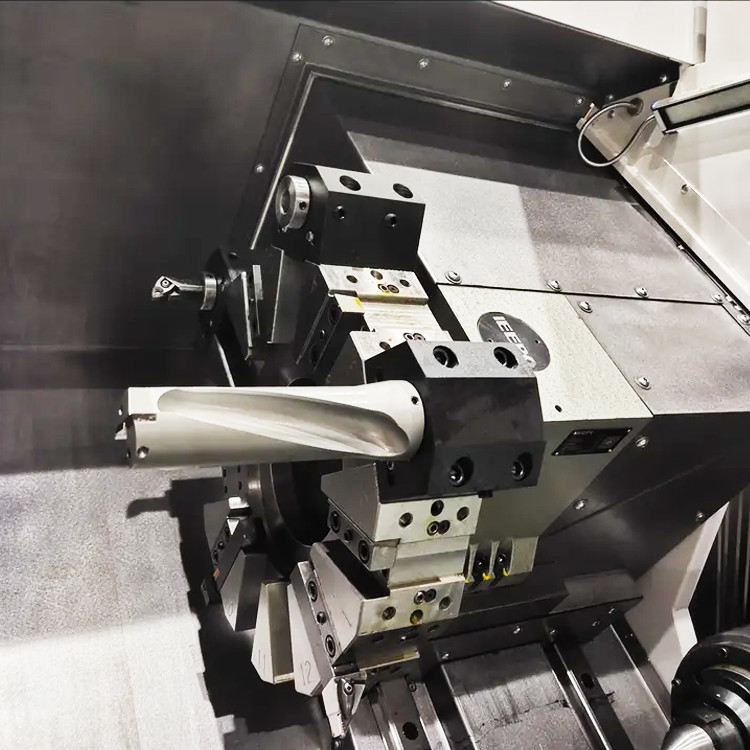

Form of tool turret
|
|
Horizontal 12-position turret
|
|
Size of tool shank
|
mm
|
32X32
|
|
Diameter of boring tool shank
|
mm
|
Φ50/Φ40/Φ32/Φ25
|
|
Positioning accuracy (X axis)
|
mm
|
0.013
|
|
Positioning accuracy (Z-axis)
|
mm
|
0.020/0.026/0.035/0.040
|
|
Repositioning accuracy(X axis)
|
mm
|
0.006
|
|
Repositioning accuracy(Z-axis)
|
mm
|
0.008/0.010/0.013/0.016
|
|
Machining accuracy
|
|
IT6
|
|
Max. weight of disc workpiece
|
kg
|
500
|
|
Max. weight of shaft workpiece
|
kg
|
2000
|
|
weight of machine
|
kg
|
1400/1700/2000/2300/23000
|
|
Overall dimensions of machine (LxWxH)
|
mm
|
4900x2760x2630/5400x2825x2680/ 5900x2825x2680/6900x2825x2680
|
Industry application:
Workpiece example: guide sleeve
Workpiece example: medium 500 cylinder
Workpiece Example: Drive Axle
Workpiece example: RE2B axle
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
