Place of Origin:
CHINA
Brand Name:
SMTCL
Certification:
CE ISO certification
Model Number:
HTC 63n
Video
Video
Product Description:
Product Features:
|
Item
|
UNIT
|
HTC63n Series
|
|
Max. swing over bed
|
mm
|
Φ850/Φ850/Φ850/Φ820
|
|
Max. swing over carriage
|
mm
|
Φ630
|
|
Max. cutting diameter (disc/shaft)
|
mm
|
Φ750/Φ630
|
|
Max. cutting length
|
mm
|
1000/1500/2000/3000
|
|
Spindle bore diameter
|
mm
|
Φ130
|
|
Form of spindle nose
|
|
A2-11
|
|
Max. diameter through bar
|
mm
|
Φ85 (with hydraulic hollow chuck)
|
|
Main motor power (continuous / 30min)
|
kw
|
22/30
|
|
Range of spindle speed / Max. output torque
|
r/min
|
(Mechanical 2 steps) 20~2000 / 950
|
|
Chuck diameter
|
inch
|
15”
|
|
Max. travel of X-axis
|
mm
|
410
|
|
Max. travel of Z-axis
|
mm
|
1050/1550/2050/3050
|
|
Rapid speed (X axis)
|
m/min
|
12/12/12/12
|
|
Rapid speed (Z-axis)
|
m/min
|
15/15/12/12
|
|
Form of tool turret
|
|
Horizontal 12-position turret
|
|
Size of tool shank
|
mm
|
32X32
|
|
Diameter of boring tool shank
|
mm
|
Φ50/Φ40/Φ32/Φ25
|
|
Positioning accuracy (X axis)
|
mm
|
0.013
|
|
Positioning accuracy (Z-axis)
|
mm
|
0.020/0.026/0.035/0.040
|
|
Repositioning accuracy(X axis)
|
mm
|
0.006
|
|
Repositioning accuracy(Z-axis)
|
mm
|
0.008/0.010/0.013/0.016
|
|
Machining accuracy
|
|
IT6
|
|
Max. weight of disc workpiece
|
kg
|
500
|
|
Max. weight of shaft workpiece
|
kg
|
2000
|
|
weight of machine
|
kg
|
1400/1700/2000/2300/23000
|
|
Overall dimensions of machine (LxWxH)
|
mm
|
4900x2760x2630/5400x2825x2680/ 5900x2825x2680/6900x2825x2680
|

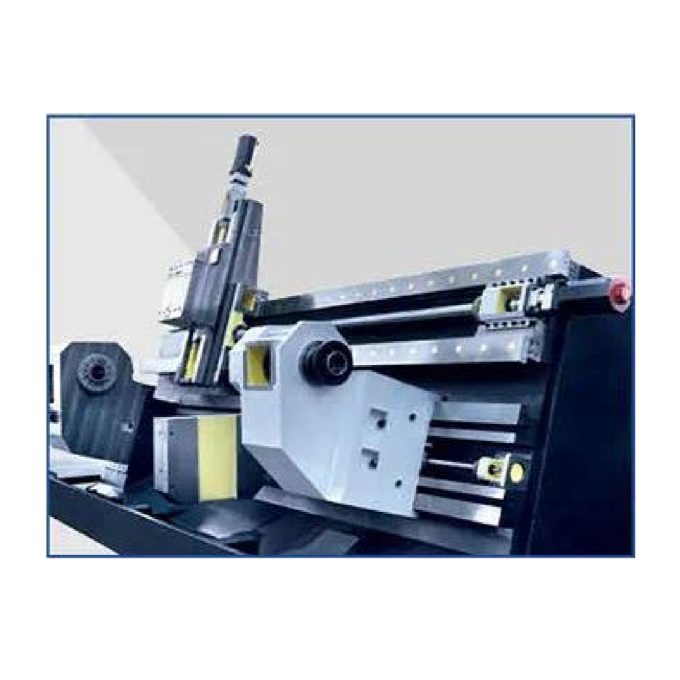

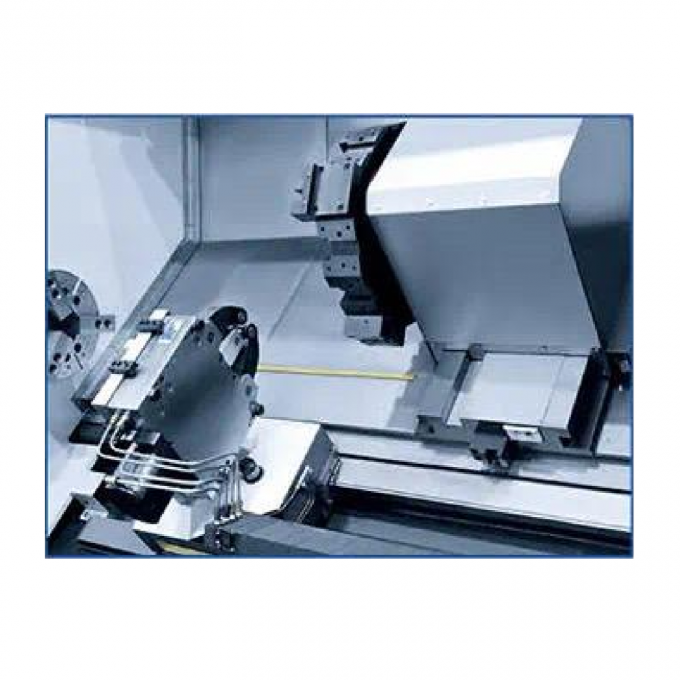

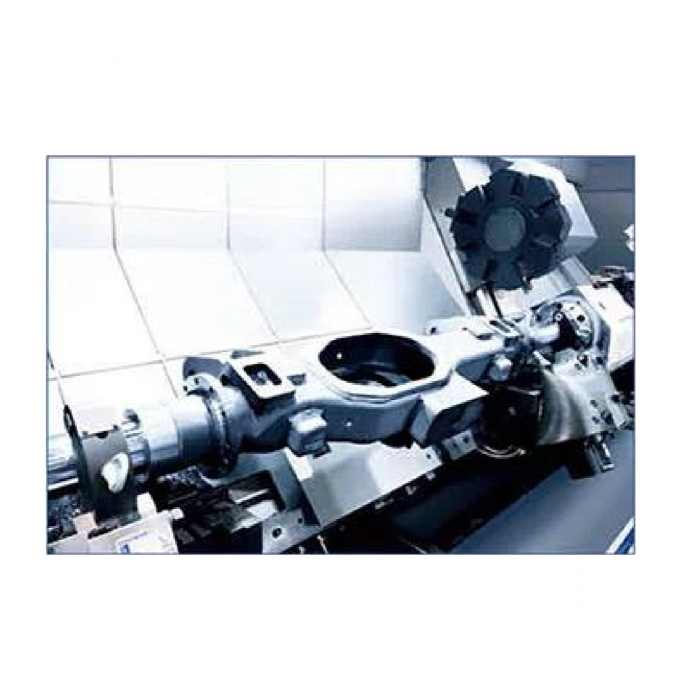

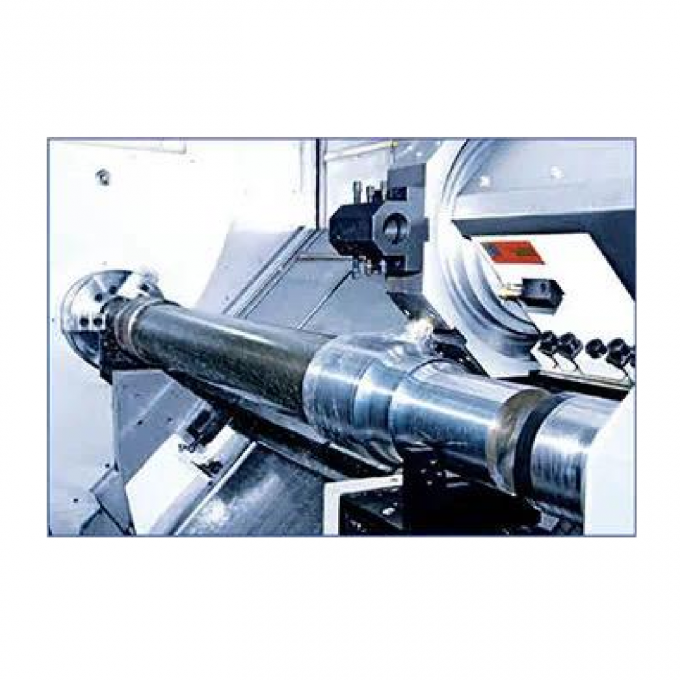

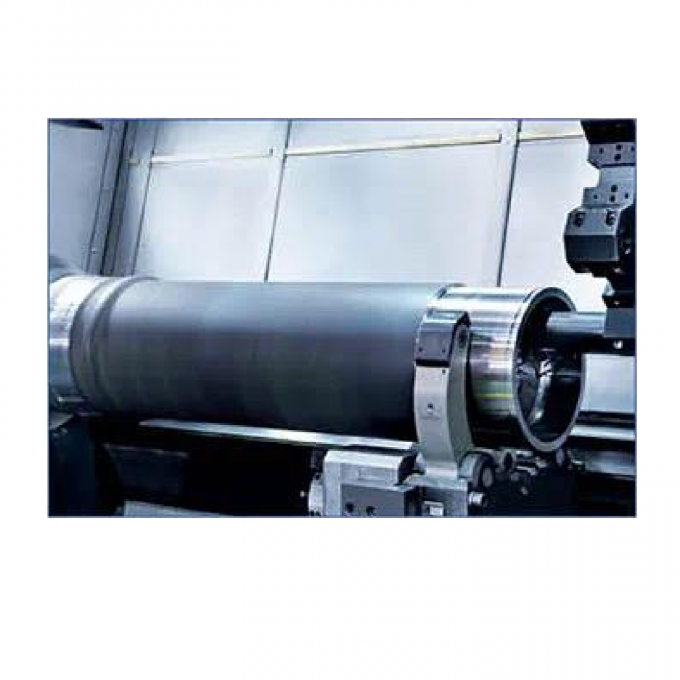

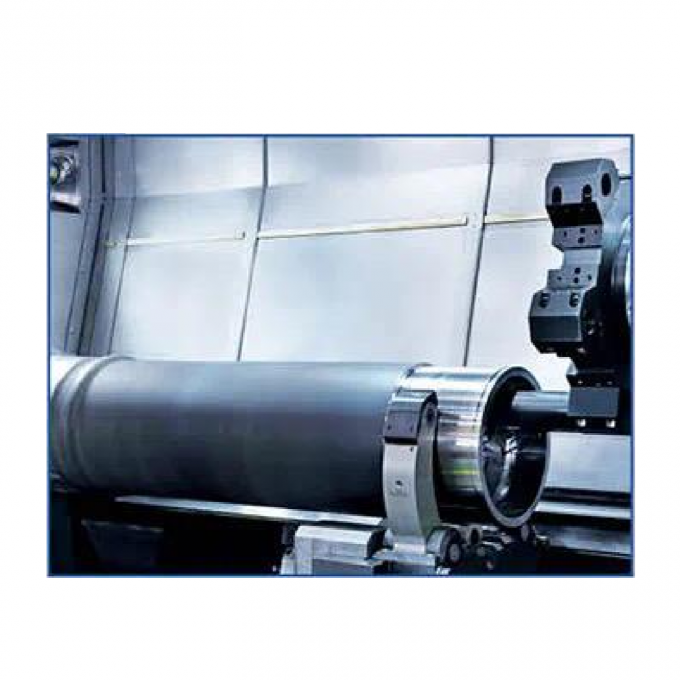

Industry application:
OUR Service:
1. Assemble and debug before delivery
