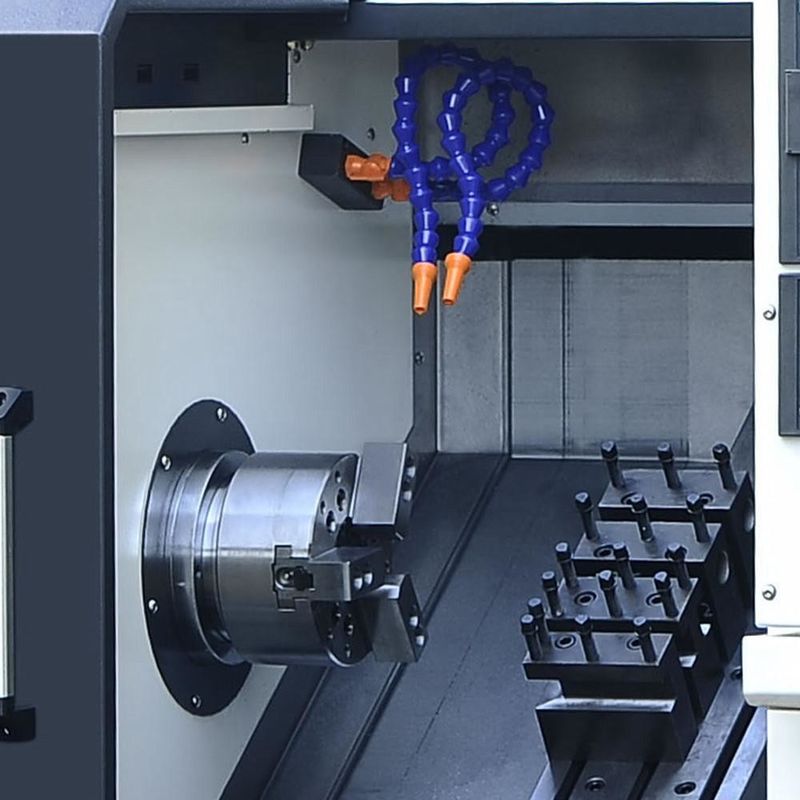

Mini Automatic Slant Bed CNC Lathe Machine SL400 Linear Guideway For Metal
Product Details
| Name: | SL400 Slant Bed CNC Lathe With Linear Guideway | Chuck/ Collet: | Hydraulic Collet,*Hydraulic Chuck 6", 8" |
|---|---|---|---|
| Max. Workpiece Length: | Collet 250,*chuck 210mm | Max. Swing Dia. Over Slide: | Ø120mm |
| Max. Swing Dia.over Bed: | Ø400mm | Spindle Bore: | Ø48/Ø55/Ø62mm |
| Spindle Nose: | A2-5/ *A2-6 | Max. Spindle Speed: | 3000/*4500/*2500/*4000/*5000/*2000/*3500/*4000rpm |
| Spindle Power: | 5.5/7.5Kw | X/Z Axis Rapid Traverse: | 10/14 M/min |
| Highlight |
Metal Slant Bed CNC Lathe,Mini Slant Bed CNC Lathe,SL400 Automatic CNC Lathe Machine |
||
Product Description
Linear Guideway manufacturer SL400 automatic metal Slant Bed CNC Lathe mini lathe
Machine Information
The FLASH family of CNC lathes were designed with speed and accuracy in mind. The SL series lathes are typically set-up for gang tool operations-optimal for high speed, low-cost turning requirements. Live tooling, turrets and various chuck options are easily added.
Main Specification
| Items | specification SL400 |
|---|---|
| Capacity | Chuck/collet: Hydraulic collet *Hydraulic Chuck 6", *8" |
| Max.Swing Dia. Over Bed: Ø400mm | |
| Max.Length of Workpiece : Collet 250,*Chuck210mm | |
| Max. Swing Dia. Over Slide: Ø120mm | |
| Spindle | Spindle Bore: Ø48/*Ø55/*Ø62mm |
| Max.dia. of through-hole:Ø40/*Ø46/*Ø52mm | |
| Spindle Nose: A2-5/*A2-5/*A2-6 | |
| Max. Spindle speed: 3000rpm, *2500rpm,*2000rpm, *4500rpm,*4000rpm,*3500rpm *5000rpm,*4000rpm |
|
| Main motor Power: 5.5/7.5kW | |
| Axis | X Axis Travel: 400mm |
| Z axis travel: 250mm | |
| X/Z axis rapid traverse: 10/14m/min | |
| Turret | Type: Gang type |
| No. of tool stations: 5-8 | |
| OD tool and bore tool shank:20x20/Ø25mm | |
| Structure | Inclined bed degree:45° |
| Guideway type: LM | |
| Others | Power Capacity: 12kVA |
| Dimension(L*W*H): 2000x1300x1710mm | |
| Weight(about): 2400Kg | |
| Note | "*"means optional, "N/A"means not available,"LM" means linear motion guide way |
Standard Features
- Hydraulic Collet
- Gang Type Tooling
- Ergonomic Operator Panel Design
- Automatic Lubrication System
- Automatic Coolant System
- Built-In Safety Features
Optional Features
- Different Chucks and Collets
- Different Control Systems
- Live Tooling
- Bar Feeder
