SMTCL CNC Turning Center HTC40Hm BMT55 12 Positions Power Turret CNC Lathe Mill Combo With Y Axis

SMTCL CNC Turning Center HTC40Hm BMT55 12 Positions Power Turret CNC Lathe Mill Combo With Y Axis

45 Degree Slant Bed CNC Lathe

CNC Turning Center

CNC Lathe Mill Combo With Y Axis

Place of Origin:

CHINA

Brand Name:

SMTCL

Certification:

CE ISO certification

Model Number:

HTC40Hm

Contact Us
Request A Quote
Product Details
Brand Name:
SMTCL
Key Word:
CNC Turning Center
Model Number:
HTC40Hm
Max. Cutting Diameter:
Φ350
Max. Cutting Length:
450
Max. Swing Over Bed:
Φ560
Max. Swiming Dia.on Slide:
Φ350
Spindle Bore Diameter:
Φ70
CNC Control System:
GSK/FANUC/SIEMENS
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case,Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
50 sets per month
Product Description

SMTCL CNC Turning Center HTC40Hm BMT55 12 Positions Power Turret CNC Lathe Mill Combo With Y Axis 0

Product Description:

SMTCL CNC Turning Center HTC40Hm BMT55 12 Positions Power Turret Servo Drive CNC Lathe Mill Combo With Y Axis

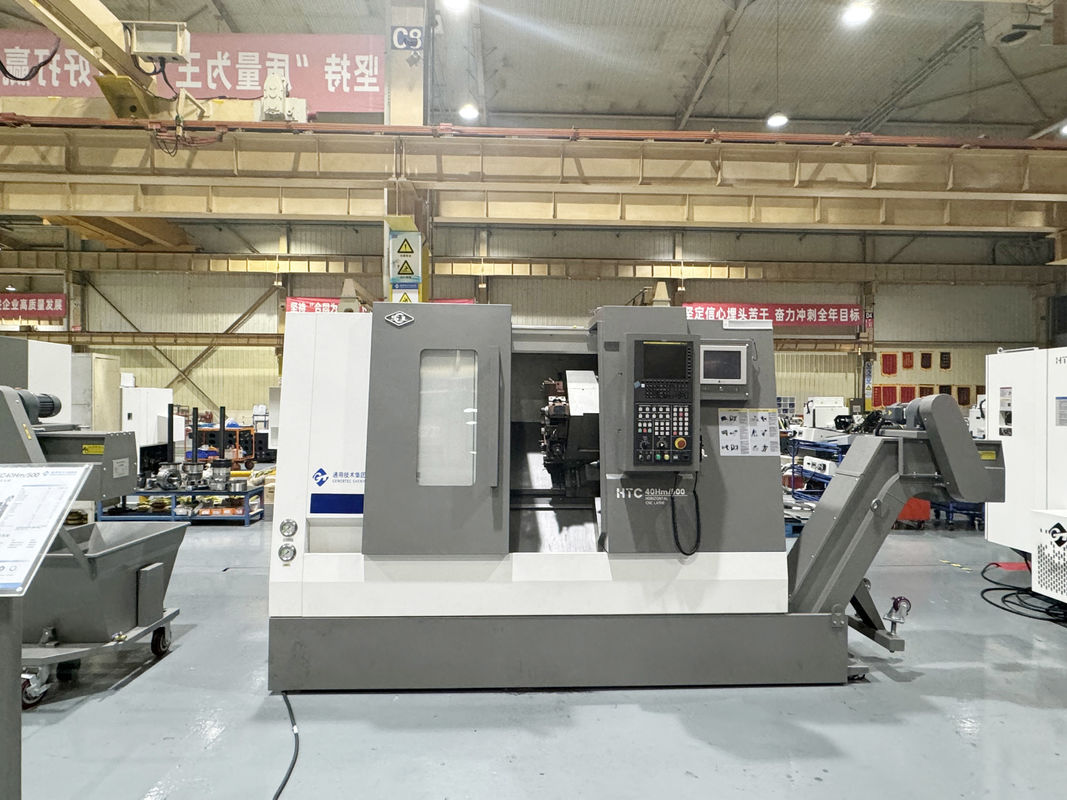

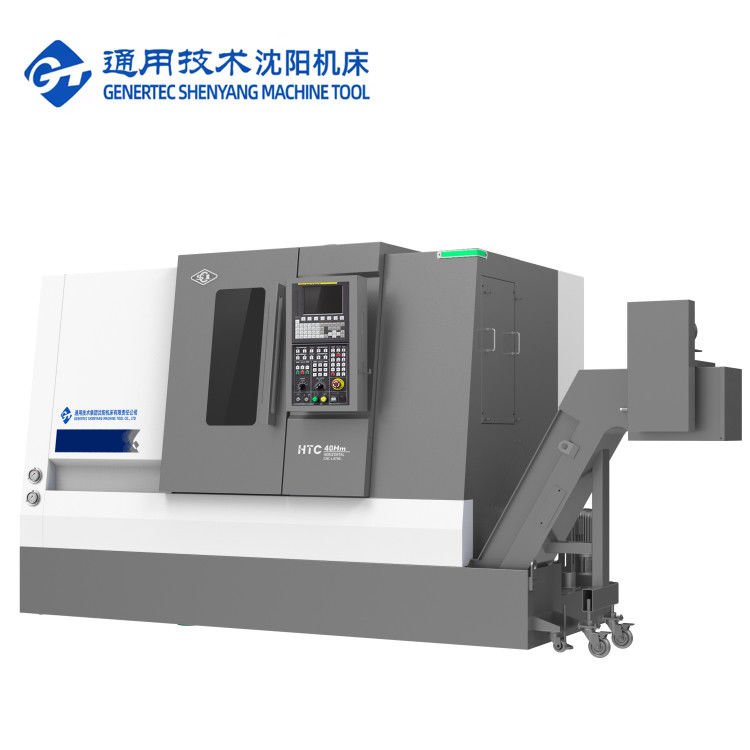

HTC40Hm horizontal turning center has been assembled and improved through scientific analysis,optimization and advanced manufacturing and testing technologies. It has excellent cutting performance and can meet the processing requirements of various rotary parts. Equipped with a servo-driven turret, it can realize processing methods such as turning,
milling and drilling. It can also be equipped with a servo-driven tailstock module. The tailstock can tightly abut at high speed without impact, and the abutting force can be intelligently adjusted. It features high machining accuracy and good stability, andis suitable for processing parts in many industries.

Product Features:

1,High Efficiency

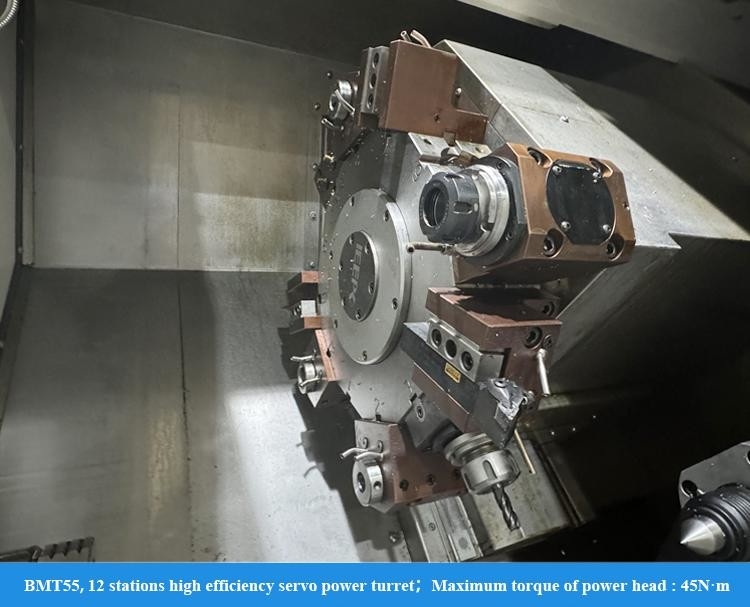

◆ High-efficiency servo power tool holder

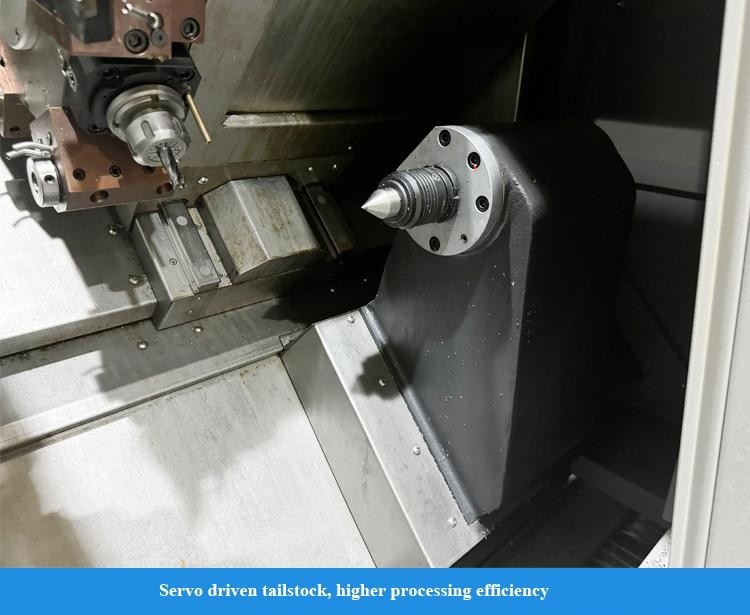

◆ Split servo tailstock
◆ High rapid movement speed of two axes
◆ Optional Y-axis configuration to achieve multi sequence integrated processing

2,High Precision
◆ High-precision pre-stretched screw
◆ Error compensation technology
◆ Quantification of process standards
◆ Strict inspection standards
3,High Rigidity
◆ Machine bed and other key castings made of high -quality cast iron

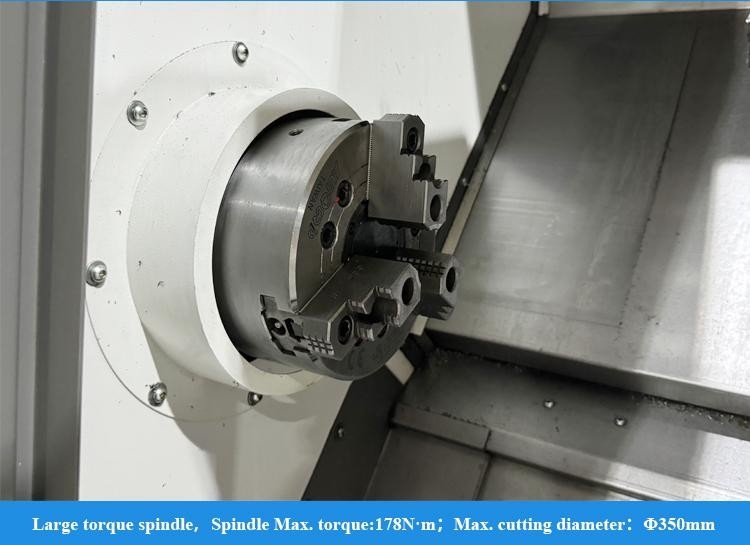

◆ Large span spindle unit
◆ Arc-shaped anti-bending saddle
◆ Small spindle structure tailstock
Product Details:
SMTCL CNC Turning Center HTC40Hm BMT55 12 Positions Power Turret CNC Lathe Mill Combo With Y Axis 1
Product Paramenters:
Project
Unit
HTC 40H(Q)m/500
HTC 40H(Q)m/1000
Max. cutting dia.
mm
Φ350
Φ350
Max.cutting length
mm
450
950
Max. swiming dia.over bed
mm
Φ560
Φ560
Max. swiming dia.on slide
mm
Φ350
Φ350
Spindle



Spindle nose model

A2-6
A2-6
Front bearing inner dia.
mm
100
100
Spindle taper and hole size

1:20;Φ70
1:20;Φ70
Dia. of spindle hole

Φ65
Φ65
Max.bar dia.
mm
Φ50
Φ50
Standard chuck dia.
inch
8
8
Spindle speed range
r/min
4500
4500
Rated spindle torque
N·m
130(800r/min)
130(800r/min)
Spindle Max. torque
N·m
230(600r/min)
230(600r/min)
Main motor output power continuous/15 min.
kW
11/15
11/15
X/Z axis



X/Z axis rapid movement
m/min
30
30
X axis travel
mm
220
220
Z axis travel
mm
510
1000
Tailstock



Tailstock travel
mm
500
500
Tailstock drive method

Hydraulic drive
Hydraulic drive
Tailstock taper hole taper
Morse
MT-5
MT-5
Turret



Turret typle

Horizontal 12-station power turret
Horizontal 12-station power turret
Center height
mm
100
100
Turret indexing repeat positioning accuracy
Sec.
±1.6
±1.6
Tool size
mm
25
25
If could choose tool nearby

yes
yes
Power tool holder interface

BMT55
BMT55
Max. drilling capacity
mm
16×0.2
16×0.2
Max. milling capacity
mm
14×10×40
14×10×40
Max. tapping capacity
mm
M12×1.5
M12×1.5
Others



Distance between spindle center and floor
mm
1050
1050
Machine tool net weight
kg
4200
4750
Overall dimensions(LxWxH)
mm
2750×1920×2000
3620×1920×2000
Note: The parameters provided in the table are for reference only. If there is any change, please refer to the actual product.
Standard configuration:

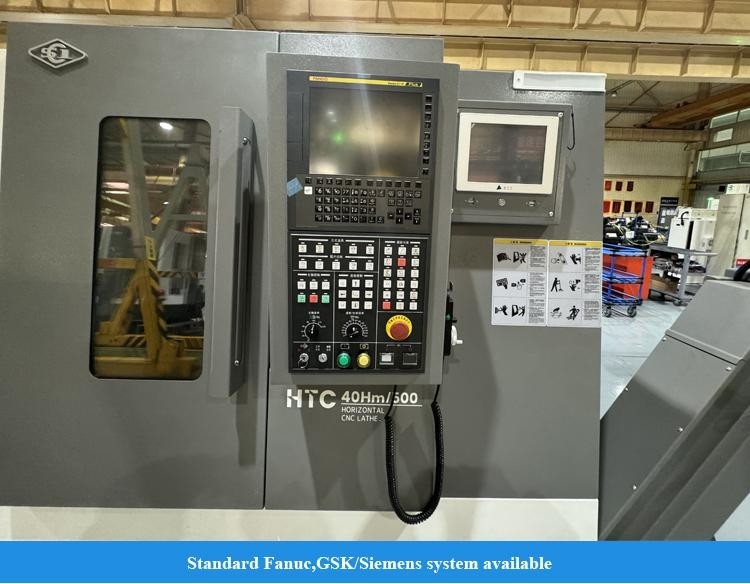

1,FANUC-0i-TF Plus (5) System (Hm/Sm Series)
2,GSK988TA System (Qm Series)
3,Sleeve-type spindle
4,Hollow chuck oil cylinder
5,Horizontal 12-station power tool carriage

Industry application:

SMTCL CNC Turning Center HTC40Hm BMT55 12 Positions Power Turret CNC Lathe Mill Combo With Y Axis 2

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
SMTCL CNC Turning Center HTC40Hm BMT55 12 Positions Power Turret CNC Lathe Mill Combo With Y Axis 3
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
SMTCL CNC Turning Center HTC40Hm BMT55 12 Positions Power Turret CNC Lathe Mill Combo With Y Axis 4
Exhibition:

SMTCL CNC Turning Center HTC40Hm BMT55 12 Positions Power Turret CNC Lathe Mill Combo With Y Axis 5

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
