Name: High Precision Flat Bed CNC Lathe Machine CAK5085 Horizontal Metal Cutting Lathe
Brand: Shanghai HD ME Tech Co., Ltd.
SKU: CAK5085
Availability: InStock

Home > Products > Flat Bed CNC Lathe >

High Precision Flat Bed CNC Lathe Machine CAK5085 Horizontal Metal Cutting Lathe

Economical Flat Bed CNC Lathe

High Precision Flat Bed Lathe Machine

Horizontal Metal Cutting Lathe

Place of Origin:

China

Brand Name:

SMTCL/SYMG

Certification:

ISO certification

Model Number:

CAK5085

Request A Quote

Product Details

Brand Name:

SMTCL

Model Number:

CAK5085

CNC Or Not:

CNC

Name:

Flat Bed CNC Lathe

Max.swing Over Bed:

500mm

Spindle Nose:

A2-8

Control System:

SIEMENS GSK FANUC (optional)

Max.parts Length:

890mm

Max Cutting Length:

850mm

Max Swing Diameter Over Bed:

φ500

Max.swing Diameter Over Slide:

φ300

Max Cutting Diameter:

φ500

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Packaging Details

The wooden case，Tin trunk ,Other seaworthy packing

Delivery Time

45-60 days

Payment Terms

L/C,T/T,Western Union

Supply Ability

50 sets per month

SMTCL Max Swing Diameter 1250mm Siemens System HTC125500 Large Horizontal CNC Lathe

Get Best Price

Video

SMTCL Heavy Turning Lathe HTC125500 Max swing diameter 1250mm Metallurgy, valve industry processing CNC Lathe

Get Best Price

Video

SMTCL Economical Metal CNC Lathe CAK3665 Automatic Torno Flat Bed CNC Lathe Turning Center

Get Best Price

Video

SMTCL Flat Bed CNC Lathe CAK5085 Torno CNC Turning Machine Metal CNC Lathe

Get Best Price

+8613916455787

sales@huidijd.com

86-021-61195255

Contact Now

Product Description

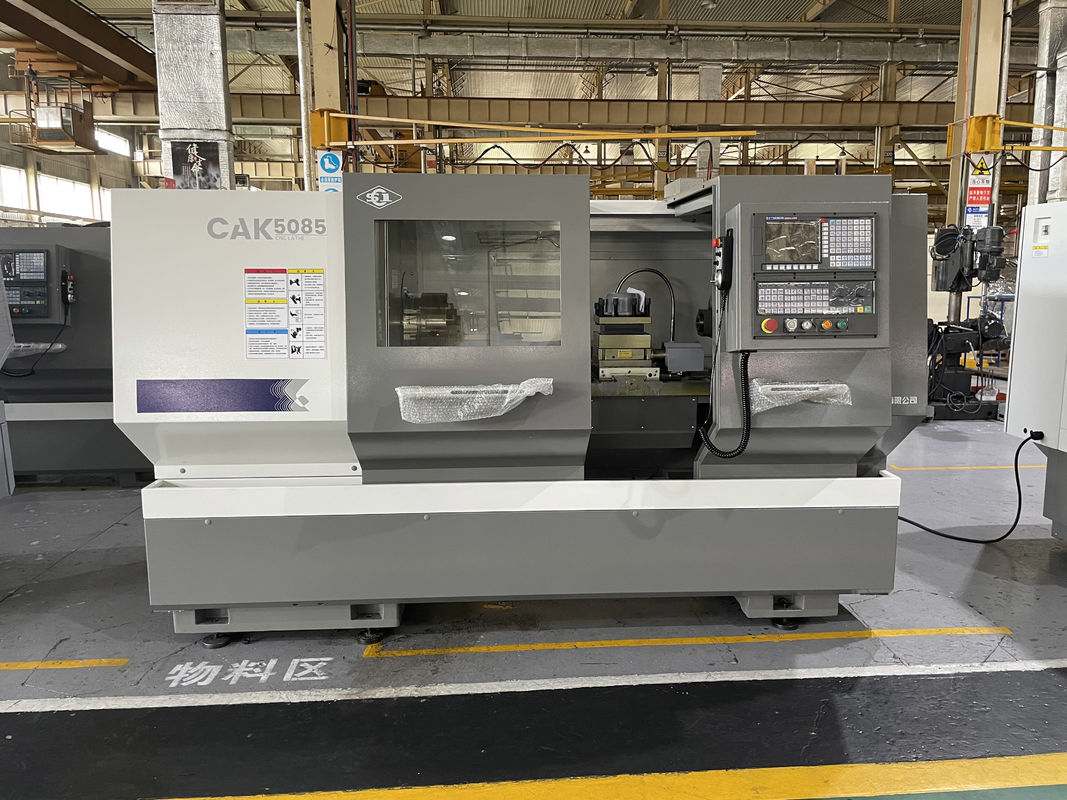

High Precision Flat Bed CNC Lathe Machine CAK5085 Horizontal Metal Cutting Lathe

The new CAK series CNC lathe inherits the performance and structural advantages of the traditional CAK products, and has significantly improved the processing accuracy, vibration resistance, function and reliability, and the new appearance design makes the waterproof performance of the machine tool have a qualitative leap. CAK series CNC lathe is the symbol of Chinese famous brand! General Technology Group Shenyang Machine Tool Co., Ltd. will always accompany you!

FEATURES AT A GLANCE

PRODUCT SPECIFICATIONS

Item	Unit	CAK5085
Max.parts length	mm	890
Max cutting length	mm	850
Max swing diameter over bed	mm	φ500
Max.swing diameter over slide	mm	φ300
Max cutting diameter	mm	φ500
Spindle nose type	mm	A2-8
Chuck diameter	mm	φ250
Spindle bore	mm	φ78
Spindle speed range(Auto 3 step)	r/min	15-2200
Spindle speed range (manual stepless)	r/min	22-1800
Spindle speed range(Auto 3 step,12 grades)	r/min	40-1800
Rated power of main motor	kw	7.5 (Main servo motor)
Tailstock quill diameter	mm	φ75
Tailstock quill travel	mm	150
Turret type		Vertical4 positions
Tool shank size	mm	25*25
X/Z axis rapid traverse	m/min	6/12
Machining accuracy		IT6~IT7
Machine net weight	kg	2800
Overall dimension (LxWxH)	mm	277017001735

OUR Service

Ensure you receive a high quality machine

Every parts need be inspected
Over 100 production process control
Over 200 inspection items
Sample processing of each machine
72 hours trial run before delivery

Why Choose Us

Top quality sense, customers' requests come first
30 years + R & D history, the company was founded in 1993
High-tech manufacturer with research anddesign capacity
Stable and mature supplying system
Young active sales and engineers for instant services(24 hours online)
Upgrading on mechanism according to ergonomics and easy maintenance
Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us

Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory

FAQ

Q1. Are you a trade company or manufacturing company?: We are a manufacturing company.
Q2. What's your main products of your company?: We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?: Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?: We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine's bill of lading date.
Q5. What is the services?: Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?: Products from the development, design, manufacture, assembly of the entire production process are carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?: We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?: T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
