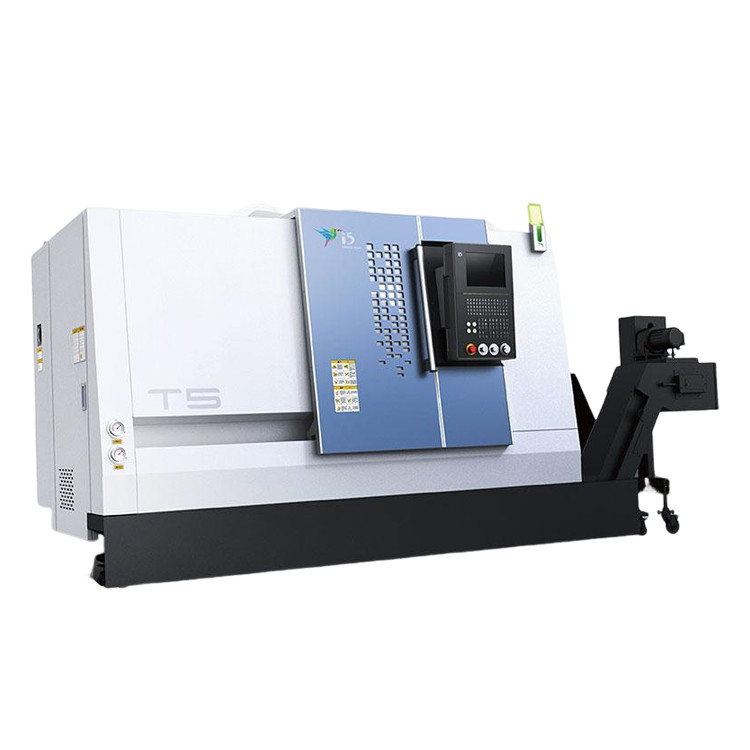

SMTCL Metal Lathe Milling Machine Combo T5.1-500Q Fanuc Control CNC Turning Center
Product Details
| Brand Name: | SMTCL | Model Number: | T5.1-500Q |
|---|---|---|---|
| CNC Control System: | GSK/FANUC/SIEMENS | CNC Or Not: | CNC |
| Key Word: | Slant Bed Lathe CNC Machine | Travel (X Axis)(mm): | 160 |
| Travel (Z Axis)(mm): | 560 | X/Z Rapid Traverse: | 30m/min |
| Tool Post Stations: | 8 | Max. Spindle Speed (r.p.m): | 4500 |
| Max. Turned Length (mm): | 500 | Max. Swing Over Bed: | Φ420 |
| Max. Swing Over Slide: | Φ280 | Max. Cutting Dia.: | Φ280 |
| Highlight |
Metal Lathe Milling Machine,CNC Metal Lathe Milling Machine,CNC Milling Turning Center |
||

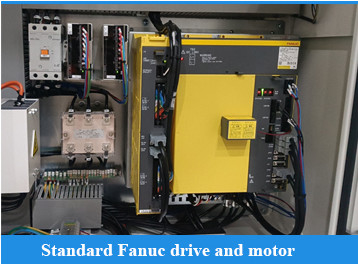

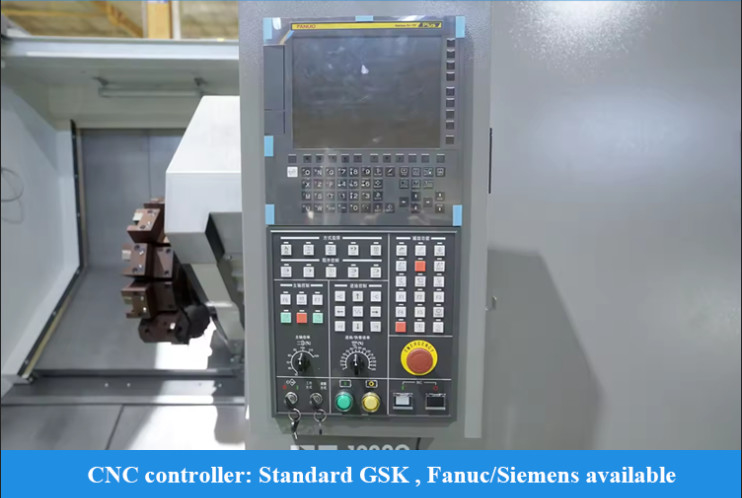

Product Description
T5Q series horizontal CNC lathe, combining intelligent control technology and advanced manufacturing technology, has high precision, high efficiency and high cutting rigidity. The finite element analysis software is used to optimize the design, analyze the distribution of stress points, reduce the deformation of parts, and achieve the optimal structure of the whole machine. The main castings are all made of high-strength cast iron materials, which ensures the minimization of vibration during the cutting process and improves the machining accuracy and cutting stability.

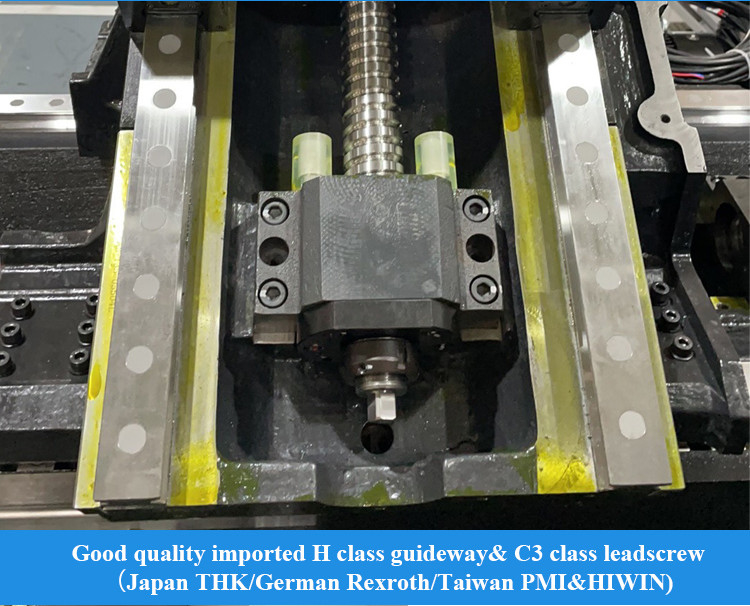

- C3 pre-drawn lead screw
- Error compensation technology
- Process standard quantification
- Two axes high and fast moving speed

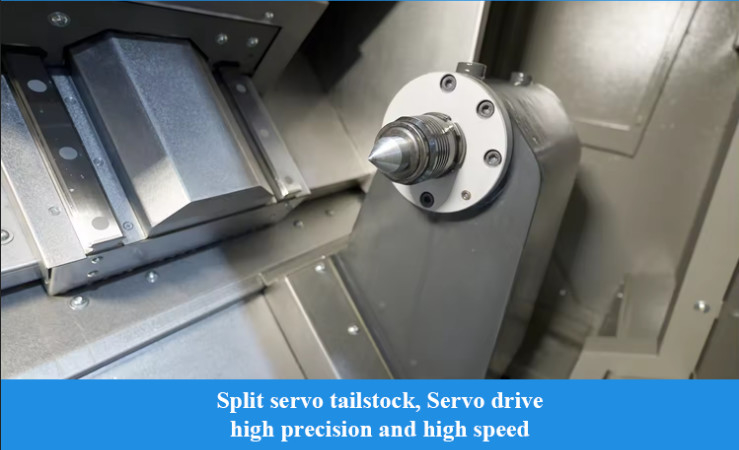

- Split servo tail

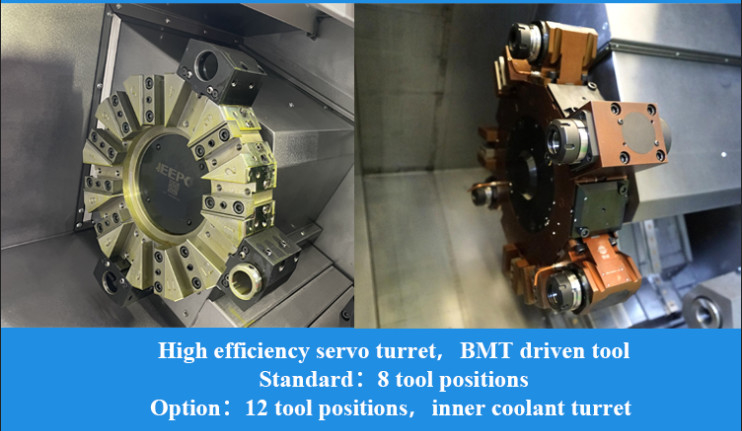

- High efficiency servo cutter tower

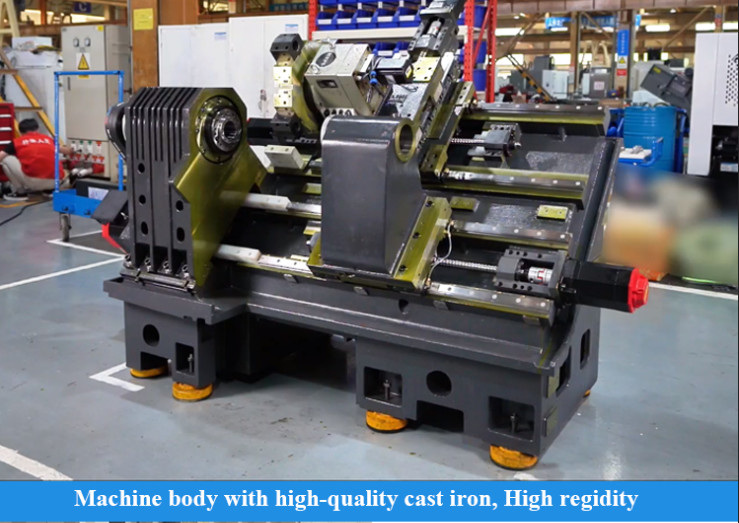

- High-quality cast iron bed and other key castings

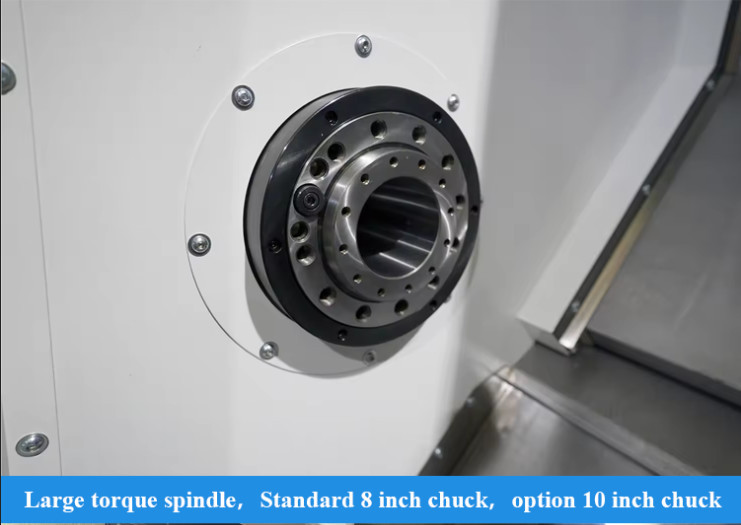

- Large span double row cylindrical roller spindle bearing
- Anti-bending saddle structure
|
Specifications
|
Unit
|
||
|
Max. turning diameter
|
mm
|
280
|
|
|
Max. turning length
|
mm
|
500
|
|
|
Max.swing diameter over bed
|
mm
|
Φ420
|
|
|
Max.swing diameter over cross slide
|
mm
|
Φ280
|
|
|
Spindle
|
Type of spindle nose
|
|
A2-6
|
|
Inner diameter of front bearing
|
mm
|
Φ100
|
|
|
Taper of spindle bore
|
|
1:20；Φ70
|
|
|
Spindle bore
|
mm
|
Φ56
|
|
|
Max. through bar diameter
|
mm
|
Φ50
|
|
|
Standard chuck diameter
|
inch
|
8
|
|
|
Max. spindle speed
|
r/min
|
4500
|
|
|
Spindle rated torque
|
Nm
|
110(769r/min)
|
|
|
Max. spindle torque
|
Nm
|
180(576r/min)
|
|
|
Main motor output power continuous /30 minutes
|
kW
|
9/11
|
|
|
Two axis
|
Rapid traverse of X/Z axis
|
m/min
|
30
|
|
X axis travel
|
mm
|
160
|
|
|
Z axis travel
|
mm
|
560
|
|
|
Tailstock
|
Tailstock travel
|
mm
|
300 |
|
Tailstock quill taper
|
Morse
|
MT-5 | |
|
Turret
|
Turret form
|
|
Horizontal 8 positions servo turret
|
|
Center height of turret
|
mm
|
80 | |
|
Turret rotation repeat positioning accuracy
|
Sec.
|
±1.6
|
|
|
Whether the cutter can be selected nearby
|
|
yes
|
|
|
Other
|
Distance from spindle center to bed bottom
|
mm
|
936
|
|
Machine net weight
|
kg
|
3500
|
|
|
Total power supply capacity
|
kVA
|
23
|
|
|
Overall dimensions (Length X width X height)
|
mm
|
2300×1680×1650
|
|
Ensure you receive a high quality machine
- Every parts need be inspected
- Over 100 production process control
- Over 200 inspection items
- Sample processing of each machine
- 72 hours trial run before delivery
- Top quality sense, customers' requests come first
- 30 years + R & D history, the company was founded in 1993
- High-tech manufacturer with research anddesign capacity
- Stable and mature supplying system
- Young active sales and engineers for instant services(24 hours online)
- Upgrading on mechanism according to ergonomics and easy maintenance
- Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
