SMTCL CNC Lathe IT35L Metal Bearing Machining Large Span Spindle CNC Lathe Machine
Product Details
| Brand Name: | SMTCL | Key Word: | Slant Bed Lathe CNC Machine |
|---|---|---|---|
| Model Number: | IT35L | CNC Control System: | GSK |
| Max. Turned Length (mm): | 500 | Max. Spindle Speed (r.p.m): | 4000 R.p.m |
| Travel (X Axis)(mm): | 260 | Travel (Z Axis)(mm): | 510 |
| Maximum Turning Diameter: | Φ360 | Maximum Turning Length: | 500 |
| Maximum Swing Over Bed: | Φ580 | Max Swing Over Slide: | Φ330 |
| Highlight |
Slant Bed CNC Lathe Machine,SMTCL CNC Lathe,Slant Bed CNC Lathe |
||
Product Description
SMTCL CNC Lathe IT35L Metal Bearing Machining Large Span Spindle CNC Lathe Machine
Slant Bed CNC Lathe is a kind of CNC lathe with a inclined design. This design makes the workpiece more stable during the turning process, reduces vibration and deformation, and improves the machining accuracy and surface quality. The lathe is usually used to process long and thin shaft workpieces, such as threaded rods, bearings, etc. It uses computer numerical control technology, can automatically complete the workpiece processing task, has the characteristics of high efficiency, accuracy and reliability. In general, Slant Bed CNC Lathe has the characteristics of high efficiency, accuracy and reliability, and is widely used in machinery manufacturing, automobile industry, aerospace and other fields.
- High Rigidity
- Finite element analysis to optimize the whole machine structure

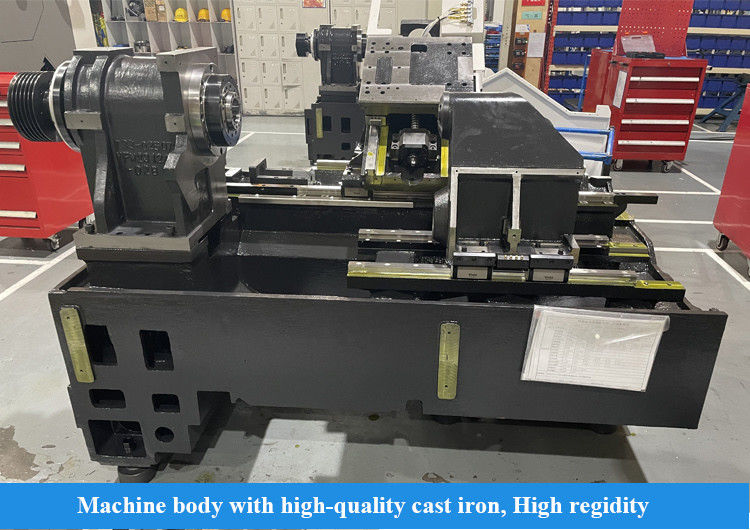

- The bed is made of high quality castings with reasonable bar layout
- Configuration of large span, large torque spindle, improve cutting rigidity
- Precision scraping process, improve the connection rigidity
- High efficiency
- Configuration servo tool holder, short transposition time, high tool change efficiency
- Two-axis servo motor drive, fast moving speed
- Large chip discharge port design, efficient chip discharge
- User-friendly design, easy operation and maintenance
- High Stability
- Double support feed structure to achieve stable processing
- High quality guide screw, stable operation
- Integral tail platform, parts simplification, high stability
- Quantitative process indicators, strict inspection standards
| Item | unit | specification | ||
|---|---|---|---|---|
| iT35 | iT35L | |||
| Maximum turning diameter | mm | Φ360 | ||
| Maximum turning length | mm | 350 | 500 | |
| Maximum swing over bed | mm | Φ580 | ||
| Max swing over slide | mm | Φ360 | Φ330 | |
| Spindle | spindle nose | A2-6 | ||
| front bearing dia. | mm | 100 | ||
| spindle taper and hole size | 1:20；Φ70 | |||
| dis.of spindle hole | mm | Φ65 | ||
| max dia. Of bar | mm | Φ50 | ||
| chuck size | inch | 8 | ||
| spindle speed | r/min | 4000 | ||
| spindle rated torque | Nm | 157.5(666r/min) | ||
| max spindle torque | Nm | 215(666r/min) | ||
| max motor output power continous/30min | kW | 11/15 | ||
| Feeding | X/Z rapid traverse | m/min | 30 | |
| X/Z max speed | m/min | 30 | ||
| x axis travel | mm | 200 | ||
| z axis travel | mm | 350 | 510 | |
| Tailstock | tailstock travel | mm | NO | 400 |
| drive type | NO | Cylinder drive | ||
| Maximum fast moving speed | m/min | NO | 8 | |
| Minimum jacking workpiece length | mm | NO | 120 | |
| tailstock taper | morse | NO | MT-5 | |
| Turret | turret type | Horizontal 8 station servo turret | ||
| center height | mm | 80 | ||
| rotary positioning | Sec. | ±1.6 | ||
| Whether the cutter can select the tool nearby | yes | |||
| End tool holder | mm | 25*25 | ||
| Boring tool holder | mm | Φ40 | ||
| Reducer sleeve | mm | Φ32 | ||
| Cooling chip removal | Cooling pump pressure | bar | 0.9 | |
| Cooling pump flow | L/min | 40 | ||
| Tank capacity | L | 150 | 160 | |
| Chip extractor form | Right side chain plate | |||
| Loading | Disk-like parts | kg | 150 Includes chuck and other accessories | |
| Axial parts | kg | 300 Includes chuck and other accessories | ||
| Other | The spindle center is high from the bottom of the bed | mm | 108+0 | |
| weight | kg | 3300 | 3600 | |
| power | kVA | 27 | ||
| overall dimensions (L*W*H) |
mm | 2330*1675*1760 | 2550*1675*1760 | |
- GSK988TA controller
- Solid chuck&cylinder Chinese brand
- 8 positions turret
- Hydraulic station Chinese brand
- Chip box
- Side conveyor
- Rear conveyor
- Special chuck
- Special cylinder
- Special turret
- Ensure you receive a high quality machine
- Every parts need be inspected
- Over 100 production process control
- Over 200 inspection items
- Sample processing of each machine
- 72 hours trial run before delivery
- Top quality sense, customers' requests come first
- 30 years + R & D history, the company was founded in 1993
- High-tech manufacturer with research anddesign capacity
- Stable and mature supplying system
- Young active sales and engineers for instant services(24 hours online)
- Upgrading on mechanism according to ergonomics and easy maintenance
- Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
