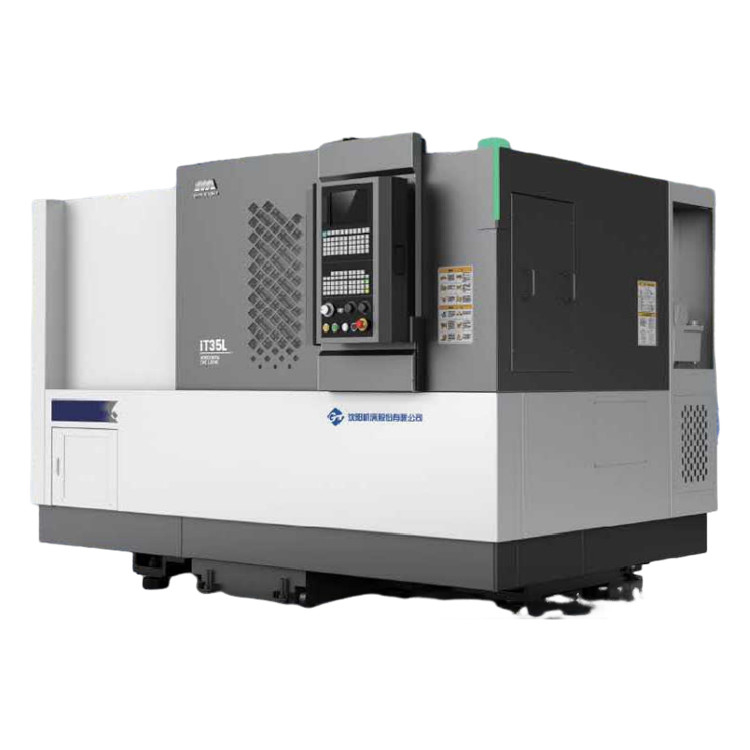

SMTCL CNC Lathe IT50 Series Slant Bed CNC Lathe 45 Degree CNC Turning Lathe Machine
Product Details
| Brand Name: | SMTCL | Model Number: | IT50 |
|---|---|---|---|

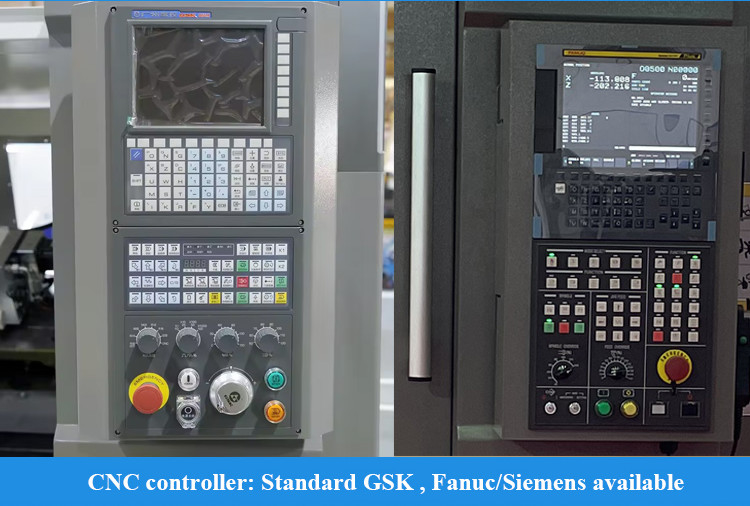

| CNC Control System: | GSK | CNC Or Not: | CNC |
| Key Word: | Slant Bed Lathe CNC Machine | Max. Turned Length (mm): | 500 |
| Max. Spindle Speed (r.p.m): | 3500 R.p.m | Travel (X Axis)(mm): | 260 |
| Travel (Z Axis)(mm): | 505 | Maximum Turning Diameter: | Φ500 |
| Maximum Turning Length: | 500 | Maximum Swing Over Bed: | Φ580 |
| Max Swing Over Slide: | Φ320 | ||
| Highlight |
Slant Bed CNC Lathe Milling Machine,CNC Turning Slant Bed Lathe,CNC Turning Lathe Machine 45 Degree |
||
Product Description
Product Description:
SMTCL CNC Lathe IT50 Series Slant Bed CNC Lathe 45 Degree CNC Turning Lathe Machine
IT series horizontal CNC lathe is suitable for processing all kinds of disk and short shaft parts, can turn the end face and the end groove, the outer circle and the inner hole thread, the groove and the rotary surface and other geometric features. Can meet the automotive, bearing, engineering machinery, non-ferrous metals and other industries for rotary parts of efficient, large quantities, high-precision processing requirements.

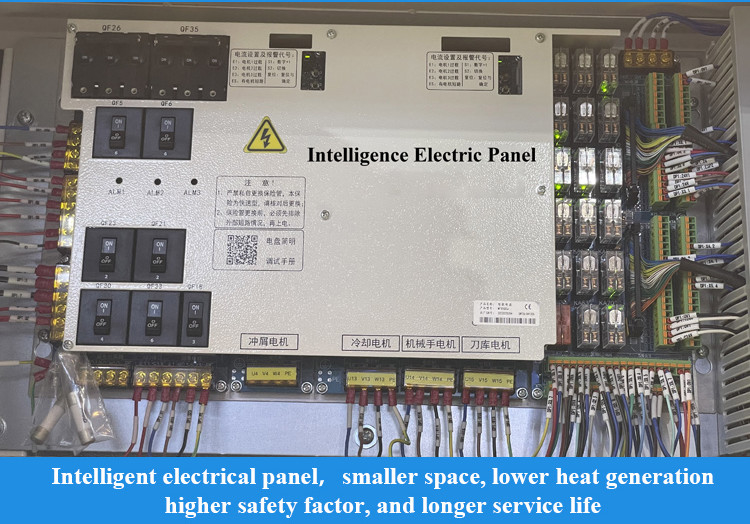

Product Features:

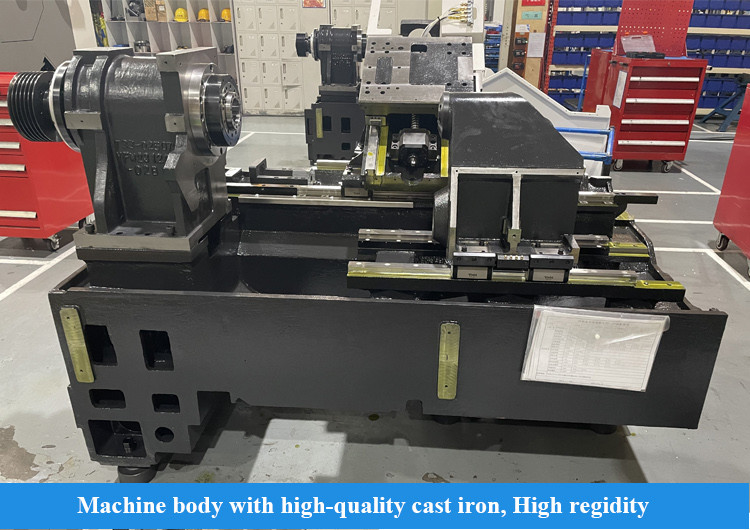

1,High Rigidity
♦ Finite element analysis to optimize the whole machine structure
♦ The bed is made of high quality castings with reasonable bar layout

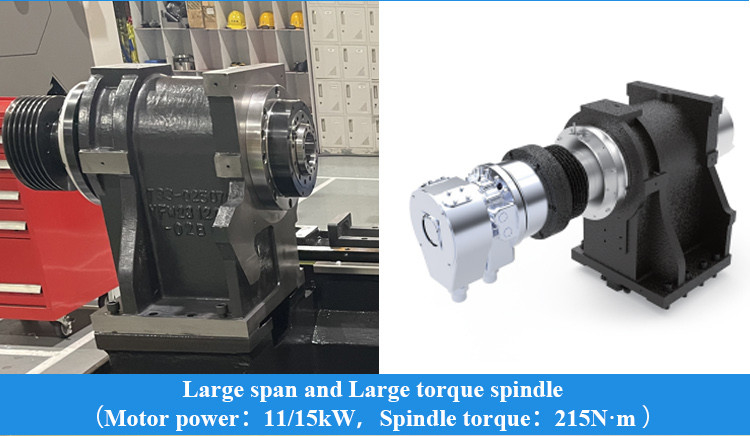

♦ Configuration of large span, large torque spindle, improve cutting rigidity
♦ Precision scraping process, improve the connection rigidity
|
Item
|
unit
|
specification (IT 50)
|
||
|
Maximum turning diameter
|
mm
|
Φ500 Φ500
|
||
|
Maximum turning length
|
mm
|
500
|
||
|
Maximum swing over bed
|
mm
|
Φ580
|
||
|
Max swing over slide
|
mm
|
Φ320
|
||
|
Spindle
|
|
|||
|
spindle nose
|
mm
|
A2-8
|
||
|
front bearing dia
|
mm
|
120
|
||
|
spindle taper and hole size
|
mm
|
1:20；Φ90
|
||
|
dis.of spindle hole
|
mm
|
Φ80
|
||
|
max dia. Of bar
|
mm
|
Φ65
|
||
|
chuck size
|

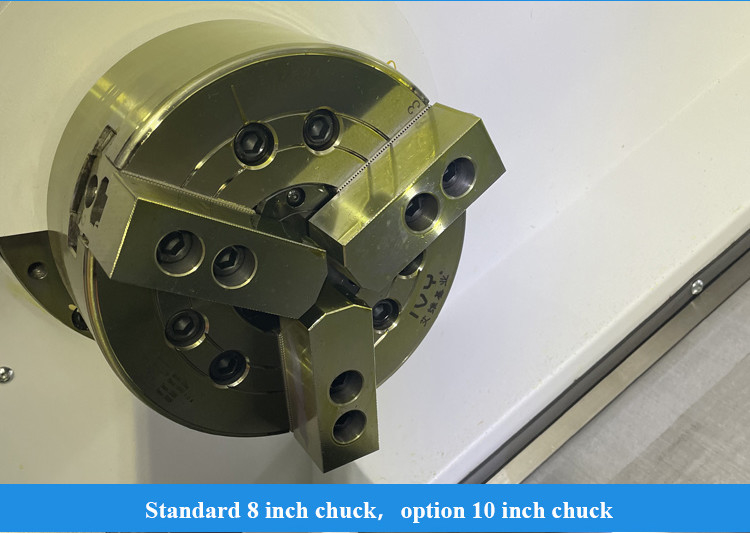

inch
|
10
|
||
|
spindle speed
|
r/min
|
3500
|
||
|
spindle rated torque
|
Nm
|
243(588r/min)
|
||
|
max spindle torque
|
Nm
|
300(588r/min)
|
||
|
max motor output power continous/30min
|
kW
|
15/18.5
|
||
|
Feeding
|
|
|||
|
X/Z max speed
|
m/min
|
24
|
||
|
x axis travel
|
mm
|
260
|
||
|
z axis travel
|
mm
|
505
|
||
|

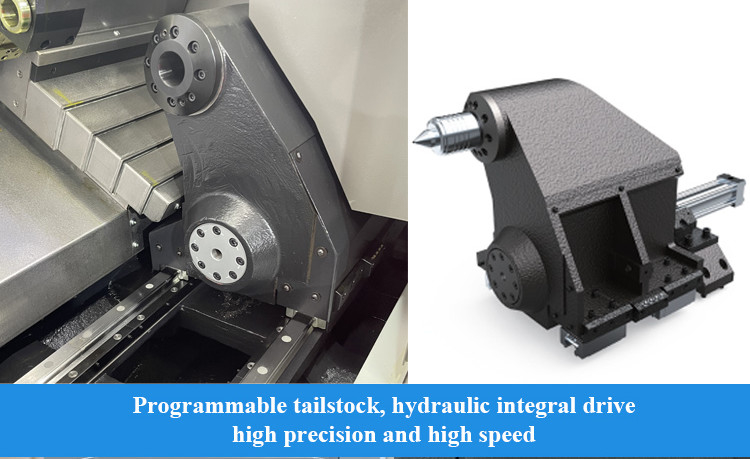

Tailstock
|
|
|
||
|
tailstock travel
|
mm
|
400
|
||
|
tailstock taper
|
morse
|
MT-5
|
||
|
Turret
|
|
|||
|

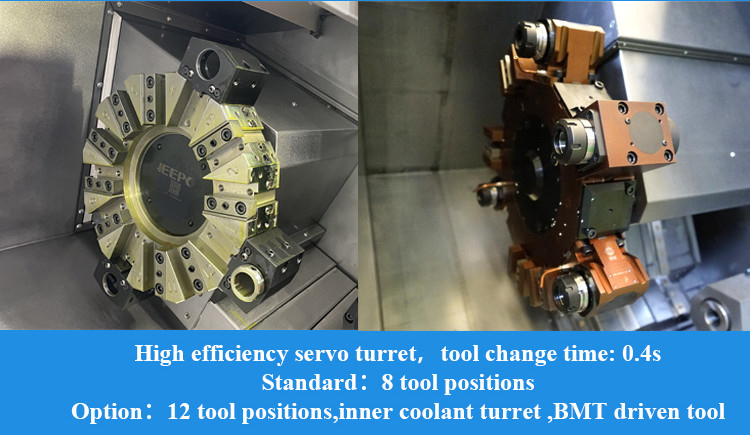

turret type
|
|
Horizontal 8 station servo turret
|
||
|
center height
|
mm
|
100
|
||
|
rotary positioning
|
SEC.
|
±1.6
|
||
|
Other
|
|
|||
|
weight
|
KG
|
3700
|
||
|
overall dimensions
(L*W*H) |
mm
|
2550×1675×1820
|
||
Industry application:
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
