Product Description:

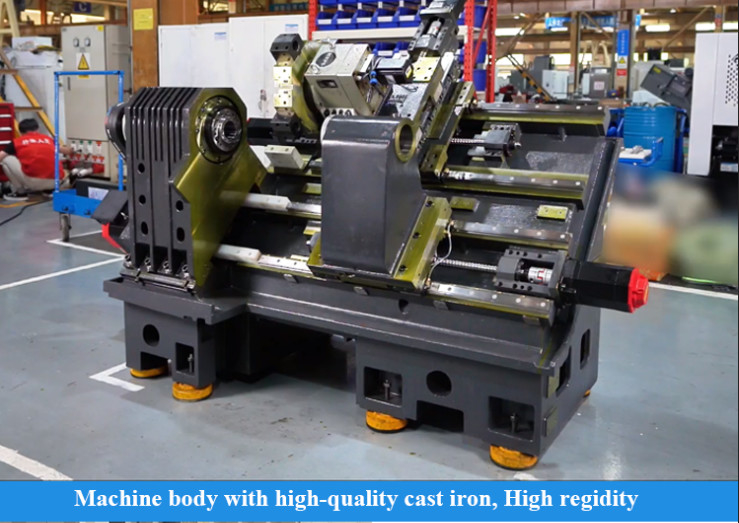

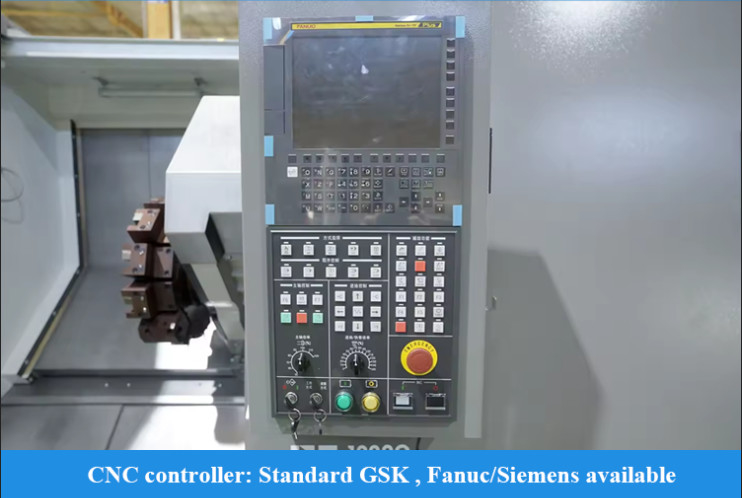

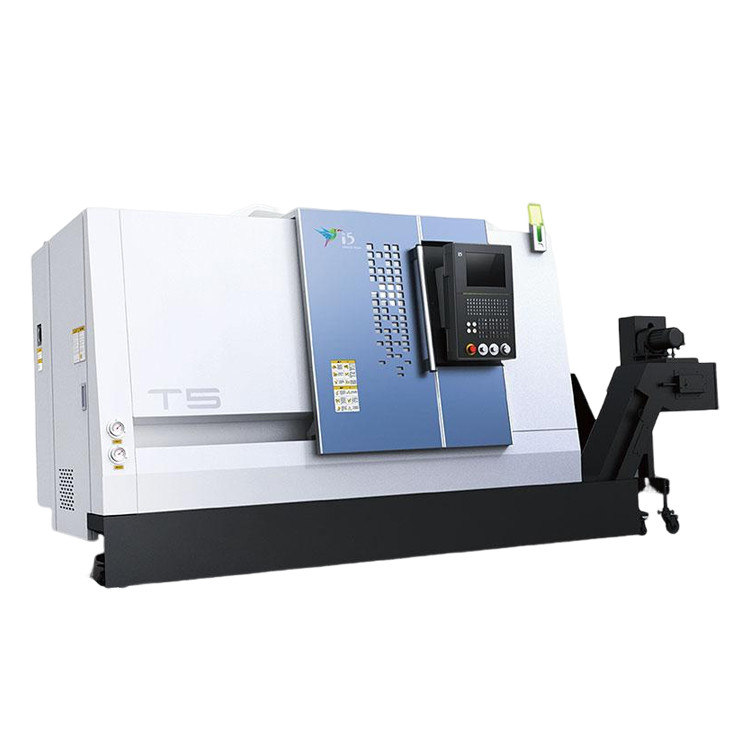

T5Q series horizontal CNC lathe, combining intelligent control technology and advanced manufacturing technology, has high precision, high efficiency and high cutting rigidity. The finite element analysis software is used to optimize the design, analyze the distribution of stress points, reduce the deformation of parts, and achieve the optimal structure of the whole machine. The main castings are all made of high-strength cast iron materials, which ensures the minimization of vibration during the cutting process and improves the machining accuracy and cutting stability.

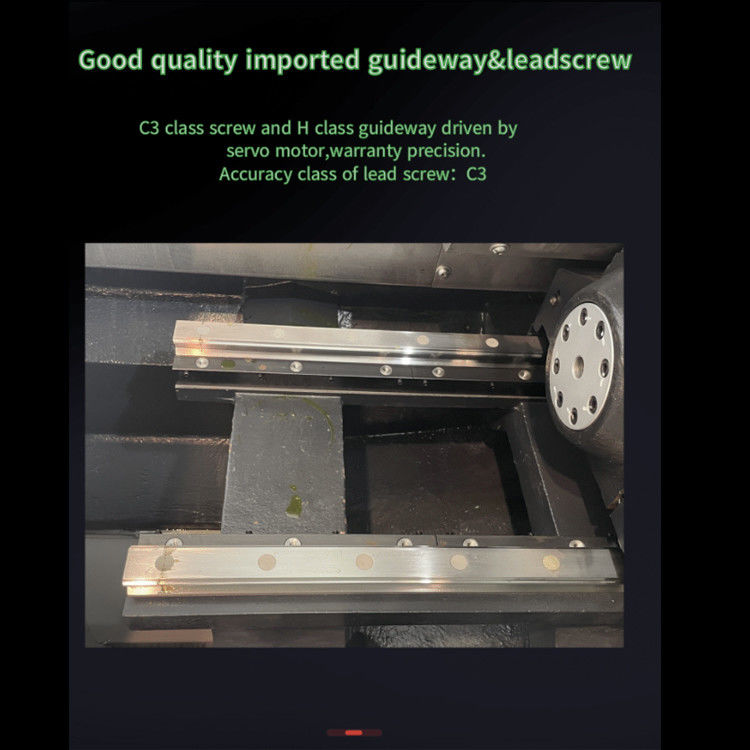

Product Features:
1,High Precision
|
Item
|
Unit
|
Specifications
|
Remarks
|
|
|
Max. turning diameter
|
mm
|
160
|
|
|
|
Max. turning length
|
mm
|
160
|
Different fixture parameters change
|
|
|
Max.swing diameter over bed
|
mm
|
Φ420
|
|
|
|
Max.swing diameter over cross slide
|
mm
|
Φ160
|
|
|
|

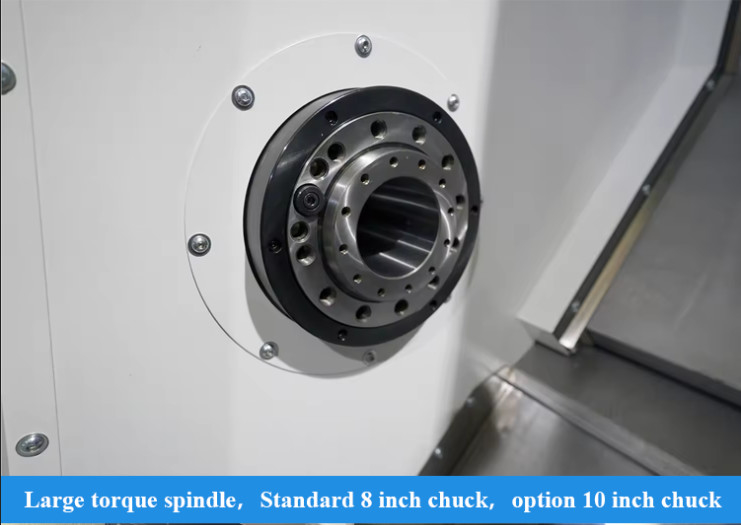

Spindle
|
Type of spindle nose
|
|
A2-5
|
|
|
Inner diameter of front bearing
|
mm
|
Φ90
|
|
|
|
Taper of spindle bore
|
|
1:20；Φ62
|
|
|
|
Spindle bore
|
mm
|
Φ56
|
|
|
|
Max. through bar diameter
|
mm
|
Φ44
|
|
|
|
Standard chuck diameter
|
inch
|
8
|
|
|
|
Max. spindle speed
|
r/min
|
5000
|
Subject to chuck and fixture restrictions
|
|
|
Spindle rated torque
|
Nm
|
35(200r/min)
|
|
|
|
Max. spindle torque
|
Nm
|
70(150r/min)
|
|
|
|
Main motor output power continuous /30 minutes
|
kW
|
7.5/11
|

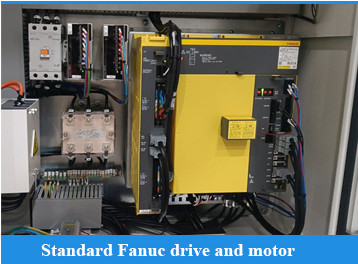

Mechanical spindle
|
|
|

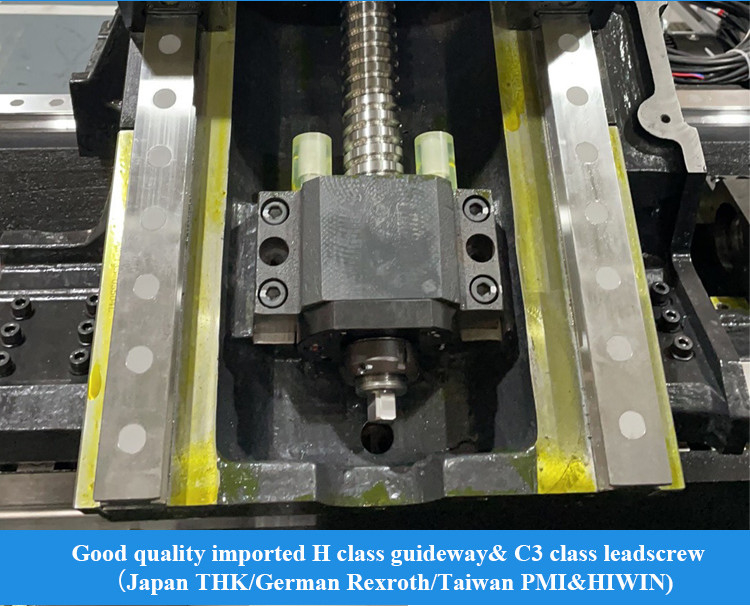

Two axis
|
Rapid traverse of X/Z axis
|
m/min
|
30
|
|
|
X axis travel
|
mm
|
145
|
|
|
|
Z axis travel
|
mm
|
205
|
|
|
|

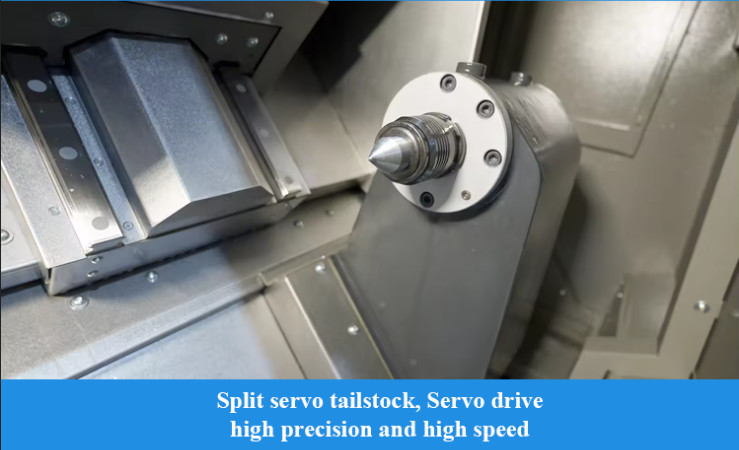

Tailstock
|
Tailstock travel
|
mm
|
-
|
|
|
Tailstock quill taper
|
Morse
|
-
|
|
|
|

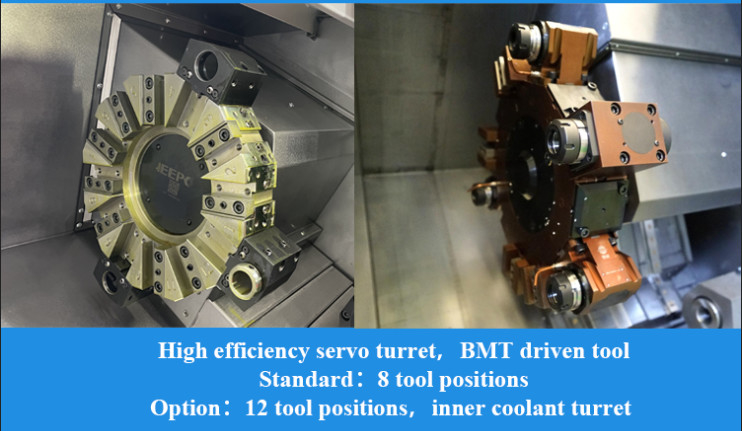

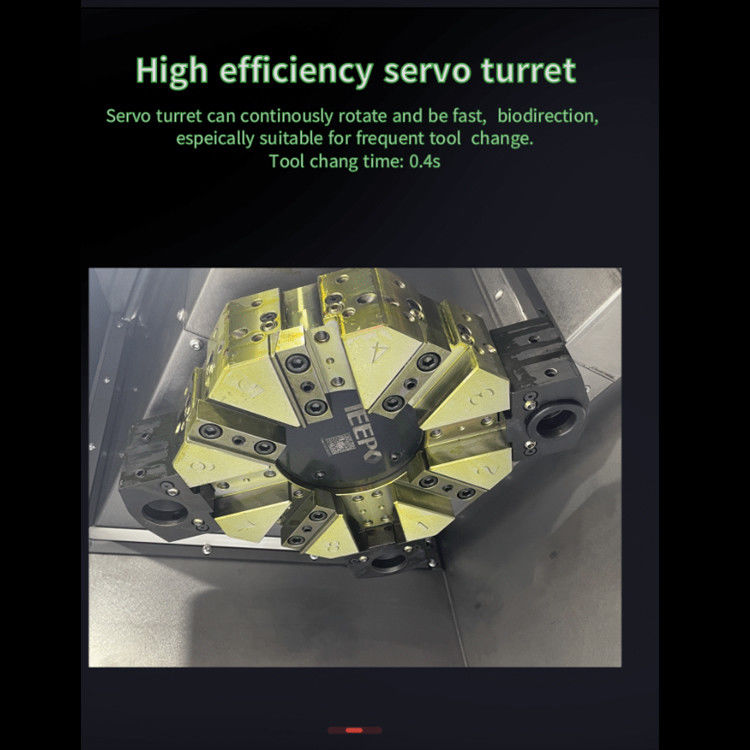

Turret
|
Turret form
|
|
Horizontal 8 positions servo turret
|
|
|
Center height of turret
|
mm
|
63 |
|
|
|
Turret rotation repeat positioning accuracy
|
Sec.
|
±1.6
|
|
|
|
Whether the cutter can be selected nearby
|
|
yes
|
|
|
|
Other
|
Distance from spindle center to bed bottom
|
mm
|
926
|
|
|
Machine net weight
|
kg
|
2600
|
|
|
|
Total power supply capacity
|
kVA
|
23
|
|
|
|
Overall dimensions (Length X width X height)
|
mm
|
1750×1650×1650
|
Overall dimension
|
|
