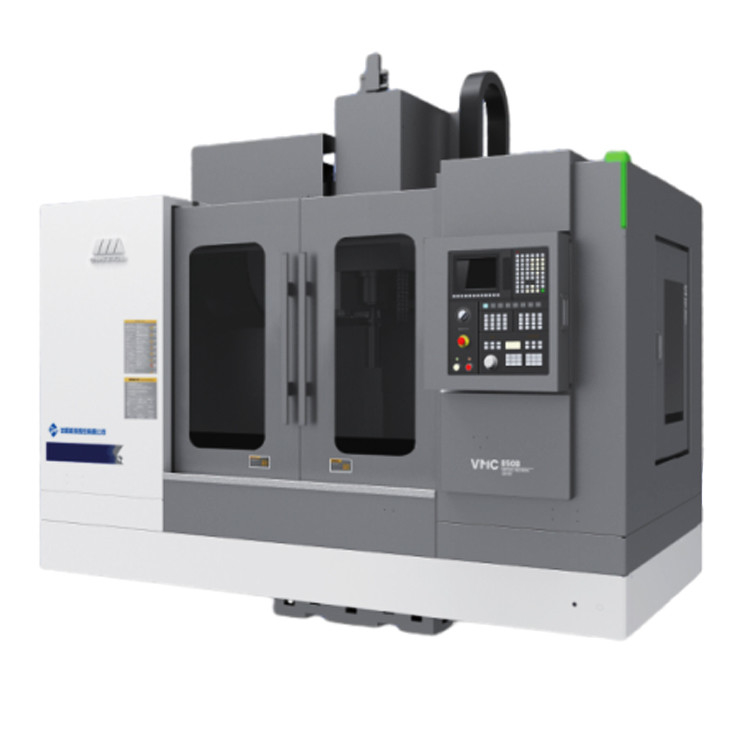

SMTCL VMC 1300B CNC Metal Lathe And Milling Machine Vertical Machining Center
Product Details
| Brand Name:: | SYMG,SMTCL | Spindle Taper: | BT40 |
|---|---|---|---|
| CNC Control System: | GSK, FANUC, Siemens | Range Of Spindle Speed(r.p.m): | 0 - 10000 R.p.m |
| Max. Table Load(kg): | 3000 Kg | Rapid Feed Speed(m/min): | 48 |
| Product Name: | Vertical Maching Center | X /Y/Z Axis Travel: | 850mm/500mm/540mm |
| X/Y/Z Axis Rapid Speed: | 48/48/48 M/min | Main Motor Power: | 7.5/11KW |
| After-sales Service Provided: | Video Technical Support | ||
| Highlight |
CNC Lathe And Milling Machine 11KW,CNC Metal Lathe And Milling Machine,VMC 1300B Vertical Machining Center |
||
Product Description
VMC-B through the typical series product description is a combination of market demand and development of a product, it is not only complete specifications, from the table 800×420mm to 2200×800mm, X-axis travel from 700mm to 2100mm; From the spindle configuration, we also achieve a variety, from the standard belt connection, direct connection 8000 to the output of 380Nm large torque. VMC-B is a very cost-effective typical machine tool, ultra wide bed design to ensure the machine has the best support capacity and stability, and the bed adopts a large bevel structure, Y axis adopts split protection, making chip removal convenient and fast
The worktable size of VMC B series from 650*430mm to 2200*800mm, X axis travel from 580mm to 2100mm, various configurations can meet the needs of customers in different fields.
| Model | Unit | VMC1300B | VMC1600B | VMC2100B |
| Worktable dimensions | mm | 1400x700 | 1700x800 | 2200x800 |
| T-slot sizes | mm | 18x5 | 22x5 | 22x5 |
| Max. load allowed | kg | 1000 | 2000 | 3000 |
| X-axis travel | mm | 1300 | 1600 | 2100 |
| Y-axis travel | mm | 700 | 800 | 800 |
| Z-axis travel | mm | 700 | 800 | 800 |
| Max. distance from spindle nose to worktable | mm | 850 | 940 | 1000 |
| Min. distance from spindle nose to worktable | mm | 150 | 140 | 200 |
| Spindle taper shank | BT40/BT50/BT50 | BT50 | BT50 | |
| Spindle speed | r/min | 8000/6000/6000 | 6000 | 6000 |
| Main motor torque | Nm | 52.5/71.7/95.4 | 95.4 | 380 |
| Main motor power | kW | 11/15;15/18.5/15/18.5 | 15/18.5 | 15/18.5 |
| X/Y/Z axis rapid speed | m/min |
24/24/20;24/24/20 ;24/24/20 |
24/24/20 | 18/18/18 |
| Feed speed | m/min | 2010/10/10 | 10 | 10 |
| Tool magazine form | Mechanical arm | Mechanical arm | Mechanical arm | |
| Tool quantity | pcs | 24/20/20 | 20 | 20 |
| Tool change time | s | 2.5/3.5/3.5 | 3.5 | 3.5 |
| Positioning accuracy | mm | 0.020/0.012/0.012 | 0.020/0.012/0.012 | 0.022/0.012/0.012 |
| Repeatability accuracy | mm | 0.012/0.010/0.008 | 0.012/0.010/0.008 | 0.013/0.008/0.008 |
| General power capacity | KVA | 37 | 37 | 37 |
| Air-supply pressure | Mpa | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 |
| Overall dimensions (LxWxH) | mm | 5026x3232x3361 | 5840x3340x3715 | 6705x3500x3910 |
| Machine weight | kg | 11000 | 135000 | 17500 |
| CNC controller | FANUC 0i-MF | FANUC 0i-MF | FANUC 0i-MF |
- Assemble and debug before delivery
- Respond within 24 hours and proceed to deal with the problem.
- 1 year free repair service (no-human damage only).
- Overall solution provided
- Top quality sense, customers' requests come first
- 30 years + R & D history, the company was founded in 1993
- High-tech manufacturer with research anddesign capacity
- Stable and mature supplying system
- Young active sales and engineers for instant services(24 hours online)
- Upgrading on mechanism according to ergonomics and easy maintenance
- Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
We are a manufacturing company.
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
