Heavy Duty 3 Axis Moving Beam CNC Large Gantry Milling Machine
Product Details
| Product Name: | TXK20-2 TXK20-3 Large CNC Moving Beam Gantry Milling Machine | Center Distance Of The Guide Rail: | 700/800 Mm |
|---|---|---|---|
| Maximum Machining Length: | 3000-6000mm | Maximum Machining Width: | 1600-2000 Mm |
| Maximum Machining Height: | 1200/1500 Mm | Worktable Length: | 3000-6000 Mm |
| Worktable Width: | 1400/1600mm | Maximum Weight Of Workpiece: | 6/7/8/9/10t |
| Worktable Movement Speed: | 30-4000 Mm/min, Stepless Adjustable | Main Motor Power: | 5.5/7.5/11kw |
| Highlight |
Moving Beam Large Gantry Milling Machine,Three Axis Gantry Milling Machine,Moving Beam Heavy Duty CNC Milling Machine |
||
Product Description

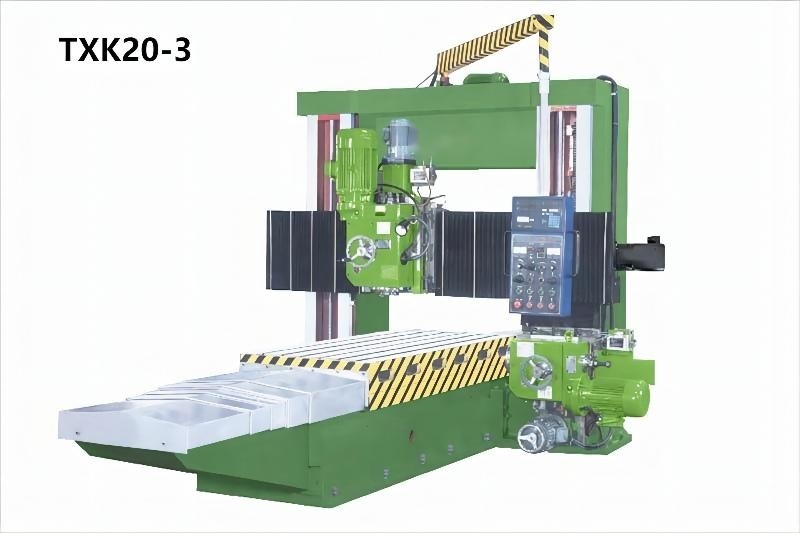

Heavy Duty TXK20-2 TXK20-3 Large CNC Moving Beam Gantry Milling Machine
- TXK20 series CNC gantry moving beam milling machine is a new generation of precision CNC machining machine tools, suitable for high speed steel carbide tool on ferrous metal, non-ferrous metal and part of the non-metallic material processing of the workpiece. Can complete the plane, high and low surface, inclined surface, side, groove class, boring, drilling and other processes of the milling process.

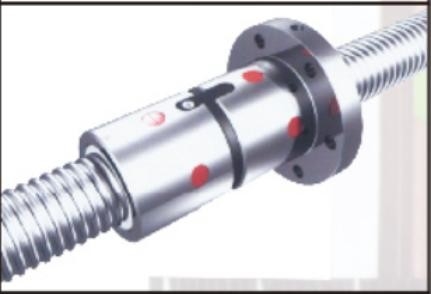

- Transmission mode of worktable: workbench ball screw drive, driven by AC servo system to achieve stepless adjustment of working speed and positioning, and repeat positioning accuracy
- Beam locking: TXK20 series beam is mechanically automatically locked and realizes chain control with the beam lifting.
- The two-axis ball screw drive of the end milling head is driven by an AC servo system to achieve stepless adjustment of working speed and positioning, and the accuracy of repeated positioning
- Side milling head milling feed quantity is stepless adjustable.
- All machine tools are cast, processed, assembled by our company. The casting materials are HT250 quality cast iron, all through thermal, vibration and secondary time treatment, to fully eliminate the internal stress of the casting. The bed body, column and beam guide rail have been super audio quenching.
Main Technical Parameters
| Machine Specifications | TXK20-0 | TXK20-1 | TXK20-2 | TXK20-3 | |
|---|---|---|---|---|---|
| Center distance of the guide rail | mm | 500 | 600 | 700 | 800 |
| Maximum machining length | mm | 3000-4000 | 3000-6000 | 3000-6000 | 3000-6000 |
| Maximum machining width | mm | 1000-1300 | 1300-1600 | 1600-2000 | 1600-2000 |
| Maximum machining height | mm | 800 | 1000,1200 | 1200 | 1200, 1500 |
| Worktable length | mm | 3000-4000 | 3000-6000 | 3000-6000 | 3000-6000 |
| Worktable width | mm | 800/900 | 1100/1300 | 1400/1600 | 1400/1600 |
| Maximum weight of workpiece | t | 3,4 | 5,6,8 | 6,7,9 | 7, 8, 10 |
| Worktable movement speed | mm/min | 30-4000 stepless adjustable | 30-4000 stepless adjustable | 30-4000 stepless adjustable | 30-4000 stepless adjustable |
| Main motor power | kw | 3.7 | 5.5,7.5 | 5.5, 7.5 | 5.5,7.5,11 |
| Spindle power | kw | 7.5 | 7.5 | 7.5 | 7.5 |
| Machine weight | t | 13-16 | 15-25 | 20-32 | 23-36 |

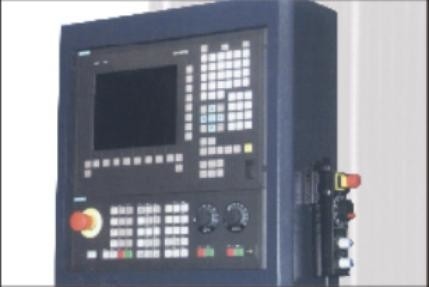

| CNC system | Siemens/KND | Siemens/KND | Siemens/KND | Siemens/KND | |
| Digital display | Optional | Optional | Optional | Optional | |
| Machine Specifications | TXK20-4 | TXK20-5 | TXK20-6 | |
|---|---|---|---|---|
| Center distance of the guide rail | mm | 900 | 1000 | 1200 |
| Maximum machining length | mm | 3000-4000 | 3000-4000 | 3000-4000 |
| Maximum machining width | mm | 2000-2500 | 2000-2500 | 2000-2500 |
| Maximum machining height | mm | 1500 | 1500 | 1500, 1800 |
| Worktable length | mm | 3000-4000 | 3000-4000 | 3000-4000 |
| Worktable width | mm | 1600/2200 | 1600/2200 | 1600/2200 |
| Maximum weight of workpiece | t | 8,9 | 10,11 | 10,12 |
| Worktable movement speed | mm/min | 30-4000 stepless adjustable | 30-4000 stepless adjustable | 30-4000 stepless adjustable |
| Main motor power | kw | 13 | 15 | 18.5 |
| Spindle power | kw | 11 | 15 | 15 |
| Machine weight | t | 29-36 | 35-43 | 41-53 |
| CNC system | Siemens/KND | Siemens/KND | Siemens/KND | |
| Digital display | Optional | Optional | Optional | |
Standard configurations
- One vertical milling head(Three-axis CNC)
- One side milling head (optional between left and right)
- Steel plate shield of the bed body
- Bebar, column organ type shield
Special attachments
FAQ
a:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
b: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
c. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
d: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
e: What's the MOQ?
A: 1 set .
We want to know:
- a.What's your Industrial Voltage?
- b.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
- c.If need CIF Price, please kindly tell us the port of destination.
Product Highlights
Heavy Duty TXK20-2 TXK20-3 Large CNC Moving Beam Gantry Milling MachineTXK20 series CNC gantry moving beam milling machine is a new generation of precision CNC machining machine tools, suitable for high speed steel carbide tool on ferrous metal, non-ferrous metal and part of the non-metallic ...
