High Performance Horizontal CNC Machine Single Table MDH80A Heavy Duty

Model Number: MDH80A
Place of Origin: China
Certification: ISO certification
Minimum Order Quantity: 1 Set
Price: Negotiable
Supply Ability: 20 sets per month

Product Details

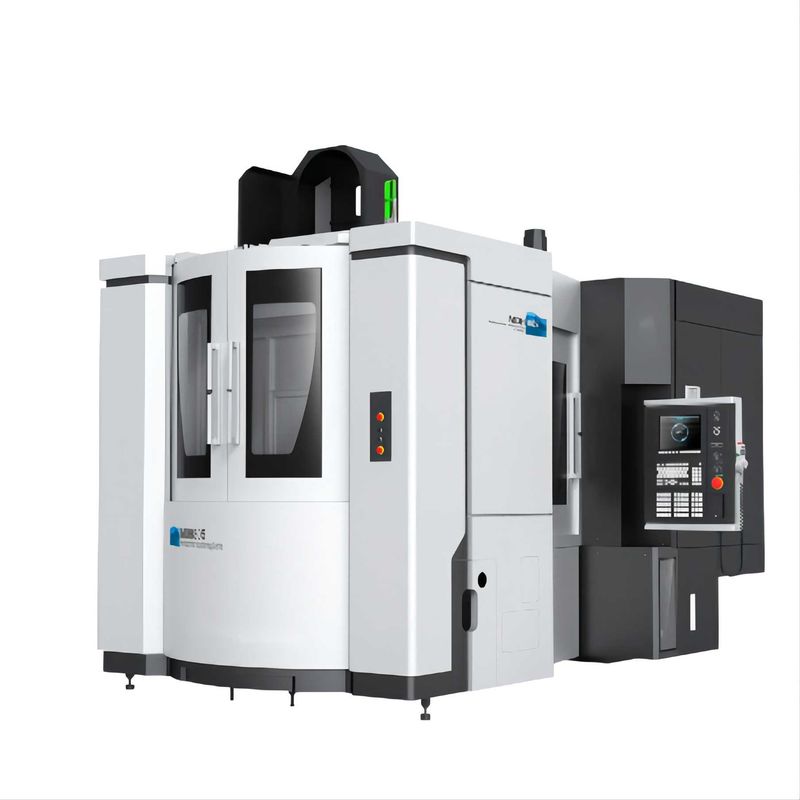

Product Name: MDH80A Single Table Horizontal Machining Center Worktable Size: 800×800 Mm
No. Of Pallet: Single Table Max.table Load: 2000kg
Distance From Table Surface To Spindle Center: 80-1180mm Distance From Spindle Nose To Table: 200~1250mm
X/Y/Z Travel: 1400/1100/1050 Mm L×W×H: 5393*3682*3827mm
Highlight

MDH80A Horizontal CNC Machine

,

Heavy Duty Horizontal CNC Machine

,

Single Table High Performance CNC Machine

Product Description

MDH80A single table Horizontal Machining Center High Performance Heavy Duty



Product Presentation

The horizontal machining center is one of the horizontal machining centers developed and produced by our company. This machine tool is widely used in the processing of box parts, shell parts, disk parts, and special-shaped parts in machinery manufacturing and other industries. The parts are clamped in one time. It can automatically complete the multi-process processing of milling, boring, drilling, expanding, reaming, and tapping of the four faces.





Standard configurations Optional configurations
• Two-speed internal transmission spindle •BRT CNC turntable
• Screw hollow cooling system • Spray cooling
•Automatic tool change system •High pressure cooling unit
• Screw chip conveyor (both sides) • Spindle cooling device
•Automatic lubrication system (spindle) •Electrical cabinet thermostatic control device
• Rigid tapping • Lifting chip conveyor
•Electrical cabinet heat exchanger •Grating ruler
• Spindle cooling device •M30 automatic power-off device
•Closed protective cover
• RS-232 data transmission system



Main Technical Parameters



Product Model Unit MDH80 MDH80A MDH100S MDH125
Worktable size (L*W) mm 800X800 800X800 1000X1000 1250X1250
No.of Pallet   2 Single table 2 2
Table type   IT Opt:BRT IT Opt:BRT
Table indexing   IT (1° X360°)
BRT (0.001° X360°)
IT (1° X360°)
BRT (0.001° X360°)
Table indexing time S 4.5(90°) 5(90°)
Pallet changing time S 12.5 — 12.5 35
Max. table load Kg 2000 3000
X/Y/Z-axis travel mm 1400/1100/1050 1400/1100/1000 1700/1400/1240
X/Y/Z Axis guide way type   Linear roller guideway Linear roller guideway
Distance from table surface to spindle center mm 80-1180 70-1470
Distance from spindle nose to table mm 200-1250 250-1250 360-1600
Rapid traverse of X/Y/Z axis m/min 45 45
Cutting feed rate   1-20000 1-20000
Spindle taper   No.50 (7:24) No.50 (7:24)
Max spindle speed rpm 8000(Motor Spindle)
Opt:12000(Motor Spindle)
Opt:4000(①Gear box)
Opt:4000(
②Gear box)
6000(Motor Spindle)
Opt:8000,12000(Motor Spindle)
Opt:6000(Gear box)
Spindle motor power
(Continueous/30 min)
kw 8000rpm:25/30
12000rpm:25/30
①4000rpm:22/26
②4000rpm:30/37
6000rpm:37/45
8000rpm:25/30 12000rpm:25/30 6000rpm:22/26
Tool magazine capacity T 40(Opt:60/80/120) 40(Opt:60/80)
Tool shank type   BT50 BT50
Max. tool length mm 500 500
Max. tool weight Kg 25 25
Max. tool diameter (w/oadjacenttools) mm Ø115(Ø270) Ø115(Ø270)
Tool changing time(T-T)   2.5 2.5
X/Y/Z axis positioning accuracy   0.01 X:0.015 Y:0.012 Z:0.012
X/Y/Z axis repeatability accuracy   0.006 X:0.007 Y:0.007 Z:0.007
CNC controller   FANUC 3li FANUC 3li
Machine dimensions(LXWXH) mm 6153X3717X3827 5393X3682X3827 6153X3717X3827 8075X6087X3702
Machine weight Kg 24000 21000 24500 32500



Workpiece Sample



High Performance Horizontal CNC Machine Single Table MDH80A Heavy Duty







Product Highlights

MDH80A single table Horizontal Machining Center High Performance Heavy Duty Product Presentation The horizontal machining center is one of the horizontal machining centers developed and produced by our company. This machine tool is widely used in the processing of box parts, shell parts, disk parts, ...
