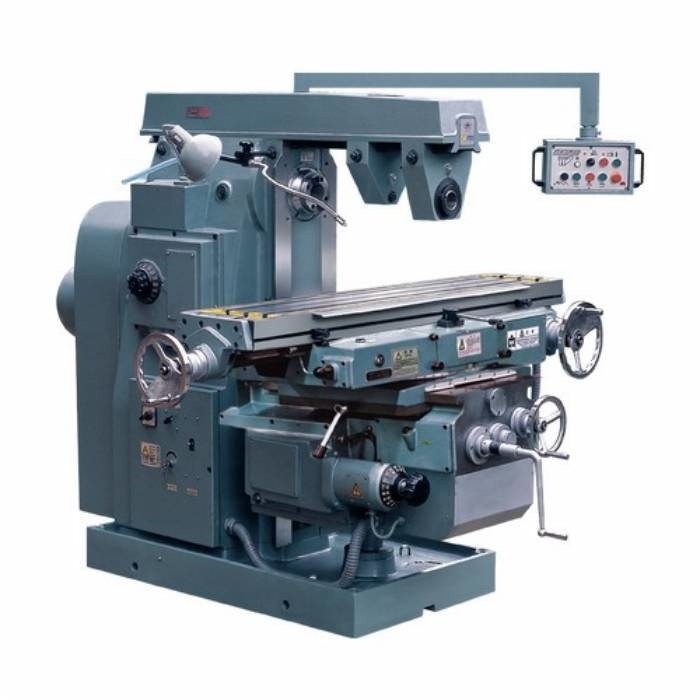

Conventional Horizontal Knee Type Milling Machine Universal 7.5Kw X6132B
Product Details
| Product Name: | X6132B Universal Knee-type Milling Machine | Worktable Size: | 320x1320 Mm |
|---|---|---|---|
| T Slots（N×W×D): | 3×18×80 Mm | Max. Load Bearing Of Worktable: | 500 Kg |
| Longitudinal Travel (Manual/Power) X: | 800/780mm | Cross Travel (Manual/Power) Y: | 300/280 Mm |
| Vertical Travel (Manual/Power) Z: | 410/400mm | Main Motor Power: | 7.5 Kw |
| Machine Dimension: | 2327×1792×1720mm | Machine Weight: | 2850kg |
| Highlight |
Horizontal Knee Type Milling Machine,X6132B Knee Type Milling Machine,7.5Kw Conventional Milling Machine |
||
Product Description
X6132B universal knee-type milling machine China machine professional
Product Presentation
X6132B New conventional milling machine for metal working
Product Configuration
| Item | Unit | 57-3D | X6130C | X6132B |
| Worktable size | mm | 250x900 | 300x1250 | 320x1320 |
| T slots (N×W×D) | mm | 3×14x54 | 3×14x63 | 3×18×80 |
| Max. load bearing of worktable | Kg | 200 | 250 | 500 |
| Longitudinal travel (Manual/Power) X | mm | 480 | 800 | 800/780 |
| Cross travel (Manual/Power) Y | mm | 165 | 235 | 300/280 |
| vertical travel (Manual/Power) Z | mm | 300 | 440 | 410/400 |
| Max. rotary angle of worktable | ±45° | ±45° | ±45° | |
| Arbor diameter | mm | Φ22 Ø27 | Φ22 Ø27 | Φ22 Φ27 Φ32 |
| Distance from spindle center to arm | mm | 160 | 162 | 155 |
| Distance from table center to vertical guide way | mm | 205-370 | 190-420 | 235-535 |
| Distance from spindle center to worktable surface | mm | 60-360 | 30-470 | 40-440 |
| Spindle hole taper | Mt3 /7:24 30# | 7:24 No.40 | 7:24 No.50 | |
| Spindle speed steps | steps | 12 | 12 | 18 |
| Spindle speed range | r/min | 32-1250 | 35-1600 | 30-1500 |
| Feed speed steps | steps | 12 | 12 | 18 |
| Feed speed range (X/Y/Z) | mm/min | 5.6 ～ 181 11.3 ～ 366 4.5 ～ 146.2 |
15 ～ 800 15 ～ 800 6 ～ 270 |
15 ～ 750 15 ～ 750 5.7 ～ 280 |
| Rapid feed speed range (X/Y/Z) | mm/min | / | 2100/2100/880 | 2250/2250/844 |
| Main motor power | Kw | 2/2.4 | 4 | 7.5 |
| Feed motor power | Kw | / | 0.75 | 1.5 |
| Machine dimension | mm | 1400/1330/1478 | 1650/1540/1720 | 2327/1792/1720 |
| Package dimension | mm | 1330/1430/1930 | 1650/1570/2160 | 2200/1780/2120 |
| Machine weight | kg | 1100 | 1750 | 2850 |
| Voltage/ Frequency | V/Hz | 380/50 | 380/50 | 380/50 |
FAQ
1)Q: How can I get quotation from you?
A: We can reply you within 3 hours on work days, and within 24 hours on holidays.
2)Q:Can we start with small quantity? What's the MOQ?
A:We can accept orders with 1 unit.
3)Q: Can I customized my products and packages?
A: Of course sure, you can. We accept OEM, make your trademark on your machine body and do the package with you need.
4)Q: How can I choose right machine and how to assure quality?
A: You can let our sellers know what is your request secification or what is your parts, so let our sellers recommend suitable machine to you.
We do the machine more than 15 years, we are specialied.
5)Q: How long can I get the machine?
A: Some machines we have stock, when get your payment we can send you at once.
Usually, we also can send you within 30-45 days.
We want to know:
(1)What is your Industrial Voltage?
(2) We strongly suggest you tell us size, material of your workpiece for our evaluation, if possible, better to send us your workpiece drawing, so that we can recommend yuo most suitable model!
Product Highlights
X6132B universal knee-type milling machine China machine professional Product Presentation X6132B New conventional milling machine for metal working The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in milling plane, inclined ...
