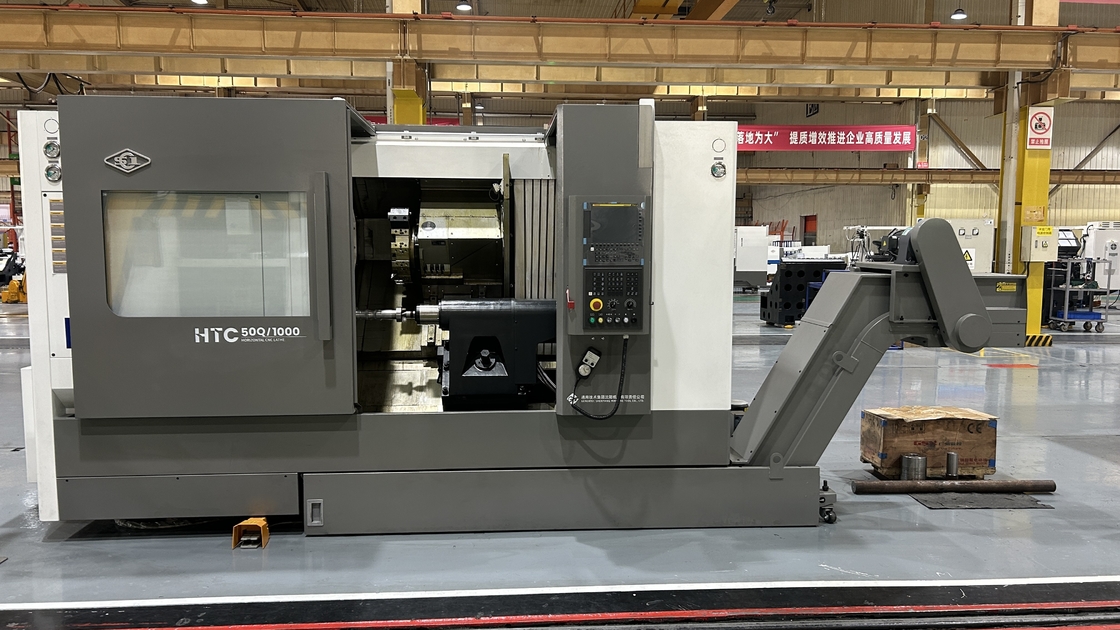

Universal CNC Horizontal Lathe HTC50Q High Torque Spindle SMTCL Heavy Slant Bed CNC Lathe
Product Details
| Product Name: | HTC50Q/H | Maximum Cutting Diameter：: | 500/550 Mm |
|---|---|---|---|
| Maximun Cutting Length：: | 500/1000/1500/2000/2500mm | Maximum Diameter Of Swing Over Bed：: | ∅650 |
| Maximum Turning Diameter On The Slide：: | ∅500 | Spindle Hole Diameter：: | 90 Mm |
| Maximum Diameter Of Through Bar ：: | 80/104 Mm | Spindle Speed Range ：: | 50-3500r/min |
| Standard Chuck Diameter：: | 10" | Standard Tool Turret Type：: | 12 Stations Horizontal Tool Turret |
| Highlight |
High Rigidity Slant Bed CNC Lathe,High Precision Slant Bed CNC Lathe,45° Bed Horizontal CNC Lathe |
||

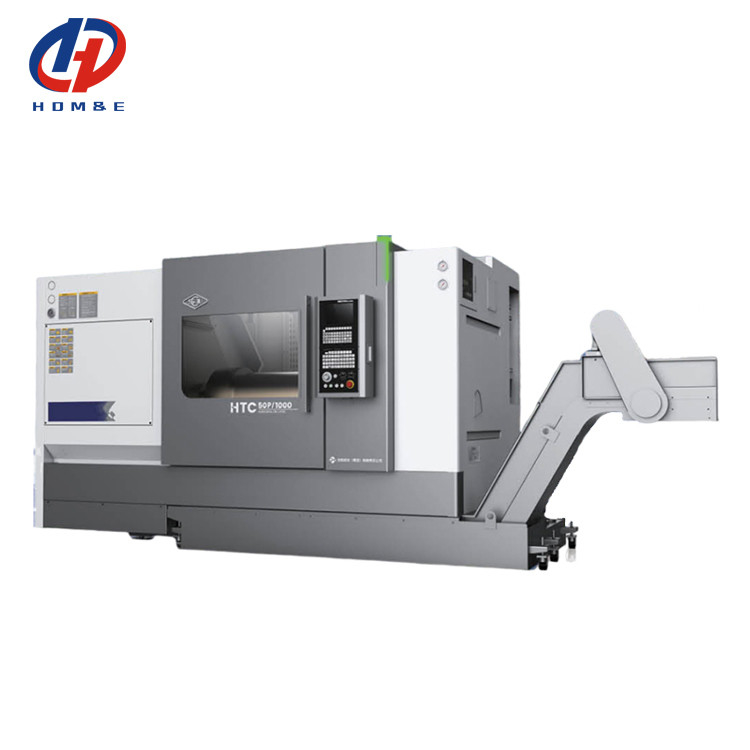

Product Description
HTC50Q/H/S rolling rail and hard rail structures can meet different working conditions, suitable for needs of automobiles, engineering machinery and other industries.
◆ High-precision spindle bearings
◆ Quantification of process standards
◆ High-precision grating ruler

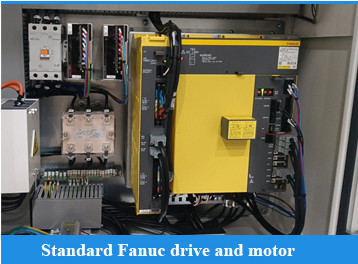

System modular code application
◆ Complete functional conf iguration, enabling
intelli gent production
◆ High-efficiency se rvo turret
◆ High-performance,heavy-duty cutting spindle
◆ High-quality cast iron bed, etc.
◆ Key castings: long-span bedside box
◆ High power and high torque spindle
◆ High rigidity tool turret

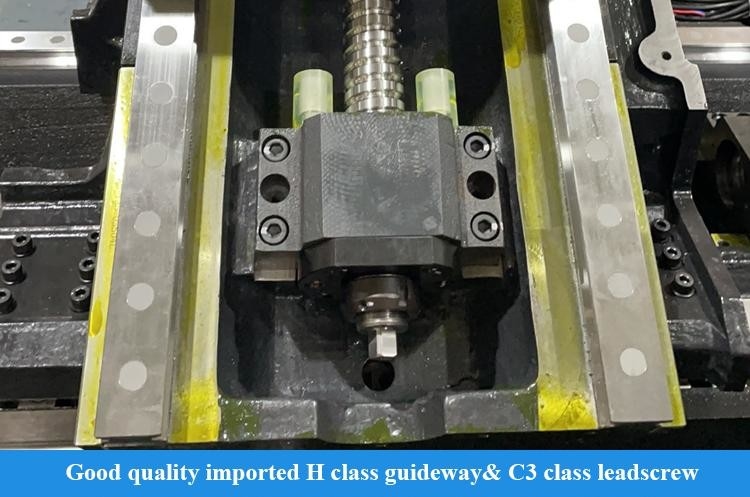

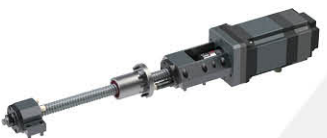

High-precision screws and guide rails
High-precision spindle cylindrical roller bearings
High speed two axis
intelligent production
Different module configurations such as steady rest, sub-spindle, servo tailstock, and Y-axis can
be optional according to different workpiece requirements. It can realize multi-sequence processing of workpieces, and can also beequipped with workpiece measurement, tool
setter, automation modules, etc., to improve work efficiency.

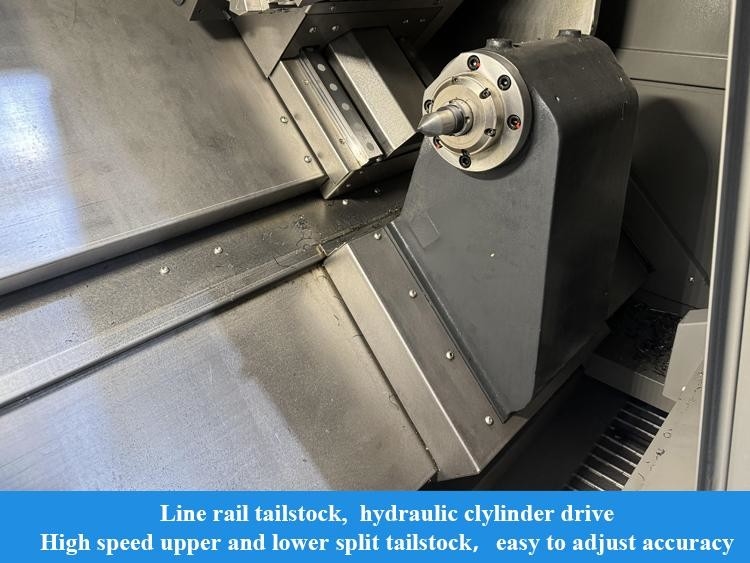

It is equipped with a small spindle structure tailstock, and internally installed tapered roller
bearings and angular contact ball bearings to improve the cutting rigidity of the tailstock end and ensure the cutting effect of long-axis parts.

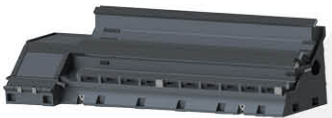

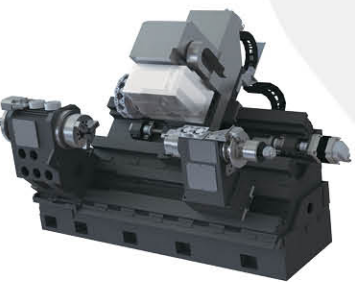

The bed is a 45° inclined bed, with an optimized and reinforced rib structure inside. It is cast in one piece with high-quality castings, and the entire axis adopts a hard rail structure, which effectively improves dynamic stiffness. The joint between the bed and the headstock is scraped and ground by a double-rest surface, which further improves the cutting rigidity of the whole machine.

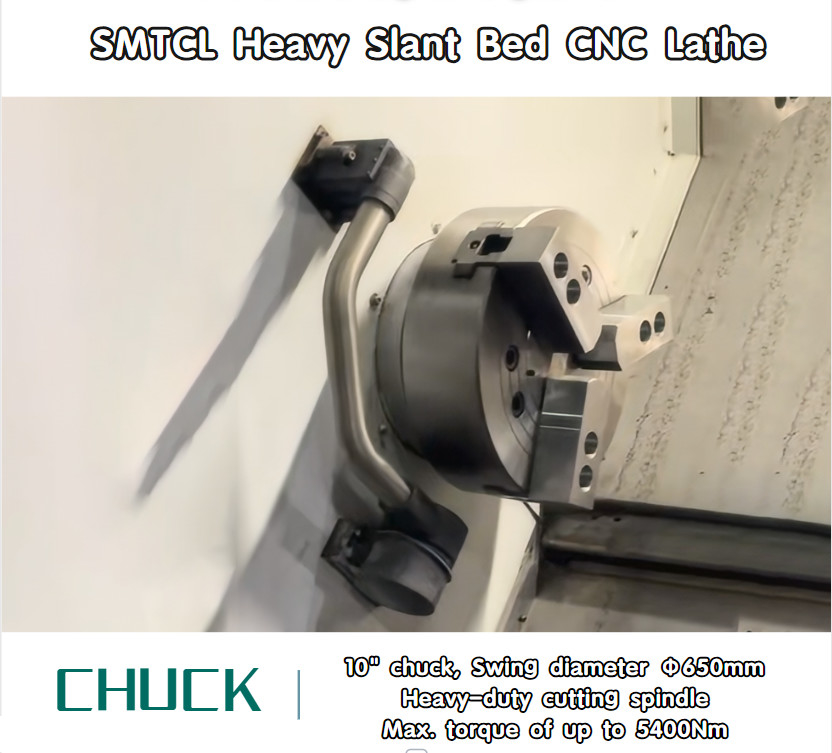

of up to 5400Nm and a cutting depth of more than 10mm on one side, improving cutting efficiency.
composite support of imported double-row cylindrical roller bearings and angular contact
ball bearings at the front and rear, which enhances the rigidity and torque of the spindle
and achieves excellent heavy-cutting effects of the spindle.

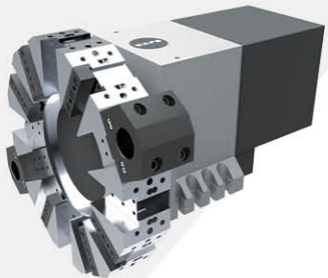

processing capabilities and stable tool changing performance under high-speed operation. The fastest tool change at adjacent stations only takes 0.4s, which is fast and
has high processing efficiency.
