CDE-A Torno Manual Lathe Machine Conventional CDE6166A CDE6266A
Product Details
| Product Name: | CDE6166A/CDE6266A Horizontal Lathe Machine | Max. Swing Diameter Over Bed: | Ø660mm |
|---|---|---|---|
| Max.swing Diameter Over Cross Slide: | Ø430mm | Max.swing Diameter In Gap: | —/Ø910mm |
| Max. Workpiece Length: | 750/1000/1500/2000/3000mm | Max. Cutting Length: | 700/950/1450/1950/2950mm |
| Spindle Bore: | Ø52mm(Allowable Bar Diameter≤Ø50) | Spindle Speed Ranges: | 11-1400rpm(22 Speeds) |
| Spindle Motor Power: | 7.5kw/1440rpm(50HZ) Opt:5.5kw/1150rpm(60HZ) | Diameter Of Tailstock Quill: | Ø75mm |
| Highlight |
Manual Lathe Machine Conventional,CDE-A Lathe Machine Conventional |
||
Product Description

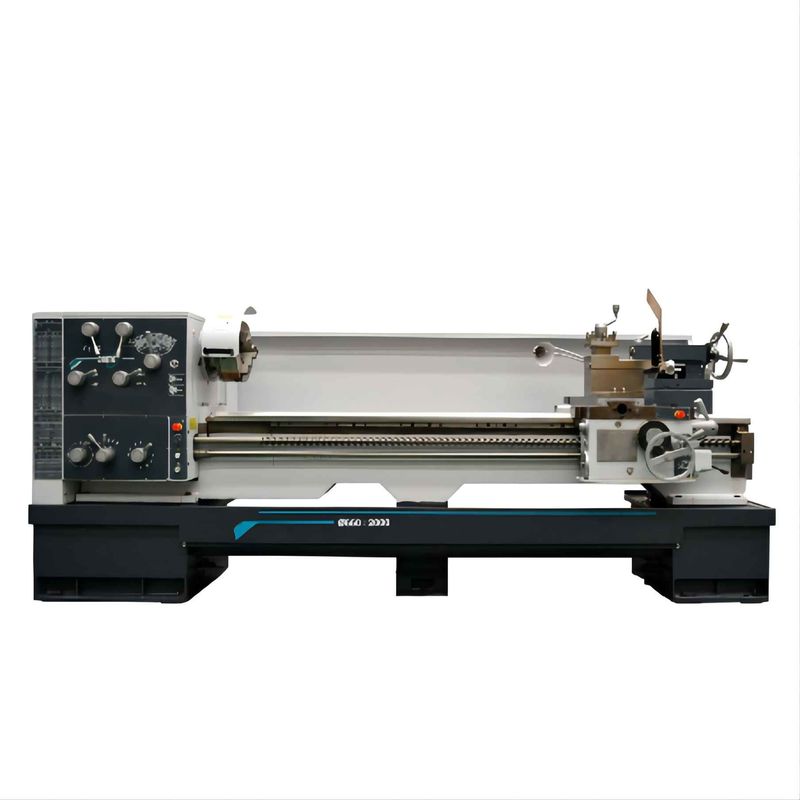

CDE-A Series CDE6166A/CDE6266A Machine Tool Torno Convencional Manual Lathe Machine
Main Featurers:
- the CDE series lathe can process Steel, cast iron, non-metal material;
- the precision can reach up to IT7 level;
- the surface roughness can be up to 1.6 grade;
- the bed is made of high-grade cast iron,
- the guide way is super audio frequency quenching.
Main Usage:
- It can machine inner circle, outer circle, and end and head surface, taper surface.
- Gap lathe can process the deformation parts.
- Function is including the drilling and reaming.
- Threads cutting: Metric, inch, diametrical pitch, module thread;
Product Configuration
| Product model | UNIT | CDE6140A | CDE6240A | CDE6150A | CDE6250A | CDE6166A | CDE6266A | |
| specification | ||||||||
| Max. swing diameter over bed | mm | Ø400 | Ø500 | Ø660 | ||||
| Max.swing diameter over cross slide | mm | Ø220 | Ø290 | Ø430 | ||||
| Max.swing diameter in gap | mm | — | Ø700 | — | Ø760 | — | Ø910 | |
| Length in gap | mm | — | 260 | — | 260 | — | 260 | |
| Max. workpiece length | mm | 750/1000/1500/2000/3000 | ||||||
| Max. cutting length | mm | 700/950/1450/1950/2950 | ||||||
| Spindle | ||||||||
| spindle nose | C6 | |||||||
| Spindle bore | mm | Ø52(Allowable bar diameter≤Ø50) | ||||||
| Taper of spindle bore | No.6 MT | |||||||
| Max.Spindle torque | Nm | 1586 | ||||||
| Spindle speed ranges | rpm | 11-1400(22 Speeds) | ||||||
| Spindle centre height | mm | 220 | 250 | 325 | ||||
| Spindle motor power | 7.5kw/1440rpm(50HZ) Opt:5.5kw/1150rpm(60HZ) | |||||||
| Tailstock | ||||||||
| Diameter of tailstock quill | mm | Ø75 | ||||||
| Travel of tailstock quill | mm | 150 | ||||||
| Taper of tailstock quill | No.5 MT | |||||||
| Feeds&Threads (metric screw *inch screw) | ||||||||
| Longitudinal feed | 0.035 〜2.842mm/r(63 Speeds) *0.0013 〜0.1057in/r(63 Speeds) | |||||||
| Cross feed | 0.009 ~ 0.804 mm/r *0.0003 ~ 0.0304in/r | |||||||
| Metric threads | mm | 0.5 〜240 (66 Kinds) *0.5 〜160 (43 Kinds) | ||||||
| Modular threads | mm | 0.25 〜120 (57 Kinds) *0.25 〜80 (38 Kinds) | ||||||
| Inch threads | TPI | 80 〜1/4(49 Kinds) *80 〜1/4(47 Kinds) | ||||||
| Diametral pitch threads | DP | 160 〜7/16(50 Kinds) *160 〜7/16(48 Kinds) | ||||||
| Tool post | ||||||||
| Max.tool shank size | mm | 25X25 | ||||||
| Travel of top slide | mm | 150 | ||||||
| Swivel angle of top slide | ±45° | |||||||
| Max.Travel of Tool post | X-axis | mm | 348 | 373 | ||||
| Z-axis | mm | 700/950/1450/1950/2950 | ||||||
| machine dimensions (L*W*H) |
mm | 2400X1198X1264 (750) 2650X1198X1264(1000) 3150X1198X1264(1500) 3650X1198X1264(2000) 4650X1198X1264(3000) |
2400X1198X1294 (750) 2650X1198X1294(1000) 3150X1198X1294(1500) 3650X1198X1294(2000) 4650X1198X1294(3000) |
2400X1223X1369 (750) 2650X1223X1369(1000) 3150X1223X1369(1500) 3650X1223X1369(2000) 4650X1223X1369(3000) | ||||
| Machine weight | CDE61 | kg | 1970/2020/2100/2260/2550 | 2020/2070/2150/2310/2600 | 2085/2135/2215/2375/2665 | |||
| CDE62 | 1990/2040/2120/2280/2570 | 2040/2090/2170/2330/2620 | 2105/2155/2235/2395/2685 | |||||
