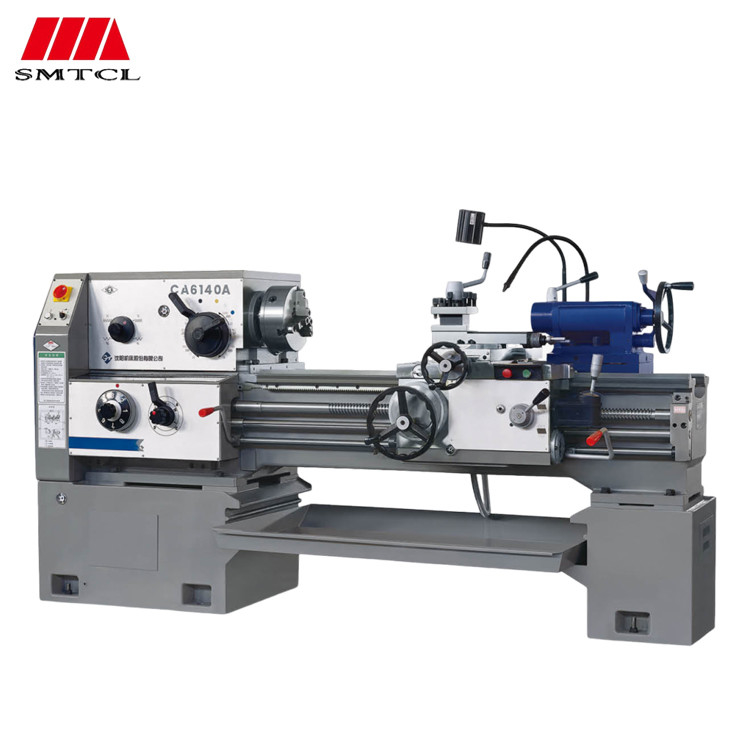

SMTCL Manual Lathe CA6140A Screw Nuts Processing 1500mm Convencional Horizontal Lathe

Brand Name: SMTCL
Model Number: CA6140A/CA6150A
Place of Origin: China
Certification: CE ISO
Minimum Order Quantity: 1 Set
Supply Ability: 50 sets per month
Tags

Manual Lathe Machine

Horizontal Conventional Lathe Machine

Heavy Duty Manual Lathe

Product Details

Brand: SMTCL Product Name: Horizontal Lathe Machine
Model: CA6140A/CA6150A Max. Swing Diameter Over Bed: Ø400/500mm
Max.swing Diameter Over Cross Slide: Ø210/300mm Max. Workpiece Length: 750/1000/1500/2000/3000mm
Bed Width: 400mm Spindle Bore: Ø52mm
Spindle Speed Ranges: 11-1600rpm(24Speeds)
Highlight

CA6140A Conventional Lathe Machine

,

Metal Conventional Lathe Machine

,

SMTCL Manual Lathe Machine

Product Description

SMTCL Manual Lathe CA6140A Screw Nuts Processing 1500mm Convencional Horizontal Lathe

Product Description:

SMTCL Manual Lathe CA6140A Screw Nuts Processing 1500mm Convencional Horizontal Lathe

CA6140A can be regarded as a classic work. It adopts a high-strength cast iron bed with a stable structure, which effectively reduces processing vibrations and ensures processing accuracy. The spindle has a large bore diameter and high rotational accuracy, is compatible with various cutting tools, and can easily handle the processing of shaft and disc parts. The carriage is in smooth motion and it's easy to operate, enabling even beginners to quickly get started.
Whether in the fields of mechanical manufacturing, maintenance workshops or educational training, it performs excellently. With its reliable performance and wide applicability, it has been widely praised over the years and is a capable helper in the workshop.

Product Features:

1,Novel appearance

The appearance design of the machine tool integrates the ergonomic concept into the mature machine structure, enhances the operation, uses the striking red and gray stamping parts, and the overall appearance is beautiful.

2,Complete specifications

CA series products have complete specifications and a wide range of categories. Including straight bed lathe, saddle bed lathe and large bore lathe.

3,Complete functions

CA series lathe can bear a variety of materials end, inside and outside E1 column, cone and other rotating surface turning processing. More accurate processing of a variety of metric, imperial, modular, diameter pitch threads. In addition, drilling, hairpin holes, pulling oil guns and other work can also be easily qualified.

4,Excellent performance

The 40A series ordinary lathe is equipped with a large diameter spindle front bearing and has a wider bed span than similar products, achieving a higher structural difference and achieving new levels of performance.

Product Details:


SMTCL Manual Lathe CA6140A Screw Nuts Processing 1500mm Convencional Horizontal Lathe
Product Paramenters:
Item
Unit
CA6140A/ CA6240A
CA6150A/CA6250A
Max.swing dia over bed
mm
400
500
Max.swing dia over carriage
mm
210
300
Max swing dia over gap/ Width of gap
mm
630*210
720*210
Max workpiece length
mm
750/650;1000/900;1500/1400;2000/1900
Width of bed / hardness mm
mm
400, Rc52
Section of turning tools
mm
25x25
Spindle speed range
r/min
11-1600(24)
Spindle bore and nose
mm
52 A6
Taper of spindle nose

Morse 6#
Range of longitudinal feed
Standard
mm/r
0.08-1.59
0.08-1.59
small feed
mm/r
0.028-0.054
0.028-0.054
enlarge feed
mm/r
1.71-6.33
1.71-6.33
Rang of cross feed
Standard
mm/r
0.04-0.79
0.04-0.79

small feed
mm/r
0.014-0.027
0.014-0.027

enlarge feed
mm/r
0.86-3.16
0.86-3.16
Travel of cross slide / top turret travel
mm
320/140
Swiveling angle of compound slide
degree
±90
Rapid travel carriage
m/min
4
Rapid travel of cross slide
m/min
2

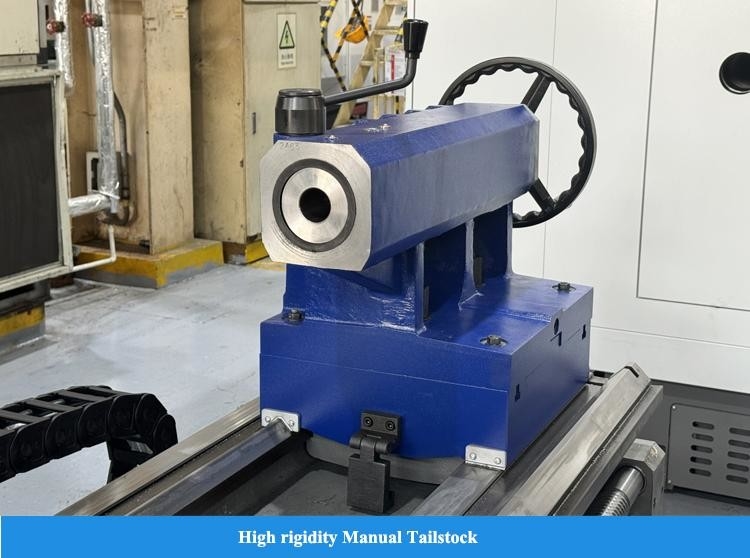

Travel of tailstock spindle
mm
150
Diameter of tailstock spindle
mm
75
Taper of tailstock spindle

Morse 5#
Metric thread(kinds)
mm
1-192(44)
Whitwhorth thread(kinds)
t.p.i
2-24(21)
Modular thread(kind)
mm
0.25-48(39)
Diameter Pitch(kinds)
D.P
1-96(37)
Main motor
kW
7.5


New weight of machine
750mm
kg
1990

1000mm
kg
2070
2140
1500mm
kg
2220
2290
2000mm
kg
2570
2640


Overall dimensions(L*W*H)
750mm
mm
2418*1000*1267

1000mm
mm
2668*1000*1267
2668*1037*1312
1500mm
mm
3168*1000*1267
3168*1037*1312
2000mm
mm
3668*1000*1267
3668*1037*1312
CA6140A and CA6240A
Standard configuration:

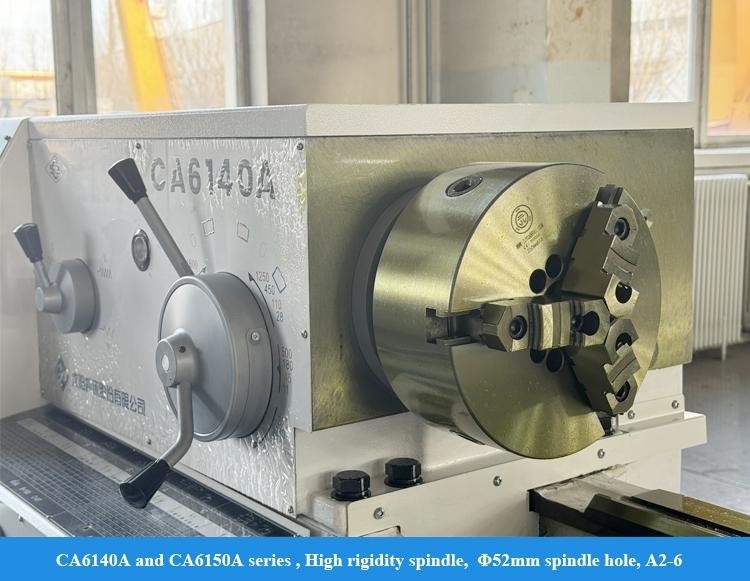

Spindle bore dia. :Φ 52mm
1. Spindle nose type:A6
2. Chuck : Φ 250mm three jaw chuck
3. Taistock tape: Morse 5
4. Dead center
5. Working lamp
6. Oil gun
7. Tool box
8. Adjustable iron pad
CA6140A and CA6240A
Selective configuration:
1. Φ 315mm manual three jaw chuck
2. Φ 250mm manual four chuck
3. Φ 315mm manual four jaw chuck
4. Steady rest Φ 20- Φ125mm
5. Steady rest Φ100-Φ205mm
6. Follow rest Φ20-Φ80mm
7. Live center Morse 5 or Morse 4
8. Chuck protection
9. Rear chip screen
10. Digital display
CA6150A and CA6250A
Standard configuration:
Spindle bore dia. :Φ 52mm
1. Spindle nose type:A6
2. Chuck : Φ 250mm three jaw chuck
3. Taistock tape: Morse 5
4. Dead center
5. Working lamp
6. Oil gun
7. Tool box
8. Adjustable iron pad
CA6150A and CA6250A
Selective configuration:
1. Φ 315mm manual three jaw chuck
2. Φ 400mm manual four jaw chuck
3. Φ 250mm manual four chuck
4. Φ 315mm manual four jaw chuck
5. Φ 400mm manual four jaw chuck
6. Steady rest Φ 20- Φ125mm
7. Steady rest Φ125-Φ250mm
8. Follow rest Φ20-Φ80mm
9. Live center Morse 5 or Morse 4
10. Chuck protection
11. Rear chip screen
12. Digital display

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
SMTCL Manual Lathe CA6140A Screw Nuts Processing 1500mm Convencional Horizontal Lathe
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
SMTCL Manual Lathe CA6140A Screw Nuts Processing 1500mm Convencional Horizontal Lathe

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
