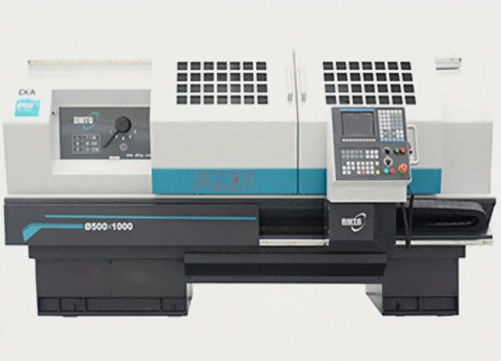

CKA6163A Flat Bed CNC Lathe 10 - 1000r/min Universal CNC Machine
Product Details
| Name: | CKA6163A Flat Bed CNC Lathe | Max. Swing Diameter Over Bed: | Ø630mm |
|---|---|---|---|
| Max.swing Diameter Over Cross Slide: | Ø320mm | Max. Workpiece Length: | 1000/1500/2000/3000/4000/5000mm |
| Max. Cutting Length: | 795/1245/1845/2745/3785/4745mm(Vertical 4-position) 690/1140/1740/2640/3680/4640mm(Horizontal 6/8-position) | Spindle Motor Power: | 11KW |
| Spindle Bore: | Ø100mm | Type Of Spindle Nose: | C11 |
| Spindle Speed Ranges: | 10-1000r/min (inverter-driven Motor) (4 Range Manual) | Rapid Traverse Of X/Z Axis: | 4/7.5(1000、1500、2000)、4/4(3000)、4/3.5(4000、5000) |
| Highlight |
CKA6163A Flat Bed CNC Lathe,1000r/min Flat Bed CNC Lathe,CKA6163A Universal CNC Machine |
||
Product Description
CKA Series CKA6163A Universal Flat Bed CNC Lathe price for sale
Product Presentation
CKA series CNC lathes are designed with FANUC, SIEMENS and other CNC systems of the famous companies. The machines can work in the form of multiple replication cycling. As the general type, these machines can be used for the semi-finishing and finish machining of many kinds of spindles and disc parts. Besides, inside & outside ferrous, conical face,head face, grooving, chamfering, screw thread boring hole, reaming hole and all kinds of curve axially symmetrical.
Product Configuration
| Configuration | CKA6136 | CKA6140 | CKA6150 | CKA6166 | CKA6163A | CKA6180A | CKA61100A | |
| Guide way type | Box way | ● | ● | ● | ● | ● | ● | ● |
| Main drive speed change form | Manual servo motor | ● | ● | ● | ● | O | O | O |
| Automatic servo motor | O | O | O | O | O | O | O | |
| Double speed motor | — | — | O | O | — | — | — | |
| Common motor | — | — | — | — | O | O | O | |
| Manual inverter-driven motor | O | O | O | O | ● | ● | ● | |
| Automatic inverter-driven motor | O | O | O | O | O | O | O | |
| Single spindle | CKA6136i | CKA6140i | CKA6150i | — | — | — | — | |
| CNC | FANUC 0i-TF(5) | ● | ● | ● | ● | ● | ● | ● |
| GSK-980TDi | O | O | O | O | O | O | O | |
| SIEMENS | O | O | O | O | O | O | O | |
| KND | O | O | O | O | — | — | — | |
| HNC-808D | O | O | O | O | — | — | — | |
| MITSUBISHI | O | O | — | — | — | — | — | |
| Chuck | Manual | ● | ● | ● | ● | ● | ● | ● |
| Domestic hollow hydraulic chuck | O | O | O | O | — | — | — | |
| Domestic solid hydraulic chuck | O | O | — | — | — | — | — | |
| Imported hollow hydraulic chuck | O | O | O | O | O | O | O | |
| Imported solid hydraulic chuck | O | O | O | O | O | O | O | |
| Tailstock | Manual tailstock | ● | ● | ● | ● | ● | ● | ● |
| Hydraulic tailstock | O | O | O | O | O | O | O | |
| Tool post | Vertical 4-positon | ● | ● | ● | ● | ● | ● | ● |
| Horizontal 6-positOn | O | O | O | O | O | O | O | |
| Horizontal 8-positon | — | — | O | O | O | O | O | |
| Coolant System | Forced air cooling | ● | ● | ● | ● | — | — | — |
| Heat exchanger for electric panel | O | O | O | O | ● | ● | ● | |
| Electrical thermal control unit | O | O | O | O | O | O | O | |
| other options or feature | Steady rest | O | O | O | O | O | O | O |
| Follower rest | O | O | O | O | O | O | O | |
| 4-Jaw chuck | O | O | O | O | O | O | O | |
| External handwheel | O | O | O | O | O | O | O | |
●---Standard O---Optional —--N/A
Main Specification
| Product model | UNIT | CKA6163A | CKA6180A | CKA61100A | |
| Max. swing diameter over bed | mm | Ø630 | Ø800 | Ø1000 | |
| Max.swing diameter over cross slide | mm | Ø320 | Ø490 | Ø700 | |
| Max. workpiece length | mm | 1000/1500/2000/3000/4000/5000 | 1000/1500 | ||
| Max. cutting length | mm | 795/1245/1845/2745/3785/4745(Vertical 4-position) 690/1140/1740/2640/3680/4640(Horizontal 6/8-position) |
795/1245(Vertical 4-position) 690/1140(Horizontal 6/8-position) |
||
| Max.turning diameter | Vertical 4-position | mm | Ø630 | Ø800 | Ø800 |
| Horizontal 6-position | mm | Ø620 | Ø620 | Ø620 | |
| Horizontal 8-position | mm | Ø620 | Ø620 | Ø620 | |
| Spindle center height | mm | 315 | 400 | 515 | |
| Spindle motor power | kW | 11 | |||
| Spindle bore | mm | Ø100 | |||
| Taper of spindle bore | Ø120 1:20 | ||||
| Type of spindle nose | C11 | ||||
| Spindle speed ranges | r/min | 10-1000(inverter-driven motor) 4 range manual |
|||
| Taistock quill diameter | mm | Ø100 | |||
| Tailstock quill travel | mm | 240 | |||
| Tailstock quill taper | No 6 MT | ||||
| Max.travel of X-axis | mm | 320 | 400 | 400 | |
| Max.travelof Z-axis | mm | 800/1250/1850/2750/3790/4750 | 800/1250 | ||
| Rapid traverse of X/Z axis | m/min | 4/7.5(1000,1500,2000),4/4(3000),4/3.5(4000,5000) | |||
| Tool shank size (Vertical 4-positon) | mm | 32X25 | |||
| X/Z axis positioning accuracy | mm | 0.018/0.024(1000) 0.026(1500,2000) 0.030(3000,4000,5000) |
0.018/0.024(1000) 0.026(1500) |
||
| X/Z axisrepeatability accuracy | mm | 0.006/0.011(1000) 0.014(1500,2000) -(2000 or more) |
0.006/0.011(1000) 0.014(1500) |
||
| machine dimensions (L*W*H) |
mm | 3455X2020X1805(1000) 3905X2020X1805(1500) 4505X2020X1805(2000) 5405X2020X1805(3000) 6455X2020X1805(4000) 7535X2020X1805(5000) |
3455X2020X2000(1000) 3905X2020X2000(1500) |
||
| Machine weight | kg | 4800/5100/5600/ 5900/7100/8100 |
5300/5600/6100/ 6400/7600/8600 |
5600/6000 | |
