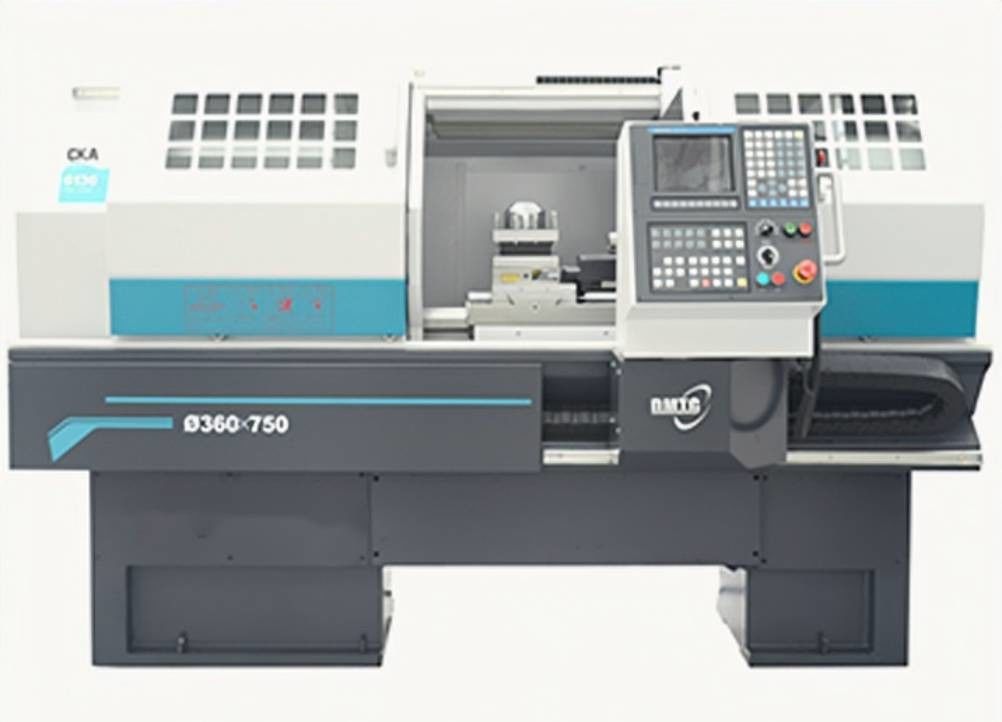

Flat Bed CNC Turning Lathe Machine Universal CKA6150i Single Spindle
Product Details
| Name: | CKA6150i Flat Bed CNC Lathe | Max. Swing Diameter Over Bed: | Ø500mm |
|---|---|---|---|
| Max.swing Diameter Over Cross Slide: | Ø280mm | Max. Workpiece Length: | 750/1000mm |
| Max. Cutting Length: | 680/930mm | Spindle Motor Power: | 11/15KW |
| Spindle Bore: | Ø82mm | Type Of Spindle Nose: | A2-8 |
| Spindle Speed Ranges: | 30-3000 Single Spindle | Rapid Traverse Of X/Z Axis: | 4/8m/min |
| Highlight |
CKA6150i CNC Turning Lathe Machine,Universal CNC Turning Lathe Machine,Single Spindle Flat CNC Lathe |
||
Product Description
CKA Series Universal Flat Bed CNC Lathe
Product Presentation
This machine tool is a CNC horizontal lathe controlled by the vertical (Z) and horizontal (X) coordinates. It can automatically cut internal and external cylindrical, tapered, round, end, grooving, chamfering and other processes of various shaft and disc parts. It can turn metric straight threads, end threads, inch straight threads and various turning processes. Such as tapered thread. It is suitable for the production of multi-variety, medium and small batch products, and shows superiority to complex and high-precision parts.
Product Configuration
| Configuration | CKA6136 | CKA6140 | CKA6150 | CKA6166 | CKA6163A | CKA6180A | CKA61100A | |
| Guide way type | Box way | ● | ● | ● | ● | ● | ● | ● |
| Main drive speed change form | Manual servo motor | ● | ● | ● | ● | O | O | O |
| Automatic servo motor | O | O | O | O | O | O | O | |
| Double speed motor | — | — | O | O | — | — | — | |
| Common motor | — | — | — | — | O | O | O | |
| Manual inverter-driven motor | O | O | O | O | ● | ● | ● | |
| Automatic inverter-driven motor | O | O | O | O | O | O | O | |
| Single spindle | CKA6136i | CKA6140i | CKA6150i | — | — | — | — | |
| CNC | FANUC 0i-TF(5) | ● | ● | ● | ● | ● | ● | ● |
| GSK-980TDi | O | O | O | O | O | O | O | |
| SIEMENS | O | O | O | O | O | O | O | |
| KND | O | O | O | O | — | — | — | |
| HNC-808D | O | O | O | O | — | — | — | |
| MITSUBISHI | O | O | — | — | — | — | — | |
| Chuck | Manual | ● | ● | ● | ● | ● | ● | ● |
| Domestic hollow hydraulic chuck | O | O | O | O | — | — | — | |
| Domestic solid hydraulic chuck | O | O | — | — | — | — | — | |
| Imported hollow hydraulic chuck | O | O | O | O | O | O | O | |
| Imported solid hydraulic chuck | O | O | O | O | O | O | O | |
| Tailstock | Manual tailstock | ● | ● | ● | ● | ● | ● | ● |
| Hydraulic tailstock | O | O | O | O | O | O | O | |
| Tool post | Vertical 4-positon | ● | ● | ● | ● | ● | ● | ● |
| Horizontal 6-positOn | O | O | O | O | O | O | O | |
| Horizontal 8-positon | — | — | O | O | O | O | O | |
| Coolant System | Forced air cooling | ● | ● | ● | ● | — | — | — |
| Heat exchanger for electric panel | O | O | O | O | ● | ● | ● | |
| Electrical thermal control unit | O | O | O | O | O | O | O | |
| other options or feature | Steady rest | O | O | O | O | O | O | O |
| Follower rest | O | O | O | O | O | O | O | |
| 4-Jaw chuck | O | O | O | O | O | O | O | |
| External handwheel | O | O | O | O | O | O | O | |
●---Standard O---Optional —--N/A
Main Specification
| Product model | UNIT | CKA6150 | CKA6166 | CKA6150i | |
| Max. swing diameter over bed | mm | Ø500 | Ø660 | Ø500 | |
| Max.swing diameter over cross slide | mm | Ø280 | Ø430 | Ø280 | |
| Max. workpiece length | mm | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000 | |
| Max. cutting length | mm | 680/930/1430/1930 | 680/930/1430/1930 | 680/930 | |
| Max.turning diameter | Vertical 4-position | mm | Ø500 | Ø560 | Ø500 |
| Horizontal 6-position | mm | Ø400 | Ø400 | Ø400 | |
| Horizontal 8-position | mm | Ø370 | Ø370 | Ø370 | |
| Spindle center height | mm | 250 | 330 | 250 | |
| Spindle motor power | kW | 7.5/11 | 7.5/11 | 11/15 | |
| Spindle bore | mm | Ø82 | |||
| Taper of spindle bore | Ø90 1:20 | Ø90 1:20 | Ø100 1:20 | ||
| Type of spindle nose | D8 | D8 | A2-8 | ||
| Spindle speed ranges | r/min | 7-2200 3 range manual |
7-2200 3 range manual |
30-3000 Single spindle |
|
| Taistock quill diameter | mm | Ø75 | |||
| Tailstock quill travel | mm | 150 | |||
| Tailstock quill taper | No 5 MT | ||||
| Max.travel of X-axis | mm | 280 | 305 | 280 | |
| Max.travelof Z-axis | mm | 685/935/1435/1935 | 685/935/1435/1935 | 685/935 | |
| Rapid traverse of X/Z axis | m/min | 4/8(750-1500) 4/6(2000) |
4/8(750-1500) 4/6(2000) |
4/8 | |
| Tool shank size (Vertical 4-positon) | mm | 25X25 | |||
| X/Z axis positioning accuracy | mm | 0.018/0.021(750) 0.024(1000) 0.026(1500,2000) |
0.018/0.021(750) 0.024(1000) 0.026(1500,2000) |
0.018/0.021(750) 0.024(1000) |
|
| X/Z axisrepeatability accuracy | mm | 0.006/0.008(750) 0.011(1000) 0.014(1500,2000) |
0.006/0.008(750) 0.011(1000) 0.014(1500,2000) |
0.006/0.008(750) 0.011(1000) |
|
| machine dimensions (L*W*H) |
mm | 2580X1750X1620(750) 2830X1750X1620(1000) 3330X1750X1620(1500) 3830X1750X1620(2000) |
2580X1750X1620(750) 2830X1750X1620(1000) 3330X1750X1620(1500) 3830X1750X1620(2000) |
2580X1750X1620(750) 2830X1750X1620(1000) |
|
| Machine weight | kg | 2550/2600/2700/2800 | 2700/2750/2850/2950 | 2550/2600 | |
