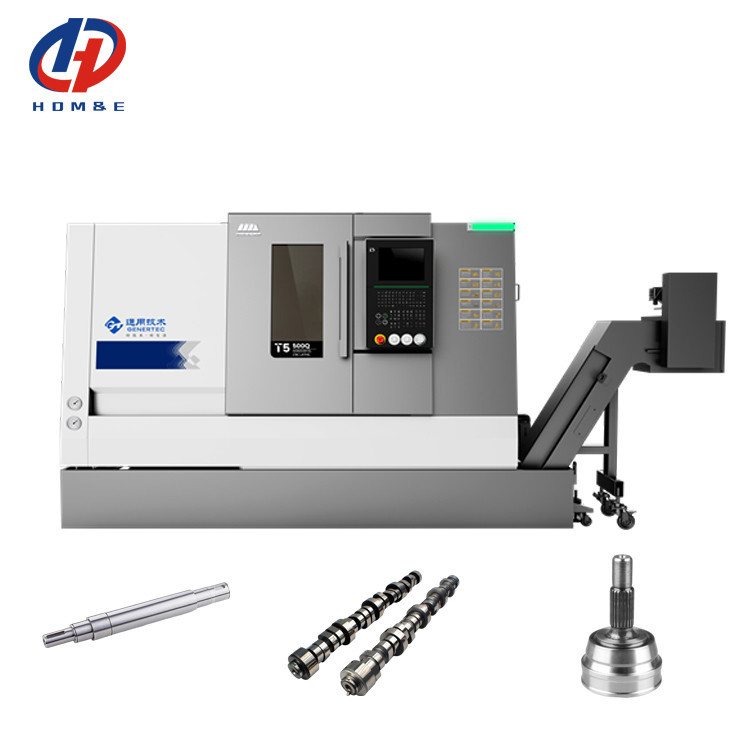

CNC Lathe T5.2-500Q Large Size Shaft Cutting BMT55 SMTCL Slant Bed CNC Lathe With Y Axis

Brand Name: SMTCL
Model Number: T5.2-500Q
Place of Origin: China
Certification: ISO certification
Minimum Order Quantity: 1 Set
Price: Negotiable
Supply Ability: 50 sets per month
Tags

CNC Lathe Machine

High Precision Horizontal CNC Lathe

CNC Turning Center

Product Details

Product Name: T5.2-500Q Max. Cutting Diameter: 38ø0 Mm
Max. Cutting Length: 500mm Max.swing Diameter Over Bed: ø560 Mm
Max. Swing Diameter Over Slide: ø350 Mm Type Of Spindle Head: A2-6
Spindle Bore Diameter: ø70 Standard Chuck Diameter: 8 Inch
Spindle Speed Range: 4500 R/min Main Motor Power: 11/15KW (15 Minutes/ Continuous)
Standard Type Of Turret: Horizontal 8 Tool Stations
Highlight

Slant Bed CNC Lathe

,

Large Size Shaft Cutting

,

Horizontal CNC Lathe Machine

Product Description

CNC Lathe T5.2-500Q Large Size Shaft Cutting BMT55 SMTCL Slant Bed CNC Lathe With Y Axis 0

Product Description:

SMTCL CNC Lathe Linear Guide Way CNC Lathe T5.2-500Q BMT55 Slant Bed CNC Lathe Machine With Y Axis
T5.2 - 500Q has its unique charm. It features an ingenious structural design, with a compact and reasonable layout, occupying a small floor space. It stands out in machining precision and can meet the processing requirements ofhigh-precision parts. Its high-speed spindle runs smoothly, greatly improving the cutting efficiency. The CNC system is highly intelligent, easy to operate and flexible in programming. Equipped with excellent cooling and lubrication systems, it effectively extends the service life of the machine tool and provides reliable and efficient processing solutions for industrial production.
Product Features:
1,High Precision

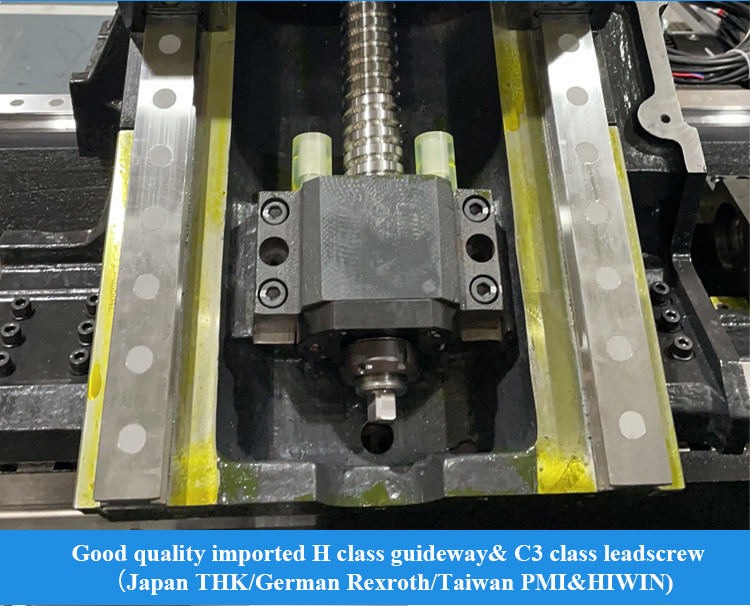

♦ C3 pre-drawn lead screw
♦ Error compensation technology
♦ Process standard quantification
2, High Efficiency
♦ Two axes high and fast moving speed
♦ Split servo tail

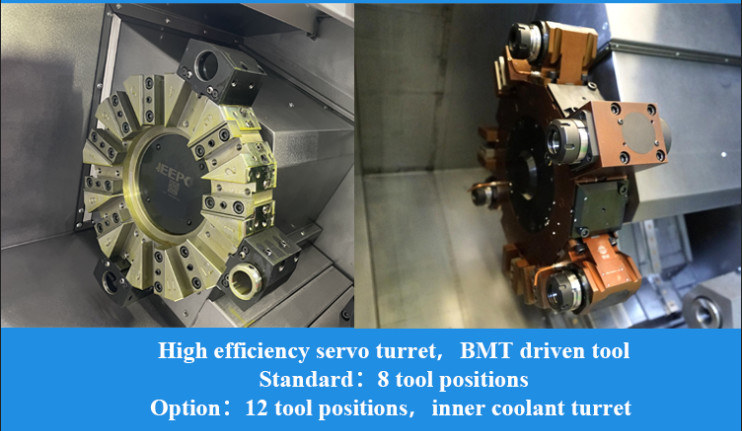

♦ High efficiency servo cutter tower
3,High Rigidity

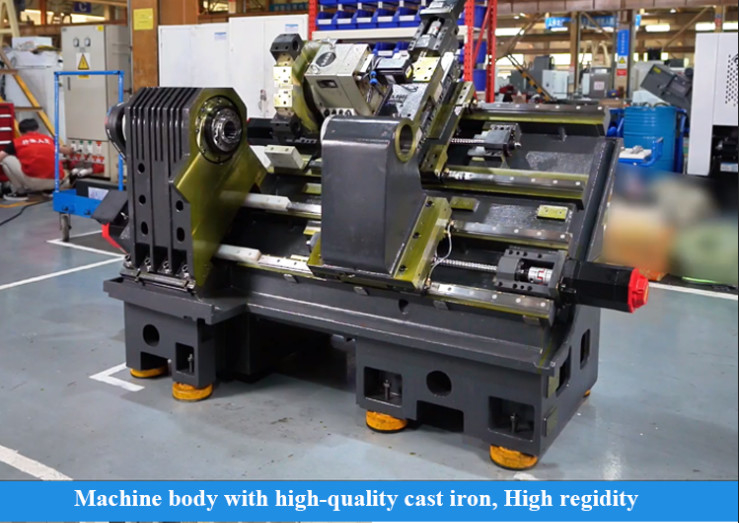

♦ High-quality cast iron bed and other key castings

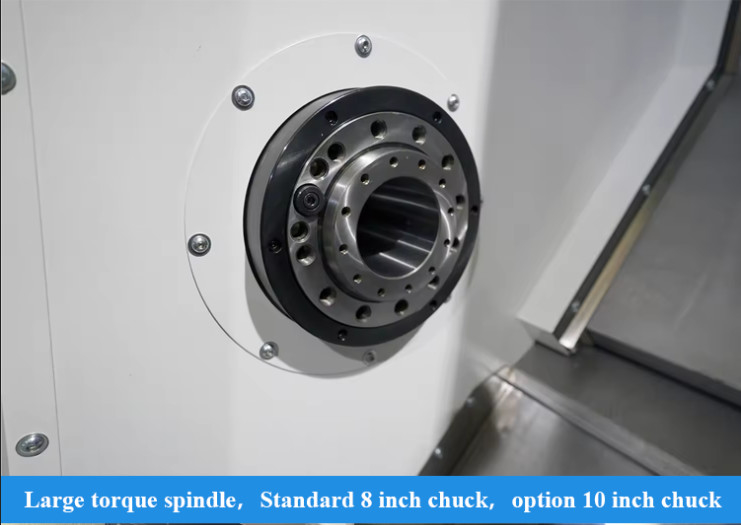

♦ Large span double row cylindrical roller spindle bearing
♦Anti-bending saddle structure

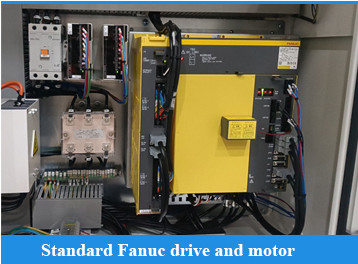

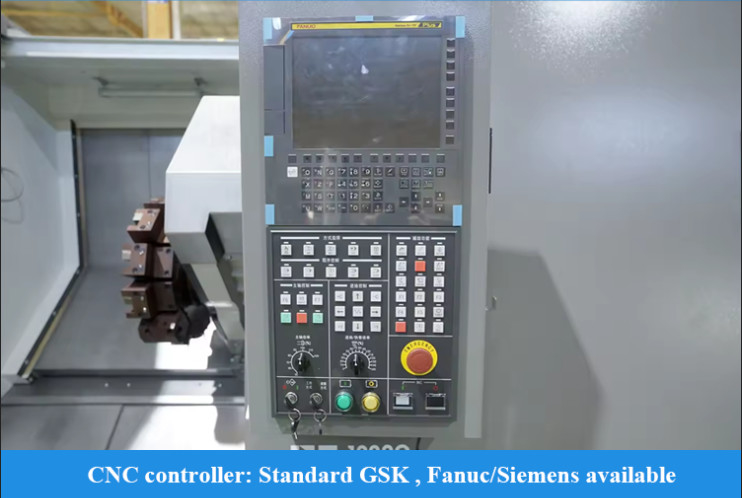

Product Details:

CNC Lathe T5.2-500Q Large Size Shaft Cutting BMT55 SMTCL Slant Bed CNC Lathe With Y Axis 1

Industry application:

CNC Lathe T5.2-500Q Large Size Shaft Cutting BMT55 SMTCL Slant Bed CNC Lathe With Y Axis 2

Product Paramenters:

Item
Unit
T5.2-500Q
T5.2-1000Q
Max. turning diameter
mm
Φ360
Φ360
Max. turning length
mm
500
1000
Max.swing diameter over bed
mm
Φ560
Φ560
Max.swing diameter over cross slide
mm
Φ350
Φ350
Spindle
Type of spindle nose

A2-6
A2-6
Inner diameter of front bearing
mm
Φ100
Φ100
Taper of spindle bore

1:20；Φ70
1:20；Φ70
Spindle bore
mm
Φ65
Φ65
Max. through bar diameter
mm
Φ50
Φ50
Standard chuck diameter
inch
8
8
Max. spindle speed
r/min
4500
4500
Spindle rated torque
Nm
130(730r/min)
130(730r/min)
Max. spindle torque
Nm
178(730r/min)
178(730r/min)
Main motor output power continuous /30 minutes
kW
11/15
11/15
Two axis
Rapid traverse of X/Z axis
m/min
30
30
X axis travel
mm
200
200
Z axis travel
mm
560
1050
Tailstock
Tailstock travel
mm
500(Servo drive)
950(Servo drive)
Tailstock quill taper
Morse
MT-5
MT-5
Turret
Turret form

Horizontal 8 positions servo turret
Horizontal 8 positions servo turret
Center height of turret
mm
80
80
Turret rotation repeat positioning accuracy
Sec.
±1.6
±1.6
Whether the cutter can be selected nearby

yes
yes
Other
Distance from spindle center to bed bottom
mm
1015
1015
Machine net weight
kg
4200
4750
Total power supply capacity
kVA
27
27
Overall dimensions (Length X width X height)
mm
2750×1890×1900
3620×1890×1900

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

 About Us:

CNC Lathe T5.2-500Q Large Size Shaft Cutting BMT55 SMTCL Slant Bed CNC Lathe With Y Axis 3

Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level. Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:

CNC Lathe T5.2-500Q Large Size Shaft Cutting BMT55 SMTCL Slant Bed CNC Lathe With Y Axis 4

FAQ:
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
