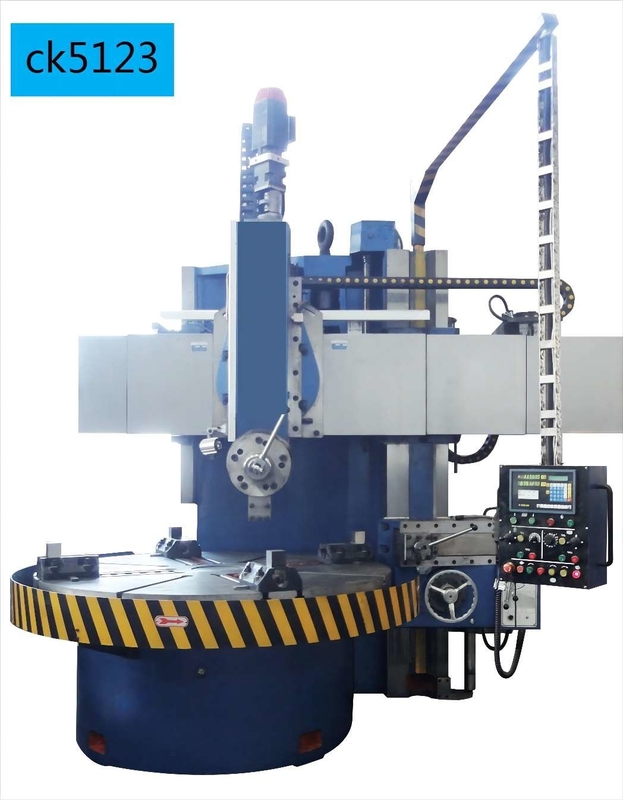

Heavy Single Column Vertical CNC Lathes Machine 37KW Ck5123 C5123 Vertical CNC Lathe
Product Details
| Product Name: | CK5123/C5123 SINGLE-COLUMN VERTICAL LATHE | Max.turning Diameter: | 2300mm |
|---|---|---|---|
| Table Diameter: | 1800mm | Max Height Of Working: | Working Pentagonal Turret 1250/1400/1600, Square Ram 1000/1200/1400 |
| Max Weight Of Working: | 8t | Range Of Table Speeds: | 3.2-100 Rpm,2 Steps |
| Swivel Of Rail Head: | ±30° | Size Of Tool Bar: | 30x40mm |
| Power Of Main Motor: | 37 KW | Overall Dimension: | 3500x3070x4200mm |
| Highlight |
Ck5123 Vertical CNC Lathes,C5123 Vertical CNC Lathes,37KW Vertical CNC Lathe Machine |
||
Product Description
This machine is suitable for high-speed steel cutter and carbide cutter for machining all kinds of non-ferrous metals, ferrous metals and part of non metallic material. It can complete the following processes: Turning inside and outside cylindrical surface; Turning inside and outside conical surface; Grooving; Reaming.
| Items | Unit | CK5118/C5118 | CK5123/C5123 | |
| Max.turning diameter | mm | 1800 | 2300 | |
| Table diameter | mm | 1400 | 1800 | |
| Max height of working | Pentagonal turret | mm | 1250/1400 | 1250/1400/1600 |
| Square ram | mm | 1000/1200 | 1000/1200/1400 | |
| Max weight of working | t | 5 | 8 | |
| Max cutting force of rail head | KN | 25 | 25 | |
| Max cutting force of side head | KN | 20 | 20 | |
| Max torque of table | N.m | 18216 | 35566 | |
| Steps of table rotate | Step | 2 | 2 | |
| Range of table speeds | r/min | 3.2-120 | 3.2-100 | |
| Swivel of rail head | degree | ±30° | ±30° | |
| Range of feed rate | mm/min | 2.0-1250 | 2.0-1250 | |
| Horizontal travel of rail head | mm | 915 | 1170 | |
| Vertical travel of rail head | mm | 800/square ram1000 | 800/square ram1000 | |
| Ram hor.travel of side head | mm | 630 | 630 | |
| Vertical travel of side head | mm/min | 900 | 900 | |
| Size of tool bar | mm | 30x40 | 30x40 | |
| Table guideway secondary | Hydrostatic | Hydrostatic | ||
| Power of main motor | kw | 30 | 37 | |
| Overall dimension( Length * width * height) | mm | 3410x2850x4200 | 3500x3070x4200 | |
Product Highlights
