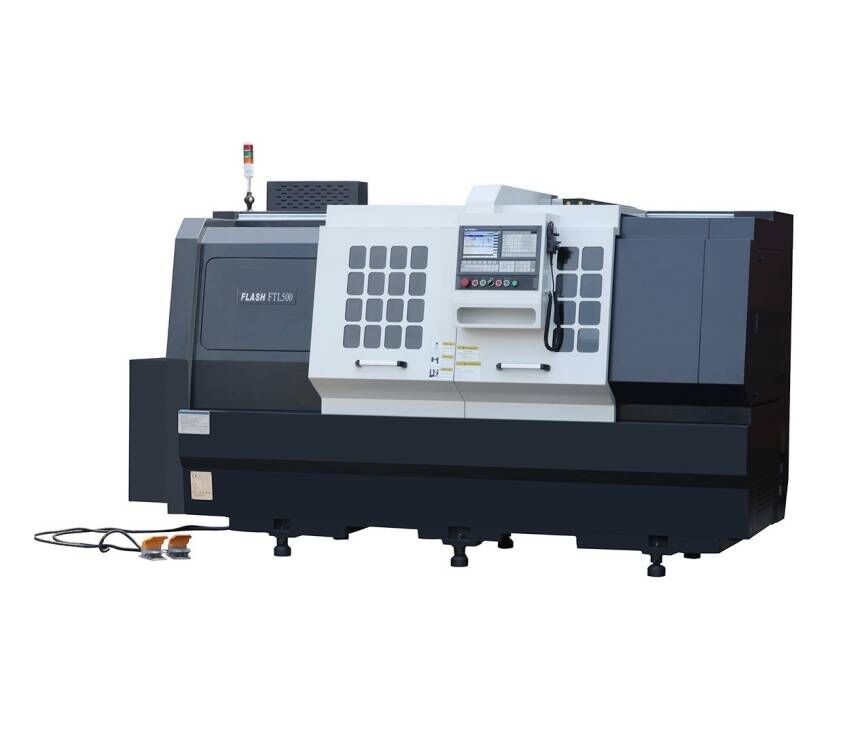

1000mm Z Axis CNC Machine Linear Guide Way FTL500 Tailstock CNC Lathe
Product Details
| Product Name: | FTL500 Linear Guide Way With Tailstock Flat Bed CNC Lathe | Max. Workpiece Length: | 1000/1500mm（cneter To Center), 850mm/1350（truck To Center),*750(12 Station Turret) |
|---|---|---|---|
| Max. Swing Dia. Over Slide: | Ø260mm | Max. Swing Dia.: | 500mm |
| Spindle Bore: | Ø81mm/*Ø62mm | Spindle Nose: | A2-8/*A2-6 |
| Max. Spindle Speed: | 1600 Rpm/*2500rpm,2000 Rpm/*3500rpm/*4000rpm | X/Z Axis Rapid Traverse: | 15/15m/min,*20/20m/min |
| Toolpost Type: | 4-Station Toolpost/ *8-Station Turret/*Gang Type Tools | Control System: | GSK/Fanuc/Simens/Syntec |
| Highlight |
1000mm Z Axis CNC Machine,FTL500 Z Axis CNC Machine,FTL500 Tailstock CNC Lathe |
||
Product Description
FTL500 1000mm Z Axis Travel Linear Guide Way Tailstock CNC Lathe With Competitive Price

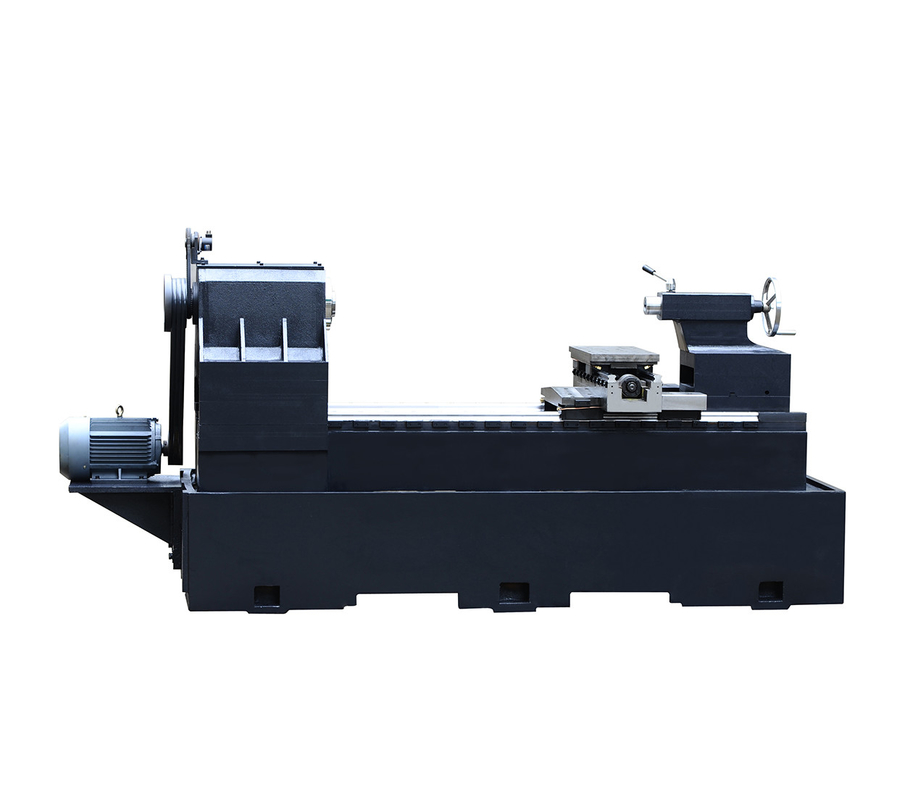

Comprehensive priced CNC Turning Center – when you need a high quality CNC lathe that has BOTH – a high quality turret and tailstock.Built atop the uniquely designed one-piece solid cast base and lathe bed found in the larger FTL lathe models.
Standard Features
Manual 3-Jaw Chuck
4-Station Tool Post, PLUS, Gang Tool Plate
Manual Tail Stock
Ergonomic Operator Panel Design & MPG
Automatic Lubrication System
Automatic Coolant System
Work Lamp & Built-In Safety Features
Optional Features
Different Chucks
Different Spring Collets
Different Control Systems
Hydraulic Tail Stock
Live Tooling
Bar Feeder
8-Station Turret
Main Specification
| Items | specification |
| Capacity | Chuck Size: 10" Max.Swing Dia. Over Bed: Ø500mm Max. Workpiece Length: 1000mm*1500mm Max. Swing Dia. Over Slide: Ø260mm |
| Spindle | Spindle Bore: Ø81mm Max. Bar Capacity: Ø70mm Spindle Nose: A2-8 Max. Spindle speed: 1600rpm Spindle Power: 7.5Kw, *11kW, *15kW Spindle Bore: *Ø62mm Max. Bar Capacity: *Ø52mm Spindle Nose: *A2-6 Max. Spindle speed: *2000rpm, *3500rpm, *4000rpm Spindle Power: *7.5Kw, *11kW, *15kW |
| Axis | X Axis Travel: 280mm Z axis travel: 1000mm, *1500mm X/Z axis rapid traverse: 15/15m/min, 20/20m/min |
| Tools |
|
| Tailstock | Manual, *Hydraulic Quill Taper: MT5 Quill travel: 100mm |
| Others | Bed Type/guideway: Flat/LM Power Capacity: 15kVA Overall Dimension(L×W×H): 3400x1600x2010mm Weight(about): 4300Kg, *4800Kg |
| Note | "*"means optional |
