Horizontal Turning Center HTC30Hm Horizontal 12-station Power Turret CNC Turning Lathe Machine
Product Details
| Brand: | SMTCL | Name: | CNC Turning Center |
|---|---|---|---|
| Max. Swing Diameter (mm): | 420 Mm | Max. Turning Length: | 450 Mm |
| Max. Spindle Speed: | 4500 R.p.m | Spindle Bore: | 65 Mm |
| Spindle Motor Power(kW): | 9/11 | Spindle Nose Type: | A2-6 |
| Highlight |
CNC Turning Center Machine,Slant Type CNC Turning Center Machine,Slant Bed Lathe |
||
Product Description
Product Description:

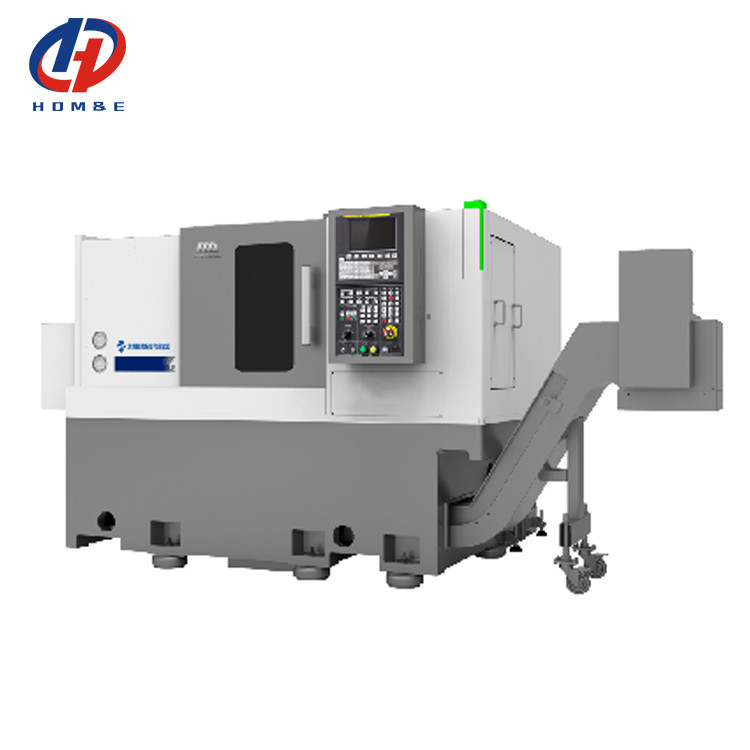

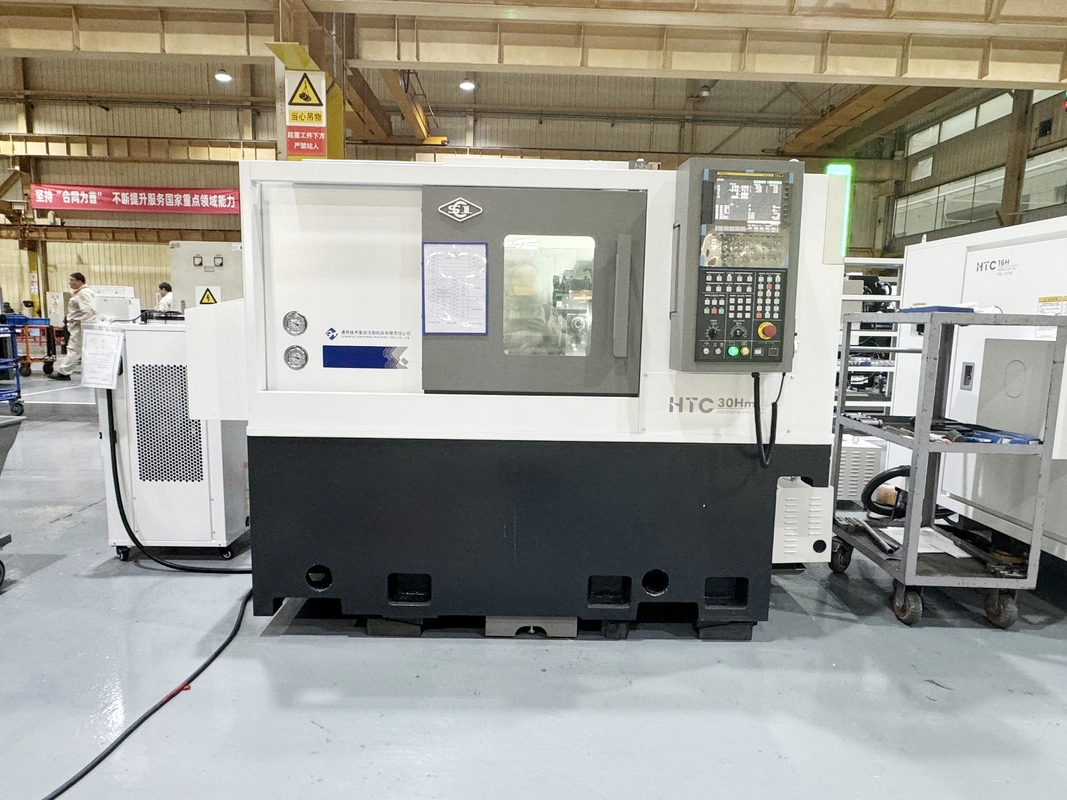

SMTCL Horizontal Turning Center HTC30Hm Horizontal 12-station Power Turret CNC Turning Lathe Machine

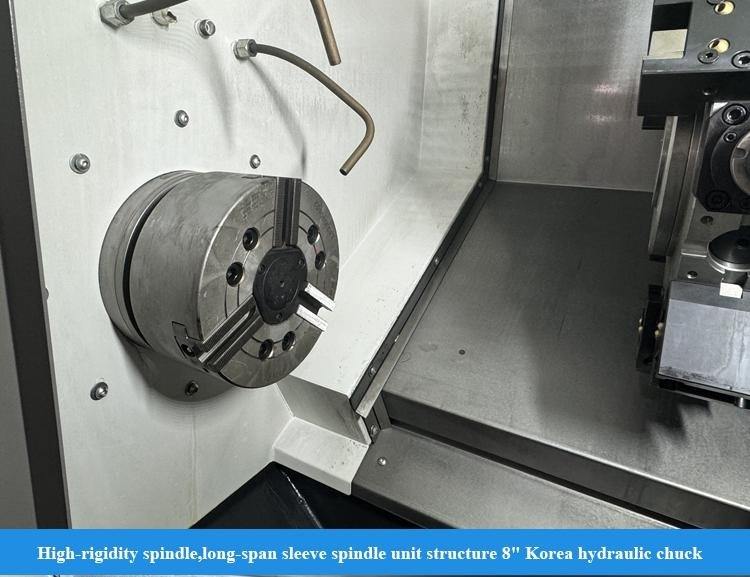

HTC30Hm horizontal turning center adopts the whole inclined bed structure, and is equipped with large span and high rigidity spindle, which has excellent cutting performance. The scientific predrawing structure of the lead screw makes the whole machine with high processing precision and good stability. The layout of the whole machine is reasonable and the floor area is small. The single machine automatic processing unit can complete the automatic grasp, loading, loading, processing and cutting of the workpiece during the processing process, and the configuration of the turning device can realize the full sequence processing of the workpiece. The application of automation unit can greatly save labor costs and improve production efficiency, especially suitable for batch high-precision processing of small and medium-sized parts. Mainly used in automobile, bearing and other industries. It can turn the inner and outer surfaces of thread, arc, cone and rotary body for shaft and disk parts. At the same time, it can realize integrated processing such as drilling, milling and tapping to improve processing efficiency.
Product Features:
Rapid moving speed: 30m/min

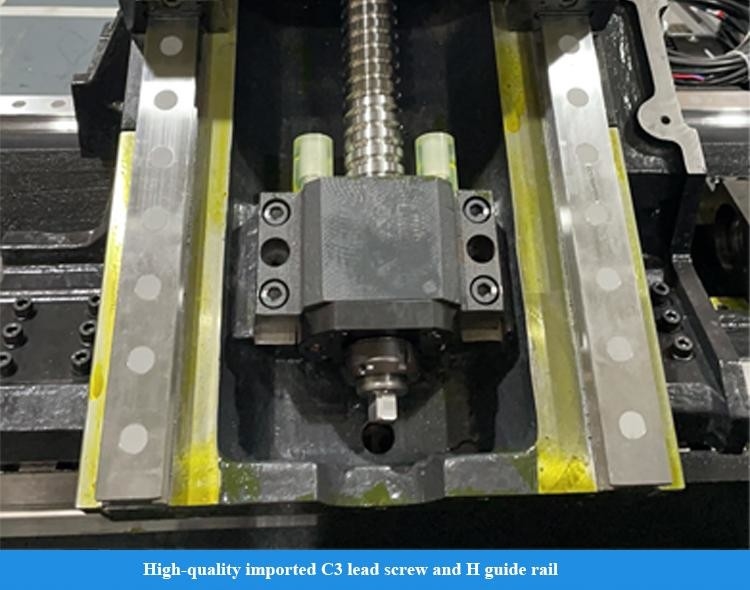

The servo motor is directly connected to the ball screw through a coupling, reducing intermediate links and achieving gapless transmission. The X and Z-axis guide rails adopt imported linear rolling
guide rails to ensure high rigidity, good dynamic performance and accuracy, increase operating speed and improve production efficiency.

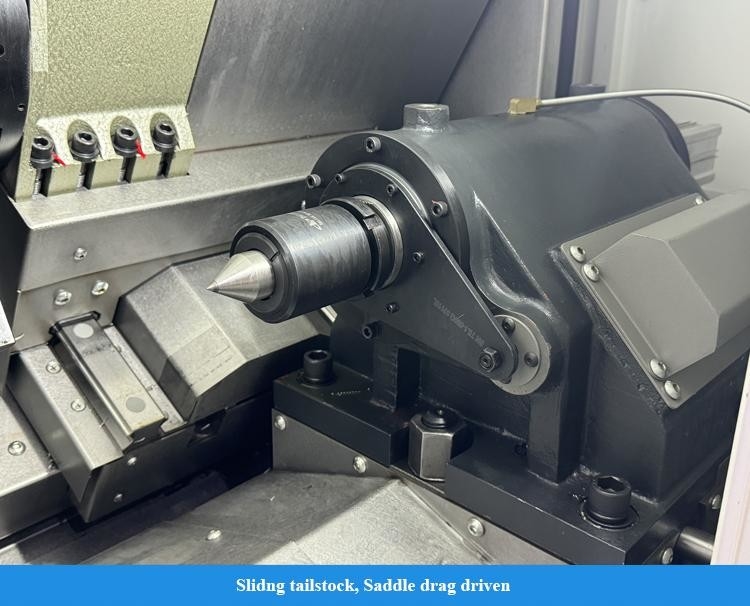

Split Servo Tailstock
Double fixed pre-tensioned structure
Y axis configuration
High precision ball screw
Anti-bending saddle

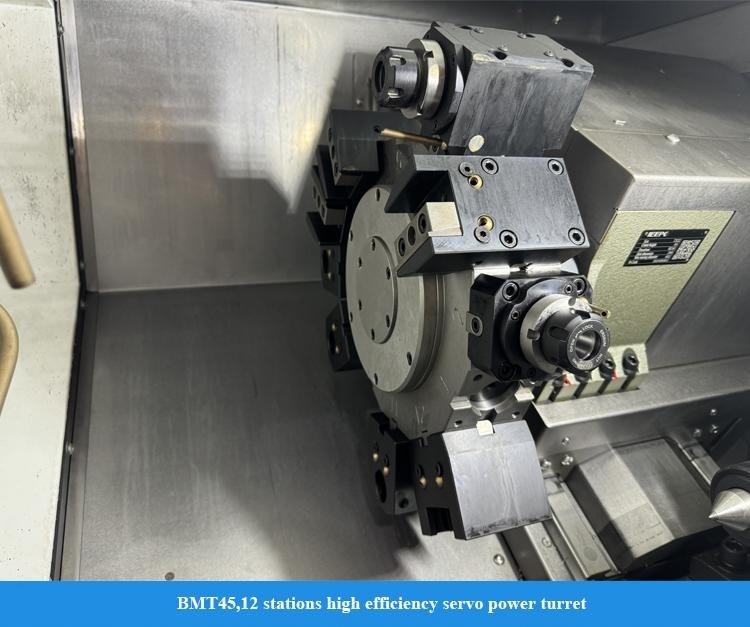

Efficient servo powered turret
Internal cooling tool holder
Driven tool milling capability
Tool model: Ф20 square shoulder
milling cutter
Cooling status: water cooling
Workpiece material: HT200
Tool model: Ф16 twist drill
Cooling status: water cooling
Product Paramenters:
|
Project
|
Unit
|
HTC30Hm
|
|
Max. cutting dia.
|
mm
|
Φ250
|
|
Max.cutting length
|
mm
|
450
|
|
Max. swiming dia.over bed
|
mm
|
Φ420
|
|
Max. swiming dia.on slide
|
mm
|
Φ280
|
|
Spindle
|
|
|
|
Spindle nose model
|
|
A2-6
|
|
Front bearing inner dia.
|
mm
|
100
|
|
Spindle taper and hole size
|
|
1:20;Φ70
|
|
Dia. of spindle hole
|
|
Φ65
|
|
Max.bar dia.
|
mm
|
Φ50
|
|
Standard chuck dia.
|
inch
|
8
|
|
Spindle speed range
|
r/min
|
4500
|
|
Rated spindle torque
|
N·m
|
110(769r/min)
|
|
Spindle Max. torque
|
N·m
|
180(576r/min)
|
|
Main motor output power continuous/15 min.
|
kW
|
9/11
|
|
X/Z axis
|
|
|
|
X/Z axis rapid movement
|
m/min
|
30
|
|
X axis travel
|
mm
|
140
|
|
Z axis travel
|
mm
|
500
|
|
Tailstock
|
|
|
|
Tailstock travel
|
mm
|
300
|
|
Tailstock drive method
|
|
Saddle drag
|
|
Tailstock sleeve travel
|
mm
|
100
|
|
Tailstock sleeve dia.
|
mm
|
Φ100
|
|
Tailstock taper hole taper
|
Morse
|
MT-5
|
|
Turret
|
|
|
|
Turret typle
|
|
Horizontal 12-station power turret
|
|
Center height
|
mm
|
80
|
|
Turret indexing repeat positioning accuracy
|
Sec.
|
±1.6
|
|
Tool size
|
mm
|
25
|
|
If could choose tool nearby
|
|
yes
|
|
Power tool holder interface
|
|
BMT45
|
|
Max. drilling capacity
|
mm
|
14×0.15
|
|
Max. milling capacity
|
mm
|
12×8×45
|
|
Max. tapping capacity
|
mm
|
M10×1.5
|
|
Others
|
|
|
|
Distance between spindle center and floor
|
mm
|
926
|
|
Machine tool net weight
|
kg
|
3500
|
|
Overall dimensions(LxWxH)
|
mm
|
2295×1680×1650
|
|
Note: The parameters provided in the table are for reference only. If there is any change, please refer to the actual product.
|
||
