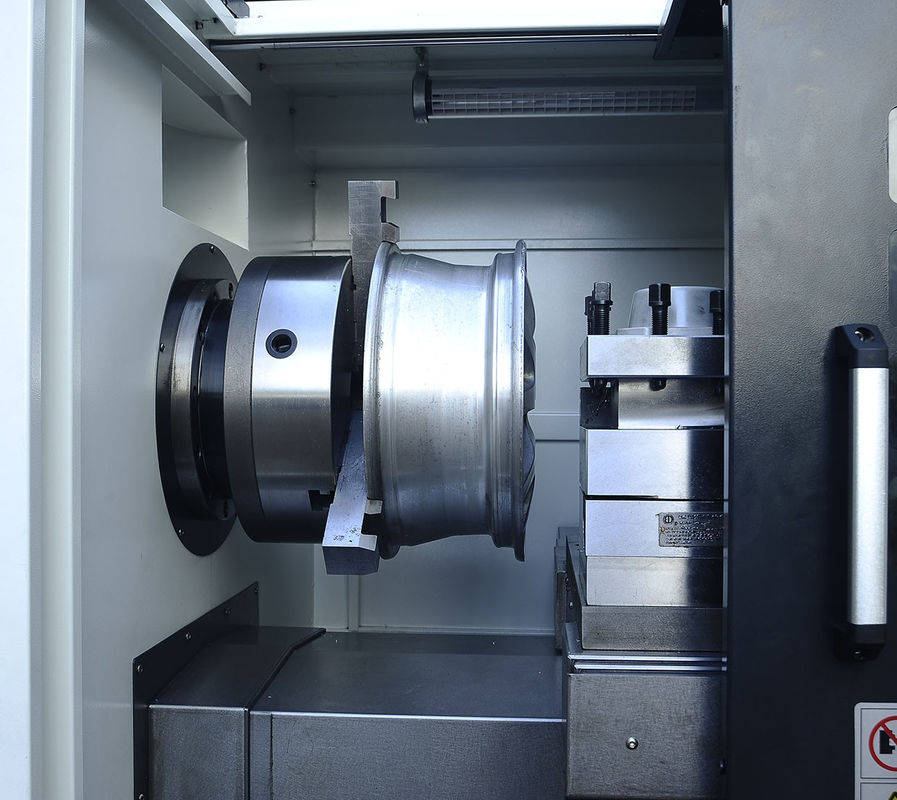

FL630 Automatic Flat Bed CNC Lathe Machine Linear Guideway With C Axis
Product Details
| Product Name: | FL630 Flat Bed Automatic Cnc Lathe With C Axis | Max. Workpiece Length: | 450mm |
|---|---|---|---|
| Max. Swing Dia. Over Slide: | Ø380mm | Max. Swing Dia.: | Ø450mm |
| Spindle Bore: | Ø120mm | Spindle Nose: | A2-11 |
| Max. Spindle Speed: | 1000 Rpm | Chuck/ Collet: | Manual Chuck 15",*Hydraulic Chuck 15" |
| Toolpost Type: | 4-Station Toolpost/ *8-Station Turret/*Gang Type Tools | Control System: | GSK/Fanuc/Simens/Syntec |
| Highlight |
C Axis Flat Bed CNC Lathe,FL630 Flat Bed CNC Lathe,C Axis CNC Automatic Lathe Machine |
||
Product Description
Linear Guideway FL630 flat bed automatic cnc lathe with c axis
FL series products are mass-produced in our factory, using world-standard quality control procedures. These facts contribute to FL lathe's reputation in the world market, excellent quality, and reasonable price. We produce big machines at high prices and pass on the money saved to you.
Standard Features
■ Manual 3-Jaw Chuck (FL400 and above)
■ Pneumatic Collet (FL280, FL300)
■ Gang Type Tooling (For Swing<400mm)
■ 4-Station Tool Post+ Gang Plate (For Swing >400mm)
■ Ergonomic Operator Panel Design
■ Automatic Lubrication System
■ Automatic Coolant System
■ Built-In Safety Features
Optional Features
■ Different Chucks
■ Different Spring Collets
■ Different Control Systems
■ Live Tooling
■ Bar Feeder
■ 8-Station Turret (Available on FL300/FL400/ FL500/ FL550/ FL630)
Main Specification
| Items | specification |
| Capacity | Chuck Size: 15" Manual, *Hydraulic Chuck 15" Max.Swing Dia. Over Bed: Ø650mm Max. Workpiece Length: 450mm Max. Swing Dia. Over Slide: Ø380mm |
| Spindle | Spindle Bore: Ø120mm Max. Bar Capacity: Ø110mm Spindle Nose: A2-11 Max. Spindle speed: 1000rpm Spindle Power: 11.0/ 15kW, *15/ 18.5kW |
| Axis | X Axis Travel: 350mm Z axis travel: 500mm X/Z axis rapid traverse: 20/20m/min |
| Tools | Toolpost type: 4-Station toolpost, *8-Station turret, *Gang type tools No. of tool stations: 4-10 |
| Tailstock | N/ A |
| Others | Bed Type/guideway: Flat/LM Power Capacity: 18kVA Overall Dimension(L×W×H): 2650x1360x1800mm Weight(about): 3000Kg |
| Note | "*"means optional, "N/A"means not available. |
