SMTCL Horizontal Lathe Machine 1.5m Lathe CA6140 CA6150 Engine Turning Manual Lathe

Name: SMTCL Horizontal Lathe Machine 1.5m Lathe CA6140 CA6150 Engine Turning Manual Lathe
Brand: Shanghai HD ME Tech Co., Ltd.
SKU: CA6150A/CA6250A
Availability: InStock

Brand Name: smtcl symg

Model Number: CA6150A/CA6250A

Place of Origin: China

Certification: CE ISO

Minimum Order Quantity: 1 Set

Supply Ability: 20 Set/Sets per Month

Horizontal Conventional Lathe Machine

Heavy Duty Manual Lathe

Product Details

Brand:	SMTCL	Product Name:	CA6150A/CA6250A Conventional Manual Lathe
Width Of Bed (mm):	210mm	Max. Turned Length (mm):	1900
Max. Swing Diameter (mm):	500	Max Turning Dia Over Carriage:	300
Max Workpiece Length:	750,1000,1500,2000	Width Of Bed:	400mm
Spindle Speed Ranges:	11-1600 R/min (24kinds)	Travel Of Cross Slider:	320mm
Travel Of Tailstock Spindle:	150mm
Highlight	Manual Conventional Lathe Machine , CA6150A Conventional Lathe Machine , CA6250A Universal Lathe Machine

Product Description

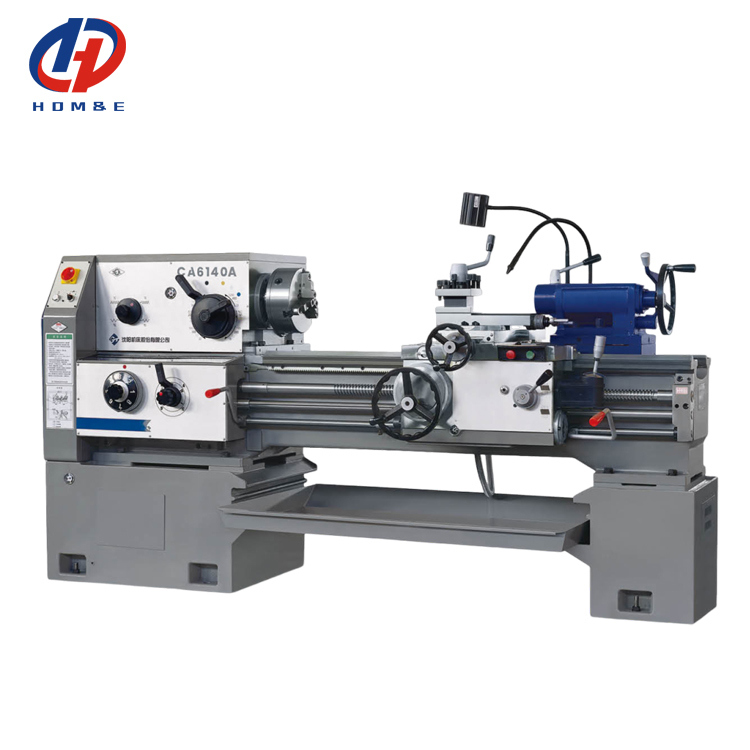

SMTCL Horizontal Lathe Machine 1.5m Lathe CA6140 CA6150 Engine Turning Manual Lathe 0

Product Description:

SMTCL Horizontal Lathe Machine 1.5m Lathe CA6140 CA6150 Engine Turning Manual Lathe

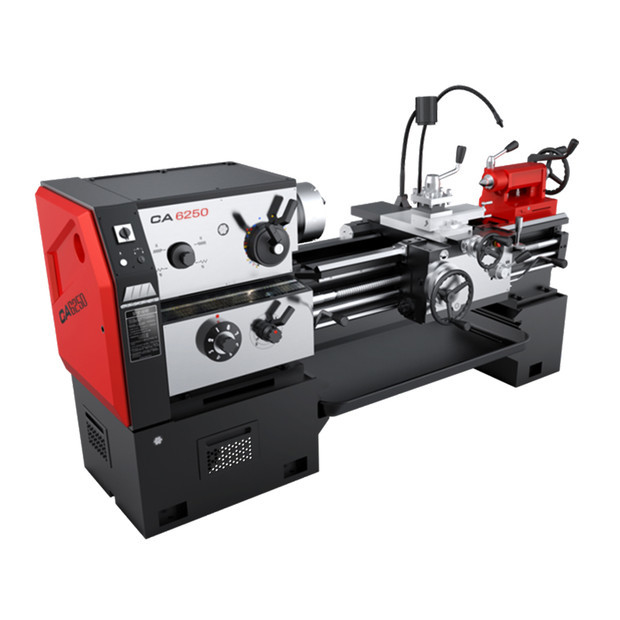

CA6150 as a classic horizontal lathe, has outstanding performance. Its bed is made of high-strength cast iron, providing sufficient rigidity and laying a solid foundation for high-precision machining. The spindle bore is enlarged, which can be adapted to thicker bar materials and expand the machining range. It is equipped with a wide-speed-adjusting variable-frequency spindle motor, with sensitive speed regulation and high cutting efficiency. It is easy to operate, allowing for flexible switching between manual and automatic modes, and the tool post can rotate positions quickly. It is suitable for processing numerous parts such as shafts and discs, and it is a capable assistant for machinery manufacturing enterprises.

Product Features:

1,Novel appearance

The appearance design of the machine tool integrates the ergonomic concept into the mature machine structure, enhances the operation, uses the striking red and gray stamping parts, and the overall appearance is beautiful.

2,Complete specifications

CA series products have complete specifications and a wide range of categories. Including straight bed lathe, saddle bed lathe and large bore lathe.

3,Complete functions

CA series lathe can bear a variety of materials end, inside and outside E1 column, cone and other rotating surface turning processing. More accurate processing of a variety of metric, imperial, modular, diameter pitch threads. In addition, drilling, hairpin holes, pulling oil guns and other work can also be easily qualified.

4,Excellent performance

The 40A series ordinary lathe is equipped with a large diameter spindle front bearing and has a wider bed span than similar products, achieving a higher structural difference and achieving new levels of performance.

Product Details:

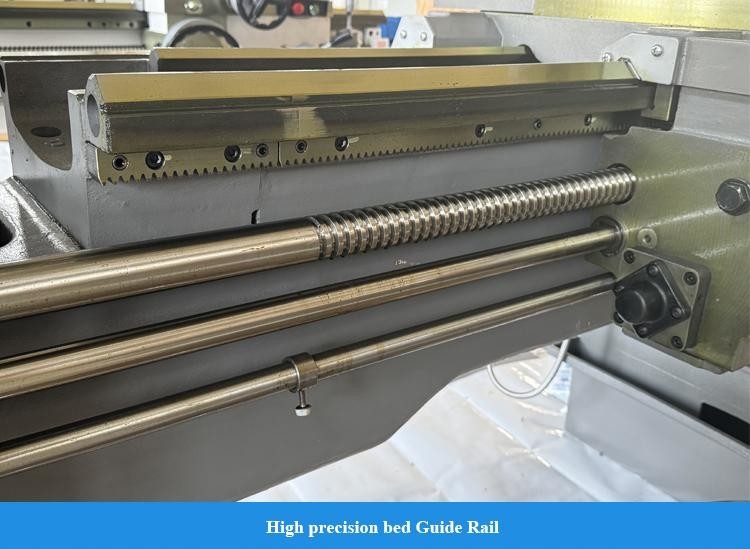

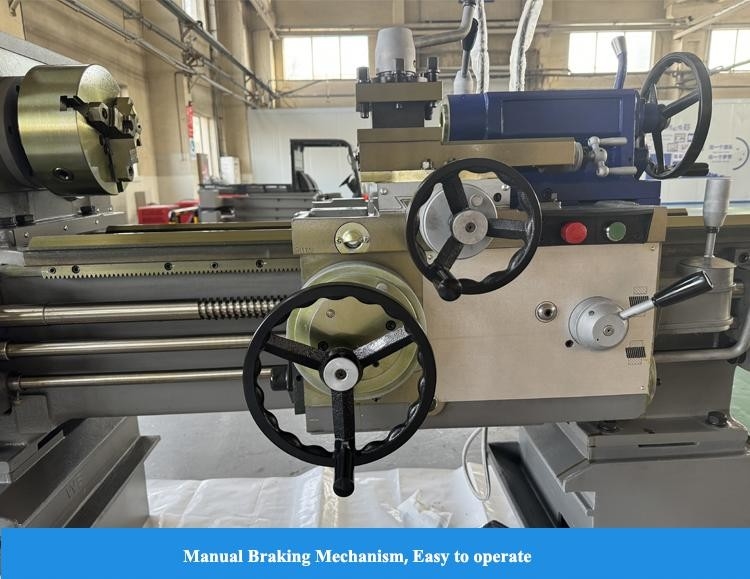

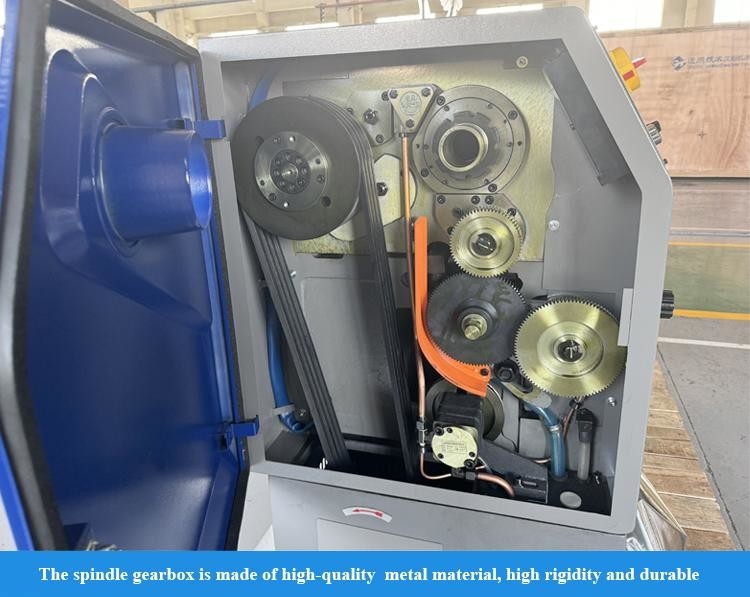

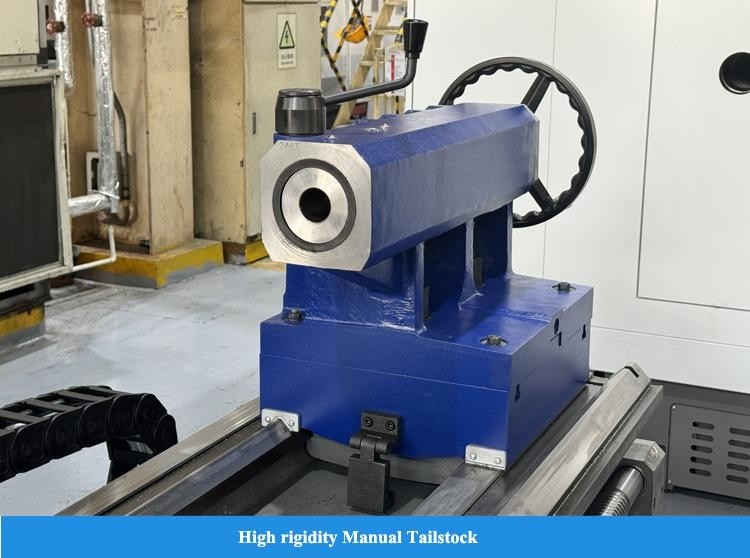

SMTCL Horizontal Lathe Machine 1.5m Lathe CA6140 CA6150 Engine Turning Manual Lathe 1

Product Paramenters:

Item		Unit	CA6140A/ CA6240A	CA6150A/CA6250A

Max.swing dia over bed		mm	400	500
Max.swing dia over carriage		mm	210	300
Max swing dia over gap/ Width of gap		mm	630*210	720*210
Max workpiece length		mm	750/650;1000/900;1500/1400;2000/1900
Width of bed / hardness mm		mm	400, Rc52
Section of turning tools		mm	25x25
Spindle speed range		r/min	11-1600(24)

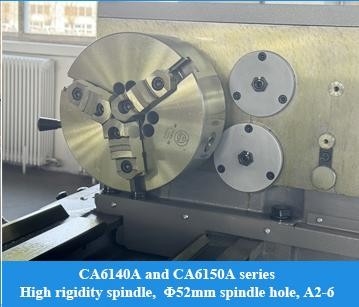

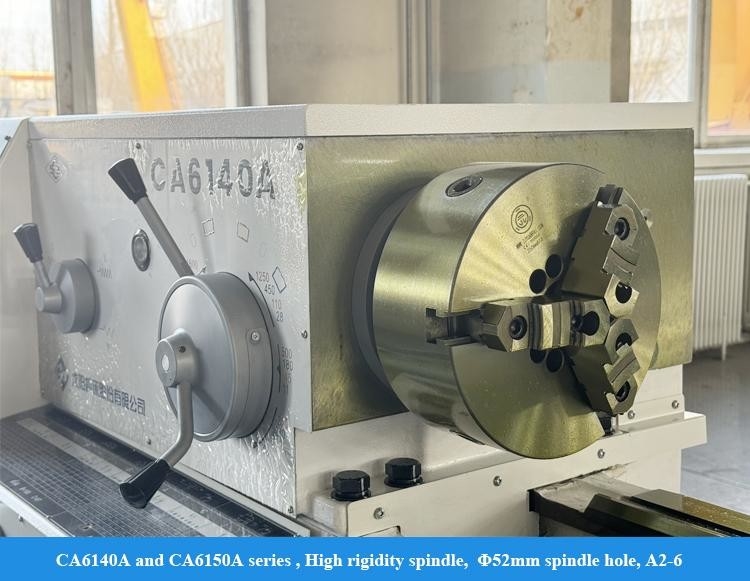

Spindle bore and nose		mm	52 A6
Taper of spindle nose			Morse 6#
Range of longitudinal feed	Standard	mm/r	0.08-1.59	0.08-1.59
	small feed	mm/r	0.028-0.054	0.028-0.054
	enlarge feed	mm/r	1.71-6.33	1.71-6.33
Rang of cross feed	Standard	mm/r	0.04-0.79	0.04-0.79
	small feed	mm/r	0.014-0.027	0.014-0.027
	enlarge feed	mm/r	0.86-3.16	0.86-3.16
Travel of cross slide / top turret travel		mm	320/140
Swiveling angle of compound slide		degree	±90
Rapid travel carriage		m/min	4
Rapid travel of cross slide		m/min	2

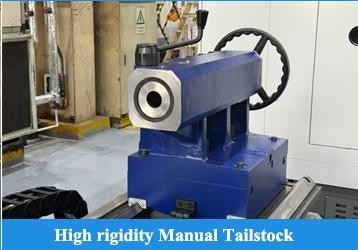

Travel of tailstock spindle		mm	150
Diameter of tailstock spindle		mm	75
Taper of tailstock spindle			Morse 5#
Metric thread(kinds)		mm	1-192(44)
Whitwhorth thread(kinds)		t.p.i	2-24(21)
Modular thread(kind)		mm	0.25-48(39)
Diameter Pitch(kinds)		D.P	1-96(37)
Main motor		kW	7.5
New weight of machine	750mm	kg	1990
	1000mm	kg	2070	2140
	1500mm	kg	2220	2290
	2000mm	kg	2570	2640
Overall dimensions(LWH)	750mm	mm	241810001267
	1000mm	mm	266810001267	266810371312
	1500mm	mm	316810001267	316810371312
	2000mm	mm	366810001267	366810371312

CA6140A and CA6240A Standard configuration: Spindle bore dia. :Φ 52mm 1. Spindle nose type:A6 2. Chuck : Φ 250mm three jaw chuck 3. Taistock tape: Morse 5 4. Dead center 5. Working lamp 6. Oil gun 7. Tool box 8. Adjustable iron pad	CA6140A and CA6240A Selective configuration: 1. Φ 315mm manual three jaw chuck 2. Φ 250mm manual four chuck 3. Φ 315mm manual four jaw chuck 4. Steady rest Φ 20- Φ125mm 5. Steady rest Φ100-Φ205mm 6. Follow rest Φ20-Φ80mm 7. Live center Morse 5 or Morse 4 8. Chuck protection 9. Rear chip screen 10. Digital display
CA6150A and CA6250A Standard configuration: Spindle bore dia. :Φ 52mm 1. Spindle nose type:A6 2. Chuck : Φ 250mm three jaw chuck 3. Taistock tape: Morse 5 4. Dead center 5. Working lamp 6. Oil gun 7. Tool box 8. Adjustable iron pad	CA6150A and CA6250A Selective configuration: 1. Φ 315mm manual three jaw chuck 2. Φ 400mm manual four jaw chuck 3. Φ 250mm manual four chuck 4. Φ 315mm manual four jaw chuck 5. Φ 400mm manual four jaw chuck 6. Steady rest Φ 20- Φ125mm 7. Steady rest Φ125-Φ250mm 8. Follow rest Φ20-Φ80mm 9. Live center Morse 5 or Morse 4 10. Chuck protection 11. Rear chip screen 12. Digital display

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory:

SMTCL Horizontal Lathe Machine 1.5m Lathe CA6140 CA6150 Engine Turning Manual Lathe 3

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
