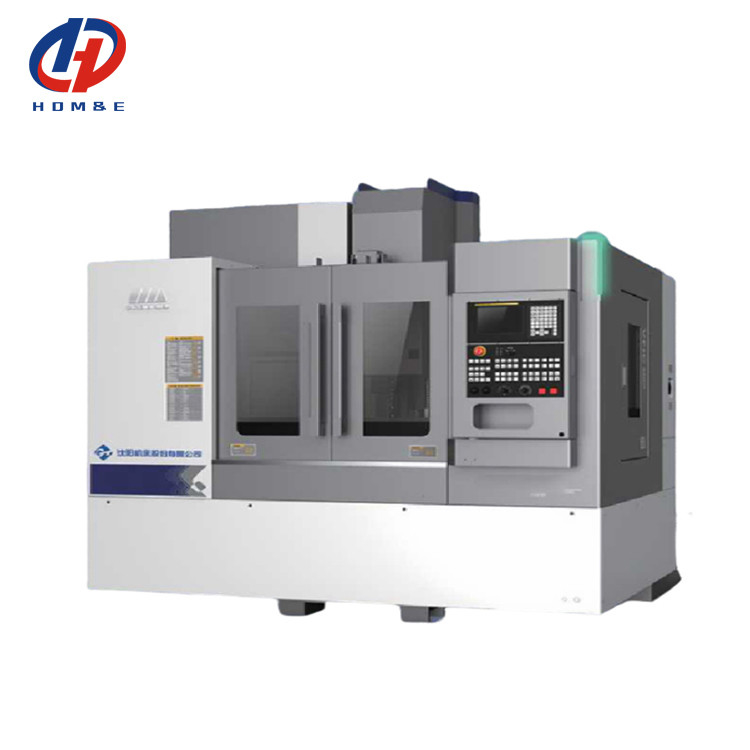

Name: SMTCL 3 Axis CNC Milling Machine VMC1100Q High Precision CNC Vertical Machining Center
Brand: Shanghai HD M&E Tech Co., Ltd.
SKU: VMC850Q
Availability: InStock

Home > products > CNC Vertical Machining Center >

SMTCL 3 Axis CNC Milling Machine VMC1100Q High Precision CNC Vertical Machining Center

CNC Vertical Machining Center

High precision and high rigidity

SMTCL 3 Axis CNC Milling Machine

Place of Origin:

China

Brand Name:

SMTCL

Certification:

CE ISO

Model Number:

VMC850Q

Request A Quote

Product Details

X Axis Travel:

1100mm

Y Axis Travel:

620mm

Z Axis Travel:

600mm

A.T.C:

24 ATC With Robot Arm

Brand:

SMTCL

Type:

VMC1100Q

Product Name:

Vertical Machining Center

Table Size (L×W):

1300×610

Max Load On The Table:

1000kg

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

Wooden package standard for sea shipping

Delivery Time

30 days

Supply Ability

50 Sets per Month

Economical CNC Vertical Machining Center M800 3 Axis CNC Milling Machine Syntec Controller VMC Machine

Get Best Price

Video

SMTCL VMC850Q 3 Axis Vertical Machining Center 4 Axis CNC Milling Machine With Turntable

Get Best Price

Video

3 Axis Vertical Machining Center Aluminum Machining VMC850Q 4 Axis CNC Milling Machine Fanuc CNC VMC

Get Best Price

Video

Vertical Machining Center VMC1100P High Rigidity Gantry Frame Structure 4 Axis CNC Milling Machine

Get Best Price

+8613916455787

sales@huidijd.com

86-021-61195255

Contact Now

Product Description

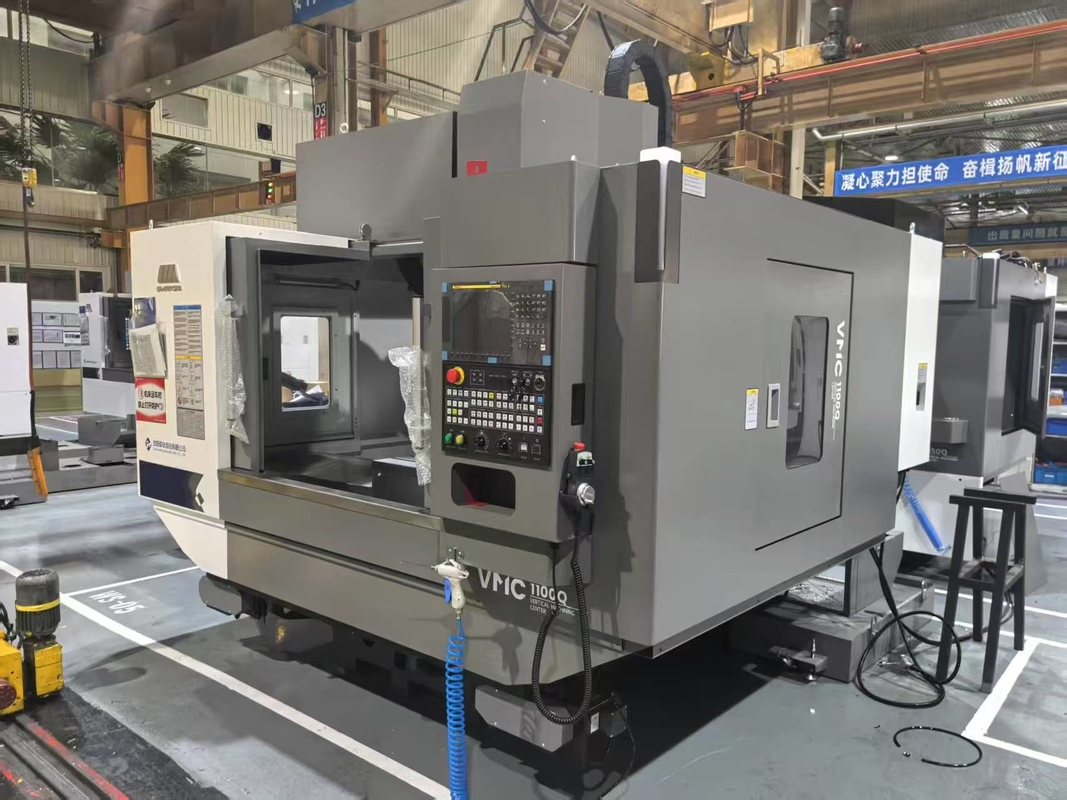

SMTCL 3 Axis CNC Milling Machine VMC1100Q High Precision CNC Vertical Machining Center 0

Product Description:

SMTCL 3 Axis CNC Milling Machine VMC1100Q High Precision CNC Vertical Machining Center

VMC-Q series vertical machining center is a new general-purpose vertical machining center produced by Shenyang Machine Tool Co., LTD., which is suitable for general machinery, automotive and other industries. It has good cutting performance by scientific and reasonable analysis and optimization by using professional design and analysis software such as large span hermitage column, thermal symmetry structure design of spindle and C3 level precision lead screw pre-drawing process. Can meet the needs of all kinds of parts drilling and milling processing, to provide customers with the best processing experience.

Product Features:

1,High rigidity and high stability design

♦ High strength integral casting bed

♦ Three-axis P-class roller guide

♦ Long span herringbone column

2,Good accuracy and accuracy retention

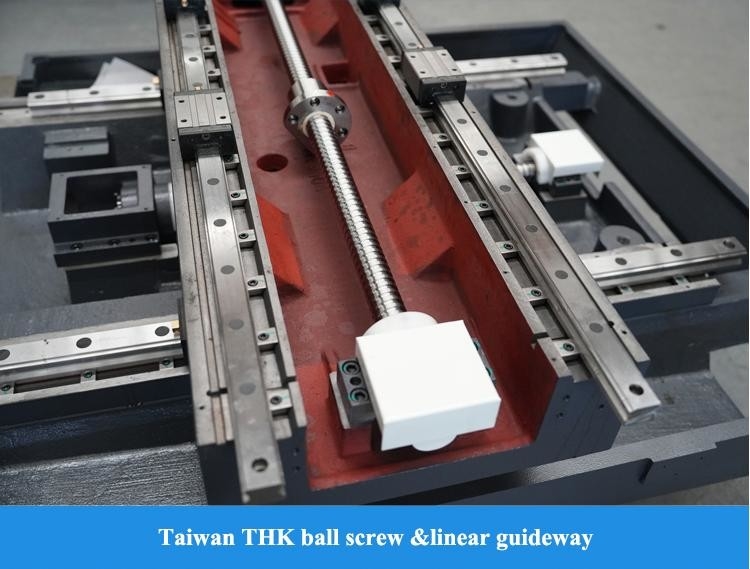

♦ C3 pre-drawn lead screw

♦ Thermal symmetry technology

♦ Error compensation technology

3,Safety, environmental protection, efficient productivity

♦ Three-axis fast shift 48m/min

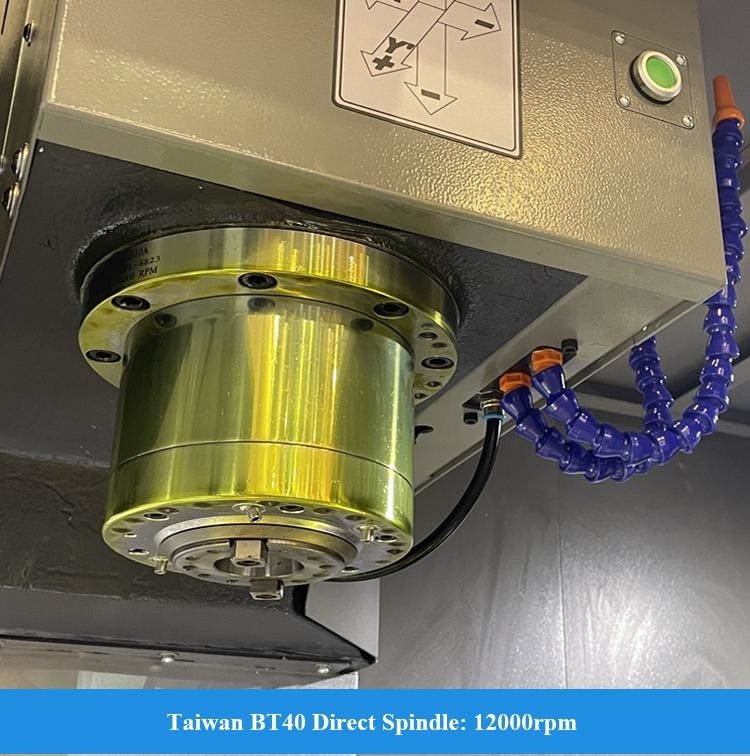

♦ Direct spindle 12000 RPM

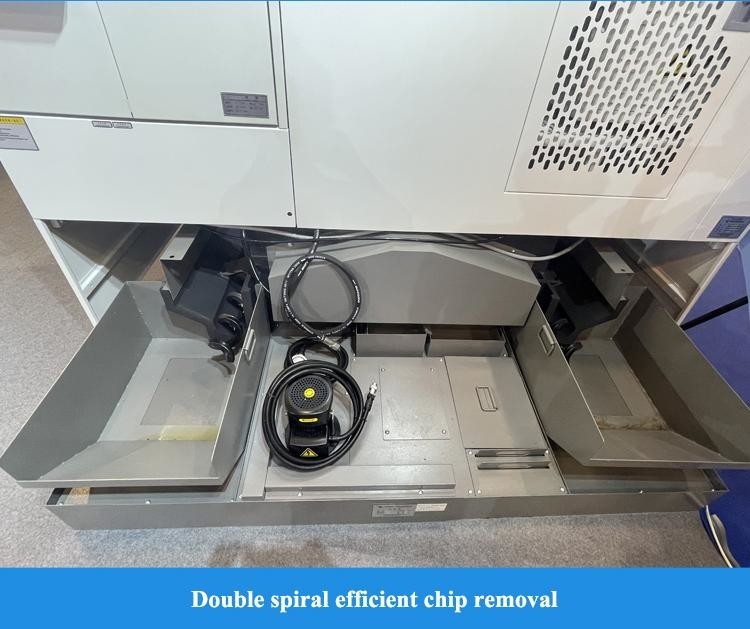

♦ Bed double spiral chip extractor

Product Details:

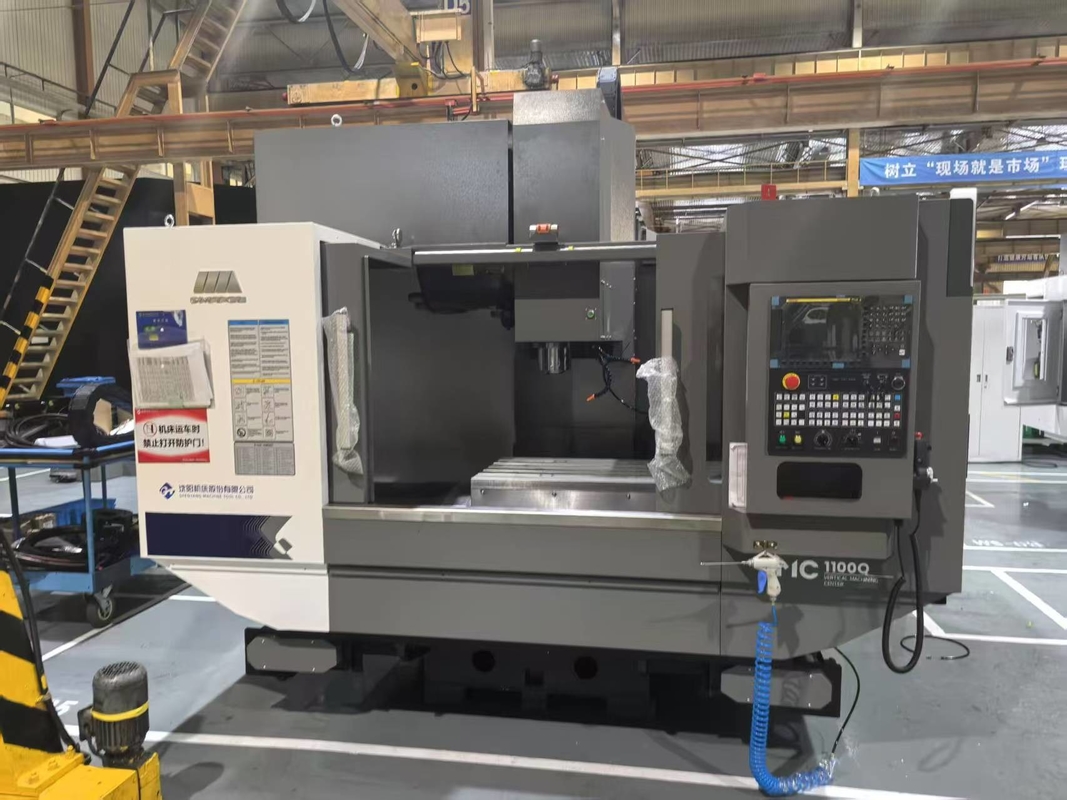

SMTCL 3 Axis CNC Milling Machine VMC1100Q High Precision CNC Vertical Machining Center 1

Product Paramenters:

Item		Unit	VMC1100Q
Worktable	Table size (L×W)	mm	1300×610
	Max load on the table	kg	1000
	T-slot size	kg	18×5
Capacity	X axis travel	mm	1100
	Y axis travel	mm	620
	Z axis travel	mm	600
	Spindle nose to table surface	mm	120-720
	Spindle nose to column surface	mm	743
Spindle	Spindle taper(7:24)	mm	BT40
	Spindle speed	rpm	10000
	Maximum output torque	N.m	52.5/95.5
	Spindle motor	kw	11/15
	Spindle drive type		Synchronous gear belt
Cutter	Handle type		MAS 403 BT40
Cutter	Nail type		MAS 403 P40T-I
Feed rate	X/Y/Z rapid traverse	m/min	48
	Three-axis drive motor power(X/Y/Z)	kw	3/3/3
	Three-axis drive motor torque(X/Y/Z)	N.m	20/20/20
	Feed rate	mm/min	1-20000

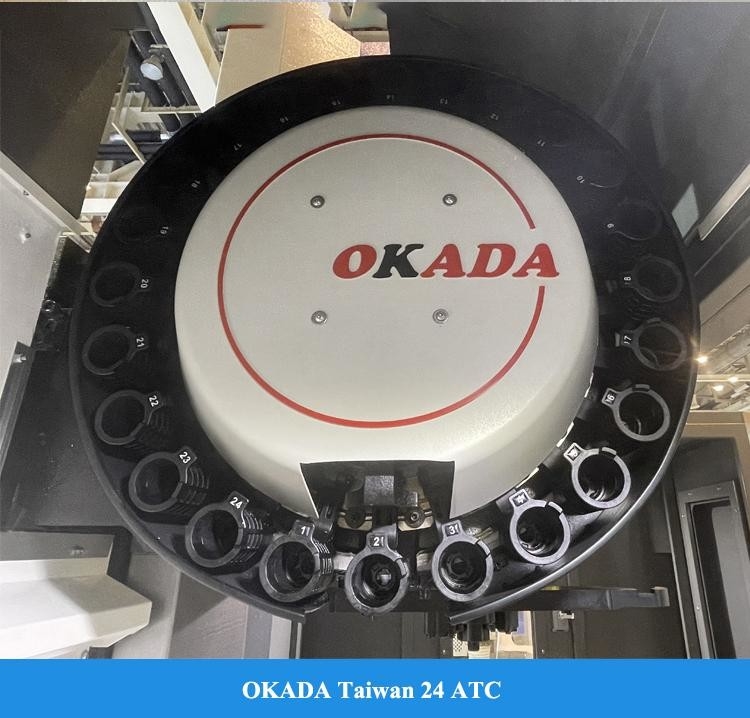

A.T.C	Tool storage capacity	pc	Arm type 24
	Max tool length	mm	300
	Maximum tool weight	kg	7
	Max tool diameter	mm	150(80)
	Tool change time(T-T)	s	2.5
Distance between the table top and the floor		mm	950
Net machine weight		kg	6200
Total power requirment		KVA	25
Overall dimensions(L×WxH)		mm	2940×3450×3050 (without chip extractor)

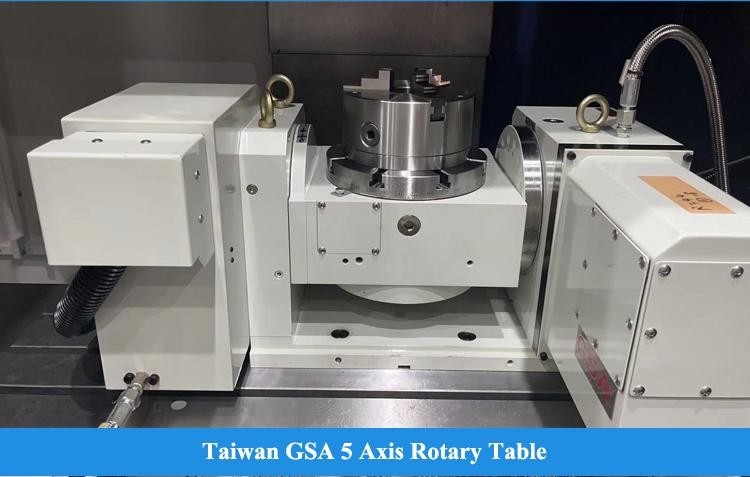

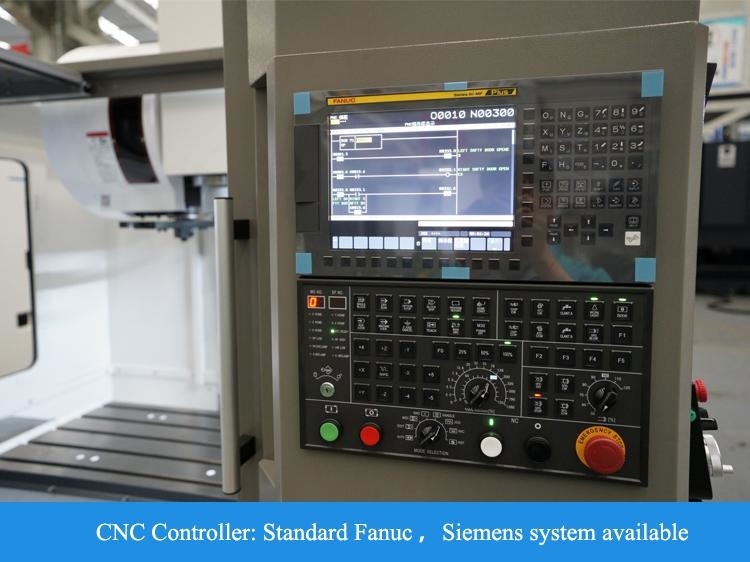

Standard configuration: 1. FANUC OI-MF TYPE(5)β control system 2. 10000 RPM spindle , belt connected 3. 24 disc manipulator tool magazine 4. Water tank + bed flushing chip 5. Clean air gun, working light, warning light		Selective configuration: 1. Fanuc Oi-MF TAPE(l)β system 2. Fanuc Oi-MF TAPE(l)α system 3. Siemens 828D CNC system 4. Direct connection 12000 RPM mechanical spindle 5. 16000 RPM, 24000 motorized spindle 6. 4th axis turntable 7. Cooling inside 2MPa, 3MPa,5MPa,7MPa 8. Oil-water separator 9. Chain chip remover 10. Clean water gun 11. Tool and workpiece inspection 12. Automatic door 13. Safety door lock 14.Electric cabinet and air conditioning

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory:

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
