Large Manual Lathe CW61160D Max Swing diameter over bed 1640mm A2-15 Spindle Heavy-duty Lathes

Large Manual Lathe CW61160D Max Swing diameter over bed 1640mm A2-15 Spindle Heavy-duty Lathes

Place of Origin:

China

Brand Name:

HD

Certification:

CE ISO

Model Number:

CW61160D

Contact Us
Request A Quote
Large Manual Lathe CW61160D Max Swing diameter over bed 1640mm A2-15 Spindle Heavy-duty Lathes
Large Manual Lathe CW61160D Max Swing diameter over bed 1640mm A2-15 Spindle Heavy-duty Lathes Large Manual Lathe CW61160D Max Swing diameter over bed 1640mm A2-15 Spindle Heavy-duty Lathes Large Manual Lathe CW61160D Max Swing diameter over bed 1640mm A2-15 Spindle Heavy-duty Lathes Large Manual Lathe CW61160D Max Swing diameter over bed 1640mm A2-15 Spindle Heavy-duty Lathes Large Manual Lathe CW61160D Max Swing diameter over bed 1640mm A2-15 Spindle Heavy-duty Lathes Large Manual Lathe CW61160D Max Swing diameter over bed 1640mm A2-15 Spindle Heavy-duty Lathes Large Manual Lathe CW61160D Max Swing diameter over bed 1640mm A2-15 Spindle Heavy-duty Lathes
Product Details
Brand:
HD
Type:
CW61160D
Product Name:
Heavy Manual Lathe
Max Load On The Table:
6T
Max.swing Diameter Over Bed:
1640mm
Max.swing Diameter Over Carriage:
1030mm
Width Of Bed:
755mm
Max.length Of Workpiece:
1000mm 1500mm 2000mm -12000mm
Spindle Bore Diameter:
ф120mm
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Wooden package standard for sea shipping
Delivery Time
30 days
Supply Ability
50 Sets per Month
RELATED PRODUCTS
Good price Universal Lathe CW6180B High Rigidity 600mm Bed Width Heavy Duty Engine Lathe Turning Machine online Video

Universal Lathe CW6180B High Rigidity 600mm Bed Width Heavy Duty Engine Lathe Turning Machine

Get Best Price
Good price 12 Meter Lathe Machine CW61125D Load Bearing 6T Spindle Bore Diameter 120mm Heavy Manual Lathe online Video

12 Meter Lathe Machine CW61125D Load Bearing 6T Spindle Bore Diameter 120mm Heavy Manual Lathe

Get Best Price
Good price SMTCL Horizontal Lathe CW6163B Metal Manual Lathe 1000mm Spindle Bore 104 Heavy Duty Manual Lathe online Video

SMTCL Horizontal Lathe CW6163B Metal Manual Lathe 1000mm Spindle Bore 104 Heavy Duty Manual Lathe

Get Best Price
Good price Heavy-duty Lathes Machine CW61140D 12m Lathe Maximum Load Capacity 6T Metal Large Floor Lathes online Video

Heavy-duty Lathes Machine CW61140D 12m Lathe Maximum Load Capacity 6T Metal Large Floor Lathes

Get Best Price
Contact Us
+8613916455787
sales@huidijd.com
86-021-61195255
Contact Now
Product Description

Large Manual Lathe CW61160D Max Swing diameter over bed 1640mm A2-15 Spindle Heavy-duty Lathes 0

Product Description:

Large Manual Lathe CW61160D Max Swing diameter over bed 1640mm A2-15 Spindle Heavy-duty Lathes
CW61160D heavy duty lathe. Max. Swing diameter over bed Φ1640mm,The width of the bed is 755mm, and the wide design provides a stable foundation for processing. Super bearing capacity up to 6t, can easily carry large workpieces. This makes the machine easy to process large shaft and disk parts, ensuring processing accuracy and efficiency to meet diverse production needs.

Product Details:

Large Manual Lathe CW61160D Max Swing diameter over bed 1640mm A2-15 Spindle Heavy-duty Lathes 1

Product Paramenters:

SPECIFICATION
CW 61160D / CW 62160D
CAPACITY
Max.swing diameter over bed
ф1640mm
Max.swing diameter over carriage
ф1030mm
Max.swing diameter on gap
ф2100mm

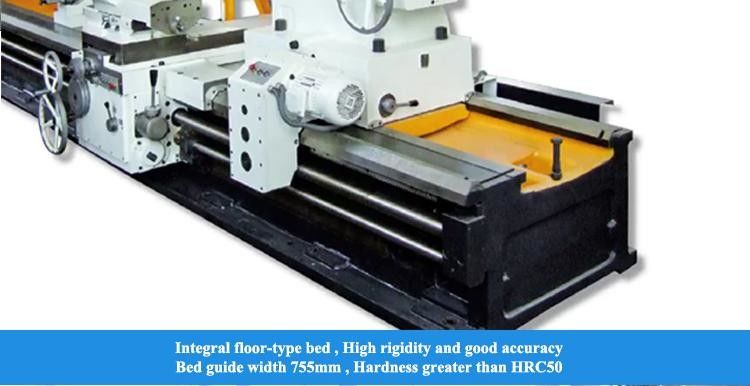

Width of bed
755mm
Max.length of workpiece
1000mm 1500mm 2000mm -12000mm
The top two largest bearing
6t
SPINDLE
Spindle nose
A215
Spindle bore diameter
ф120mm / ф130mm
Taper of spindle bore
Metric No.140
Range of spindle speed
3.15-315r/min;3.5-290r/min
Spindle front bearing inner diameter
ф200mm
FEEDS
Longitudinal feeds range
0.1-12r/min
Transversal feeds range
0.05-6mm/r
Metric threads range
1-120mm
Inch threads range
3/8-28TPI 31Kinds
Moudle threads range
0.5-60mm
Pitch threads range
1-56TPI 25Kinds

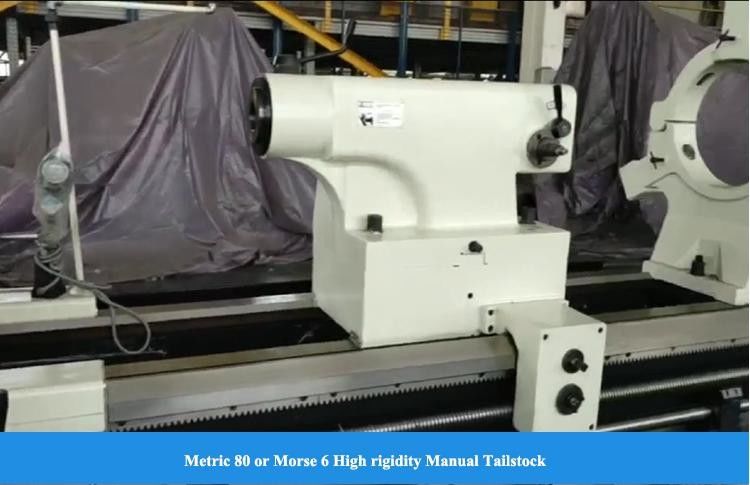

TAILSTOCK
Taper of tailstock sleeve
80#
Travel of tailstocd sleeve
300mm
Diameter of tailstocd sleeve
ф160mm
MOTORS
Main motor power
22KW
Rapid motor power
1.5KW
Coolant pump power
0.125KW
WEIGHT
5m
15100kg
Standard Accessories
1

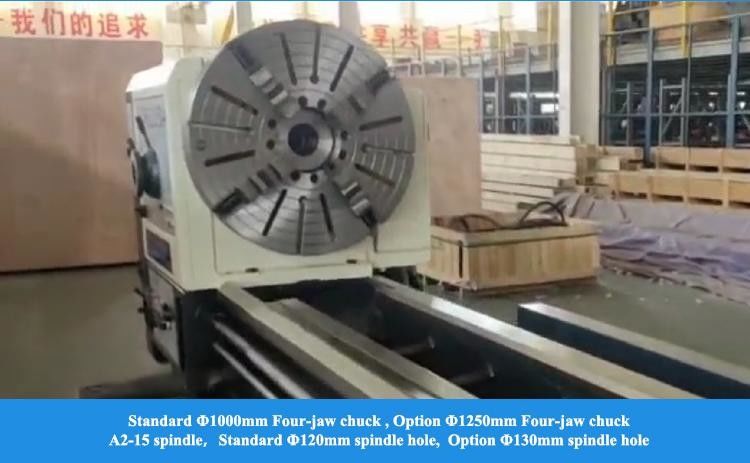

four-jaw chuck Ф1000mm
1 set
2

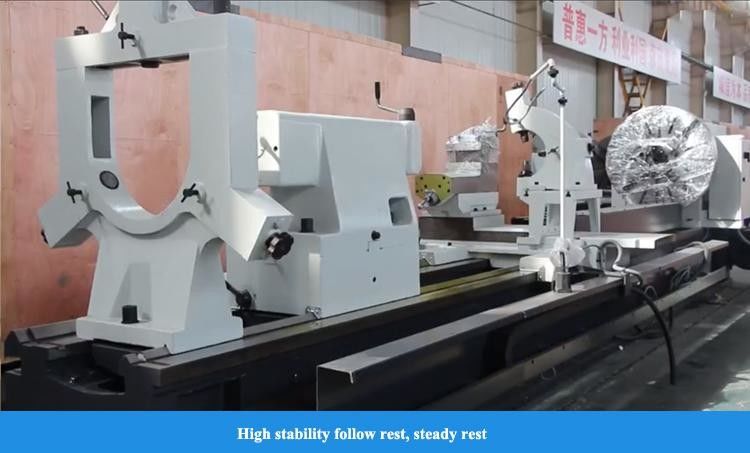

Ф70-480 steady rest (for more than 2m)
1 set(2-8m) 2sets(9-12m)
3
follow rest (for more than 2m)
1 set
4
morse 6# centers
1 set
5
tools
1 set
6
foundation screws
1 set
Special Accessories
1
steady rest Ф400-700mm
2
four-jaw chuck Ф1250mm
3
taper-turning device
4
metric chasing dial device
5
inch chasing dial device
6
inch lead screw
7
T-type tool post

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Large Manual Lathe CW61160D Max Swing diameter over bed 1640mm A2-15 Spindle Heavy-duty Lathes 2
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
Large Manual Lathe CW61160D Max Swing diameter over bed 1640mm A2-15 Spindle Heavy-duty Lathes 3

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
