3 Axis Vertical Machining Center Aluminum Machining VMC850Q Fanuc 4 Axis CNC VMC Machine
Product Details
| Brand: | SMTCL | Type: | VMC850Q |
|---|---|---|---|
| Product Name: | Vertical Machining Center | Table Size (L×W): | 1000×500 |
| Max Load On The Table: | 600kg | X Axis Travel: | 8500mm |
| Y Axis Travel: | 500mm | Z Axis Travel: | 540mm |
| A.T.C: | 24 ATC With Robot Arm | ||
| Highlight |
4 Axis Vertical Machining Center,Vertical Aluminum Machining Center,3 Axis CNC Milling Machine |
||
Product Description

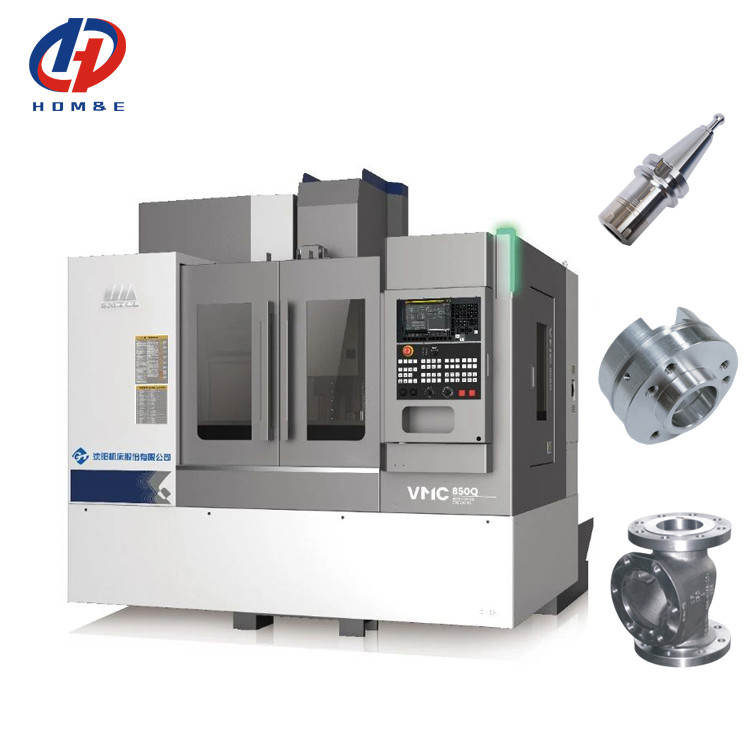

3 Axis Vertical Machining Center Aluminum Machining VMC850Q 4 Axis CNC Milling Machine Fanuc CNC VMC Machine
The Shenyang Machine Tool VMC850Q has many outstanding selling points. Its structure is solid. It adopts a low-center-of-gravity and large-span bed and a unique "human"-shaped column to ensure stable processing. High-precision guide rails and lead screws and pre-stretched lead screws have high motion precision and a rapid movement speed of up to 48m/min, improving efficiency. The high-rigidity spindle is suitable for powerful cutting and can process various types of parts widely. The disc-type manipulator tool magazine changes tools quickly and accurately. The operation interface is friendly and easy to master. At the same time, it has high cost performance and excellent comprehensive performance. It can meet the needs of small and medium-sized enterprises. It is a reliable machining center and provides a strong guarantee for the efficient production of enterprises.
- High rigidity and high stability design
- High strength integral casting bed

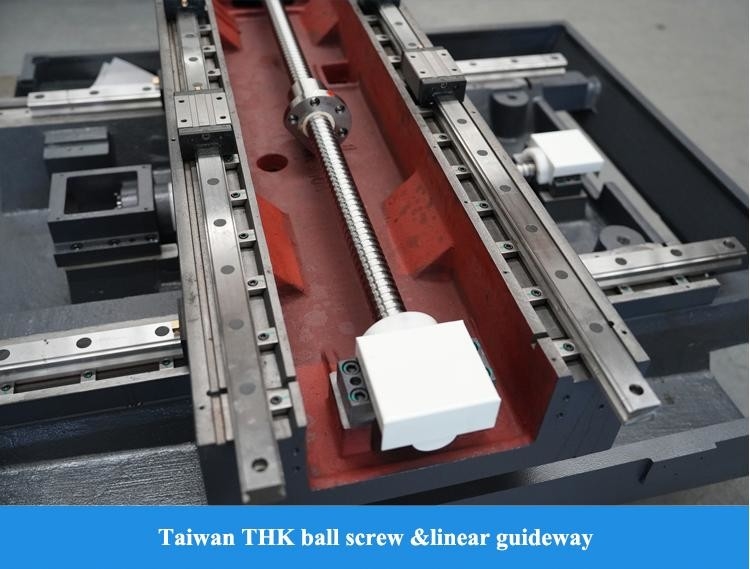

- Three-axis P-class roller guide
- Long span herringbone column
- Good accuracy and accuracy retention
- C3 pre-drawn lead screw
- Thermal symmetry technology
- Error compensation technology
- Safety, environmental protection, efficient productivity
- Three-axis fast shift 48m/min

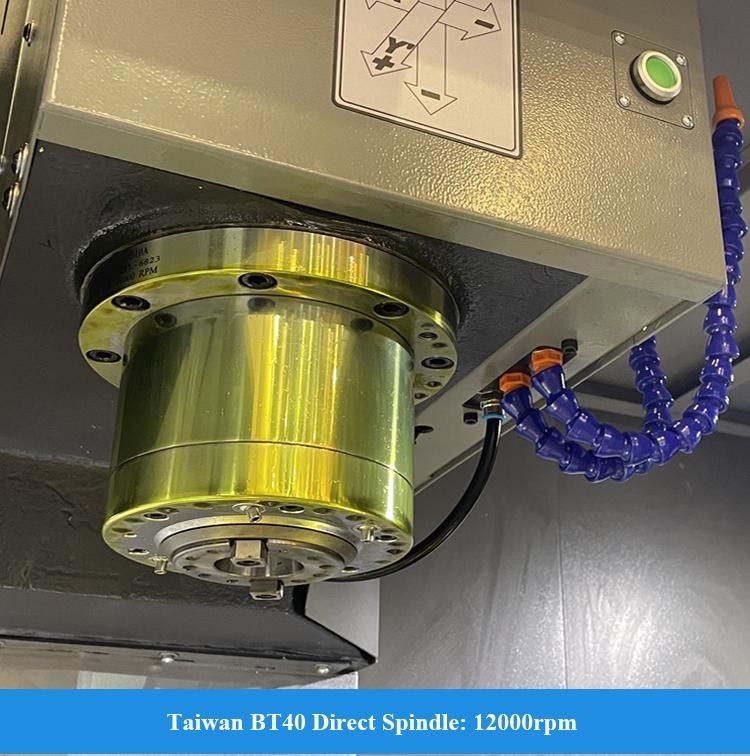

- Direct spindle 12000 RPM

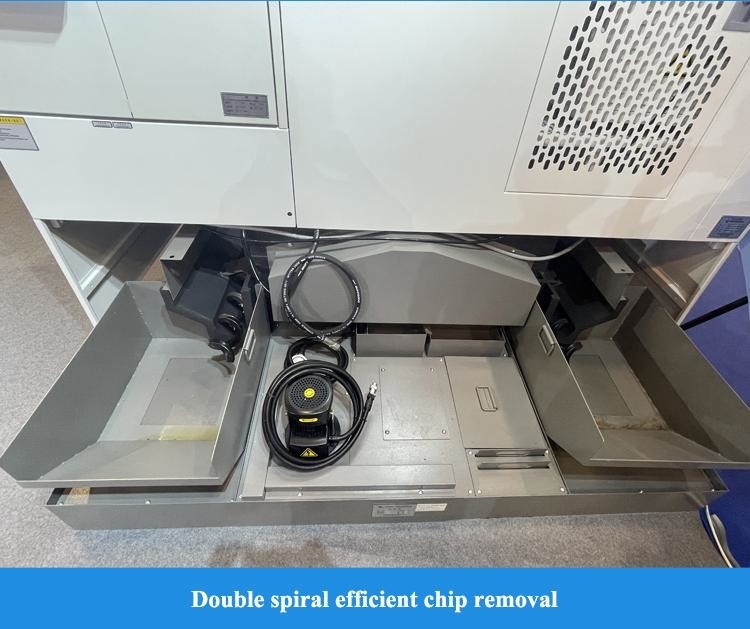

- Bed double spiral chip extractor
7 sets of batch performance testing equipment, 7 sets of cutting testing equipment
22 performance test items and 25 cutting test items per equipment
Third-party evaluation: Leading performance level
Part name: Tool joint mark test piece
Industry: New energy vehicles, robotics; material (AL6061)
Part dimensions: 200×150×20mm
Process difficulties:
- Tool joint marks on part surface
- Tests machine spindle and machining stability
- Surface quality requirements
Part name: D0.2mm engraving machining
Industry: Semiconductor, medical, etc.; material: AL7075
Part dimensions: φ40×30mm
Process difficulties:
- Weak rigidity of machining position, prone to deformation
- Tests machine tool feed control and stability
- Precise control of tool runout and tool setting
- Surface burr removal technology
|
Item
|
Unit
|
VMC850Q
|
VMC1000Q
|
VMC1100Q
|
|
|
Capacity
|
X axis travel
|
mm
|
850
|
1000
|
1100
|
|
Y axis travel
|
mm
|
500
|
500
|
620
|
|
|
Z axis travel
|
mm
|
540
|
540
|
600
|
|
|
Spindle nose to table surface
|
mm
|
120-660
|
120-660
|
120-720
|
|
|
Spindle nose to column surface
|
mm
|
640
|
640
|
743
|
|
|
Worktable
|
Table size (L×W)
|
mm
|
1000×500
|
1200×500
|
1300×610
|
|
Max load on the table
|
kg
|
600
|
600
|
1000
|
|
|
T-slot size
|
mm
|
18×5
|
18×5
|
18×5
|
|
|
Spindle
|
Spindle speed
|
rpm
|
10000
|
10000
|
10000
|
|
Spindle taper/spindle shank
|
mm
|
7/24 taper
|
7/24 taper
|
7/24 taper
|
|
|
BT40
|
BT40
|
BT40
|
|||
|
Spindle motor
|
kw
|
7.5/11
|
7.5/11
|
11/15
|
|
|
Maximum output torque
|
N.m
|
35.8/70
|
35.8/70
|
52.5/95.5
|
|
|
Spindle drive type
|
|
Synchronous tooth belt
|
|||
|
Tools
|
Tool holder model
|
|
MAS 403 BT40
|
||
|
Pull stud model
|
|
MAS 403 P40T-I
|
|||
|
Feed rate
|
X,Y,Z rapid traverse
|
m/min
|
48/48/48
|
||
|
3 axes moter power(X/Y/Z)
|
kW
|
1.8/1.8/3
|
1.8/1.8/3
|
3/3/3
|
|
|
3 axes moter torque(X/Y/Z)
|
N·m
|
11/11/20
|
11/11/20
|
20/20/20
|
|
|
Max cutting feed rate
|
mm/min
|
1-20000
|
|||
|
A.T.C
|
Type
|
pc
|
ATC with robot arm
|
||
|
Mode
|
|
Nearest tool selection in bi-direction
|
|||
|
Capacity
|
Pcs
|
24
|
|||
|
Max tool length
|
mm
|
300
|
|||
|
Max tool weight
|
kg
|
7
|
|||
|
Max too disk dia.-Full
|
mm
|
80
|
|||
|
Max too disk dia.-Adjacent
|
mm
|
150
|
|||
|
Tool change time(T-T)
|
sec
|
2.5
|
|||
|
The height between table to ground
|
mm
|
900
|
900
|
950
|
|
|
Others
|
Overall dimensions
(L×WxH)
|
mm
|
2400×2975×2840
(Exclude chip conveyor)
|
2700×2975×2840
(Exclude chip conveyor)
|
2940×3450×3050
(Exclude chip conveyor)
|
|
Net machine weight
|
kg
|
5100
|
5400
|
6200
|
|
|
Total power requirment
|
KVA
|
18
|
18
|
25
|
|
|

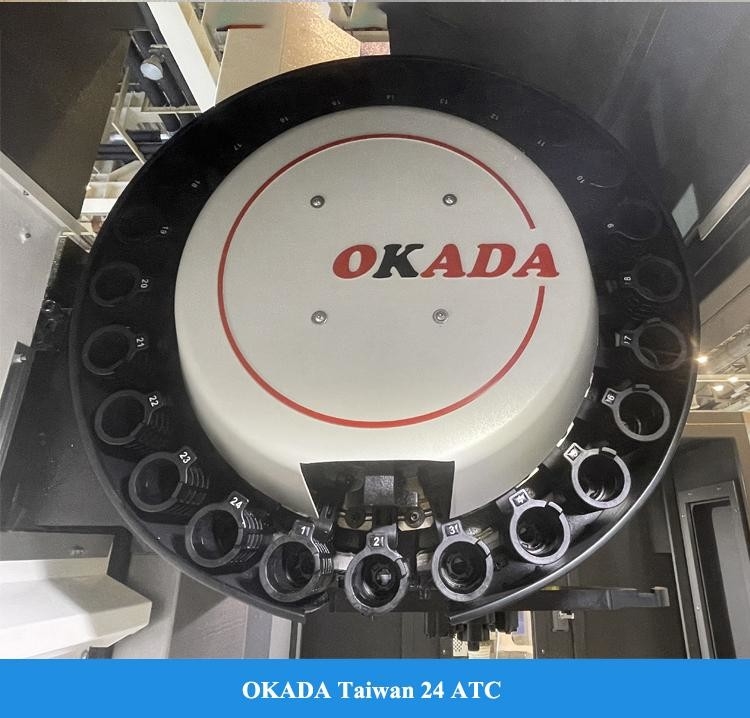

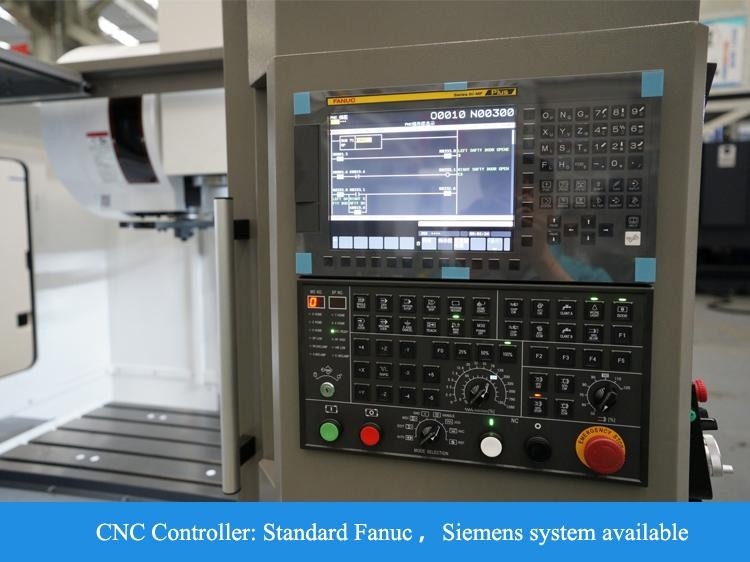

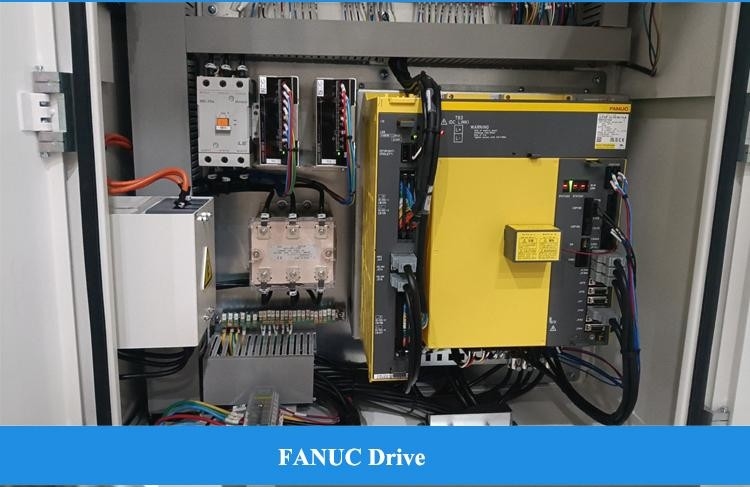

Standard configuration:
|

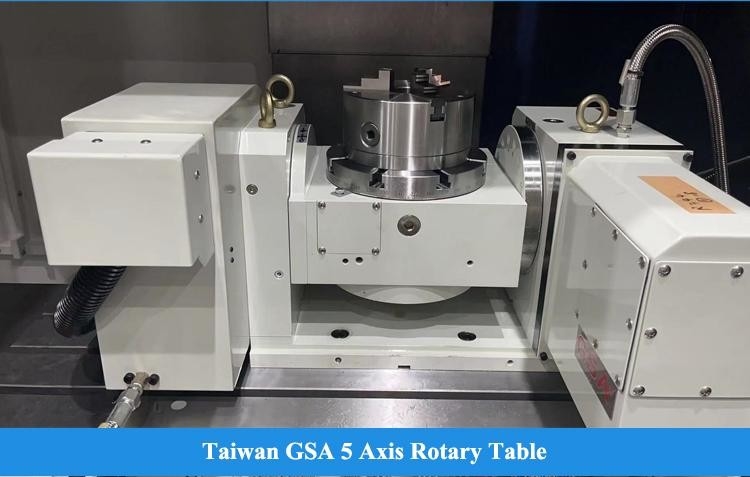

Selective configuration:
|
||||
- Ensure you receive a high quality machine
- Every parts need be inspected
- Over 100 production process control
- Over 200 inspection items
- Sample processing of each machine
- 72 hours trial run before delivery
- Top quality sense, customers' requests come first
- 30 years + R & D history, the company was founded in 1993
- High-tech manufacturer with research anddesign capacity
- Stable and mature supplying system
- Young active sales and engineers for instant services(24 hours online)
- Upgrading on mechanism according to ergonomics and easy maintenance
- Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
We are a manufacturing company.
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
