Name: SMTCL Heavy 5 Axis Horizontal Milling Boring Machine PBC130rp CNC Boring Milling Machines
Brand: Shanghai HD M&E Tech Co., Ltd.
SKU: PBC130rp
Availability: InStock

Home > Products > Horizontal Boring And Milling Machine >

SMTCL Heavy 5 Axis Horizontal Milling Boring Machine PBC130rp CNC Boring Milling Machines

Horizontal 5 Axis Milling Boring Machine

PBC130R Milling Boring Machine

CNC Machining Center Boring Milling Machines

Place of Origin:

CHINA

Brand Name:

SMTCL

Certification:

CE ISO certification

Model Number:

PBC130rp

Request A Quote

Product Details

Brand Name:

SMTCL

Model Number:

PBC130rp

CNC Or Not:

CNC

Key Word:

Horizontal CNC Milling Boring Machine

Spindle Speed:

10-1500 R/min

Workbench Dimension:

2000×2000 Mm

Maximum Load Of Workbench:

10/15/20/25/30 T

Transverse Travel X Of Workbench:

2500/3000 Mm

Vertical Travel Y Of Headstock:

2000/3000/3500/4000 Mm

Longitudinal Travel Z Of Column:

2000/2500 Mm

Ram Travel V:

1000 Mm

Spindle Travel W:

800 Mm

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

The wooden case，Tin trunk ,Other seaworthy packing

Delivery Time

45-60 days

Payment Terms

T/T,L/C,,Western Union

Supply Ability

50 sets per month

SMTCL Heavy 5 Axis Horizontal Milling Boring Machine PBC130rp CNC Boring Milling Machines

Get Best Price

Video

SMTCL Heavy PBC110 SIEMENS System CNC Floor Type Horizontal 5 Axis Milling Boring Machine

Get Best Price

Video

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine

Get Best Price

Video

SMTCL PBC130m Horizontal Boring Milling Machine CNC Cylinder Boring Machine

Get Best Price

+8613916455787

sales@huidijd.com

86-021-61195255

Contact Now

Product Description

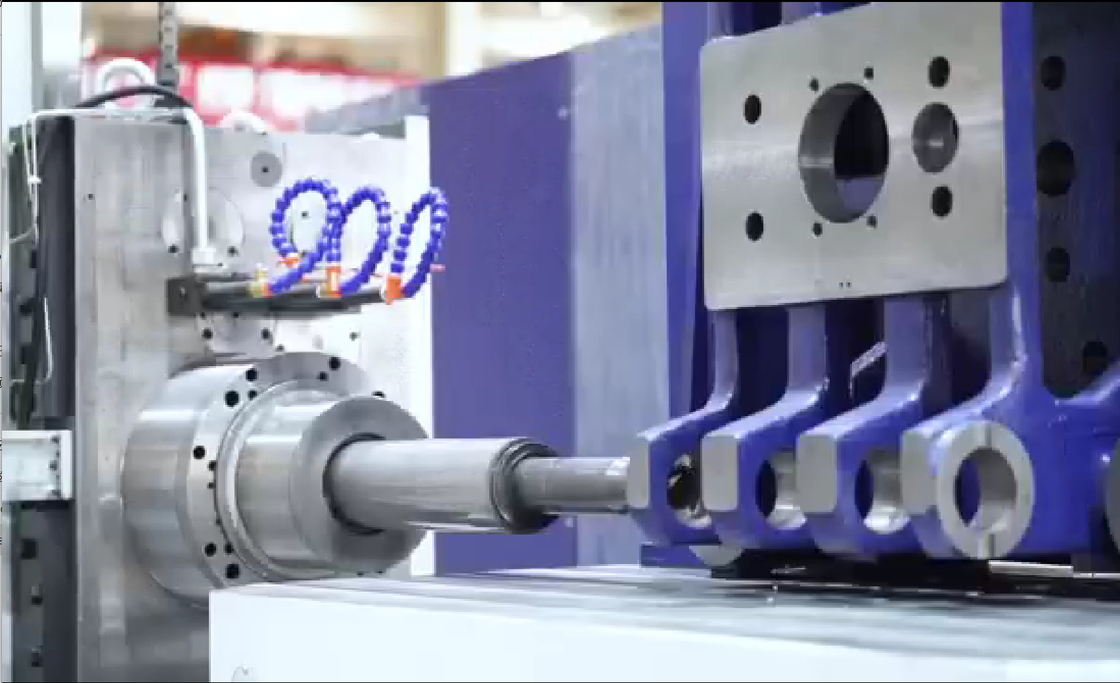

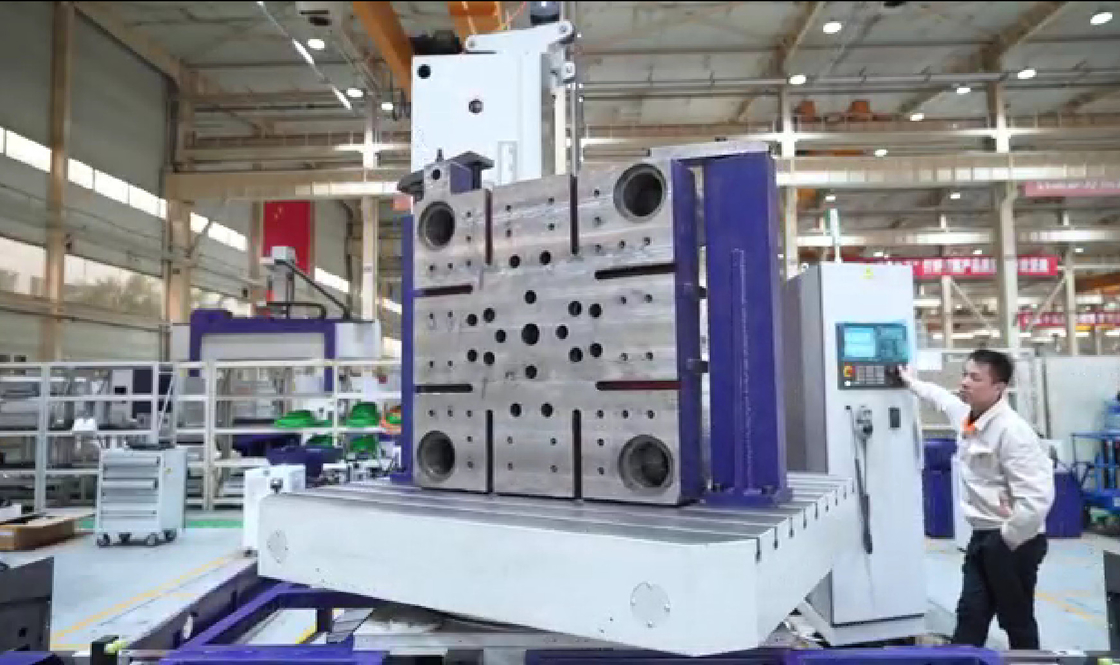

SMTCL Heavy 5 Axis Horizontal Milling Boring Machine PBC130rp CNC Boring Milling Machines 0

Product Description:

SMTCL Heavy Horizontal 5 Axis Milling Boring Machine PBC130R CNC Machining Center Boring Milling Machines

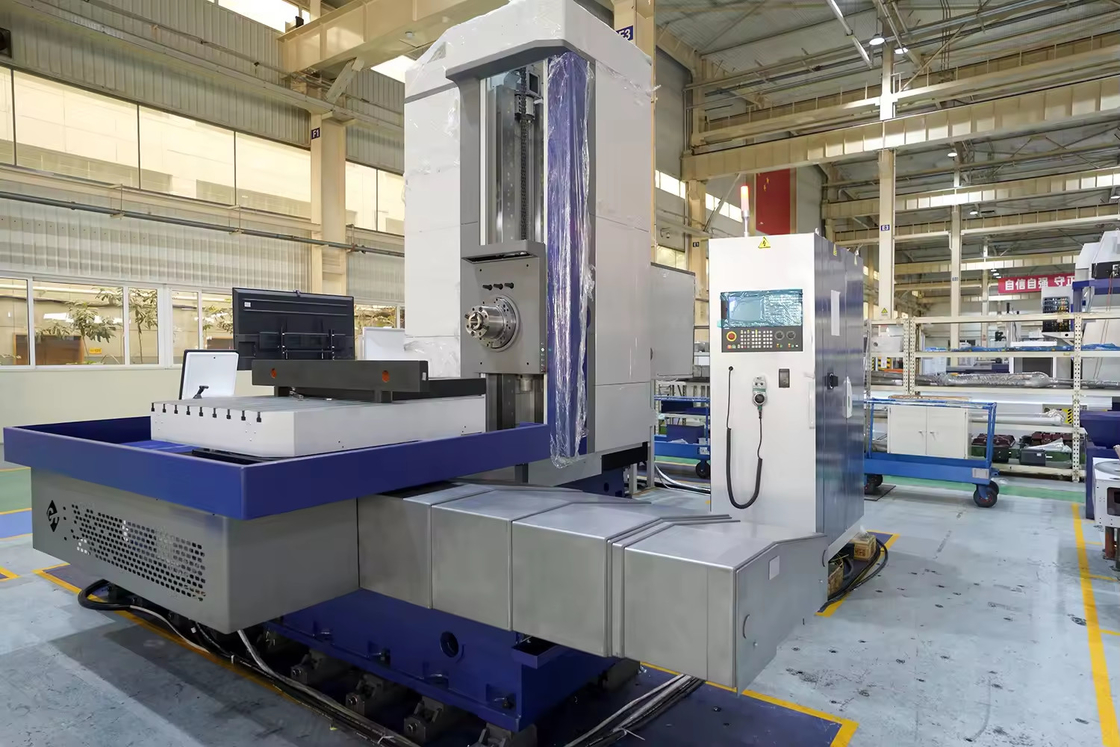

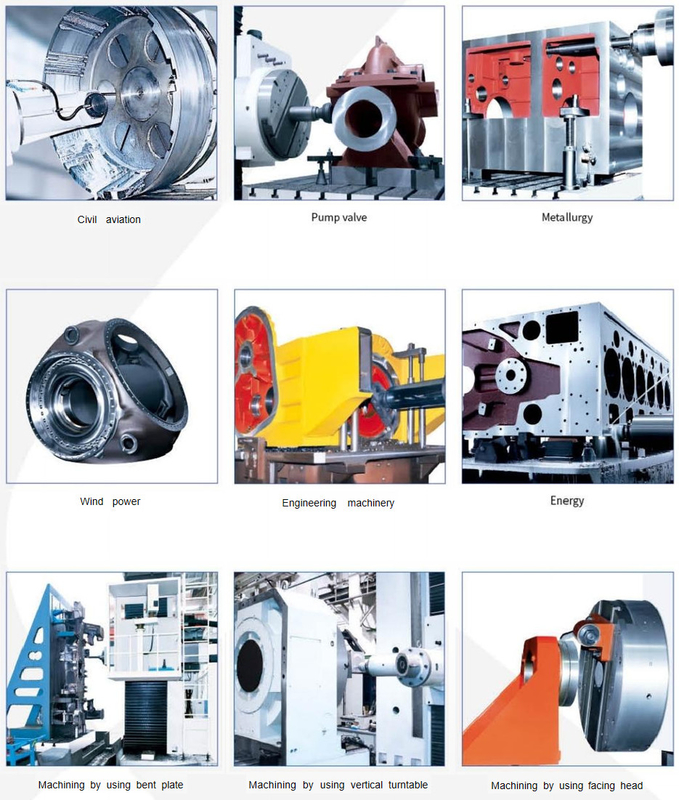

The powerful CNC horizontal milling and boring machine is suitable for parts with a wide range of deep hole and cavity, and it is widely used in general machinery, ships, engineering machinery, aerospace and other industries.

Structural features:The machine tool is in a structure of T-shaped layout and square ram arranged in the headstock.

Basic parts:cast with high-strength cast iron material and resin sand process, ram is made of high-strength ductile cast iron.

Spindle group:High rotary speed and large torque, homemade headstock is supported by precision imported bearings.

Guide rail:X-axis, Y-axis and Z-axis are equipped with the integrated steel-inserted guide rail

Drive:The X-axis, Y-axis, Z-axis, V-axis and W-axis adopt servo motor to drive the ball lead screw via the reducing mechanism, and the B-axis is the classic double worm gear & worm structure.

Product Features:

1,CNC horizontal milling and boring machine series is in the introduction of German advanced technology, according to market demand, combined with the mature structure of our company's similar machine tools and the development of machine tools.

2,The use of modular design, that is, through the standard interface, modules can be freely combined in a variety of ways to form product variants to meet the different needs of the market. The machine is mainly milling and boring, and can also carry out drilling, reaming, counterfacing, turning end face and turning round and other processes.

3,Especially suitable for processing porous system, hole distance requirements more accurate box parts, the machine can realize the automatic positioning of coordinates, but also can realize X, Y, Z, W, B any four coordinate axis linkage, can be used for arc interpolation contour and three-dimensional surface processing.

4,According to user requirements, can be equipped with vertical CNC turntable, right Angle milling accessories to expand the range of machine processing technology.

Product Details:

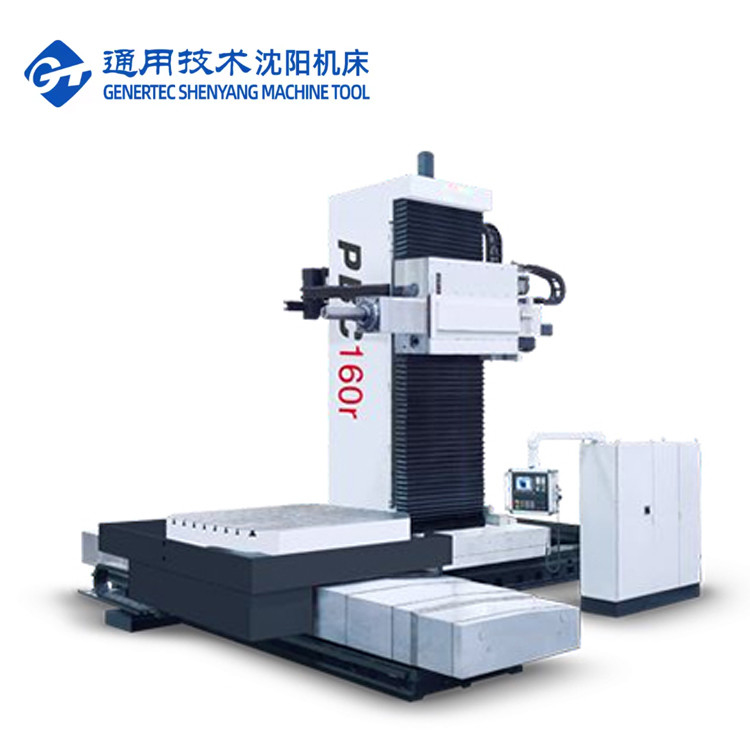

SMTCL Heavy 5 Axis Horizontal Milling Boring Machine PBC130rp CNC Boring Milling Machines 1

Product Paramenters:

ltems		Unit	PBC 130rp	PBC 160rp
Workbench dimension		mm	10T:2000×2000；15T:2000×2000；20T:2000×2500；25T:2000×2500；30T:2500×3000
Maximum load of workbench		T	10/15/20/25/30
Spindle diameter		mm	φ130	φ160
Spindle speed		r/min	10-1500
Section area of ram		mm	480×480
Tool shank specification			JT50/BT50
Power of main motor		kW	41/49	60/69
Maximum torque of spindle		Nm	3000/3600	4400/5000
X-axis stroke		mm	10T:2000/3000/3500/4000；15T:2000/3000/4000 20T/25T/30T:3500/4000
Y-axis stroke		mm	2500/3000
Z-axis stroke		mm	2000/2500
W-axis stroke		mm	800
V-axis stroke		mm	1000
Feeding speed	X,Y,Z	mm/min	1-6000
	V,W	mm/min	1-3000
	B	r/min	0-1

Rapid speed	X,Y,Z	m/min	6
	V,W	m/min	3
	B	r/min	1

Positioning accuracy	X,Y,Z	mm	X:0.02/0.015(grating scale) Y/Z:0.025/0.02(grating scale)
	V	mm	0.025/0.015(grating scale)
	W	mm	0.025
	B	''	8,4×90°；6
Repositioning accuracy	X,Y,Z	mm	0.012
	V	mm	0.015
	W	mm	0.015
	B	''	6
CNC system			SIEMENS 828D	SIEMENS 828D
Standard configuration: SIEMENS 828D Cooling and chip removal Centralized lubrication Headstock oil cooler Imported spindle bearings Spindle blowing function Imported ball lead screw B-axis circular optical grating Workbench water tray Y-direction armor protection Guide rail protection Operator protection Water gun/air gun Headstock balancing mechanism			Optional configuration: Chain-type tool magazine Accessory milling head Workbench area protection 4-axis grating ruler Spindle internal cooling Adaptive control Tool load abnormality detection Energy saving package SIEMENS one Ram thermal elongation compensation

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control

3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory:

SMTCL Heavy 5 Axis Horizontal Milling Boring Machine PBC130rp CNC Boring Milling Machines 10

Exhibition:

SMTCL Heavy 5 Axis Horizontal Milling Boring Machine PBC130rp CNC Boring Milling Machines 11

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
