SMTCL Horizontal Milling Boring Machine TK6513 SIEMENS 5 Axis Horizontal Milling Boring Machine

SMTCL Horizontal Milling Boring Machine TK6513 SIEMENS 5 Axis Horizontal Milling Boring Machine

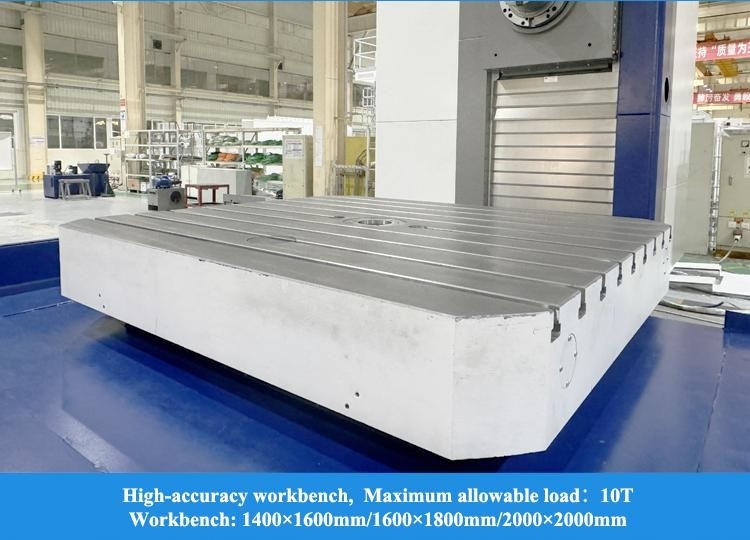

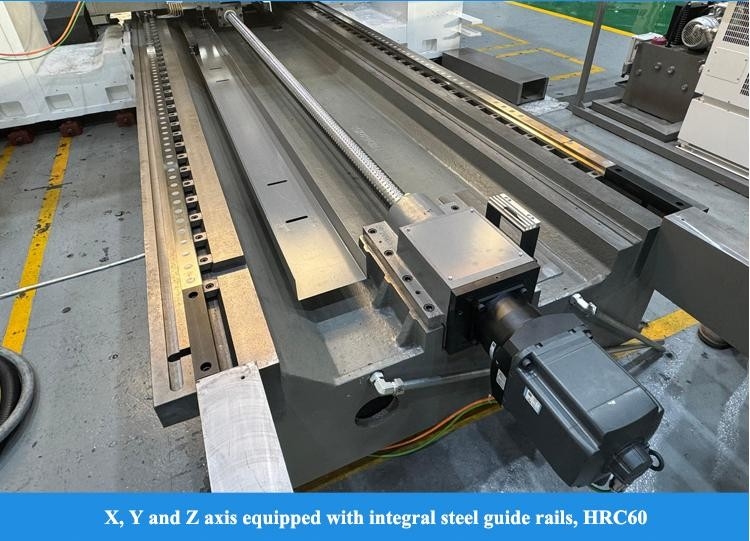

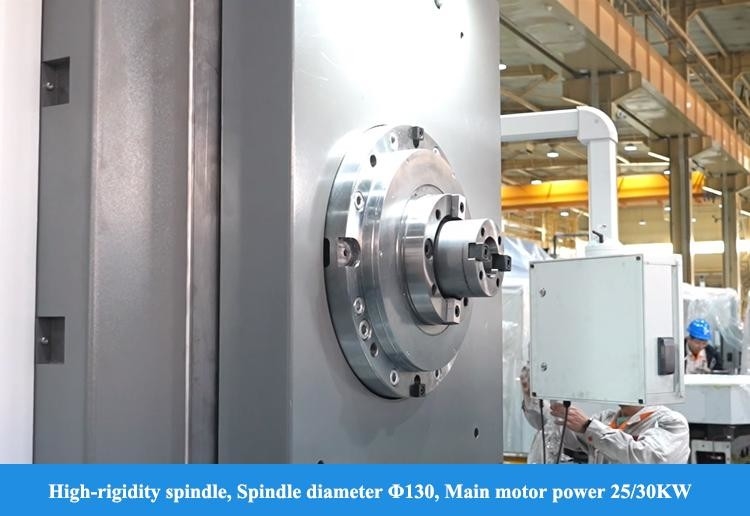

The machine tool is of T-shape layout, single column and lateral suspension headstockstructure. The workbench and slide carriage move along transverse bed guiderail (X-axis coordinate), the column is fixed on slide carriage and moves along longitudinal bed guiderail (Z-axis coordinate), headstock moves vertically along column guiderail (Y-axis coordinate); the product is ofT-shape bed layout. CNC workbench features 360°rotation (B coordinate), and spindle (boring shaft) moves in milling shaft (W-axis coordinate). X-axis, Y-axis and Z-axis adopt integral steel guiderail. The hardness after quenching and finish machining can reach HRC60±2.The guiderail and polytetrafluoroethylene sheet form guiderail pair in frontal direction,and the lateral direction is roller guide.The product features high accuracy, small friction and high accuracy maintenance. The circular guiderail of workbench rotation adopts casting iron- polytetrafluoroethylene guiderail pair. The product is installed with imported thrust bearing to release load, adopts double-worm mechanism to eliminate clearance, and features stable motion and high positioning accuracy.

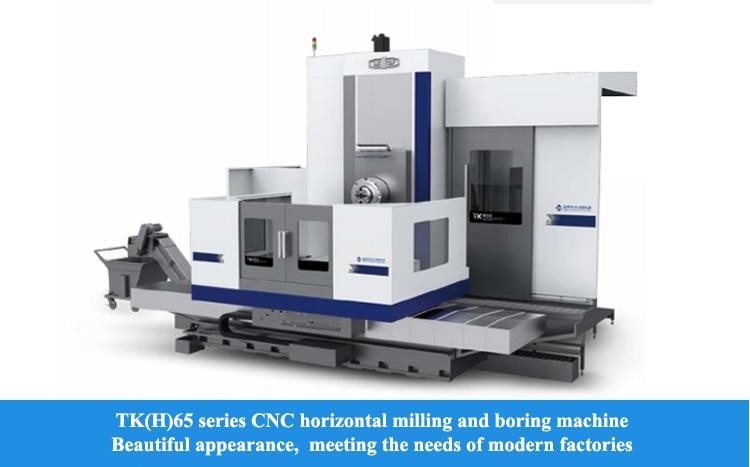

• CNC horizontal milling and boring machine series is in the introduction of German advanced technology, according to market demand, combined with the mature structure of our company's similar machine tools and the development of machine tools.
• The use of modular design, that is, through the standard interface, modules can be freely combined in a variety of ways to form product variants to meet the different needs of the market. The machine is mainly milling and boring, and can also carry out drilling, reaming, counterfacing, turning end face and turning round and other processes.
• Especially suitable for processing porous system, hole distance requirements more accurate box parts, the machine can realize the automatic positioning of coordinates, but also can realize X, Y, Z, W, B any four coordinate axis linkage, can be used for arc interpolation contour and three-dimensional surface processing.
• According to user requirements, can be equipped with vertical CNC turntable, right Angle milling accessories to expand the range of machine processing technology.

Ensure you receive a high quality machine

• Every parts need be inspected
• Over 100 production process control
• Over 200 inspection items
• Sample processing of each machine
• 72 hours trial run before delivery

• Top quality sense, customers' requests come first
• 30 years + R & D history, the company was founded in 1993
• High-tech manufacturer with research anddesign capacity
• Stable and mature supplying system
• Young active sales and engineers for instant services(24 hours online)
• Upgrading on mechanism according to ergonomics and easy maintenance
• Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
