Universal Lathe CW6180B High Rigidity 600mm Bed Width Heavy Duty Engine Lathe Turning Machine

Universal Lathe CW6180B High Rigidity 600mm Bed Width Heavy Duty Engine Lathe Turning Machine

Heavy Duty Universal Lathe Machine

Horizontal Metal Manual Lathe Machine

Conventional Metal Manual Lathe

Place of Origin:

CHINA

Brand Name:

SMTCL

Certification:

CE ISO certification

Model Number:

CW6180G

Contact Us
Request A Quote
Product Details
Brand Name:
HD
Model Number:
CW6180G
CNC Or Not:
Manual
Key Word:
Manual Lathe Machine
Max.swing Dia Over Bed:
840mm
Max.swing Dia Over Carriage:
560mm
Width Of Bed:
600mm
Spindle Bore:
105mm/128mm
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case,Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
50 sets per month
Product Description

Universal Lathe CW6180B High Rigidity 600mm Bed Width Heavy Duty Engine Lathe Turning Machine 0

Product Description:

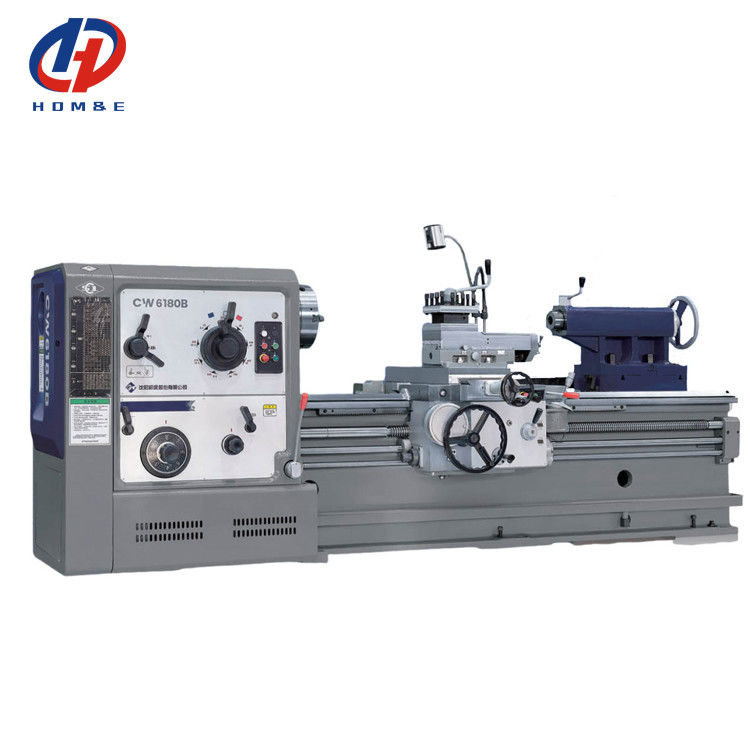

Universal Lathe CW6180B High Rigidity 600mm Bed Width Heavy Duty Engine Lathe Turning Machine
CW6180B series ordinary horizontal lathe The lathe bed adopts the combination structure of box and inclined bar in the width side wall double rib plate and inner rib plate, and the overall stiffness is one-third higher than that of the single wall door rib structure; This series of machine tools is suitable for processing cast iron, steel and various non-ferrous metals and other materials.
The series of lathes can undertake all kinds of lathe-turning operations, such as internal orexternal cylindrical surfaces,conical surfaces, surfaces ofrevolution, and end surfaces as well asmetric thread, inch screw thread, modulus and diametrical pitch thread, They can also broach oilgrooves and key grooves.

Product Features:

Universal Lathe CW6180B High Rigidity 600mm Bed Width Heavy Duty Engine Lathe Turning Machine 1

New Appearance

The upgraded version of the appearance is a perfect hybrid of ergonomic design and sophisticated configuration of machine.
The product quality has been enhanced by adoption of new materials.
Universal Lathe CW6180B High Rigidity 600mm Bed Width Heavy Duty Engine Lathe Turning Machine 2

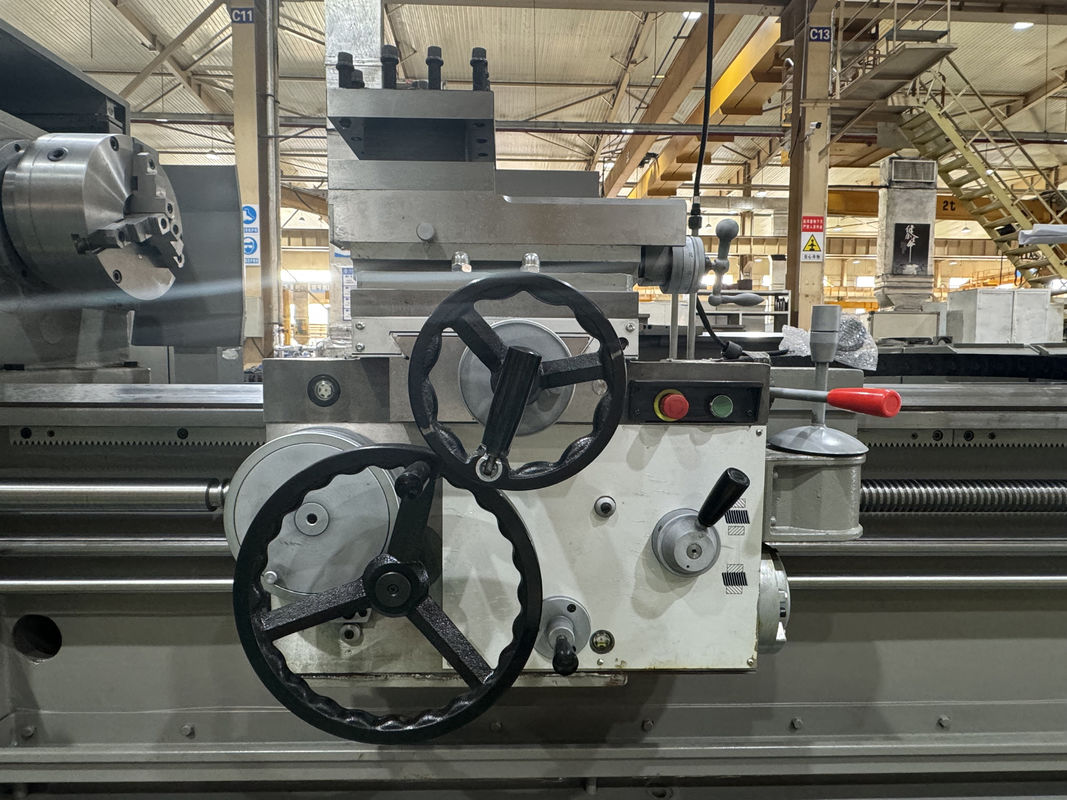

Easy Operation

The handles and hand wheels are designed intuitively so that the machine is easy to operate, good for hand feeling and user-friendly. Fault operations for machine could be reduced
effectively by the highlighted color and reasonable machine layout.
Universal Lathe CW6180B High Rigidity 600mm Bed Width Heavy Duty Engine Lathe Turning Machine 3

Powerful Cutting

CW6180B is a base-model machine product with a bed width of 600mm. The integral floor-type bed combined with stable diagonal bar construction is adopted to the high structural rigidity in its class. Large torque cutting can be realized by a large torque motor (11kW) combined with an optimized reduction speed headstock.
Universal Lathe CW6180B High Rigidity 600mm Bed Width Heavy Duty Engine Lathe Turning Machine 4

Reliable Performance

The machine is made with advanced manufacturing equipment.
The production process strictly follows SOP and is under strict control of IS09000 QC system so as to ensure its reliab machining performance.

Product Details:

Universal Lathe CW6180B High Rigidity 600mm Bed Width Heavy Duty Engine Lathe Turning Machine 5

Product Paramenters:
Item
Unit
CW6180B
Max. Swing diameter over bed
mm
Φ800
Max. Swing diameter over turret
mm
Φ480
Max.Length of workpiece
mm
1500/3000
Max swing diameter and effective width in gap
mm
Φ1000/310
Spindle bore diameter and type of spindle head

Φ104/D11
Taper of spindle nose and center

120, 1:20. Morse 5#
Steps and range of spindle speeds
r/min
18 speeds 5.4-720
Steps and range of longitudinal feeds
mm/r
64 feeds 0.06-24.3
Range 1:1
mm/r
0.1-1.52
Range 16:1
mm/r
1.6-24.3
Range of fine feed with change gears
mm/r
0.05-0.912
Ration of cross feed to longitudinal feed

1/2
Rapid traverse of saddle
mm/min
4000
Pitch of lead screw

12 (Metric):1/2'' (Inch system)
Number,range of Metric
mm
50 kinds  1-240
Thread Number, range of Whitworth thread
t.p.i
26 kinds 14-1
Number,range of module
mm
53 kinds 0.5-120
ThreadNumber, range of diametral pitch thread
DP
24 kinds 28-1
Max. Transverse travel of lower slide
mm
500
Max.Travel of top slide
mm
200

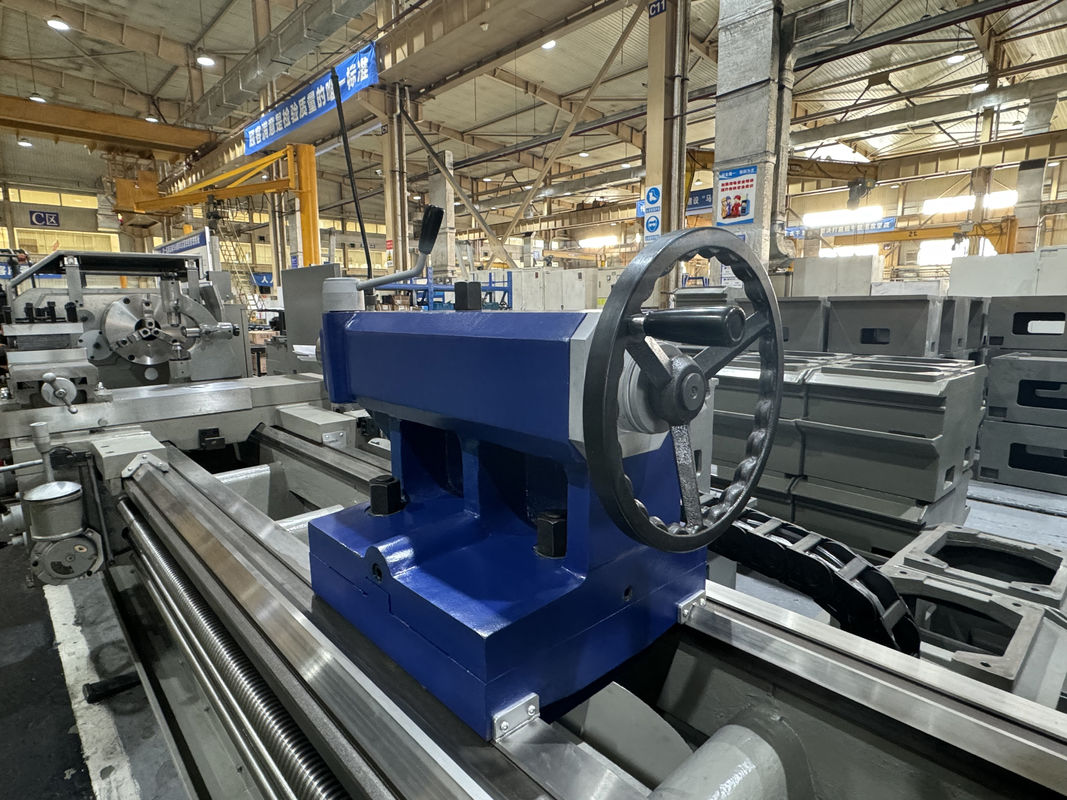

Travel of tailstock quill
mm
250
Taper of tailstock quill

Morse 5#

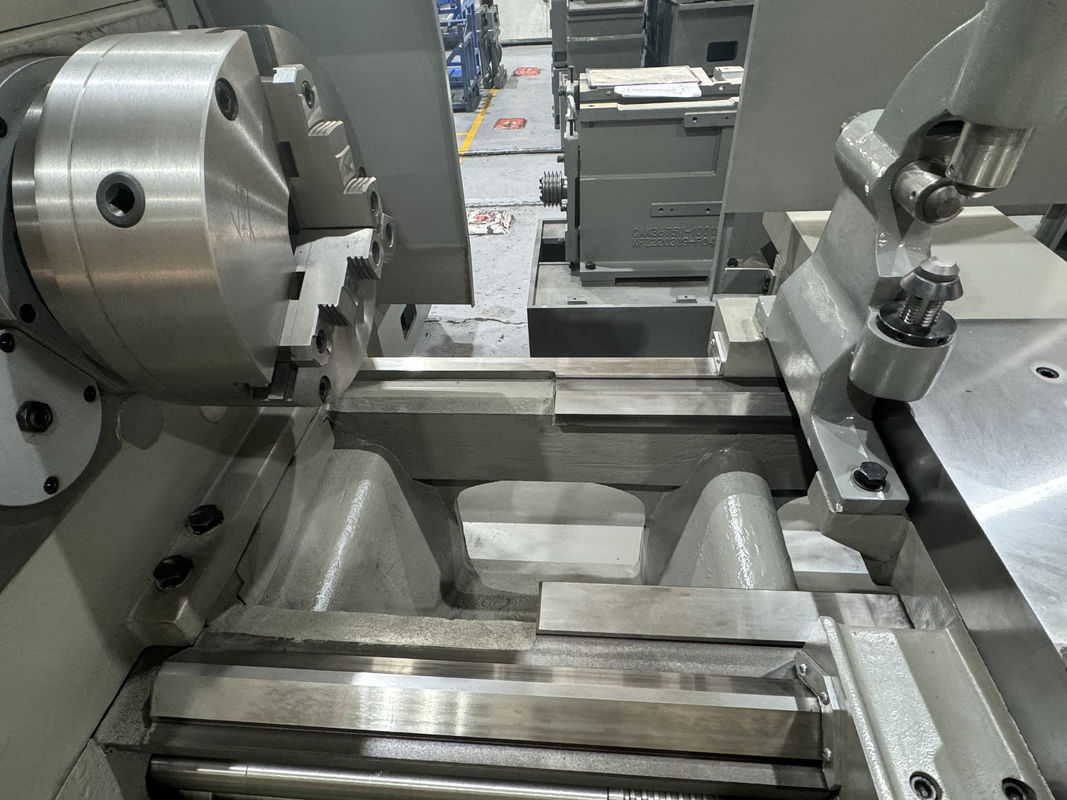

Bed guideway width and hardness of quenching
mm
550 RC52
Main motor power
KW
11/15
Rapid motor power
KW
1.1
Power of coolant pump motor
W
180
Net weight
kg
4900
Overall dimension
mm
3660x 1450x 1630
Max. Load of workpiece
T
2.5(standard configuration)
Standard configuration:
1.Main motor: YE3-160M-4 11kW
2.Fast motor: NJ12-4
3.Cooling pump: YSB2-50

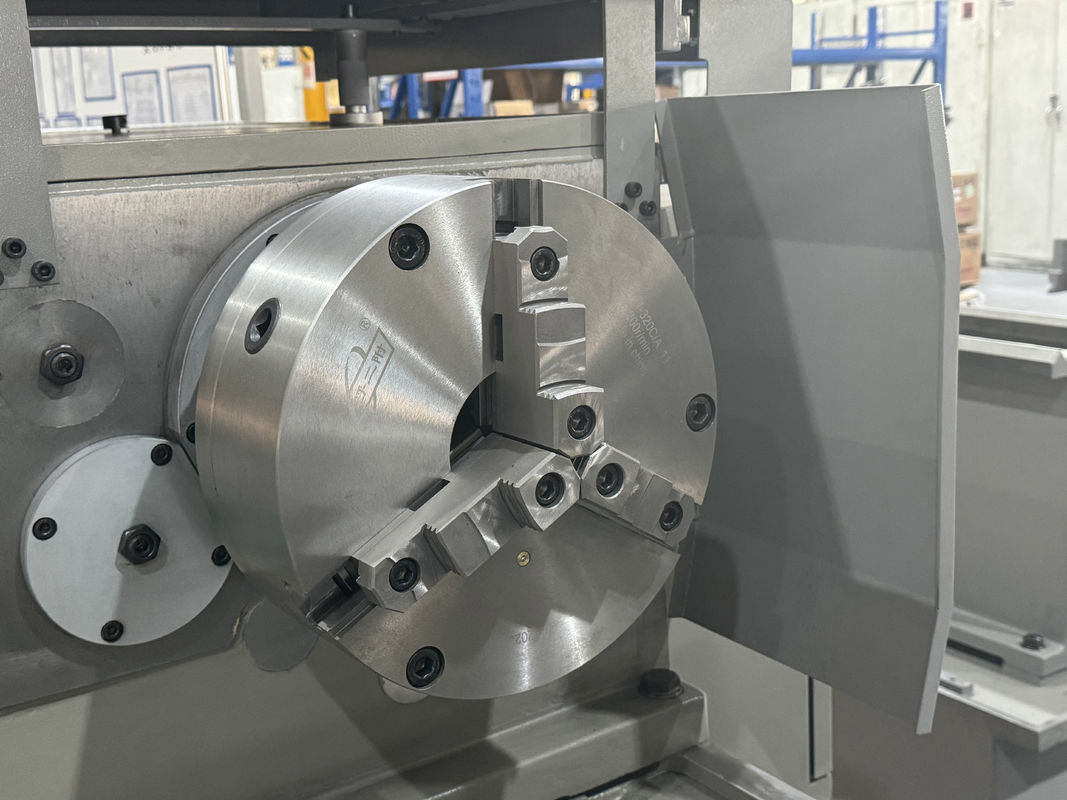

4.Chuck: K11 315C/ A211
5.Main shaft bearing:
(1)NN3032K/P5 160X240X60
(2)NN3026K/P5 130X200X52
(3)6028 140X210X33
Selective configuration:

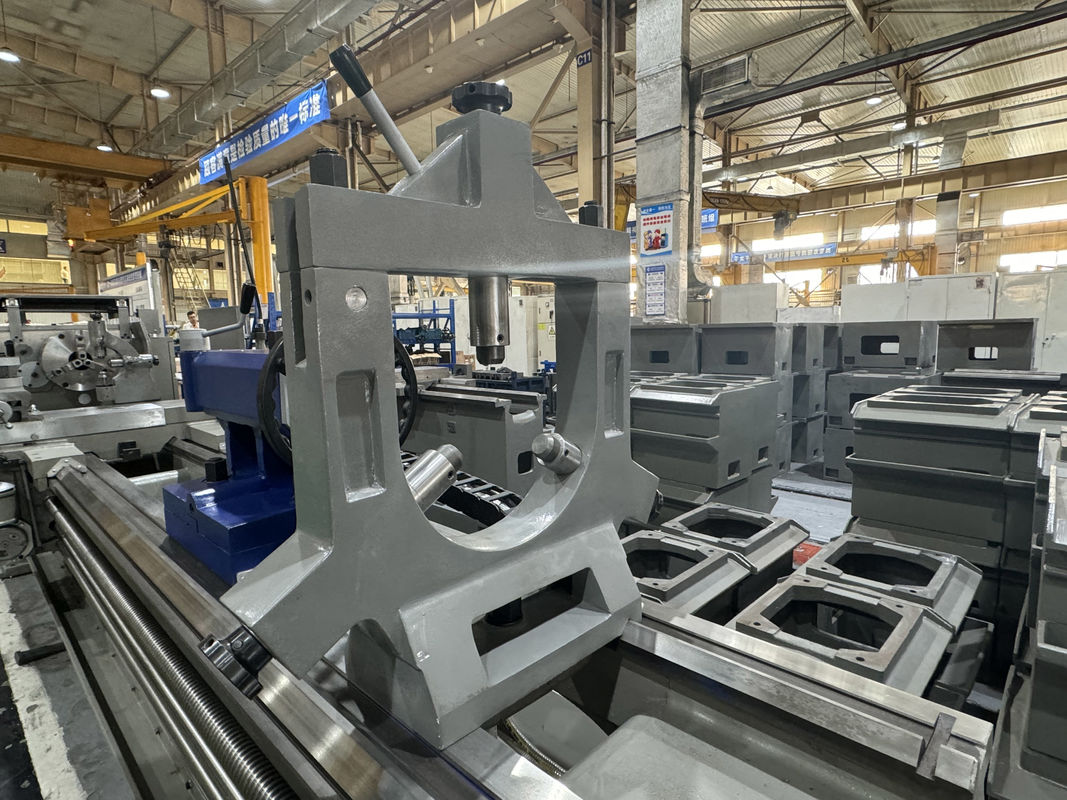

1.Steady rest Φ40-Φ350
2.Follow rest Φ50-Φ220
3.Φ400mm 3-jaw chuck
4.Φ500mm 3-jaw chuck
5.Φ400mm 4-jaw chuck
6.Φ500mm 4-jaw chuck
7.Φ630mm 4-jaw chuck
8.Live centers Morse NO.5
9.Φ650mm face plate
