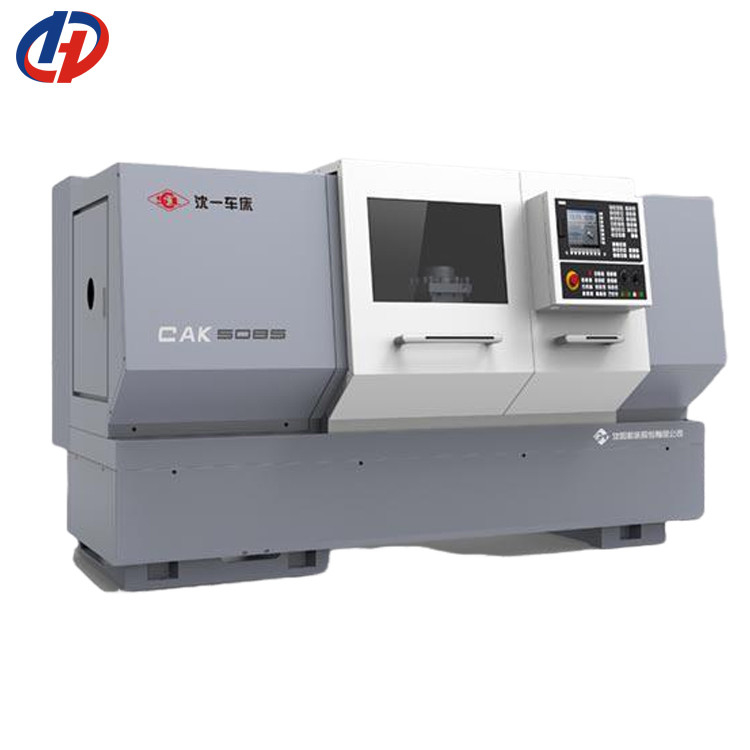

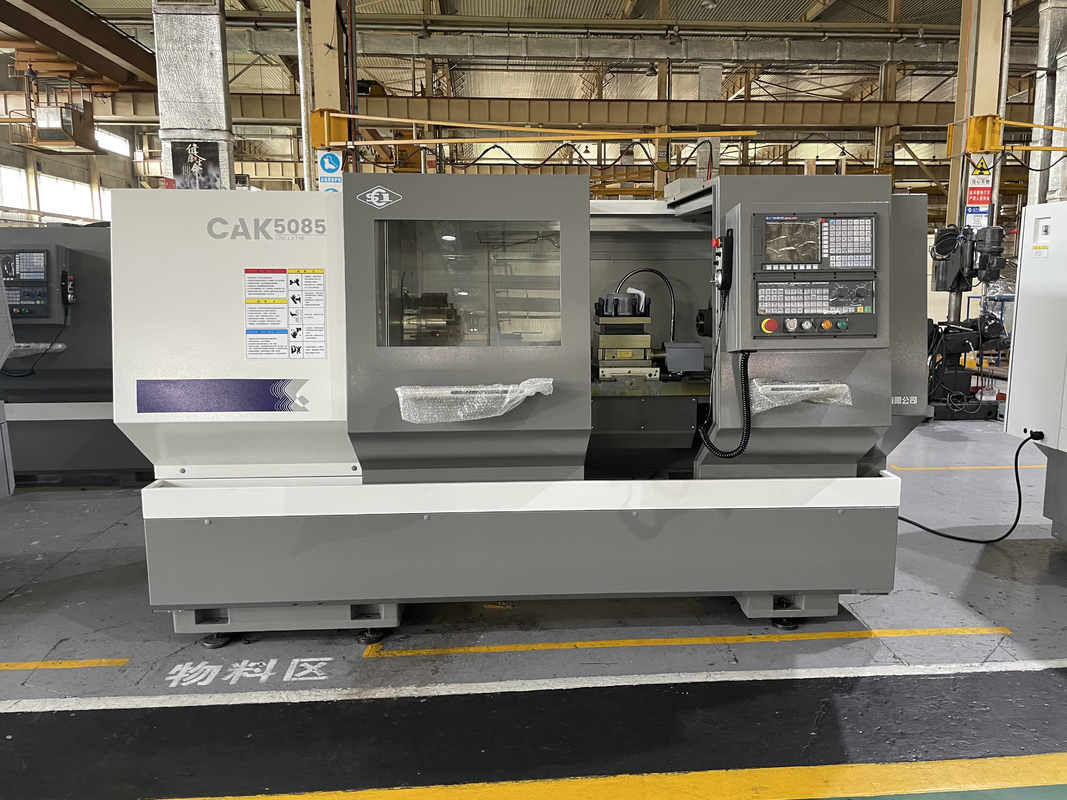

SMTCL Economical CNC Lathe CAK5085 Flat Bed CNC Lathe Machine 500mm CNC Torno Lathe
Product Details
| Brand Name: | SMTCL | Model Number: | CAK5085 |
|---|---|---|---|
| CNC Or Not: | CNC | Name: | Flat Bed CNC Lathe |
| Max.swing Over Bed: | 500mm | Spindle Nose: | A2-8 |
| Control System: | SIEMENS GSK FANUC (optional) | Max.parts Length: | 890mm |
| Max Cutting Length: | 850mm | Max Swing Diameter Over Bed: | φ500 |
| Max.swing Diameter Over Slide: | φ300 | Max Cutting Diameter: | φ500 |
| Highlight |
Horizontal Flat Bed CNC Lathe,Economical CNC Lathe Machine,Flat Bed CNC Lathe Machine |
||
Product Description
|
Item
|
Unit
|
CAK5085
|
|
Max.parts length
|
mm
|
890
|
|
Max cutting length
|
mm
|
850
|
|
Max swing diameter over bed
|
mm
|
φ500
|
|
Max.swing diameter over slide
|
mm
|
φ300
|
|
Max cutting diameter
|
mm
|
φ500
|
|
Spindle nose type
|
mm
|
A2-8
|
|
Chuck diameter
|
mm
|
φ250
|
|
Spindle bore
|
mm
|
φ78
|
|
Spindle speed range(Auto 3 step)
|
r/min
|
15-2200
|
|
Spindle speed range (manual stepless)
|
r/min
|
22-1800
|
|
Spindle speed range(Auto 3 step,12 grades)
|
r/min
|
40-1800
|
|
Rated power of main motor
|
kw
|
7.5 (Main servo motor)
|
|

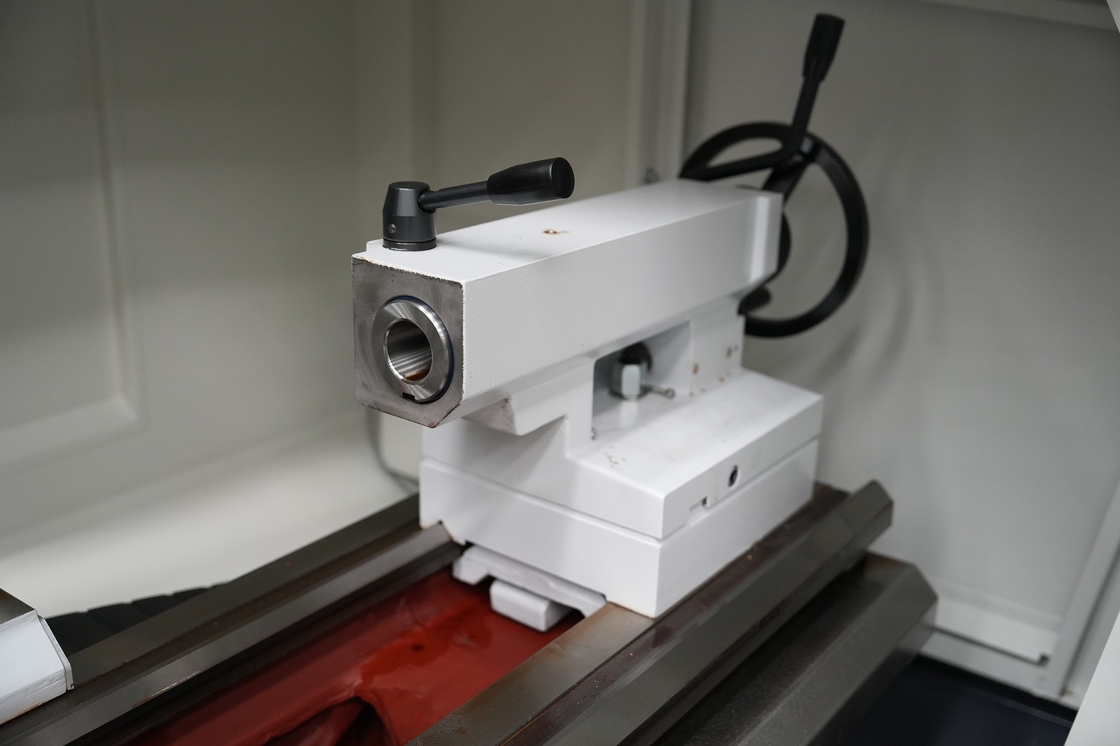

Tailstock quill diameter
|
mm
|
φ75
|
|
Tailstock quill travel
|
mm
|
150
|
|

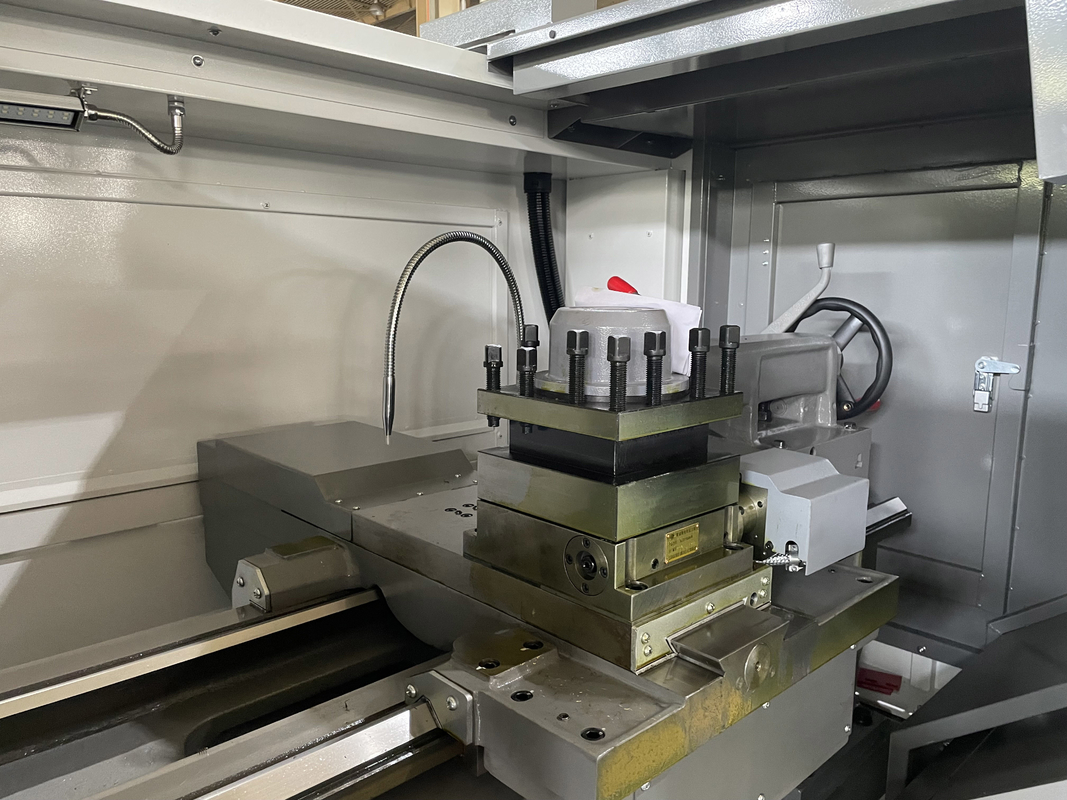

Turret type
|
|
Vertical4 positions
|
|
Tool shank size
|
mm
|
25×25
|
|
X/Z axis rapid traverse
|
m/min
|
6/12
|
|
Machining accuracy
|
|
IT6~IT7
|
|
Machine net weight
|
kg
|
2800
|
|
Overall dimension (LxWxH)
|
mm
|
2770×1700×1735
|
1. Every parts need be inspected
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
