Heavy Duty 3/4 Axis Slant Bed CNC Lathe Combo Horizontal CNC Lathe Milling Machine

Heavy Duty 3/4 Axis Slant Bed CNC Lathe Combo Horizontal CNC Lathe Milling Machine

4 Axis Slant Bed CNC Lathe

Combo Horizontal CNC Lathe Milling Machine

Heavy Duty Horizontal Slant Bed Lathe

Place of Origin:

CHINA

Brand Name:

SMTCL

Certification:

CE ISO certification

Model Number:

HTC 80n

Contact Us
Request A Quote
Heavy Duty 3/4 Axis Slant Bed CNC Lathe Combo Horizontal CNC Lathe Milling Machine
Heavy Duty 3/4 Axis Slant Bed CNC Lathe Combo Horizontal CNC Lathe Milling Machine Heavy Duty 3/4 Axis Slant Bed CNC Lathe Combo Horizontal CNC Lathe Milling Machine Heavy Duty 3/4 Axis Slant Bed CNC Lathe Combo Horizontal CNC Lathe Milling Machine
Product Details
Brand Name:
SMTCL
Model Number:
HTC 80n
CNC Control System:
GSK/FANUC/SIEMENS
CNC Or Not:
CNC
Key Word:
Turning Center，slant Bed Cnc Lathe
Application:
Multi Purpose Metal Working
Max. Swing Over Bed:
Φ1000
Max. Cutting Diameter:
Φ800
Max. Cutting Length:
1000/1500/2000/3000/4000
Spindle Bore Diameter:
Φ130
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
50 sets per month
RELATED PRODUCTS
Good price HTC63n Fanuc Slant Bed CNC Metal Turning Center Heavy Duty Horizontal CNC Lathe Machine online Video

HTC63n Fanuc Slant Bed CNC Metal Turning Center Heavy Duty Horizontal CNC Lathe Machine

Get Best Price
Good price SMTCL Slant Bed CNC Lathe Milling Machine Combo HTC4050S Full Function Horizontal CNC Lathe online Video

SMTCL Slant Bed CNC Lathe Milling Machine Combo HTC4050S Full Function Horizontal CNC Lathe

Get Best Price
Good price SMTCL CNC Lathe Machine HTC50B FANUC System Horizontal 12 Station Servo Turret Slant Bed CNC Lathe online Video

SMTCL CNC Lathe Machine HTC50B FANUC System Horizontal 12 Station Servo Turret Slant Bed CNC Lathe

Get Best Price
Good price Gang Tool Slant Bed CNC Lathe Machine CHK46 Automatic Gang Type Lathe Machine With Bar Feeder online

Gang Tool Slant Bed CNC Lathe Machine CHK46 Automatic Gang Type Lathe Machine With Bar Feeder

Get Best Price
Contact Us
+8613916455787
sales@huidijd.com
86-021-61195255
Contact Now
Product Description

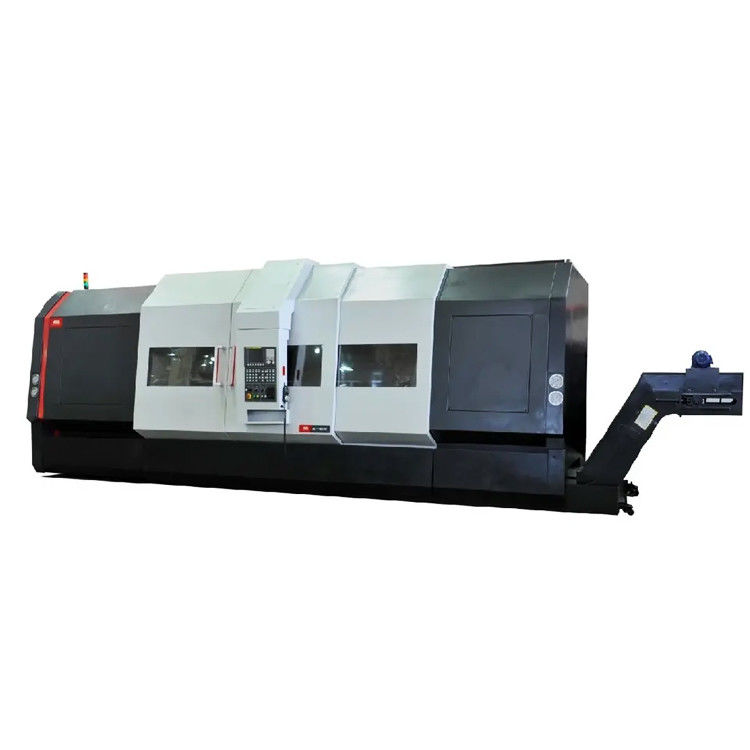

Heavy Duty 3/4 Axis Slant Bed CNC Lathe Combo Horizontal CNC Lathe Milling Machine 0

Product Description:

Slant bed CNC lathe HTC 80 Series Lathe Milling Machine Combo
HTC large-size serial CNC lathe is a brand new versatile CNC horizontal lathe developed and designed by our factory as per the modularized design idea which is advanced in the world at present; 45 °high-rigidity integral tilting bed features stable performance and ensures machining accuracy and useful life; through finite element analysis, the product realizes the most reasonable structure layout; modularized combination easily realizes 3-axis and 4-axis configuration and function. HTC 80 series horizontal integral tilted bed, adopts internal rib-shaped layout, wide excellent resistance to torsion CNC lathe adopts 45°(75° is optional resin bonded sand technique casting, guiderail surface, high overall rigidity of and advantage of smooth chip removal. for partial models) features reasonable bed, and features.

Product Features:

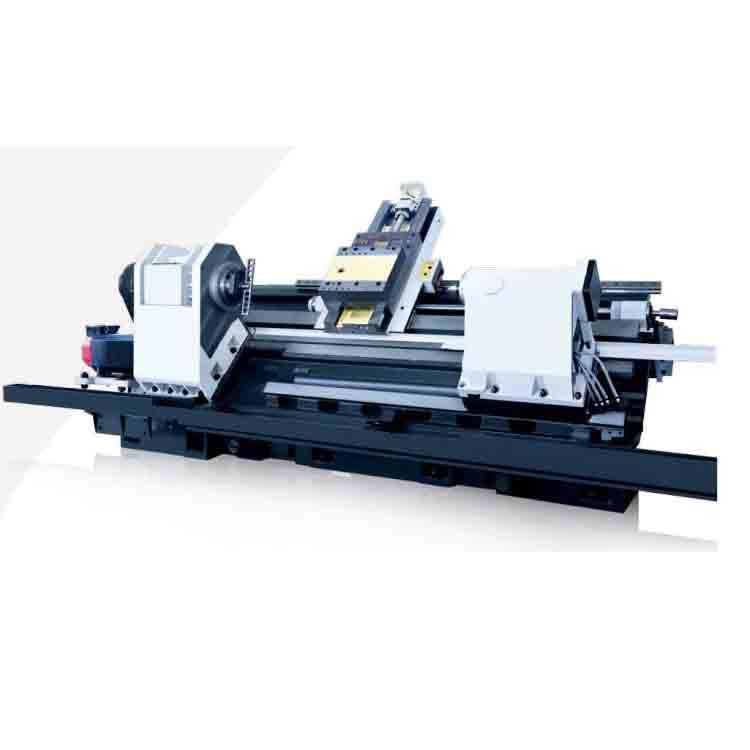

Heavy Duty 3/4 Axis Slant Bed CNC Lathe Combo Horizontal CNC Lathe Milling Machine 1
A:High rigidity
It adopts 45° and 75° high-rigidity integral inclined bed, and all castings are optimized by finite element
method, which effectively eliminates vibration during machine operation and cutting, enhances reliability, and is easy to
maintain, enabling customers to obtain durable and stable processing quality.
Heavy Duty 3/4 Axis Slant Bed CNC Lathe Combo Horizontal CNC Lathe Milling Machine 2
B:high precision
All parts of the machine tool adopt precision grinding parts from well-known manufacturers at home and abroad. The advanced structural design and perfect process measures make the overall layout compact, harmonious, and good rigidity, ensuring that the machine tool has high machining accuracy and long-term accuracy retention.
Heavy Duty 3/4 Axis Slant Bed CNC Lathe Combo Horizontal CNC Lathe Milling Machine 3
C:Pleasant
Optional overall 75° inclined bed machine tool, equipped with a vertical and horizontal center frame, the center of the spindle is closer to the operator, which is convenient for loading and unloading workpieces and chip removal.
Heavy Duty 3/4 Axis Slant Bed CNC Lathe Combo Horizontal CNC Lathe Milling Machine 4
D:rich configuration
The machine can be configured with various modules to meet the different needs of customers. Some models can be equipped with power tool tower to become the turning center, with rich configuration and high cost performance.
Product Paramenters:
Item
UNIT
HTC 80n Series
HTC 80t Series
HTC 80nm Series
Max. swing over bed

mm
Φ1000/Φ1000/Φ1000/Φ970/Φ950
Φ950
Φ1000/Φ1000/Φ1000/Φ970/Φ950
Max. swing over carriage

mm
Φ800
Φ800
Φ800
Max. cutting diameter (disc/shaft)

mm
Φ800
Φ800
Φ800
Max. cutting length
mm
1000/1500/2000/3000/4000
1000/1500/2000/3000/3500
1000/1500/2000/3000/4000
Spindle bore diameter
mm
Φ130
Φ130
Φ130
Form of spindle nose


A2-11
A2-11
A2-11
Max. diameter through bar

mm
Φ115 (with hydraulic hollow chuck)
Φ115 (with hydraulic hollow chuck)
Φ115 (with hydraulic hollow chuck)
Main motor power (continuous / 30min)

kw
30/37
30/37
30/37
Range of spindle speed / Max. output torque

r/min
(Mechanical 2 steps) 20~1200 / 2450
(Mechanical 2 steps) 20~1200 / 2456
(Mechanical 2 steps) 20~1200 / 2450
Chuck diameter
inch
15”
15"
15”
Max. travel of X-axis

mm
410
410
410
Max. travel of Z-axis

mm
1050/1550/2050/3050/4050
1100/1600/2100/2600/3600
1050/1550/2050/3050/4050
Rapid speed (X axis)

m/min
12/15;12/15;12/12;12/12；12/12
10/12
12/15;12/15;12/12; 12/12；12/12
Form of tool turret


Horizontal 12-position turret
Horizontal 12-position turret
Horizontal 12-position turret
Size of tool shank

mm
32X32 / Φ50
32×32/ Φ50
32×32/ Φ50
Positioning accuracy (X axis)

mm
0.013
0.013
0.013
Positioning accuracy (Z-axis)

mm
0.020/0.026/0.035/0.040/0.048
0.020/0.022/0.03/0.04/0.044
0.020/0.026/0.035/0.040/0.048
Repositioning accuracy(X axis)
mm
0.006
0.006
0.006
Repositioning accuracy(Z-axis)

mm
0.008/0.010/0.013/0.016/0.016
0.008/0.012/0.015/0.018/0.018
0.008/0.010/0.013/0.016/0.016
Machining accuracy

IT6
IT6
IT6
Max. weight of disc workpiece
kg
500
500
500
Max. weight of shaft workpiece
kg
2000
2000
2000
weight of machine
kg
14000/17000/20000/23000/30000
22000/25000/28000/32000/35000
14000/17000/20000/30000
Overall dimensions of machine (LxWxH)

mm
4900x2760x2630/5400x2825x2680/ 5900x2825x2680/6900x2825x2680

7400x2800x3130/7800x2800x313/ 8200x2800x3130/9000x2800x3130/9400x2800x3130
4900x2760x2630/5400x2825x2680/ 5900x2825x2680/6900x2825x2680

Industry application:

Heavy Duty 3/4 Axis Slant Bed CNC Lathe Combo Horizontal CNC Lathe Milling Machine 5

Workpiece example: guide sleeve

Processing model: HTC50t Workpiece material: 27SiMn Linear speed: 120-180m/min Feed rate: 0.1-8mm/r (including thread) Processing efficiency: 26 minutes
Heavy Duty 3/4 Axis Slant Bed CNC Lathe Combo Horizontal CNC Lathe Milling Machine 6

Workpiece example: medium 500 cylinder

Processing model: HTC63350t Workpiece material: 27SiMn Linear speed: 120-180m/min Feed rate: 02-10mm/r (including thread) Processing efficiency: 75 minutes
Heavy Duty 3/4 Axis Slant Bed CNC Lathe Combo Horizontal CNC Lathe Milling Machine 7

Workpiece Example: Drive Axle

Processing model: CQ850n Workpiece material: 40Cr Linear speed: 150-180m/min Feed rate: 0.1-0.3mm/r Processing efficiency: 12 minutes
Heavy Duty 3/4 Axis Slant Bed CNC Lathe Combo Horizontal CNC Lathe Milling Machine 8

Workpiece example: RE2B axle

Processing model: HTC63n (double turret) Workpiece material: 35CrMo Linear speed: 150-260m/min Feed rate: 0.2-0.5mm/r (including thread) Processing efficiency: 39 minutes.

OUR Service:

1. Assemble and debug before delivery

2. Respond within 24 hours and proceed to deal with the problem.

3. 1 year free repair service (no-human damage only).

4. Overall warehousing solution provided

Why Choose Us:
◆ Top quality sense, customers' requests come first

◆ 30 years + R & D history, the company was founded in 1993

◆ High-tech manufacturer with research anddesign capacity

◆ Stable and mature supplying system

◆ Young active sales and engineers for instant services(24 hours online)

◆ Upgrading on mechanism according to ergonomics and easy maintenance

◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
