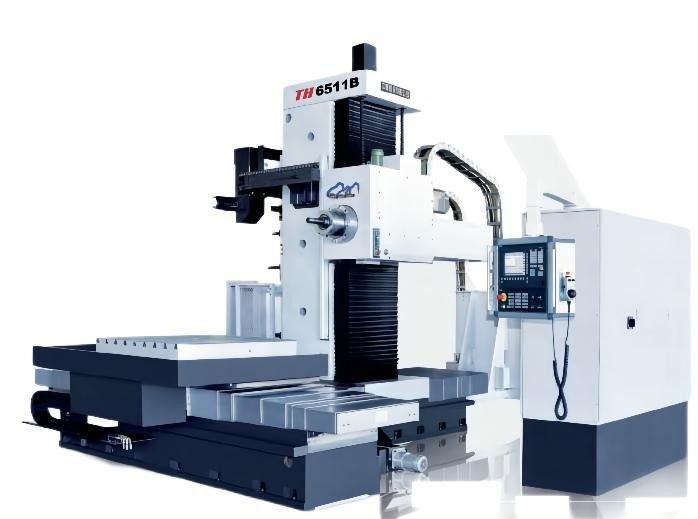

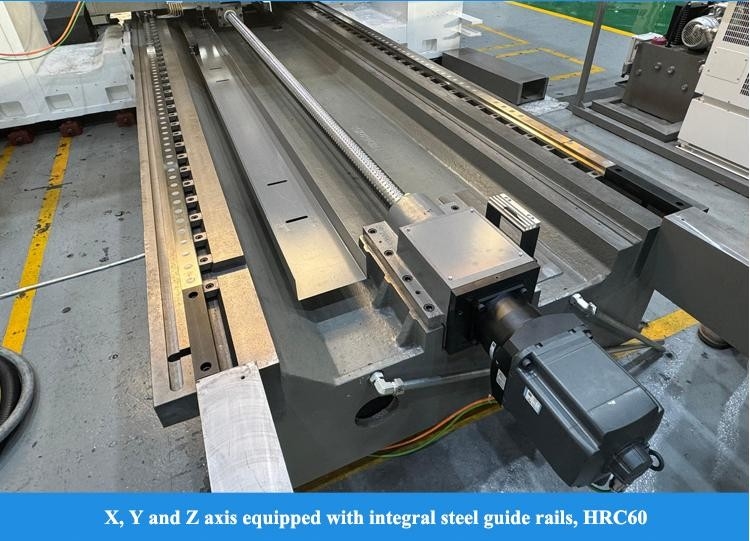

TK6511B/TKP6511B CNC horizontal milling and boring machine for sale
Product Introduction

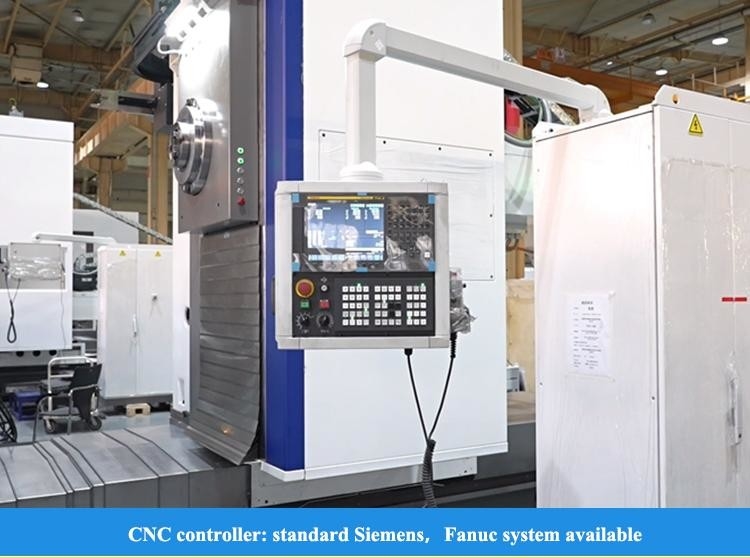

This machine tool is mainly used for milling and boring, and it can also perform various processes such as drilling, reaming, countersinking, turning face and turning outer circle. It is especially suitable for processing box-shaped parts with multiple holes and precise hole spacing. This machine tool can realize automatic coordinate positioning, and can also realize the linkage of any four coordinate axes of X, Y, Z, W, and B. Circular interpolation can be used for contour and three-dimensional surface processing. According to user requirements, it can be equipped with accessories such as vertical CNC turntable, right-angle milling head, etc. to expand the processing range of the machine tool.
Technical parameter

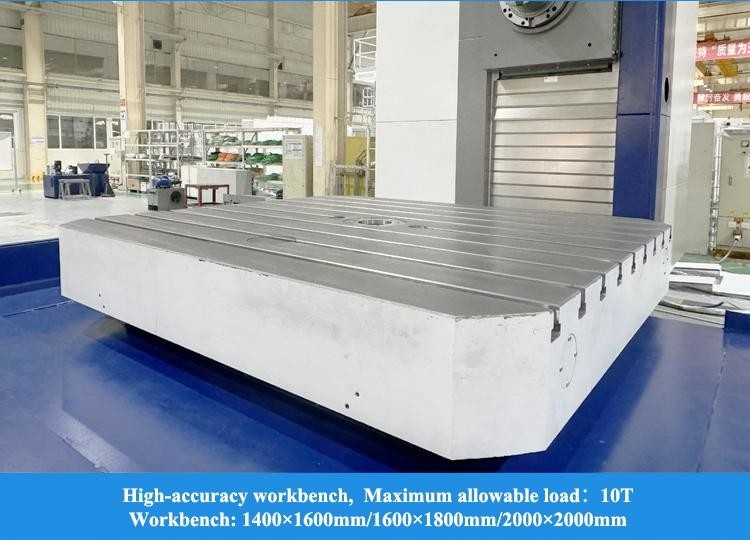

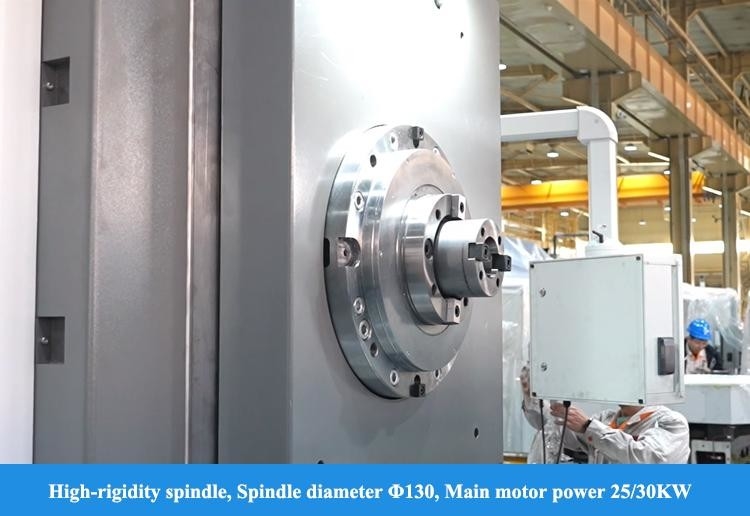

| Item | Unit | TK6511B | TKP6511B | |
| Worktable size | mm | 1000x1250(1250x1400) | 1000x1250(1250x1400) | |
| Max.load on table | kg | 5000 | 5000 | |
| Worktable T-slot | mm x n | 22x7(22x9) | 22x7(22x9) | |
| Spindle diameter | mm | Ø110 | Ø110 | |
| Spindle taper | — | ISO 7: 24 No.50 | ISO 7:24 No.50 | |
| Spindle speed | r/min | 10-2500(10-3000) | 10-2000 | |
| Max.torque of spindle | Nm | 1300/1600 | 1300/1600 | |
| Distance from spindle center to table surface | mm | 60-1560(30-1530) | 60-1560(30-1530) | |
| Min. distance from the spindle end to the center of the worktable | mm | 350(Spindle zero position) | 487(Spindle zero position) | |
| Transverse travel of worktable X | mm | 2000(2500/3000) | 2000(2500/3000) | |
| Vertical travel of spindle box Y | mm | 1500(2000) | 1500(2000) | |
| Column longitudinal stroke Z | mm | 1200(2000) | 1200(2000) | |
| Spindle stroke W | mm | 550 | 550 | |
| Ram stroke V | mm | - | - | |
| Flat rotary plate slider stroke U | mm | - | 140 | |
| Table rotation B | ° | 0.001x360 | 0.001x360 | |
| Feed speed | X,Y,Z | mm/min | 1-6000 | 1-6000 |
| W,U | mm/min | W: 1-2000 | W: 1-2000 U: 1-1000 | |
| B | r/min | 0-1.5 | 0-1.5 | |
| Rapid traverse speed | X,Y,Z | m/min | 9 | 9 |
| W,U | m/min | 2.4 | 2.4 | |
| B | r/min | 2.5 | 2.5 | |

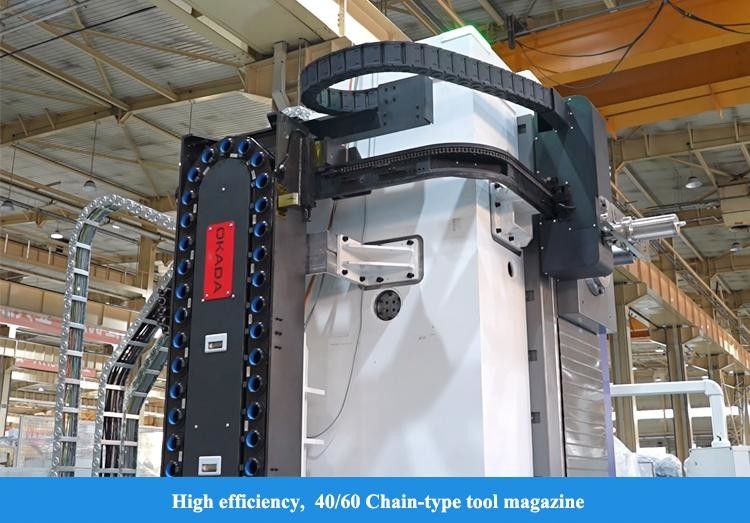

| Automatic tool changing device | Tool magazine capacity/tool change method | piece | 40 (optional 24/60) / fixed point | 40 (optional 24/60) / fixed point |
| Tool holder specifications | — | ISO 7: 24 JT50(BT50/CAT50) | ISO 7: 24 JT50(BT50/CAT50) | |
| Max.weight of tool | kg | 25 | 25 | |
| Max.tool length/diameter | mm | 400/Ø125 | 400/Ø125 | |
| Tool change time | S | 15 | 15 | |
| Max.diameter of adjacent empty tool | mm | Ø250 | Ø250 | |
| Tool holder specifications | — | ISO 7:24 JT50 | ISO 7:24 JT50 | |
| Pull nail standard | 一 | LDA-50 | LDA-50 | |
| main motor power | kW | 19.5/23.4(continuous/30min) | 19.5/23.4(continuous/30min) | |
| positioning accuracy | X,Y,Z | mm | X:0.020;Y,Z: 0.018;W: 0.020 | X:0.020;Y,Z: 0.018;W: 0.020;U:0.032 |
| B(4x90°) | " | 10''(6'') | 10''(6'') | |
| Repeat positioning accuracy | X,Y,Z | mm | X:0.011; Y,Z: 0.01;W: 0.016 | X:0.011; Y,Z: 0.01;W: 0.016;U:0.018 |
| B | ” | 7" | 7" | |
| Electrical total capacity | kVA | 55 | 55 | |
| Overall dimensions(L*W*H) | mm | 5555x4155x4200 | 5555x4155x4200 | |
Field application
Widely used in aviation, aerospace, shipbuilding, transportation, railways, military industry, energy, wind power, nuclear power, heavy-duty, metallurgy, mining, construction machinery, petrochemical machinery, internal combustion engines, water pumps and other general machinery processing industries. It is a processing box, The key first-selected equipment for large and medium-sized parts such as housings and bases.
