Place of Origin:
China
Brand Name:
SYMG
Certification:
ISO certification
Model Number:

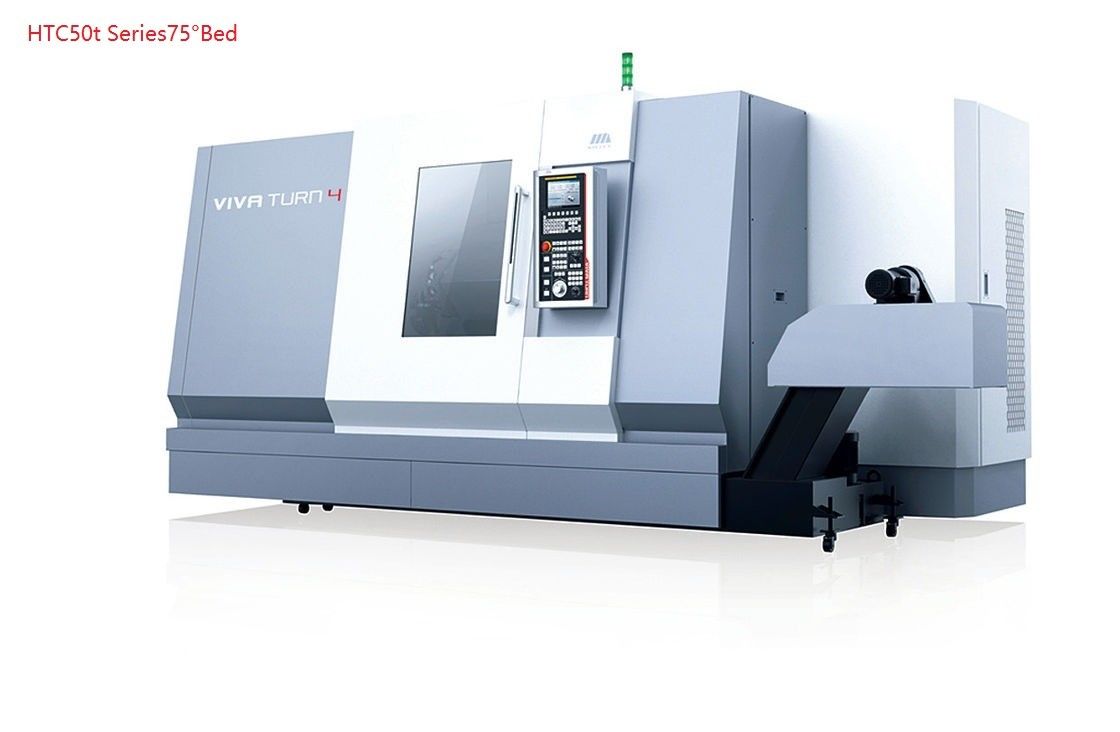

HTC50t Series75°Bed
Video
Video
Adopt 75° high rigidity integral oblique bed, all castings adopt finite element optimization, wide guide rail surface, effectively eliminate the vibration occurring in machine tool cutting, enhanced reliability, easy maintenance, and can obtain lasting and stable processing quality.
When the lifting and unloading workparts and the center frame interfere, the overall 75 inclined bed machine tool can be selected, equipped with vertical horizontal center frame, the spindle center is closer to the operator, to facilitate the upper and lower workparts and debris removal, high investment income, processing quality is guaranteed.
MainTechnical Parameters
| Items | Unit | HTC50t Series75°Bed | |
| Maximum diameter of swing over bed | mm | ∅700 | |
| Maximun cutting length | mm | 1500/2500 | |
| Maximum cutting diameter | mm | 500 | |
| Maximum turning diameter on the slide | mm | 500 | |
| Spindle nose | A2-11 | ||
| Spindle hole diameter | mm | 105 | |
| Maximum diameter of through bar | mm | 85 | |
| Spindle speed range | r/min/Nm | 30-2000 | |
| Main motor 15 minutes / continuous | kW | 22/30 | |
| Standard chuck diameter | inch | 12" | |
| X/Z-axis fast moving speed | m/min | 12 | |
| Y-axis fast moving speed | m/min | ||
| X-axis travel | mm | 270 | |
| Z-axis travel | mm | 1600/2600 | |
| Y-axis travel | mm | 一 | |
| Tailstock body stroke | mm | ||
| Tailstock spindle taper | Mohs | 6# | |
| Tailstock sleeve stroke | mm | ||
| Standard tool turret type | horizontal tool turret 12 stations | ||
| Tool size | External tool | mm | 32x32 |
| Boring bar diameter | mm | ∅50 | |
| Machining Accuracy | IT6 | ||
| Positioning accuracy | X axis | mm | 0.011 |
| Z axis | mm | 0.02/0.04 | |
| Y axis | mm | ||
| C axis | mm | 一 | |
| Repeat position accuracy | X axis | mm | 0.006 |
| Z axis | mm | 0.012/0.02 | |
| Y axis | mm | ||
| C axis | mm | 一 | |
| Max. job load | Disk type | kg | 200 |
| Shaft parts | kg | 800 | |
| Machine weight | kg | 18000/20000 | |
| Machine tool Length × width × height | mm | 5100x2900x2750 6100x2900x2750 |
|
