SMTCL High Rigidity 4 Axis Vertical Machining Center VMC1300B CNC Milling Machine

SMTCL High Rigidity 4 Axis Vertical Machining Center VMC1300B CNC Milling Machine

VMC1300 4 Axis Vertical Machining Center

High Rigidity 4 Axis Vertical Machining Center

High Rigidity 4 Axis Milling Machine

Place of Origin:

China

Brand Name:

SYMG

Certification:

CE ISO

Model Number:

VMC1300

Contact Us
Request A Quote
Product Details
Product Name:
VMC1300 Vertical Machining Center 4 Axis
Worktable Dimensions:
1400x700mm
T-slot Sizes:
18x5mm
Max. Load Allowed:
1000kg
X/Y/Z-axis Travel:
1300/700/700mm
Max. Distance From Spindle Nose To Worktable:
850mm
Min. Distance From Spindle Nose To Worktable:
150mm
Spindle Speed:
8000/6000/6000r/min
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Package suitable for long distance sea freight
Delivery Time
30-45 days
Supply Ability
1000 Set/Sets per Year
Product Description

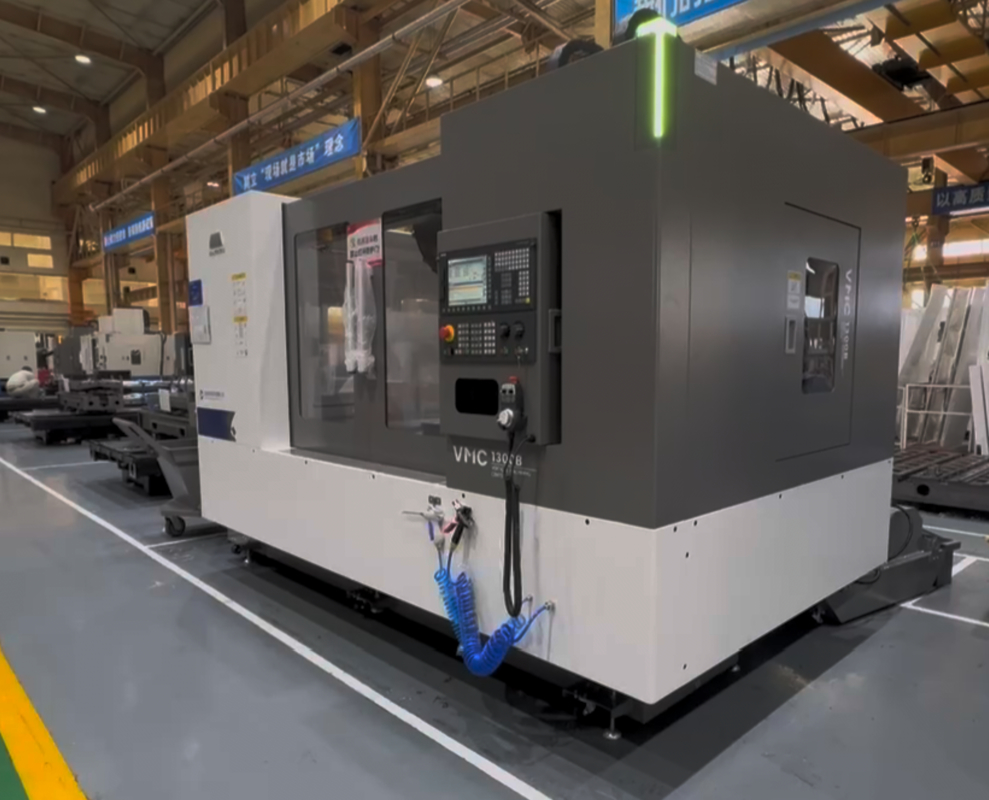

SMTCL High Rigidity 4 Axis Vertical Machining Center VMC1300B CNC Milling Machine 0

Product Description:

SMTCL High Rigidity 4 Axis Vertical Machining Center VMC1300B CNC Milling Machine
VMC-B through the typical series product description is a combination of market demand and development of a product, it is not only complete specifications, from the table 800×420mm to 2200×800mm, X-axis travel from 700mm to 2100mm; From the spindle configuration, we also achieve a variety, from the standard belt connection, direct connection 8000 to the output of 380Nm large torque.
VMC-B is a very cost-effective typical machine tool, ultra wide bed design to ensure the machine has the best support capacity and stability, and the bed adopts a large bevel structure, Y axis adopts split protection, making chip removal convenient and fast.

Product Features:

1,Classical Structure Design

◆ Super wide beveled bed

◆ Split cover of Y-axis

◆ Multistage filtered chain plate chip conveyo

2,New Update and Improvemer

◆ Improved the thermal stability of lead screw

◆ Improved the seal class of cover

◆ Reduced the thermal deformation of headstock

3,High Configuration, Wide Applicability

◆ Large machining range

◆ Standard chain plate chip conveyor

◆ 11/15 kw main motor

Product Details:

SMTCL High Rigidity 4 Axis Vertical Machining Center VMC1300B CNC Milling Machine 1
Product Paramenters:
Item
Unit
VMC 1300B
VMC 1600B
VMC 2100B
Capacity
X axis travel
mm
1300
1600
2100
Y axis travel
mm
700
800
800
Z axis travel
mm
700
800
800
Spindle nose to table surface
mm
150-850
140-940
200-1000
Worktable
Table size (L×W)
mm
1400×700
1700×800
2200×800
Max load on the table
kg
1000
2000
3000
T-slot size
mm
18×5
22×5
22×5
Spindle
Spindle speed
rpm
10000
6000
6000
Spindle taper/spindle shank
mm
7/24
7/24
7/24
BT40
BT50
BT50
Spindle motor
kw
11/15
15/18.5
15/18.5
Maximum output torque
N.m
52.5
95.4
95.4
Feed rate
X,Y,Z rapid traverse
M/min
24/24/20
24/24/20
18/18/18
Feed rate
MM/min
1-10000
1-10000
1-10000
A.T.C
Tool storage capacity
pc
20
20
20
Maximum tool length
mm
300
300
300
Tool change time
sec
2.5
3.5
3.5
Accuracy
Positioning accuracy X/Y/Z

mm
0.010/0.008/0.010
0.015/0.010/0.010
0.018/0.008/0.010
Repeatability positioning X/Y/Z

mm
0.008/0.006/0.008
0.010/0.008/0.008
0.010/0.008/0.008
Others
Overall dimensions(L×WxH)

mm
5026×2970×3361
5840×3340×3715
6705×3500×3910
Net machine weight
kg
9500
12400
17000
Total power requirment
KVA
37

37
37

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
SMTCL High Rigidity 4 Axis Vertical Machining Center VMC1300B CNC Milling Machine 2
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:

SMTCL High Rigidity 4 Axis Vertical Machining Center VMC1300B CNC Milling Machine 3

Exhibition:

SMTCL High Rigidity 4 Axis Vertical Machining Center VMC1300B CNC Milling Machine 4

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
