Model Number:
GMC3080GRV
Product Description:

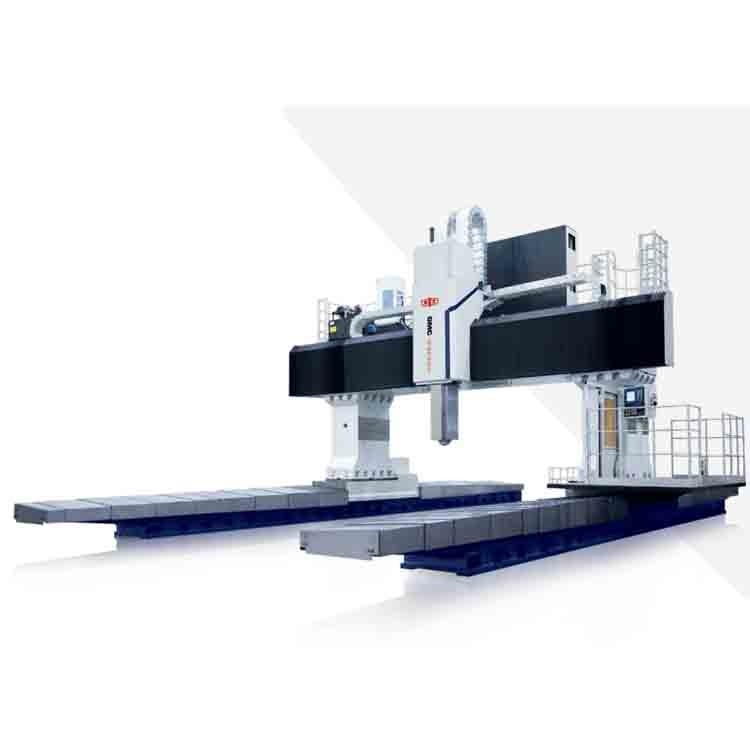

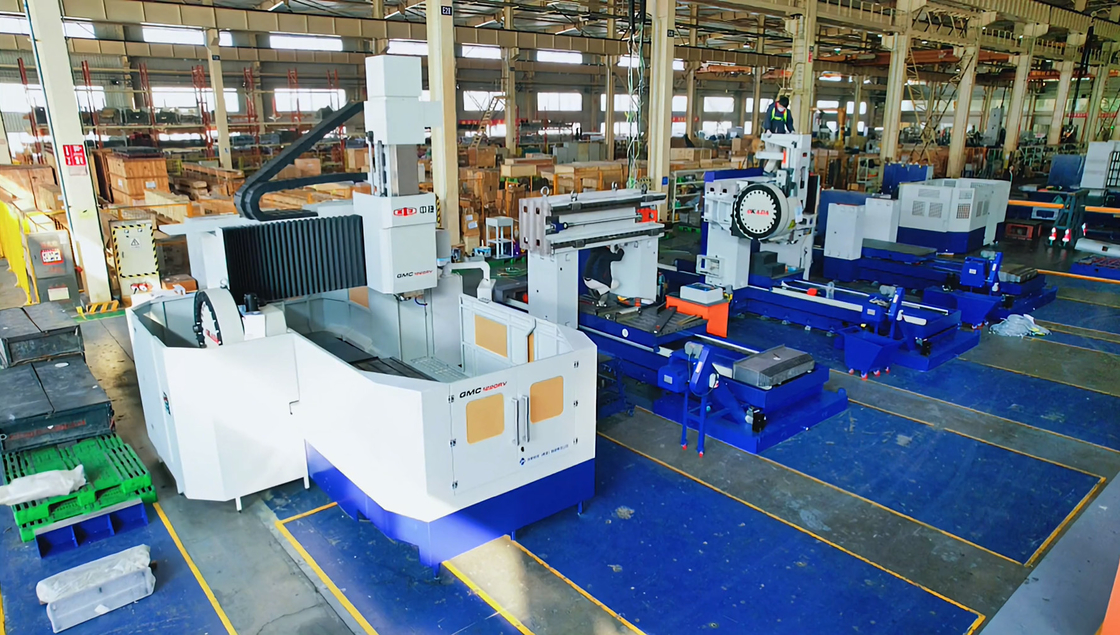

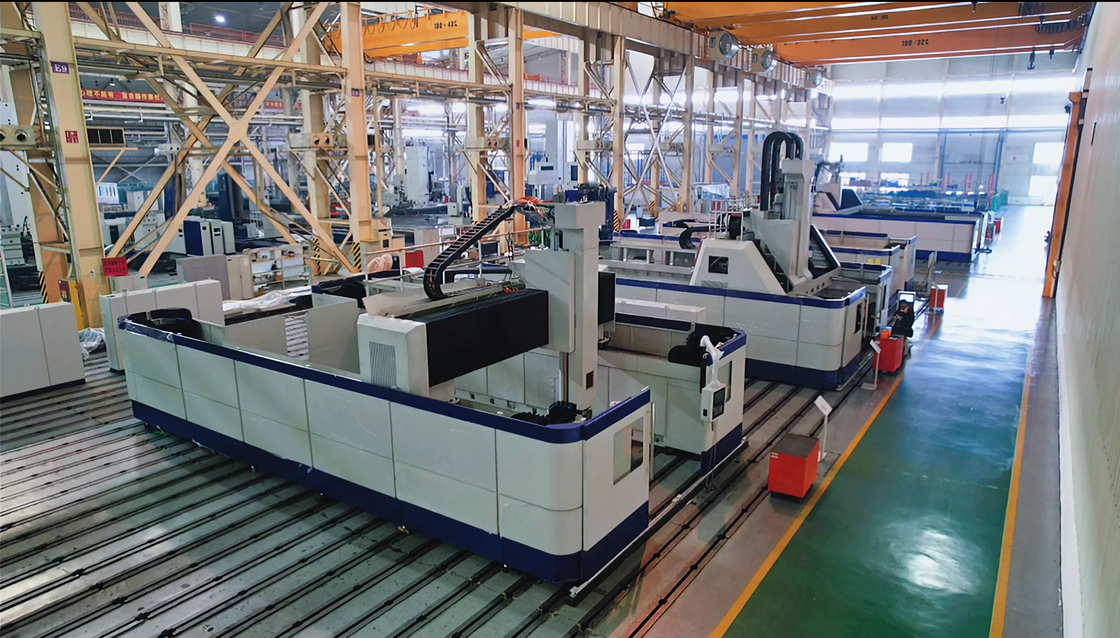

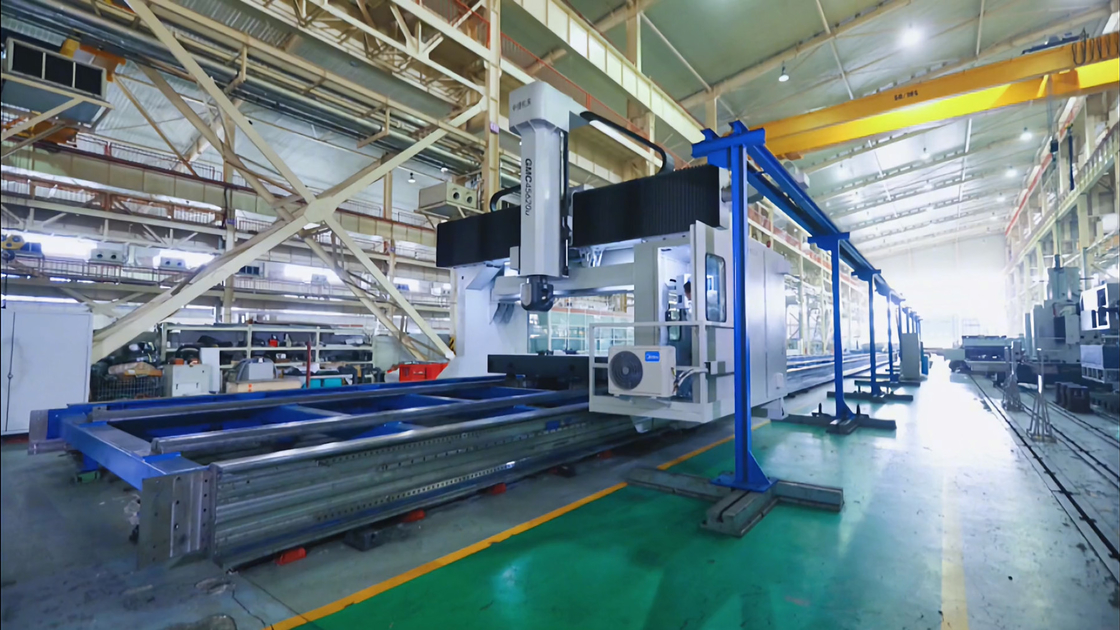

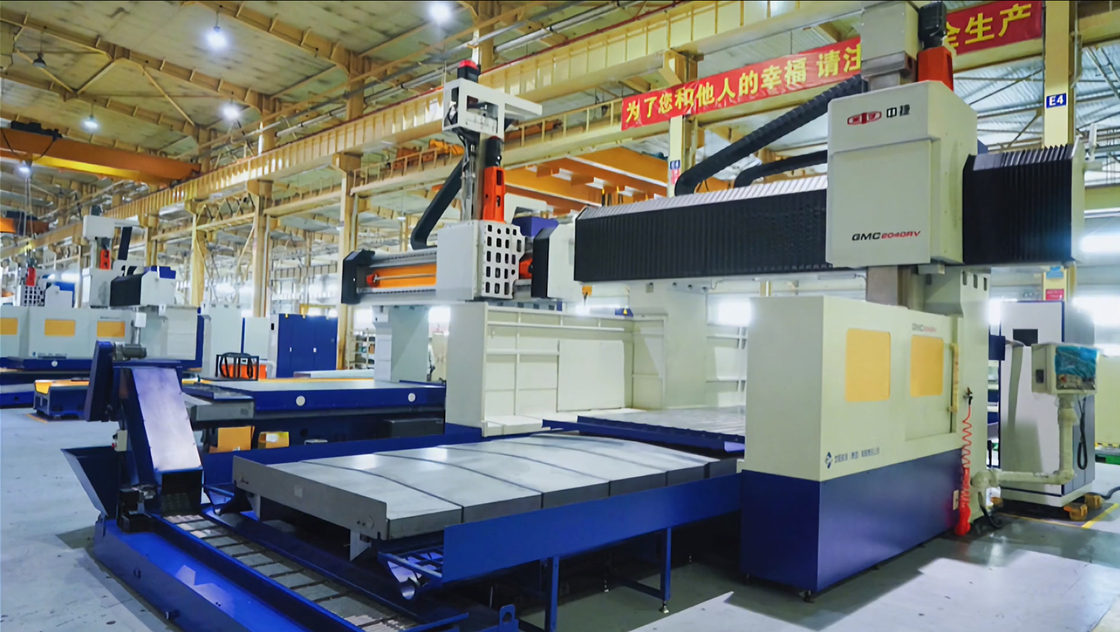

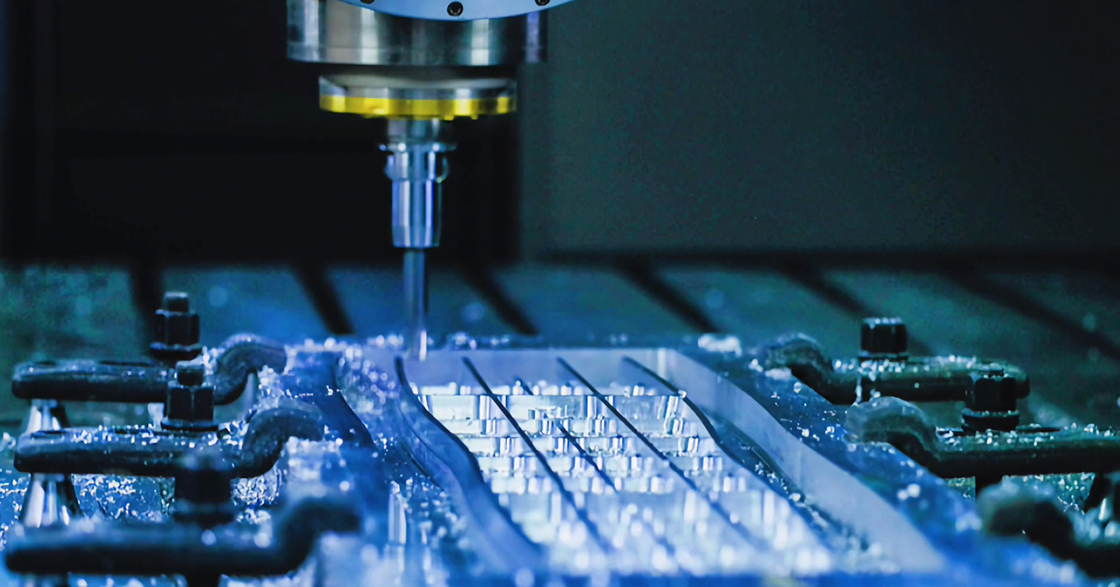

GMC-GRV series machine tool is a large size high speed gantry moving CNc machine tool featuring fixedworkbench and longitudinal moving gantry frame. The gantry frame adopts bilateral driving, each side adopts double-drive anti-backlash structure;crossbeam is configured with imported precise linear guiderail, and ram adopts enclosed wrap-aroundsliding guiderail pair. The series of machine tool features high speed spindle, strong machining capability and extensivescope of application, is configured with automated right-angle milling head, and is able to continuouslycomplete high accuracy and high efficiency machining of multiple procedures such as drilling, reamingand rigid tapping of milling plane, step, groove, complicated profile, cavity and various holes after onetime of fixture. The machine tool features compact and reasonable overall layout, convenient repair andmaintenance.All key outsourced parts adopt products of foreign outstanding brands and the reliability ofmachine tool is high.
|
Item
|
unit
|
GMV 3080GRV
|
GMV 4080GRV
|
|||
|
Workbench
|
Dimension of workbench
|
mm
|
3000×8000
|
4000×8000
|
||
|
Distance between two columns
|
mm
|
4200
|
5200
|
|||
|
Load capacity of workbench
|
t/m2
|
10
|
10
|
|||
|
T-shaped groove width
|
mm
|
28
|
28
|
|||
|
Machining
range |
Maximum gantry travel-X-axis
|
mm
|
8000
|
8000
|
||
|
Maximum slide travel-Y axis
|
mm
|
4200
|
5200
|
|||
|
Maximum ram travel-Z axis
|
mm
|
1250
|
1500
|
1250
|
1500
|
|
|
Distance from spindle nose to workbench-Maximum
|
mm
|
1500
|
2000
|
1500
|
2000
|
|
|
Distance from spindle nose to workbench-Minimum
|
mm
|
250
|
500
|
250
|
500
|
|
|
Spindle
|
Taper hole(7:24)
|
|
BT50
|
BT50
|
||
|
Speed range
|
r/min
|
40-4500
|
40-3000
|
40-4500
|
40-3000
|
|
|
Output torque (rated/30min)
|
N.m
|
1050/1260
|
2000/2400
|
1050/1260
|
2000/2400
|
|
|
Spindle motor power(frated/30min)
|
kW
|
30/36
|
30/36
|
30/36
|
30/36
|
|
|
Section size of rectangle ram
|
mm
|
400×400
|
500×500
|
400×400
|
500×500
|
|
|
Feeding
|
Feed speed range
|
mm/min
|
1-6000
|
1-6000
|
||
|
Rapid motion X-axis
|
m/min
|
10
|
10
|
|||
|
Rapid motion Y-axis
|
m/min
|
12
|
12
|
|||
|
Rapid motion Z-axis
|
m/min
|
12
|
12
|
|||
|
Positioning
accuracy of the machine |
X-axis
|
mm
|
0.014/2000
|
0.014/2000
|
||
|
Y-axis
|
mm
|
0.035
|
0.04
|
|||
|
Z axis
|
mm
|
0.022
|
0.025
|
0.022
|
0.025
|
|
|
Repeatability
accuracy |
X-axis
|
mm
|
0.01/2000
|
|
0.01/2000
|
|
|
Y-axis
|
mm
|
0.02
|
0.025
|
|||
|
Z axis
|
mm
|
0.01
|
0.012
|
0.01
|
0.012
|
|
|
Total electric capacity
|
KVA
|
130
|
135
|
130
|
135
|
|
|
Floor spacerequired bythe machine (L*W*H)(forrelerence)
|
mm
|
21050×9400×6206
|
21050×9400×6700
|
21050×10400×6206
|
21050×10400×6700
|
|
