SMTCL Vertical Lathe Milling Center VTC160100S Fixed Beam 3 Axis CNC Milling Machine

SMTCL Vertical Lathe Milling Center VTC160100S Fixed Beam 3 Axis CNC Milling Machine

Fixed Beam Vertical CNC Lathes

Vertical Lathe Milling Center VTC160100S

Fixed Beam CNC Milling Machine

Place of Origin:

CHINA

Brand Name:

SMTCL

Certification:

CE ISO certification

Model Number:

VTC160100S

Contact Us
Request A Quote
SMTCL Vertical Lathe Milling Center VTC160100S Fixed Beam 3 Axis CNC Milling Machine
SMTCL Vertical Lathe Milling Center VTC160100S Fixed Beam 3 Axis CNC Milling Machine SMTCL Vertical Lathe Milling Center VTC160100S Fixed Beam 3 Axis CNC Milling Machine SMTCL Vertical Lathe Milling Center VTC160100S Fixed Beam 3 Axis CNC Milling Machine SMTCL Vertical Lathe Milling Center VTC160100S Fixed Beam 3 Axis CNC Milling Machine SMTCL Vertical Lathe Milling Center VTC160100S Fixed Beam 3 Axis CNC Milling Machine
Product Details
Brand Name:
SMTCL
Model Number:
VTC160100S
CNC Or Not:
CNC
Key Word:
Vertical Lathe Milling Center
Diameter Of Workbench:
Ø1400mm
Maximum Turning Diameter:
Ø1600mm
Maximum Workpiece Height:
1000mm
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T, L/C,, Western Union
Supply Ability
50 sets per month
RELATED PRODUCTS
Good price High Cost Performance T6 CNC Machining Lathe Metal Turning Center SMTCL Vertical CNC Lathe online Video

High Cost Performance T6 CNC Machining Lathe Metal Turning Center SMTCL Vertical CNC Lathe

Get Best Price
Good price T6 Vertical CNC Lathes High Precision CNC Machining Metal Turning Center online Video

T6 Vertical CNC Lathes High Precision CNC Machining Metal Turning Center

Get Best Price
Good price Inverted Vertical Lathe IVT45 Spindle Gripping Automatic Loading And Unloading Vertical CNC Lathe online Video

Inverted Vertical Lathe IVT45 Spindle Gripping Automatic Loading And Unloading Vertical CNC Lathe

Get Best Price
Good price SMTCL Vertical CNC Lathe V4H CNC Vertical Milling Machine Lathe Milling Machine Combo Vertical CNC Lathe online Video

SMTCL Vertical CNC Lathe V4H CNC Vertical Milling Machine Lathe Milling Machine Combo Vertical CNC Lathe

Get Best Price
Contact Us
+8613916455787
sales@huidijd.com
86-021-61195255
Contact Now
Product Description



Product Description:



VTC12560S CNC vertical lathe is a new generation product completelyindependently researched and developed on the basis of sufficientdigestion and absorption of foreign advanced technology incombination with the advantageous technology of CNC vertical latheof Shenyang Machine Tool Group.The key outsourced componentssuch as CNC system, main electrical parts, main bearing, ball leadscrew, linear guiderail and reducers of this series of machine toolsadopt the products of foreign famous brand manufacturers.Theproduct is mainly used for mechanical treatment industries such aspump valve, track traffic, electric motor, metallurgy, mining, bearingand engineering machinery to machine various large-size componentsfeaturing high accuracy, multiple work procedures and complicatedshape.This machine tool is able to save technical equipment, shortenthe production preparation cycle, ensure the machining quality of partsand improve production efficiency.


Product Details:

SMTCL Vertical Lathe Milling Center VTC160100S Fixed Beam 3 Axis CNC Milling Machine 0

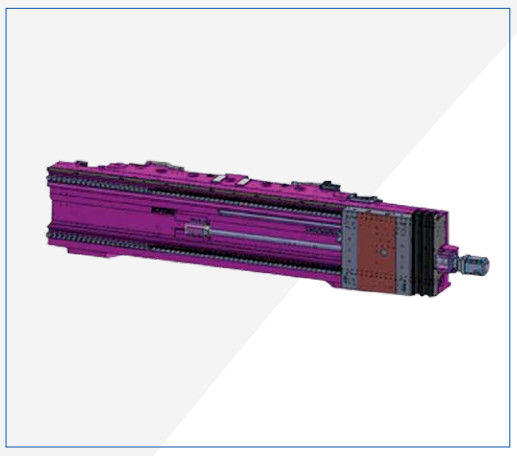

Crossbeam: design of crossbeam adopts sufficient guiderail span andthickness as well as reasonable layout to prevent bending generated by rammotion and cutting force and enhance rigidity of crossbeam.
SMTCL Vertical Lathe Milling Center VTC160100S Fixed Beam 3 Axis CNC Milling Machine 1



Tool holder: the thrusting cylinder installed on upper part of ram moves drag link up/down to forcefully raise and tightly pull tool holder, and lower fluteddisc is used for positioning.
SMTCL Vertical Lathe Milling Center VTC160100S Fixed Beam 3 Axis CNC Milling Machine 2



Ram: ram is a rectangle ram and moves on crossbeam along X-axis and Z-axisdirections.Forged ram ensures sufficient cutting rigidity.
SMTCL Vertical Lathe Milling Center VTC160100S Fixed Beam 3 Axis CNC Milling Machine 3



Optional: tool setting gauge, multi-position tool holder and right-angleboring/milling head.(VTC-M series)



Product Paramenters:

ltems
UNIT
VTC 160100S
Diameter of workbench
mm
Ø1400
Maximum turning diameter
mm
Ø1600
Maximum workpiece height
mm
1000
Maximum workpiece weight
t
6
Maximum torque of workbench
Nm
13300
Maximum speed of workbench
rpm
280
Power of variable frequency spindle motor
kw
37
Section size of ram
mm×mm
200×200
X-axis travel
mm
-50±1520
Z-axis travel (ram travel)
mm
1000
Crossbeam travel (W-axis)
mm
Fixed beam
X-axis rapid traverse speed
m/min
12
Z-axis rapid traverse speed
m/min
8
Crossbeam rapid traverse speed (W-axis)
m/min
Fixed beam
Dimension of turning tool shank
mm×mm
40×40
Positioning accuracy of X/Z axes
mm
0.025/1000
Positioning repeatability of X/Z axes
mm
0.008
CNC system

SIEMENS 828D






OUR Service:



1. Assemble and debug before delivery


2. Respond within 24 hours and proceed to deal with the problem.

3. 1 year free repair service (no-human damage only).

4. Overall warehousing solution provided


Why Choose Us:

◆ Top quality sense, customers' requests come first

◆ 30 years + R & D history, the company was founded in 1993

◆ High-tech manufacturer with research anddesign capacity

◆ Stable and mature supplying system

◆ Young active sales and engineers for instant services(24 hours online)

◆ Upgrading on mechanism according to ergonomics and easy maintenance

◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production


About Us:

SMTCL Vertical Lathe Milling Center VTC160100S Fixed Beam 3 Axis CNC Milling Machine 4

Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory:

SMTCL Vertical Lathe Milling Center VTC160100S Fixed Beam 3 Axis CNC Milling Machine 5


Exhibition:


SMTCL Vertical Lathe Milling Center VTC160100S Fixed Beam 3 Axis CNC Milling Machine 6





FAQ:



Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
