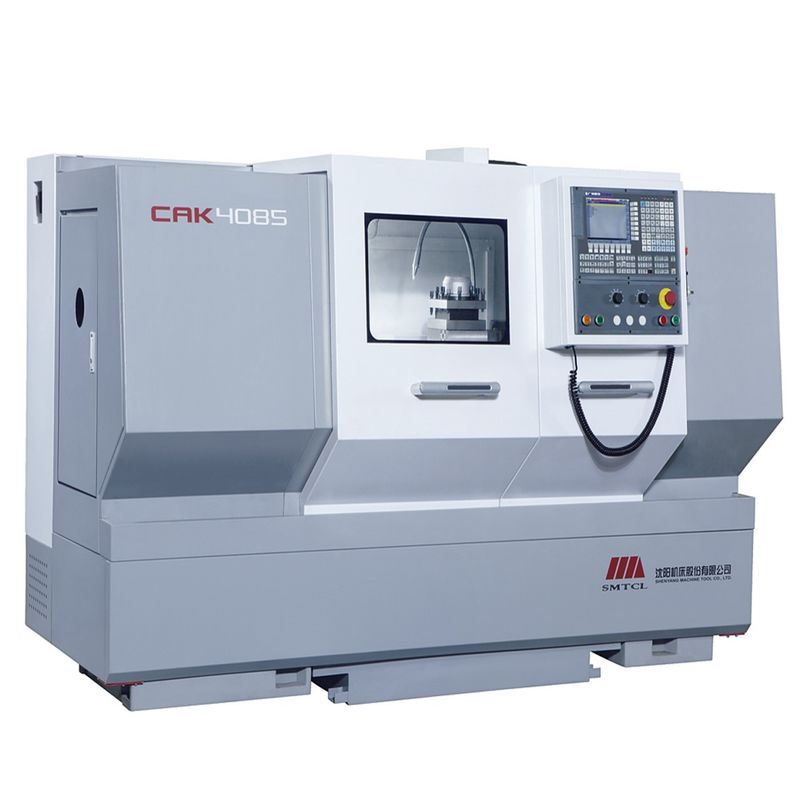

SMTCL CNC Lathe CAK4085 10 inch chuck CNC Turning Lathe Flat Bed CNC Lathe
Product Details
| Product Name: | CAK4085 Cnc Lathe Turning Machine | Max. Length Of Workpiece (mm): | 1000 |
|---|---|---|---|
| Max. Spindle Speed (r.p.m): | 100-2400 | Max. Turned Length (mm): | 850 |
| Max. Swing Diameter (mm): | 400 | Control System: | SIEMENS GSK FANUC (optional) |
| Chuck: | 10" | X /Y Axis Travel Speed: | 6/12 M/min |
| Max Turning Dia Over Silder: | 200mm | Spindle Nose: | A16 |
| Spindle Speed Ranges: | 100-2000rpm | The Travel Of Tailstock Sleeve: | 140mm |
| Highlight |
CNC Turning Lathe Machine,CAK4085 CNC Turning Lathe Machine,Flat Bed CNC Lathe |
||
Product Description
- The machine has high precision. The spindle is BEARING Harbin BEARING double ball BEARING BEARING with high precision, low noise, high precision and good stability.
- Can turn all kinds of rotary surface, such as cylinder, cone, special surface, etc., and can groove cutting, car thread, boring, reaming processing, high efficiency, strong applicability.
- The light super audio guide rail of the bed is refined after quenching, with high hardness and good rigidity.
- Ball screw adopts integral internal circulation screw with diagonal contact ball bearing to support and pretighten.Guide rail, screw, etc. adopt centralized automatic lubrication, with flexible movement, reduce thermal deformation, precision stability characteristics.
- The electric four-position knife rest adopts precise tooth disk positioning, with high repeatability positioning accuracy.
- Tailstock with fast CAM clamping device, high working efficiency.The tailstock sleeve has a device to prevent the bit from rotating, which can avoid the damage to the taper of the hole in the tailstock sleeve caused by the rotation of the bit by misoperation, and effectively protect the tailstock components.
- Numerical control system adopts Japan FANUC 0iTF, the famous control system products at home and abroad, can choose hybrid stepping motor drive or AC servo motor drive, also can choose other systems according to user requirements.
- Easy to operate, especially suitable for complex parts or high precision parts of the processing of large quantities.
| Model | Unit | CAK3665 | CAK4065 | CAK4085 |
|---|---|---|---|---|
| Max workpiece length | mm | 750 | 750 | 1000 |
| Max turning length | mm | 650 | 650 | 850 |
| Max. swing diameter over bed | mm |
40 0 |
400 | 400 |
| Max. swing diameter over slide | mm | 180 | 200 | 200 |
| Max. cutting diameter | mm | 360 | 400 | 400 |
| Diameter of spindle bore | mm | 53 | 53 | 53 |
| spindle nose | A26 | A16 | A16 | |
| Spindle speed | stepless | stepless | Stepless | |
| Spindle speed range | m/min | 100-3000 | 100-2400 | 100-2400 |
| Chuck diameter | mm | 200 | 250 | 250 |
| Main motor power | kW | 5.5 | 5.5 | 5.5 |
| Tailstock sleeve diameter | mm | 60 | 60 | 60 |
| Tailstock sleeve travel | mm | 140 | 140 | 140 |
| Standard tool holder form | vertical 4 station | vertical 4 station | vertical 4 station | |
| Size of tool shank | 20×20 mm | 20×20 mm | 20×20 mm | |
| Rapid speed (X/Z-axis) | m/min | 6/12 | 6/12 | 6/12 |
| Machining accuracy | IT6-IT7 | IT6-IT7 | IT6-IT7 | |
| Net/Gross weight of machine | kg | 1860 | 1860 | 1960 |
| Packing box dimensions(L×W×H) | mm | 2350x1500x1580 | 2350x1500x1580 | 2470x1500x1580 |
